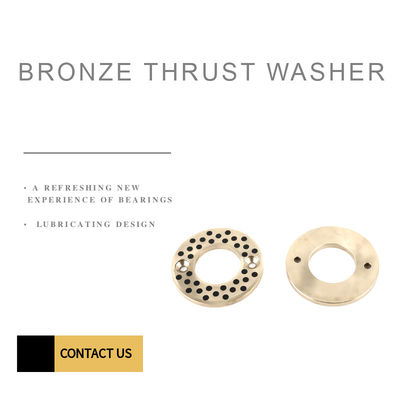

SOBW Bronze Thrust Washer For Automobile Assembling Line

Place of Origin oilless bushing
Brand Name VIIPLUS
Certification ISO 9001
Model Number Self-Lubricating Washer
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T, Terms of payment and delivery: 30% down payment;70% before shipment/FOB CIF
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing
Product Details
Type Bronze Thrust Washers Material CuZn25A16Fe3Mn3 Thrust Bearing Washer
FOB Shanghai Payment 30% Down Payment;70% Before Shipment/FOB CIF
Lubrication Oil Free,Oil-free Self-lubricated Size Custom Size
High Light

SOBW Bronze Thrust Washer

,

HB210 Bronze Thrust Washer

,

HB275 thrust bearing washer

Leave a Message
Product Description

A oilless bearing that can improve productivity and save time / cost due to material properties that can withstand both high and low temperatures, corrosive environment, foreign particles and impact load. There are various types of oil-free bearing shapes and materials such as metal, non-metal, plastic and ceramic.

Bronze Graphite Filled Thrust Washer

Our bearings have been developed for high load, low speed applications and are made from rotationally cast high strength bronze using a specially formed graphite plug as a lubricant.
Our range of oil free washers are available in metric and imperial sizes. Our in-house machining service can produce non-standard sizes to meet customer's specific needs.



SOBW Bronze Thrust Washer / Oilless bush, copper alloy washer type



Graphite Impregnated Bronze Slide Plate at Best Price

Choose from our selection of bronze thrust washers, including embedded graphite thrust bearings, bronze thrust bearings, and more. Customized Size and brass thrust washer material.





BRASS WASHER ONLINE SOURCING

Oil Free Washers - Select, configure, order.



Washer, self-lubricating



Plain Thrust Washer, Graphite Plugged Thrust Washer, and Oil / Grease Grooved Thrust Washer.



High hardness impregnated brass solid lubrication bearing is improved upon viiplus.com by further enhance the hardness of high hardness brass, giving rise to higher load-bearing capacity and better wear-resistant property. The products are widely used in continuous casting rolling machines, mining equipment, engineering equipment, injection-molding machines, etc. Because of its high hardness, it's difficult to machining and finish, it's recommended only for really high load applications.

Basic material CuZn25A16Fe3Mn3 Dynamic load 120N/mm²
Base hardness HB210~275 Friction Coef <0.16
Temperature Max 300℃ Speed limit dry 0.4m/s oil 5m/s




Bronze alloy metallic bearings bronze thrust washer with graphite plugs provides both the good wear resistance and great self-lubricating feature of the bearings.


This designation enables the bearings to be operated without oiling or greasing maintenance.


It is widely used in the field of high load and intermittent movement as well as oscillating movement conditions such as automobile assembling line, Water Turbine, Gate dams, and Plastic Injection Machinery.


Depending on different working conditions, a variety of types of different alloys are available.



BRONZE THRUST BEARINGS



The material of the bronze thrust washer is made of a strong cast bronze base metal with built-in special solid lubricants. prelubrication under extremely high / low temperature conditions at low speed. This material provides a maintenance-free bearing solution, especially for high loads, intermittent oscillating motion.



This type of bearing can be applied in dry, high temperature, high pressure, corrosive environment, with water or other chemicals when it is not possible to introduce oil.



It is now widely used in automotive product line, water engineering, dam gates, plastic industries, later casting machines, steel rollers in metallurgical industry, mineral machinery ships, turbo generators , in hydraulic turbines and injection molding machines.



Self-lubricating Thrust Washer Standard Metric Size


Article name Shaft diameter Inner diameter d Outer diameter D D1 l r M (ISO 10642) CAD-Download Inquiry
SOBW 10 10 10,2 30 20 3 0,5 2xM3
SOBW 12 12 12,2 40 28 3 0,5 2xM3
SOBW 13 13 13,2 40 28 3 0,5 2xM3
SOBW 14 14 14,2 40 28 3 0,5 2xM3
SOBW 15 15 15,2 50 35 3 1 2xM3
SOBW 16 16 16,2 50 35 3 1 2xM3
SOBW 18 18 18,2 50 35 3 1 2xM3
SOBW 20 20 20,2 50 35 5 1 2xM5
SOBW 25 25 25,2 55 40 5 1 2xM5
SOBW 30 30 30,2 60 45 5 1 2xM5
SOBW 35 35 35,2 70 50 5 1 2xM5
SOBW 40 40 40,2 80 60 7 2 2xM6
SOBW 45 45 45,3 90 67,5 7 2 2xM6
SOBW 50 50 50,3 100 75 8 2 4xM6
SOBW 55 55 55,3 110 85 8 2 4xM6
SOBW 60 60 60,3 120 90 8 2 4xM8
SOBW 65 65 65,3 125 95 8 2 4xM8
SOBW 70 70 70,3 130 100 10 2 4xM8
SOBW 75 75 75,3 140 110 10 2 4xM8
SOBW 80 80 80,3 150 120 10 2 4xM8
SOBW 90 90 90,5 170 140 10 2 4xM10
SOBW 100 100 100,5 190 160 10 2 4xM10
SOBW 120 120 120,5 200 175 10 2 4xM10



The bronze thrust washers are manufactured from a variety of Bronze Alloys, including: C95400 Aluminum Bronze, C93200 Bearing Bronze and C86300 Manganese Bronze.



We provide your desired Thrust Washers according to the specifications you require.



Bronze Thrust Washer Feature



Bronze alloy CuZn25Al5Mn4Fe3 + Graphite plugs



Oilless bearings are designed for high load, low speed applications and are made from rotationally cast high strength bronze using a specially shaped graphite plug as a lubricant.


Our range of oil-free washers are available in metric and imperial sizes. Our in-house machining service can produce custom-made products that meet specific customer requirements.


Bronze Thrust Washer Structures

Bronze thrust washer with solid lubricant plug (graphite)



① Solid lubricant film
② Solid lubricant plug
③ Bronze backing



Material features



  1. Provides long-term operation without maintenance;
  2. Suitable for high static and dynamic loads;
  3. With low and smooth coefficient of friction and no stick-slip effects;
  4. Suitable for dirty, corrosive, shock and edge loads;
  5. The base material has good shock-absorbing ability;
  6. Can be used over a wide temperature range;
  7. Suitable for reciprocating, rotating and oscillating motion with an initial frequency
  8. The complexity of the formation of an oil film;
  9. Low wear and long service life.



Oilless Thrust Washer, Oil Free Copper Alloy Washers - Select, configure, order



Oilless Bearing, Graphite Plugged Bearing, Solid Bronze Bearing, Sliding Bearing, Dry Bearing & Pre-lubrication Plain Bearing and Bushing



High Tensile Brass Alloy, Solid Lubricant Embedded



Various Size, Various Application Available





Bronze Thrust Washer Characteristics



Bronze Thrust Washer With Graphite Insert provides both the good wear resistance and great self-lubricating feature of the bearings. This designation enables the bearings to be operated without oiling or greasing maintenance.



  • The bronze thrust washer with graphite plugs provides both good wear resistance and excellent self-lubricating function of this washer.
  • This designation allows the thrust washer to be operated without oiling or greasing maintenance.
  • It is widely used in the field of high load and intermittent motion as well as oscillating motion condition.



Self-Lubricating Bronze Thrust Washer Technical Data



Density 8.0 g/cm3
Hardness >210 HB
Tensile strength >750 N/mm2
Yeild strength >450 N/mm2
Elongation >8
Coefficient of linear expansion 1.9x10-5/°C
Operating temperature -40°C~+300°C
Max. Dynamic Load 120
Max. Speed Dry 0.4 m/s
Oil 1.0 m/s
Max. PV limit Dry 1.5 N/mm2.m/s
Oil 3.25 N/mm2.m/s
Friction Dry 0.12~0.16 μ
Oil 0.03~0.08 μ



Bronze Thrust Washer Applications



The Oilless Bronze Thrust Washer is widely used in below:


1. Heavy duty tractor and farm equipment
2. Mining equipment
3. Forestry equipment
4. Mixing tank blade shaft support
5. Foundry, furnace and steel production equipment
6. HVAC applications
7. Heavy duty casters and wheel support bearings
8. Oven kart veneer drying applications, and possibly other applications





bearing application
