Lathed Parts High Precision CNC Connecting Pins Custom Forging Turning 42CrMo made to order from china.

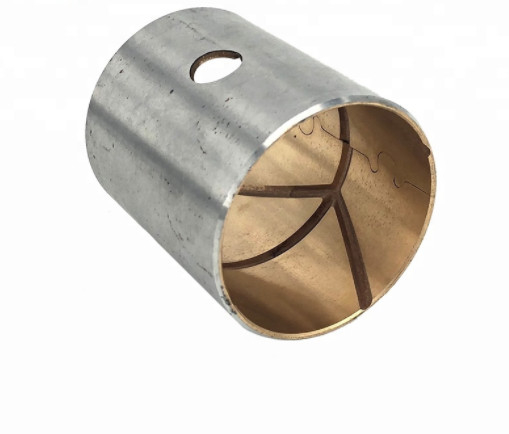

We are a manufacturer specializing in the production of motor shaft and various types of shaft, shaft bushings, gear shaft.We have an experienced r&d team.
Can fully meet the customer to sample to chart non - standard processing requirements
Material round steel material: 42CrMo,GB/T 3077-1999
42CrMo steel is ultra-high strength steel with high strength and toughness, good hardenability, no obvious temper brittleness, high fatigue limit and resistance to multiple impacts after quenching and tempering, good low temperature impact toughness. The steel is suitable for the manufacture of large and medium-sized plastic molds that require a certain strength and toughness.
High strength, high hardenability, good toughness, low deformation during quenching, high creep strength and long-lasting strength at high temperatures. Forgings requiring higher strength and larger quenching section than 35CrMo steel, such as locomotive traction Gears, supercharger gears, pressure vessels, rear axles, for load, for, for, for, and for, and, and
42CrMo steel has high strength and toughness, good hardenability, no obvious temper brittleness, small deformation during quenching, high fatigue limit and resistance to multiple impacts after quenching and tempering, good low temperature impact toughness, High creep strength and long-lasting strength at high temperatures. The steel usually has a quenched surface after quenching and tempering as a heat treatment scheme.
Carbon C: 12:38 ~ 00:45%
Silicon Si: 0.37% to 0:17 ~
Manganese Mn: 0.50 ~ 0.80%
Sulfur S: Allow residual content ≤0.035%
Phosphorus P: Allowable residual content ≤0.035%
Chromium Cr: 0.90 ~ 1.20%
Nickel Ni: Permissible residual content ≤0.030%
Copper Cu: Permissible residual content ≤0.030%
Mo: 0.15 ~ 0.25%
Tensile strength σb (MPa): ≥1080 (110)
Yield σ σs (MPa): ≥930 (95)
Elongation δ5 (%): ≥12
Section shrinkage ψ (%): ≥45
Impact work Akv (J): ≥63
Impact toughness value αkv (J / cm 2): ≥ 78 (8)
Hardness: ≤217HB
Specimen size: sample blank size is 25mm
1) Critical point temperature (approximate): Ac1 = 730 ° C, Ac3 = 800 ° C, Ms = 310 ° C.
2) Linear expansion coefficient: ~ 20 ~ 100 ° C / 20 ~ 200 ° C / 20 ~ 300 ° C / 20 ~ 400 ° C / 20 ~ 500 ° C / 20 ~ 600 ° C, coefficient of linear expansion: 11.1 × 10K /12.1×10K/12.9×10K/13.5×10K/13.9×10K14.1×10K.
3) Elastic modulus: Temperature 20 ° C / 300 ° C / 400 ° C / 500 ° C / 600 ° C, Elasticity Touch 210000MPa / 185000MPa / 175000MPa / 165000MPa / 15500oMPa

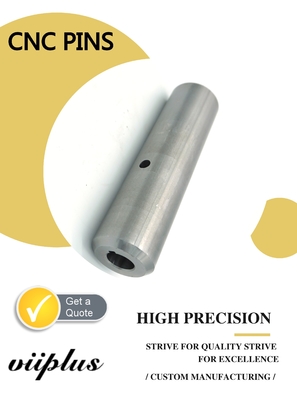

OEM CNC High Precisionpins you can expect value with higher performance.
Continuing our efforts to provide customers with products that ensure they receive the best solution and the best overall value, we proudly offer our CNC precision machining Forging Turning Pins. For smaller load applications and suitable for many earthmoving machines CNC recommends this product class. CNC pins cover use on heavy –duty equipment such as dozers, excavators, graders, loaders, skids, trucks, and other machines besides shovels.
Material: Round steel,316,42CrMo Steel
CNC PIN:Standard Yield Strength
VIIPLUS has extensive knowledge in the production and engineering of parts related to any heavy industry.
