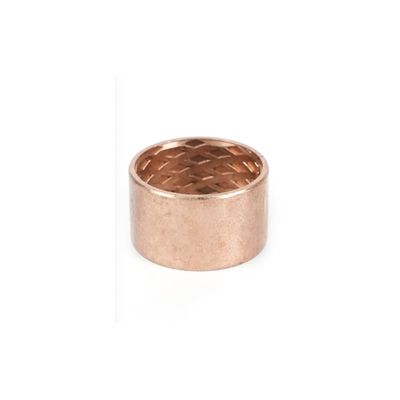

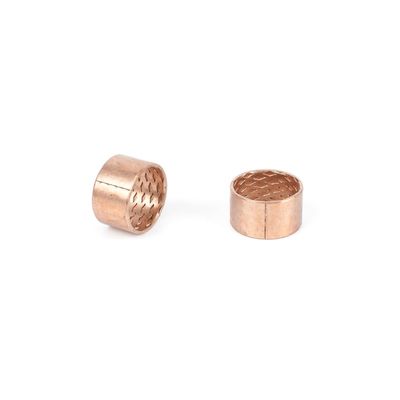

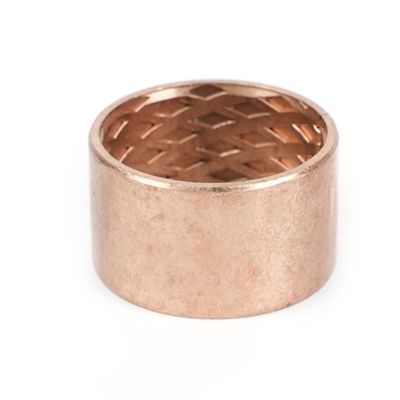

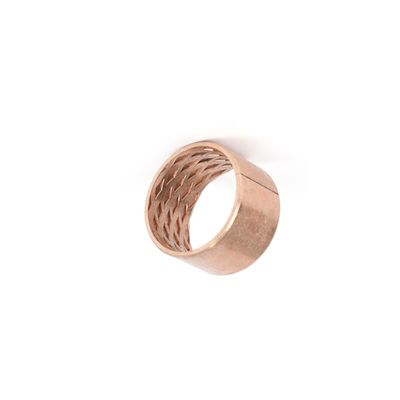

CuSn8 CuSn6 Metric Flange Bronze Bushing Self lubricating
Place of Origin | Bronze Bushing Manufacturer |
---|---|
Brand Name | CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance |
Certification | Bushing Standard Met:MBZ, B09 or MBZ B09 |
Model Number | Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 |
Minimum Order Quantity | phosphor bronze bush,tin bronze bearings,brass bushes |
Price | Precision Tolerance, Factory Price |
Packaging Details | EXPORT CARTONS |
Delivery Time | 1-3 Weeks |
Payment Terms | TT IN ADVANCE |
Supply Ability | Perforated Bronze Bearing,Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | WB802 Wrapped Cylinder Bronze Bushing | Bushing | Bronze Diamond Or Lubrication Oil Holes |
---|---|---|---|
Feature | BRO-MET, FB090, BRM10, WB800 | Lubrication | Self Lubricating Bearing |
Quality | OEM Quality, Boccole Flangiate Forate | Application | Transport Rollers, Winding Equipment, Anchor Winches And Aligning Machinery. |
Lubricating Bearing Type | BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 | Customized | Available |
Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
Specialty | Бронзовые втулки | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | CuSn8 Flanged Bronze Bushing,Metric Flanged Bronze Bushing,CuSn6 Flange Bronze Bushing |
CuSn8 and CuSn6 Metric Flange Bronze Bushing are self-lubricating bushings made of bronze alloys containing copper and tin (Sn) in different proportions. The CuSn8 alloy typically contains a higher percentage of tin, providing excellent wear resistance and corrosion resistance. The CuSn6 alloy, on the other hand, has a slightly lower tin content, offering good mechanical properties and strength.
The bushings feature a metric flange design, which allows for easy installation and secure attachment to the mechanical components. The self-lubricating property of the bronze material ensures smooth operation and reduced friction, even in high-load and high-speed applications. These bushings are widely used in various industrial applications, such as machinery, automobiles, and heavy equipment, to improve performance and durability.
Metric Flange Bronze Bushing
CuSn8 CuSn6 Bushings Slide Bearing, Metric Flange Bronze Bushing
The performance of FB-090 -- bronze base winding bushing is equivalent to that of foreign copper-base processed porous bushing. The inner holes of the product are full of diamond-shaped oil holes and oil pits, which can store a large amount of oil during use and prolong the interval time of refueling. It is used in difficult refueling or water lubrication occasions, and has been widely used in: Cylinder cylinder guide sleeve, hydraulic haulers, textile machinery, rubber machinery, tobacco machinery, fitness machinery, port machinery, ship deck machinery, agricultural and forestry machinery, and automatic machinery equipment (expansion, swing, sliding, bending, rotary) parts and so on.
Cusn8 Cusn6 Wb802, Wf-Wb802 Bushings Slide Bearing. Cusn8 Wrapped Sliding Bearings Bushing, Rolled Bronze Bushings With Indents, Rolled Bronze W Oil Perforations. Bearings With Or Without Flange Are Intended For Radial And Axial Movements. ... The Bearings Are Wrapped Of A Cold Formable Homogenous Bronze Made To Order From China.
Di φD |
Do φD |
Dp |
L 0 -0.040 |
||||||||||
15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | |||
25 | 28 | 35 | 25150 | 25200 | 25250 | ||||||||
30 | 34 | 45 | 30200 | 30250 | 30300 | ||||||||
35 | 39 | 50 | 35200 | 35250 | 35300 | 35350 | |||||||
40 | 44 | 55 | 40250 | 40300 | 40350 | 40400 | |||||||
45 | 50 | 60 | 45300 | 45350 | 45400 | 45500 | |||||||
50 | 55 | 65 | 50300 | 50350 | 50400 | 50500 | |||||||
55 | 60 | 70 | 55300 | 55350 | 55400 | 55500 | |||||||
60 | 65 | 75 | 60300 | 60350 | 60400 | 60500 | 60600 | ||||||
65 | 70 | 80 | 65300 | 65350 | 65400 | 65500 | 65600 | ||||||
70 | 75 | 85 | 70350 | 70400 | 70500 | 70600 | 70700 | ||||||
75 | 80 | 90 | 75350 | 75400 | 75500 | 75600 | 75700 | ||||||
80 | 85 | 100 | 80350 | 80400 | 80500 | 80600 | 80700 | 80800 | |||||
90 | 95 | 110 | 90500 | 90600 | 90700 | 90800 | 90900 | ||||||
100 | 105 | 120 | 100500 | 100600 | 100700 | 100800 | 100900 | ||||||
110 | 115 | 130 | 110500 | 110600 | 110700 | 110800 | 110900 | ||||||
120 | 125 | 140 | 120500 | 120600 | 120700 | 120800 | 120900 | ||||||
130 | 135 | 155 | 130600 | 130700 | 130800 | 130900 | |||||||
140 | 145 | 165 | 140600 | 140700 | 140800 | 140900 | |||||||
150 | 155 | 180 | 150600 | 150700 | 150800 | 150900 | |||||||
160 | 165 | 190 | 160600 | 160700 | 160800 | 160900 | |||||||
170 | 175 | 200 | 170600 | 170700 | 170800 | 170900 | |||||||
180 | 185 | 215 | 180600 | 180700 | 180800 | 180900 | |||||||
190 | 195 | 225 | 190600 | 190700 | 190800 | 190900 | |||||||
200 | 205 | 235 | 200600 | 200700 | 200800 | 200900 | |||||||
225 | 230 | 260 | 225600 | 225700 | 225800 | 225900 | |||||||
250 | 255 | 290 | 250600 | 250700 | 250800 | 250900 | |||||||
265 | 270 | 305 | 265600 | 265700 | 265800 | 265900 | |||||||
285 | 290 | 325 | 285600 | 285700 | 285800 | 285900 | |||||||
300 | 305 | 340 | 300600 | 300700 | 300800 | 300900 |
Bronze bearing bushings - maintenance-free
Wrapped bearings - Plain bearings Flange bronze bushing bearing self lube bronze bearings
WB802, WB800, WB702, WB700, B90 and B92 are available in two types such as with or without flange.
CuSn8 Wrapped sliding bearings Bronze rolled bearing
bronze rolled bearings use a specially formulated high-density copper alloy strip as the base to replace the traditional cast copper sleeve, which can reduce the mechanical volume and cost.
for Agro-/forest industry
The perfect bearing for any purpose
This sector of the industry benefits from a vast range of DIN and standard Glycodur sliding bearings and of our wrapped bearings made of the single-metal material CuSn8. For special applications, these sliding bearings are often equipped with grooves. Also, customer-oriented segments made of special bronze are used.
CuSn8 Wrapped sliding bearings
From solid bronze materials
with diamond-shaped lubrication pockets or with perforations in accordance with ISO 3547/DIN 1494
Custom parts with seals or graphited available upon customer request
Wrapped Bronze Bushings, bundbuchse,
CuSn8 Wrapped sliding bearings 090 Technical data
Performance | Data | |
Maximum load | Static load | 120N/mm² |
Dynamic load | 40N/mm² | |
Line speed | 2.5m/s | |
Maximum PV value | 2.8N/mm²・m/s | |
Coefficient of friction | 0.08~0.25 | |
Operating temperature | -100℃~+200℃ | |
Thermal Conductivity | 60W/m・K | |
Thermal expansion coefficient | 15×-6/K |
Product description
wrapped cusn8 bronze rolled bearings use a specially formulated high-density copper alloy strip
as the base to replace the traditional cast copper sleeve,
which can reduce the mechanical volume and cost.
Data parameter
Standard diameter Standard Dia. |
Bushing outer diameter O.D.Size |
Matching seat hole Housing Bore |
Bushing ID I.D.Size |
Matching shaft diameter Matching Shaft Diameter |
---|---|---|---|---|
10~18 | +0.065 +0.030 |
+0.018 0 |
+0.046 0 |
- 0.016 - 0.043 |
18~30 | +0.075 +0.035 |
+0.021 0 |
+0.052 0 |
- 0.020 - 0.020 |
30~50 | +0.085 +0.045 |
+0.025 0 |
+0.062 0 |
- 0.025 - 0.064 |
50~80 | +0.100 +0.055 |
+0.030 0 |
+0.074 0 |
- 0.030 - 0.076 |
80~120 | +0.120 +0.070 |
+0.035 0 |
+0.087 0 |
- 0.036 - 0.090 |
120~180 | +0.170 +0.100 |
+0.400 0 |
+0.100 0 |
- 0.043 - 0.106 |
180~250 | +0.210 +0.130 |
+0.046 0 |
+0.115 0 |
- 0.050 - 0.122 |
250~315 | +0.260 +0.170 |
+0.052 0 |
+0.130 0 |
- 0.056 - 0.137 |
