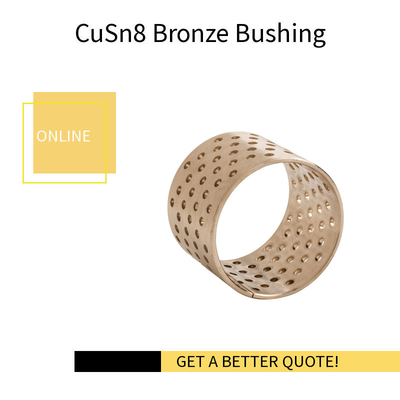

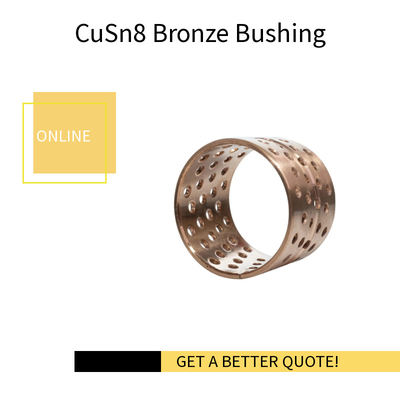

GLIDLAGER Dimension: 30X34X30MM
Place of Origin | made in china |
---|---|
Brand Name | VIIPLUS |
Certification | ISO 9001 |
Model Number | GLIDLAGER |
Minimum Order Quantity | negotiable |
Price | Negotiable |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 7-15 work days |
Payment Terms | T/T |
Supply Ability | Perforated Bronze Bearing,Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | CuSn8 Bronze | Type | GLIDLAGER |
---|---|---|---|
Bushing | Metric Size 30X34X30MM | Dimension | Customized Dimension Bushings |
Feathers | Low Resistance | Size | Customized Size |
Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . | Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | 30X34X30MM glidlager,CuSn8 Bronze glidlager |
The GLIDLAGER bearing, with dimensions of 30X34X30MM, is a precision-engineered component designed to provide smooth and reliable operation in a variety of industrial applications. Constructed from high-quality materials, it offers excellent wear resistance and durability, ensuring long-term performance and stability.
The bearing's compact size and precise dimensions allow it to fit into tight spaces and integrate smoothly into various mechanical systems. Its optimized design and materials selection contribute to its high load-bearing capacity and ability to handle high speeds and temperatures.
The GLIDLAGER bearing is suitable for use in a wide range of industries, including machinery, automotive, and aerospace applications. Whether it's used in motors, pumps, gearboxes, or other rotating assemblies, it delivers consistent and reliable performance, enhancing the overall efficiency and lifespan of the equipment.
In summary, the GLIDLAGER bearing, with its precise dimensions of 30X34X30MM, is a high-quality component that offers excellent wear resistance, durability, and performance in various industrial applications.
GLIDLAGER 30X34X30MM
We have a large selection of glidlager for different areas of use. You will find more than 2500 dimensions in our warehouse. With us, you can also order your products completely according to your own drawing and specification . Our short lead times and good logistics make us an efficient supplier and partner. Feel free to contact us if you need advice or to get tailor-made solutions.
Description
glidlager is made from high grade alloyed, hot rolled, phosphorous tin bronze. The slide bearings are especially designed to withstand heavy loads and to be shock-resistant. The entire bearing surface consists of “ punched-through-holes ” that provides improved lubricating properties and fewer maintenance periods that reduces friction, both at startup and during operation. glidlager is intended for radial, oscillating and axial movements and are especially suited for medium to high loads.

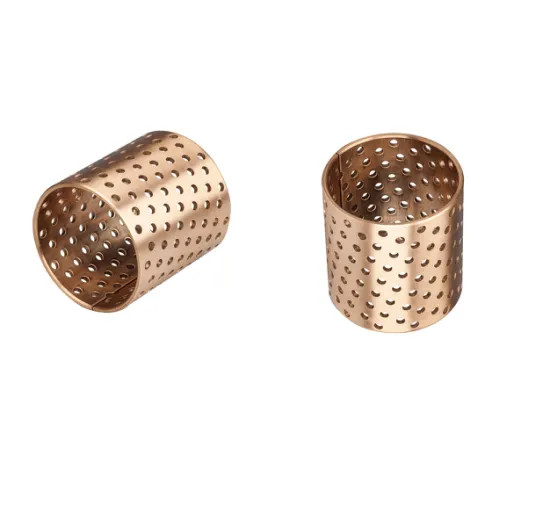

Rolled bronze bearings with lubrication holes.
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble
Advantages of glidlager
- Maintenance free
- High thermal conductivity
- Large working temperature range
- Chemical resistance
- Extremely high loads for a long time
- Processing after assembly
- Dust and dirt resistant
- Vibration damping
- Use in liquids
- Low coefficient of friction
- Low weight
- Low Price
Lubrication
Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.
Special manufacturing
We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.
TECHNICAL DATA | |
---|---|
Material: | Cu – 91.3% Sn – 8.5% P – 0.2% |
Standard: | Cu Sn8. DIN 17662. CW453K |
Sliding layer (thickness): | Homogeneous |
Tensile strength Rm: | 450N/mm² |
Yield strength Rp 0.2: | 250N/mm² |
Elongation in % A10: | 0.4 |
Hardness: | 90-120 HB |
Friction coeff: | 0.08-0.25µ |
Thermal conductivity: | 60W/m·K |
Temperature range: | -100°C/200°C |
Max. load static: | 120 N/mm² |
Max. load, dynamic: | 40 N/mm² |
Max. sliding speed (w.lubr.): | 2.5 m/s |
Pv-value, Mpa x m/s, kont / int: | 2.8 |
Counter material | |
Recommended shaft hardness: | >210HB |
Rec. shaft surface roughness (Ra) | 1.6 |
Recommended tolerance: | e7-f7 |
House: | H7 |
Glidlager for use in mechanical engineering and in decontamination objects
type for lubrication
- inner diameter Ø 30 mm
- outer diameter Ø 34 mm
- length 30 mm
- wall thickness 2 mm
- holes for lubrication 4 mm
- material bearing bronze
Characteristics:
glidlager material CuSn8 made of solid bronze strip with perforation for lubricated applications.
Good wear resistance, suitable for rough conditions.
Optimum performance under relatively high loads and low speeds.
These holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication
Why choose glidlager?
Insensitive to dirty environments
Resistant to shock loads and vibrations at slow speeds
Good resistance to corrosive conditions
