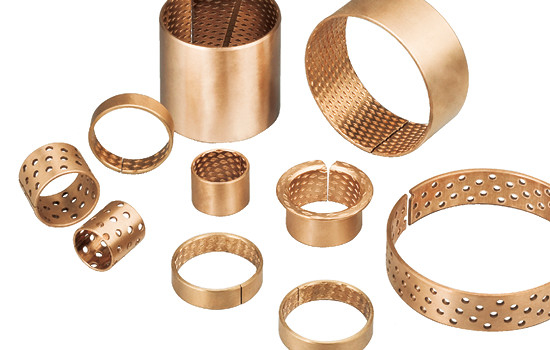

Self Lubricating WB702 Bronze Sleeve Bushings Metric Size
Place of Origin | made in china |
---|---|
Brand Name | VIIPLUS |
Certification | ISO 9001 |
Model Number | Bronze Flange Bushing With Holes |
Minimum Order Quantity | negotiable |
Price | Negotiable |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 7-25 work days |
Payment Terms | T/T |
Supply Ability | Bronze Flange Bushing With Holes |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Slide Bearing • WB702 | Type | Split Bushing |
---|---|---|---|
Split Type | Custom Bronze Bushings | Size | Metric Size, Or Customize Size |
Feature | Strong Bearing Capacity, Good Wear Resistance, Good Oil Storage. | Get A Better Quote | Tiffany@viiplus.com |
Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ |
High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing | Feature | BRO-MET, FB090, BRM10, WB800 |
Specialty | Бронзовые втулки | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | WB702 Bronze Sleeve Bushings,ISO 9001 Flanged Brass Bushings,Thin Walled Bronze Sleeve Bushings |
Our WB702 bronze sleeve bushings are designed to provide exceptional performance in metric-sized applications that require self-lubricating bushings. These bushings are made from high-quality bronze alloy, which offers excellent wear resistance, corrosion resistance, and mechanical strength.
The self-lubricating feature of our WB702 bushings is achieved through the use of special lubricating additives within the bronze material. This ensures smooth and efficient operation, even in high-load and high-speed applications. The bushings also require minimal maintenance, further reducing downtime and operational costs.
Our metric-sized WB702 bronze sleeve bushings are precision-machined to ensure accurate fitment and optimal performance. They are suitable for use in a wide range of applications, including machinery, automotive components, and industrial equipment.
We understand that each application has its unique requirements, and we are committed to providing custom solutions to meet your specific needs. Whether you need bushings in standard metric sizes or custom dimensions, we have the capabilities to fulfill your order.
Our bronze bushings are backed by our commitment to quality and reliability. We adhere to strict manufacturing standards and employ rigorous quality control measures to ensure that every bushing we produce meets the highest standards of performance and durability.
If you're looking for self-lubricating, metric-sized bronze sleeve bushings for your application, look no further than our WB702 bushings. Contact us today to learn more about our products and how we can help you improve the performance and efficiency of your equipment.
WB702 Bronze Bushing Sleeve Bearing
Bronze Sleeve Bushing With Holes
WB702-bearings with or without flange are intended for radial and axial movements. The bearings are manufactured of a cold formable homogenous bronze, which because of this will obtain exceptional material properties. The execution of the flange permits that the bearing also can carry axial loads. The standard sizes are fitted with holes, which are dispersed in a special way over the whole bearing-surface. These holes serve as lubricant reservoirs i.a. to rapidly build up a lubrication film in the moment of start and therewith reduce the start friction. The properties of the WB702-material, together with the procedure of wrapping and calibration, make this type of bearing especially suitable for constructions, where medium or high loads and relatively slow movements are occurring.
Bushing Sleeve - Factory Direct & Fast Shipping Where now meets next
Self Lubricating Bearings - Excellent Supplier from China.
Code Designation d D L |
280060 15/ 17x 15 WB702 15 17 15 |
280065 15/ 17x 25 WB702 15 17 25 |
280070 16/ 18x 15 WB702 16 18 15 |
280075 16/ 18x 20 WB702 16 18 20 |
280080 16/ 18x 25 WB702 16 18 25 |
280085 18/ 21x 15 WB702 18 21 15 |
280090 18/ 21x 20 WB702 18 21 20 |
280095 18/ 21x 25 WB702 18 21 25 |
280100 20/ 23x 15 WB702 20 23 15 |
280105 20/ 23x 20 WB702 20 23 20 |
280110 20/ 23x 25 WB702 20 23 25 |
280115 20/ 23x 30 WB702 20 23 30 |
280120 22/ 25x 15 WB702 22 25 15 |
280125 22/ 25x 20 WB702 22 25 20 |
280130 22/ 25x 25 WB702 22 25 25 |
280135 22/ 25x 30 WB702 22 25 30 |
280137 25/ 28x 15 WB702 25 28 15 |
280140 25/ 28x 20 WB702 25 28 20 |
280145 25/ 28x 25 WB702 25 28 25 |
280150 25/ 28x 30 WB702 25 28 30 |
280160 25/ 28x 50 WB702 25 28 50 |
280165 28/ 31x 15 WB702 28 31 15 |
280170 28/ 31x 25 WB702 28 31 25 |
280175 28/ 31x 30 WB702 28 31 30 |
280177 30/ 34x 15 WB702 30 34 15 |
280180 30/ 34x 20 WB702 30 34 20 |
280183 30/ 34x 25 WB702 30 34 25 |
280190 30/ 34x 30 WB702 30 34 30 |
280195 30/ 34x 40 WB702 30 34 40 |
280200 32/ 36x 20 WB702 32 36 20 |
280205 32/ 36x 30 WB702 32 36 30 |
280210 32/ 36x 40 WB702 32 36 40 |
280220 35/ 39x 20 WB702 35 39 20 |
280235 35/ 39x 30 WB702 35 39 30 |
280240 35/ 39x 40 WB702 35 39 40 |
280245 35/ 39x 50 WB702 35 39 50 |
280260 40/ 44x 20 WB702 40 44 20 |
280262 40/ 44x 25 WB702 40 44 25 |
280265 40/ 44x 30 WB702 40 44 30 |
280275 40/ 44x 40 WB702 40 44 40 |
280285 40/ 44x 50 WB702 40 44 50 |
280295 45/ 50x 20 WB702 45 50 20 |
280300 45/ 50x 30 WB702 45 50 30 |
280302 45/ 50x 40 WB702 45 50 40 |
280310 45/ 50x 50 WB702 45 50 50 |
280315 45/ 50x 60 WB702 45 50 60 |
280325 50/ 55x 30 WB702 50 55 30 |
280335 50/ 55x 40 WB702 50 55 40 |
280337 50/ 55x 50 WB702 50 55 50 |
280340 50/ 55x 60 WB702 50 55 60 |
280345 55/ 60x 40 WB702 55 60 40 |
280347 55/ 60x 50 WB702 55 60 50 |
280350 55/ 60x 60 WB702 55 60 60 |
280358 60/ 65x 25 WB702 60 65 25 |
280360 60/ 65x 30 WB702 60 65 30 |
280364 60/ 65x 35 WB702 60 65 35 |
Art.nr Designation d D L |
280365 60/ 65x 40 WB702 60 65 40 |
280377 60/ 65x 50 WB702 60 65 50 |
280380 60/ 65x 60 WB702 60 65 60 |
280405 65/ 70x 40 WB702 65 70 40 |
280410 65/ 70x 60 WB702 65 70 60 |
280420 70/ 75x 40 WB702 70 75 40 |
280427 70/ 75x 50 WB702 70 75 50 |
280430 70/ 75x 60 WB702 70 75 60 |
280435 70/ 75x 80 WB702 70 75 80 |
280445 75/ 80x 40 WB702 75 80 40 |
280450 75/ 80x 80 WB702 75 80 80 |
280455 80/ 85x 40 WB702 80 85 40 |
280458 80/ 85x 50 WB702 80 85 50 |
280460 80/ 85x 60 WB702 80 85 60 |
280465 80/ 85x 80 WB702 80 85 80 |
280475 85/ 90x 40 WB702 85 90 40 |
280480 85/ 90x 80 WB702 85 90 80 |
280495 90/ 95x 40 WB702 90 95 40 |
280500 90/ 95x 60 WB702 90 95 60 |
280505 90/ 95x 90 WB702 90 95 90 |
280514 100/ 105x 40 WB702 100 105 40 |
280515 100/ 105x 50 WB702 100 105 50 |
280520 100/ 105x 60 WB702 100 105 60 |
280522 100/ 105x 70 WB702 100 105 70 |
280525 100/ 105x 95 WB702 100 105 95 |
280535 110/ 115x 50 WB702 110 115 50 |
280540 110/ 115x 95 WB702 110 115 95 |
2805413 110/ 115x 100 WB702 110 115 100 |
280550 120/ 125x 50 WB702 120 125 50 |
280555 120/ 125x 95 WB702 120 125 95 |
280565 125/ 130x 100 WB702 125 130 100 |
280570 130/ 135x 60 WB702 130 135 60 |
280575 130/ 135x 100 WB702 130 135 100 |
280580 140/ 145x 60 WB702 140 145 60 |
280585 140/ 145x 100 WB702 140 145 100 |
280605 150/ 155x 60 WB702 150 155 60 |
280610 150/ 155x 100 WB702 150 155 100 |
280615 160/ 165x 60 WB702 160 165 60 |
280620 160/ 165x 100 WB702 160 165 100 |
280635 170/ 175x 60 WB702 170 175 60 |
280640 170/ 175x 100 WB702 170 175 100 |
280645 180/ 185x 60 WB702 180 185 60 |
280655 180/ 185x 100 WB702 180 185 100 |
280657 185/ 190x 100 WB702 185 190 100 |
280660 190/ 195x 60 WB702 190 195 60 |
280665 190/ 195x 100 WB702 190 195 100 |
280670 200/ 205x 60 WB702 200 205 60 |
280675 200/ 205x 100 WB702 200 205 100 |
2807151 250/ 255x 100 WB702 250 255 100 |
Other dimensions and designs can be supplied on |
request. All measures in mm. |
Get Top Quality From Suppliers Without a Premium Price. Customization Available! Quality Self Lubricating Bearings Supplier & Manufacturer in China, Contact Now! Advanced Technology. Wholesale Price. Factory Direct. Quality Assurance.
Experienced Bushing Sleeve Manufacturer & Supplier in China. Guaranteed Top Quality & Service. Advanced Technology. Quality Assurance. Wholesale Price. Types:
Factory Direct Bronze Copper Sliding Bushing With Holes
S-WB802 FB092H ABB092 HB125 to HB150 oil hole plain wrapped bronze bushing
Strong bearing capacity, good wear resistance, good oil storage.
All copper structure, long service life.
The thin-walled structure can replace the traditional casting copper sleeve, cost-saving.
G series has been close to the JDB series, to achieve maintenance-free.
Oil pot FB092 copper bushing/Slide bushing FB092 bronze bearing/oil hole brass bush
Product Introduction WB802 CuSn8 bronze bush bearing, BK092 bronze bearing with hole, FB092 rolled bronze bushing bearing supplier
Fb series bronze rolling bearing is made of high-density bronze alloy plate as the matrix, according to different lubrication conditions, we provide two forms of oil hole and oil hole, oil hole for grease lubrication, oil hole for fluid lubrication. Afterward, we further developed G series products on this basis, which is a novel structure embedded with special solid lubricant on the surface of the original bearing, so that it can play better lubrication and wear resistance.
Product Application
Engineering machinery, construction machinery, agricultural and forestry machinery, automobile chassis and parts, conveyors, lifts, gearboxes, hoists, leveling machines
