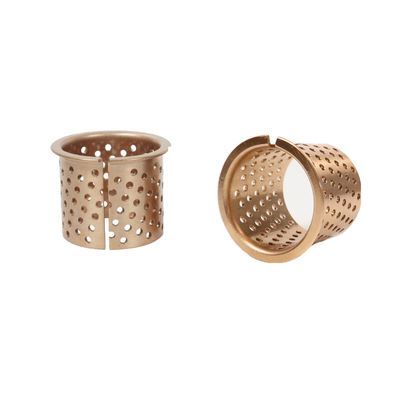

Oilless FB090 Wrapped Bronze Bearings CUSN8 Bushing Material
| Place of Origin | Made in China |
|---|---|
| Brand Name | VIIPLUS |
| Certification | DIN 1494 / ISO 3547 |
| Model Number | Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547 |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 3 - 15 BUSINESS DAYS |
| Payment Terms | T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Material | CUSN8 | Feature | BRO-MET, FB090, BRM10, WB800 |
|---|---|---|---|
| Performance | High Load Capacity And Long Life | Type | Sleeve,Flange,Thrust Washer |
| Application | Agricultural Machinery, Brakes And Certain Construction Machinery. | Bushing Size | Special Dimensions And Imperial Sizes Are Available On Request |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
| Specialty | Бронзовые втулки | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
| Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | FB090 Wrapped Bronze Bearings,CUSN8 Wrapped Bronze Bushings,Oilless Wrapped Bronze Bearings |
||
Product Description
Oilless FB090 wrapped bronze bearings, made from high-grade CUSN8 bushing material, are designed to offer exceptional performance and durability in a variety of industrial applications. These bearings are renowned for their oilless operation, eliminating the need for regular lubrication and reducing maintenance requirements.
The wrapped construction of these bearings provides enhanced support and stability, ensuring a secure fit and optimal performance under high loads and extreme operating conditions. The CUSN8 bushing material, with its excellent wear resistance and corrosion resistance, further contributes to the bearings' long-lasting performance.
The oilless design of FB090 wrapped bronze bearings means they can operate smoothly and efficiently without the need for continuous lubrication. This not only reduces operational costs but also minimizes downtime and maintenance downtime, enhancing the overall efficiency of the system.
Whether you're upgrading existing equipment or building new machinery, FB090 wrapped bronze bearings are an excellent choice for ensuring reliable and efficient operation. Their precision manufacturing and high-quality materials guarantee a smooth and long-lasting performance in a wide range of industrial settings.
Contact us today to learn more about our oilless FB090 wrapped bronze bearings and how they can enhance the performance and reliability of your industrial equipment.
FB090 Wrapped Rolled Bronze Oilless Sliding Bearings
Export WB800,WBF-WB800,WF-WB802 bronze bushings to the world - Sliding Bearing,Plain Bearing,
Good lubrication properties due to lubrication indents. Products Slide bearings Rolled bronze WB800, WF-WB800.
WB800, WF-WB800
- High load capacity
- Can be used in difficult circumstances.
- Good lubrication properties due to lubrication indents.
WB700, WF-WB700
- Can tolerate high loads and blows
- Works well, even in dirty environments
- Good thermal dissipation
WB800/WB700-bearings with or without flange are intended for radial and axial movements.
The bearings are wrapped of a coldformable homogenous bronze, which because of this will obtain exceptional material properties. The execution of the flange permits that the bearing also can carry axial loads.
The standard sizes are fitted with diamond-shaped lubrication indents on the bearing-surface.
These indents serve as lubricant reservoirs i.a. to rapidly build up a lubrication film in the moment of start and therewith reduce the start friction. The properties of the WB800/WB700-material, together with the procedure of wrapping and calibration, make this type of bearing especially suitable for constructions, where high loads and relatively slow movements are occurring.
WB800 Bearings Technical data
| Material: | Homogeneous bronze (Cu 91,3%, Sn 8,5%, P 0,2%) |
| Yield point: (Rp0,2): | ca 300 N/mm2 |
| Tensile strenght:(Rm ) | ca 450 N/mm2 |
| Hardness: | ca 125-150 HB |
| Friction: | 0,08–0,25 µ |
| Max speed: | 2,5 m/s |
| Temperature: | -100 / +200 °C |
| Load | Speed |
| Ca: 280 N/mm2 | 0 m/s |
| 80 – 120 N/mm2 | 0,01 m/s |
| 30 – 40 N/mm2 | 2,0 m/s |
Tolerances:
Bearings pressed into housing H7 gets tolerance H9. Recommended tolerance for the shaft IT 7 or IT 8 with position of tolerance e or f.
Lubrication:
Additional lubrication ought to be done through the shafts or radial through the housings. All customary greases can be used e.g. greases with additives of graphite or molybdenumdisulphide.
Benefits:
- High load capacity.
- Can be used in difficult circumstances.
- Good lubrication properties due to lubrication indents.
- High level thermal conductivity.
- Wide range of stock hold standard dimensions.
Special:
- Spherical-shaped lubrication indents.
- In- or outside lubrication grooves.
- Hardness 150-160 HB.
- Without lubrication indents.
- Other positions of tolerance.
- Flat or spherical thrust washers.
Typical applications:
- Forest machines.
- Agricultural machines.
- Excavators and diggers.
- Dumpers.
- Hydraulic cranes.
- Front loaders for tractors.
- Person lifts
WB700 Bearings Technical data
| Material: | Homogeneous bronze (Cu 91,3%, Sn 8,5%, P 0,2%) |
| Yield point: (Rp0,2) | ca 250 N/mm2 |
| Tensile strength: (Rm ) | ca 450 N/mm2 |
| Hardness: | ca 110-150 HB |
| Friction: | 0,10–0,25 µ |
| Max speed: | 2,5 m/s |
| Temperature range: | -100 / +200 °C |
| Load | Speed |
| Ca: 250 N/mm2 | 0 m/s |
| 80 – 120 N/mm2 | 0,01 m/s |
| 30 – 40 N/mm2 | 2,0 m/s |
Lubrication:
Additional lubrication should be introduced through the shaft openings or radially via the housing. All the normal lubricating greases can be used. Lubricating grease with graphite or molybdenum disulphide additives can also be suitable.
Tolerance:
Bearings pressed in to a H7 housing give a tolerance of H9. The recommended shaft tolerance is IT7 or IT8, tolerance position e or f.
Special Designs
- Only larger series.
- Rounded lubrication indents
- Internal and external lubricating grooves
- Without lubrication indents
- Hardness 150-160 HB
- Other tolerance positions
- Spherical and plain washers
Examples of typical uses
- Forestry Machinery
- Agricultural Machinery
- Mining Machinery
- Bogie Bearings on Trucks
- Tunnelling Machines
Advantages
- Can tolerate high loads and blows
- Works well, even in dirty environments
- The stamped lubrication indents/holes on the sliding surface provide good lubrication characteristics
- Good thermal dissipation
- A broad range of dimensions is held in stock
WB800 Self-lubricating Wrapped Bronze Bushings Size Chart
| Item no. | Description | d | D | L |
| 150030 | Self-lubricating bearings 12/14X15 WB800 | 12 | 14 | 15 |
| 150050 | Self-lubricating bearings 14/16X15 WB800 | 14 | 16 | 15 |
| 150055 | Self-lubricating bearings 14/16X20 WB800 | 14 | 16 | 20 |
| 150060 | Self-lubricating bearings 15/17X15 WB800 | 15 | 17 | 15 |
| 150065 | Self-lubricating bearings 15/17X25 WB800 | 15 | 17 | 25 |
| 150070 | Self-lubricating bearings 16/18X15 WB800 | 16 | 18 | 15 |
| 150075 | Self-lubricating bearings 16/18X20 WB800 | 16 | 18 | 20 |
| 150080 | Self-lubricating bearings 16/18X25 WB800 | 16 | 18 | 25 |
| 150085 | Self-lubricating bearings 18/21X15 WB800 | 18 | 21 | 15 |
| 150090 | Self-lubricating bearings 18/21X20 WB800 | 18 | 21 | 20 |
| 150095 | Self-lubricating bearings 18/21X25 WB800 | 18 | 21 | 25 |
| 150100 | Self-lubricating bearings 20/23X15 WB800 | 20 | 23 | 15 |
| 150105 | Self-lubricating bearings 20/23X20 WB800 | 20 | 23 | 20 |
| 150110 | Self-lubricating bearings 20/23X25 WB800 | 20 | 23 | 25 |
| 150115 | Self-lubricating bearings 20/23X30 WB800 | 20 | 23 | 30 |
| 150120 | Self-lubricating bearings 22/25X15 WB800 | 22 | 25 | 15 |
| 150125 | Self-lubricating bearings 22/25X20 WB800 | 22 | 25 | 20 |
| 150130 | Self-lubricating bearings 22/25X25 WB800 | 22 | 25 | 25 |
| 150135 | Self-lubricating bearings 22/25X30 WB800 | 22 | 25 | 30 |
| 150137 | Self-lubricating bearings 25/28X15 WB800 | 25 | 28 | 15 |
| 150140 | Self-lubricating bearings 25/28X20 WB800 | 25 | 28 | 20 |
| 150145 | Self-lubricating bearings 25/28X25 WB800 | 25 | 28 | 25 |
| 150150 | Self-lubricating bearings 25/28X30 WB800 | 25 | 28 | 30 |
| 150160 | Self-lubricating bearings 25/28X50 WB800 | 25 | 28 | 50 |
| 150165 | Self-lubricating bearings 28/31X15 WB800 | 28 | 31 | 15 |
| 150170 | Self-lubricating bearings 28/31X25 WB800 | 28 | 31 | 25 |
| 150175 | Self-lubricating bearings 28/31X30 WB800 | 28 | 31 | 30 |
| 150185 | Self-lubricating bearings 30/32X30 WB800 | 30 | 32 | 30 |
| 150180 | Self-lubricating bearings 30/34X20 WB800 | 30 | 34 | 20 |
| 150183 | Self-lubricating bearings 30/34X25 WB800 | 30 | 34 | 25 |
| 150190 | Self-lubricating bearings 30/34X30 WB800 | 30 | 34 | 30 |
| 150195 | Self-lubricating bearings 30/34X40 WB800 | 30 | 34 | 40 |
| 150200 | Self-lubricating bearings 32/36X20 WB800 | 32 | 36 | 20 |
| 150205 | Self-lubricating bearings 32/36X30 WB800 | 32 | 36 | 30 |
| 150210 | Self-lubricating bearings 32/36X40 WB800 | 32 | 36 | 40 |
| 150220 | Self-lubricating bearings 35/39X20 WB800 | 35 | 39 | 20 |
| 150235 | Self-lubricating bearings 35/39X30 WB800 | 35 | 39 | 30 |
| 150240 | Self-lubricating bearings 35/39X40 WB800 | 35 | 39 | 40 |
| 150260 | Self-lubricating bearings 40/44X20 WB800 | 40 | 44 | 20 |
| 150261 | Self-lubricating bearings 40/44X25 WB800 | 40 | 44 | 25 |
| 150265 | Self-lubricating bearings 40/44X30 WB800 | 40 | 44 | 30 |
| 150275 | Self-lubricating bearings 40/44X40 WB800 | 40 | 44 | 40 |
| 150285 | Self-lubricating bearings 40/44X50 WB800 | 40 | 44 | 50 |
| 150294 | Self-lubricating bearings 45/50X16 WB800 | 45 | 50 | 16 |
| 150295 | Self-lubricating bearings 45/50X20 WB800 | 45 | 50 | 20 |
| 150300 | Self-lubricating bearings 45/50X30 WB800 | 45 | 50 | 30 |
| 150302 | Self-lubricating bearings 45/50X40 WB800 | 45 | 50 | 40 |
| 150310 | Self-lubricating bearings 45/50X50 WB800 | 45 | 50 | 50 |
| 150315 | Self-lubricating bearings 45/50X60 WB800 | 45 | 50 | 60 |
| 150319 | Self-lubricating bearings 50/55X25 WB800 | 50 | 55 | 25 |
| 150325 | Self-lubricating bearings 50/55X30 WB800 | 50 | 55 | 30 |
| 150335 | Self-lubricating bearings 50/55X40 WB800 | 50 | 55 | 40 |
| 150337 | Self-lubricating bearings 50/55X50 WB800 | 50 | 55 | 50 |
| 150340 | Self-lubricating bearings 50/55X60 WB800 | 50 | 55 | 60 |
| 150345 | Self-lubricating bearings 55/60X40 WB800 | 55 | 60 | 40 |
| 150350 | Self-lubricating bearings 55/60X60 WB800 | 55 | 60 | 60 |
| 150360 | Self-lubricating bearings 60/65X30 WB800 | 60 | 65 | 30 |
| 150365 | Self-lubricating bearings 60/65X40-L WB800 | 60 | 65 | 40 |
| 150375 | Self-lubricating bearings 60/65X45 WB800 | 60 | 65 | 45 |
| 150380 | Self-lubricating bearings 60/65X60 WB800 | 60 | 65 | 60 |
| 150405 | Self-lubricating bearings 65/70X40 WB800 | 65 | 70 | 40 |
| 150410 | Self-lubricating bearings 65/70X60 WB800 | 65 | 70 | 60 |
| 150420 | Self-lubricating bearings 70/75X40 WB800 | 70 | 75 | 40 |
| 150425 | Self-lubricating bearings 70/75X45 WB800 | 70 | 75 | 45 |
| 150427 | Self-lubricating bearings 70/75X50 WB800 | 70 | 75 | 50 |
| 150430 | Self-lubricating bearings 70/75X60 WB800 | 70 | 75 | 60 |
| 150435 | Self-lubricating bearings 70/75X80 WB800 | 70 | 75 | 80 |
| 150445 | Self-lubricating bearings 75/80X40 WB800 | 75 | 80 | 40 |
| 150450 | Self-lubricating bearings 75/80X80 WB800 | 75 | 80 | 80 |
| 150455 | Self-lubricating bearings 80/85X40 WB800 | 80 | 85 | 40 |
| 150459 | Self-lubricating bearings 80/85X50 WB800 | 80 | 85 | 50 |
| 150460 | Self-lubricating bearings 80/85X60 WB800 | 80 | 85 | 60 |
| 150465 | Self-lubricating bearings 80/85X80 WB800 | 80 | 85 | 80 |
| 150475 | Self-lubricating bearings 85/90X40 WB800 | 85 | 90 | 40 |
| 150480 | Self-lubricating bearings 85/90X80 WB800 | 85 | 90 | 80 |
| 150495 | Self-lubricating bearings 90/95X40 WB800 | 90 | 95 | 40 |
| 150497 | Self-lubricating bearings 90/95X50 WB800 | 90 | 95 | 50 |
| 150500 | Self-lubricating bearings 90/95X60 WB800 | 90 | 95 | 60 |
| 150508 | Self-lubricating bearings 90/95X70 WB800 | 90 | 95 | 70 |
| 150505 | Self-lubricating bearings 90/95X90 WB800 | 90 | 95 | 90 |
| 150514 | Self-lubricating bearings 100/105X40 WB800 | 100 | 105 | 40 |
| 150515 | Self-lubricating bearings 100/105X50-L WB800 | 100 | 105 | 50 |
| 150520 | Self-lubricating bearings 100/105X60 WB800 | 100 | 105 | 60 |
| 150525 | Self-lubricating bearings 100/105X95 WB800 | 100 | 105 | 95 |
| 150529 | Self-lubricating bearings 105/110X50 WB800 | 105 | 110 | 50 |
| 150540 | Self-lubricating bearings 110/115X95-L WB800 | 110 | 115 | 95 |
| 150550 | Self-lubricating bearings 120/125X50-L WB800 | 120 | 125 | 50 |
| 150555 | Self-lubricating bearings 120/125X95-L WB800 | 120 | 125 | 95 |
| 150565 | Self-lubricating bearings 125/130X100 WB800 | 125 | 130 | 100 |
| 150570 | Self-lubricating bearings 130/135X60-L WB800 | 130 | 135 | 60 |
| 150575 | Self-lubricating bearings 130/135X100-L WB800 | 130 | 135 | 100 |
| 150578 | Self-lubricating bearings 140/145X50-L WB800 | 140 | 145 | 50 |
| 150580 | Self-lubricating bearings 140/145X60-L WB800 | 140 | 145 | 60 |
| 150585 | Self-lubricating bearings 140/145X100-L WB800 | 140 | 145 | 100 |
| 150605 | Self-lubricating bearings 150/155X60-L WB800 | 150 | 155 | 60 |
| 150610 | Self-lubricating bearings 150/155X100-L WB800 | 150 | 155 | 100 |
| 150615 | Self-lubricating bearings 160/165X60-L WB800 | 160 | 165 | 60 |
| 150620 | Self-lubricating bearings 160/165X100-L WB800 | 160 | 165 | 100 |
| 150635 | Self-lubricating bearings 170/175X60-L WB800 | 170 | 175 | 60 |
| 150640 | Self-lubricating bearings 170/175X100-L WB800 | 170 | 175 | 100 |
| 150645 | Self-lubricating bearings 180/185X60-L WB800 | 180 | 185 | 60 |
| 150655 | Self-lubricating bearings 180/185X100-L WB800 | 180 | 185 | 100 |
| 150658 | Self-lubricating bearings 190/195X48-L WB800 | 190 | 195 | 48 |
| 150660 | Self-lubricating bearings 190/195X60-L WB800 | 190 | 195 | 60 |
| 150665 | Self-lubricating bearings 190/195X100 WB800 | 190 | 195 | 100 |
| 150675 | Self-lubricating bearings 200/205X200-L WB800 | 200 | 205 | 200 |
WF-WB800 Flange Self-lubricating Wrapped Bronze Bushings Size Chart
| Item no. | Description | d | D | D2 | L |
| 200010 | Self-lubricating bearings 20/23/30X16 WF-WB800 | 20 | 23 | 30 | 16 |
| 200015 | Self-lubricating bearings 20/23/30X20 WF-WB800 | 20 | 23 | 30 | 20 |
| 200020 | Self-lubricating bearings 25/28/35X16 WF-WB800 | 25 | 28 | 35 | 16 |
| 200025 | Self-lubricating bearings 25/28/35X25 WF-WB800 | 25 | 28 | 35 | 25 |
| 200030 | Self-lubricating bearings 30/34/45X20 WF-WB800 | 30 | 34 | 45 | 20 |
| 200035 | Self-lubricating bearings 30/34/45X30 WF-WB800 | 30 | 34 | 45 | 30 |
| 200040 | Self-lubricating bearings 35/39/50X20 WF-WB800 | 35 | 39 | 50 | 20 |
| 200045 | Self-lubricating bearings 35/39/50X35 WF-WB800 | 35 | 39 | 50 | 35 |
| 200050 | Self-lubricating bearings 40/44/55X25 WF-WB800 | 40 | 44 | 55 | 25 |
| 200055 | Self-lubricating bearings 40/44/55X40 WF-WB800 | 40 | 44 | 55 | 40 |
| 200065 | Self-lubricating bearings 45/50/60X30 WF-WB800 | 45 | 50 | 60 | 30 |
| 200067 | Self-lubricating bearings 45/50/60X40 WF-WB800 | 45 | 50 | 60 | 40 |
| 200070 | Self-lubricating bearings 45/50/60X45 WF-WB800 | 45 | 50 | 60 | 45 |
| 200075 | Self-lubricating bearings 50/55/65X30 WF-WB800 | 50 | 55 | 65 | 30 |
| 200080 | Self-lubricating bearings 50/55/65X50 WF-WB800 | 50 | 55 | 65 | 50 |
| 200081 | Self-lubricating bearings 55/60/70X30 WF-WB800 | 55 | 60 | 70 | 30 |
| 200082 | Self-lubricating bearings 55/60/70X50 WF-WB800 | 55 | 60 | 70 | 50 |
| 200083 | Self-lubricating bearings 60/65/75X25 WF-WB800 | 60 | 65 | 75 | 25 |
| 200085 | Self-lubricating bearings 60/65/75X35 WF-WB800 | 60 | 65 | 75 | 35 |
| 200090 | Self-lubricating bearings 60/65/75X50 WF-WB800 | 60 | 65 | 75 | 50 |
| 200095 | Self-lubricating bearings 60/65/75X60 WF-WB800 | 60 | 65 | 75 | 60 |
| 200097 | Self-lubricating bearings 65/70/80X40 WF-WB800 | 65 | 70 | 80 | 40 |
| 200098 | Self-lubricating bearings 65/70/80X60 WF-WB800 | 65 | 70 | 80 | 60 |
| 200100 | Self-lubricating bearings 70/75/85X35 WF-WB800 | 70 | 75 | 85 | 35 |
| 200102 | Self-lubricating bearings 70/75/85X50 WF-WB800 | 70 | 75 | 85 | 50 |
| 200105 | Self-lubricating bearings 70/75/85X70-L WF-WB800 | 70 | 75 | 85 | 70 |
| 200107 | Self-lubricating bearings 75/80/90X40 WF-WB800 | 75 | 80 | 90 | 40 |
| 200108 | Self-lubricating bearings 75/80/90X70 WF-WB800 | 75 | 80 | 90 | 70 |
| 200110 | Self-lubricating bearings 80/85/95X40 WF-WB800 | 80 | 85 | 95 | 40 |
| 200115 | Self-lubricating bearings 80/85/95X80-L WF-WB800 | 80 | 85 | 95 | 80 |
| 200120 | Self-lubricating bearings 90/95/110X50 WF-WB800 | 90 | 95 | 110 | 50 |
| 200125 | Self-lubricating bearings 90/95/110X90 WF-WB800 | 90 | 95 | 110 | 90 |
| 200135 | Self-lubricating bearings 100/105/120X50 WF-WB800 | 100 | 105 | 120 | 50 |
| 200140 | Self-lubricating bearings 100/105/120X90 WF-WB800 | 100 | 105 | 120 | 90 |
| 200150 | Self-lubricating bearings 110/115/130X50-L WF-WB800 | 110 | 115 | 130 | 50 |
| 200155 | Self-lubricating bearings 110/115/130X90-L WF-WB800 | 110 | 115 | 130 | 90 |
| 200160 | Self-lubricating bearings 120/125/145X50-L WF-WB800 | 120 | 125 | 145 | 50 |
| 200165 | Self-lubricating bearings 120/125/145X90-L WF-WB800 | 120 | 125 | 145 | 90 |
| 200170 | Self-lubricating bearings 130/135/155X60-L WF-WB800 | 130 | 135 | 155 | 60 |
| 200175 | Self-lubricating bearings 130/135/155X90-L WF-WB800 | 130 | 135 | 155 | 90 |
| 200180 | Self-lubricating bearings 140/145/165X60-L WF-WB800 | 140 | 145 | 165 | 60 |
| 200185 | Self-lubricating bearings 140/145/165X90-L WF-WB800 | 140 | 145 | 165 | 90 |
| 200190 | Self-lubricating bearings 150/155/180X60-L WF-WB800 | 150 | 155 | 180 | 60 |
| 200195 | Self-lubricating bearings 150/155/180X90-L WF-WB800 | 150 | 155 | 180 | 90 |
| 200200 | Self-lubricating bearings 160/165/190X60-L WF-WB800 | 160 | 165 | 190 | 60 |
| 200205 | Self-lubricating bearings 160/165/190X90-L WF-WB800 | 160 | 165 | 190 | 90 |
| 200210 | Self-lubricating bearings 170/175/200X60-L WF-WB800 | 170 | 175 | 200 | 60 |
| 200215 | Self-lubricating bearings 170/175/200X90-L WF-WB800 | 170 | 175 | 200 | 90 |
| 200220 | Self-lubricating bearings 180/185/215X60-L WF-WB800 | 180 | 185 | 215 | 60 |
| 200225 | Self-lubricating bearings 180/185/215X90-L WF-WB800 | 180 | 185 | 215 | 90 |
| 200240 | Self-lubricating bearings 190/195/225X60-L WF-WB800 | 190 | 195 | 225 | 60 |
| 200245 | Self-lubricating bearings 190/195/225X90-L WF-WB800 | 190 | 195 | 225 | 90 |
| 200250 | Self-lubricating bearings 195/200/225X90-L WF-WB800 | 195 | 200 | 225 | 90 |
| 200255 | Self-lubricating bearings 200/205/235X60-L WF-WB800 | 200 | 205 | 235 | 60 |
| 200260 | Self-lubricating bearings 200/205/235X90-L WF-WB800 | 200 | 205 | 235 | 90 |
| 200281 | Self-lubricating bearings 230/235/265X90 WF-WB800 | 230 | 235 | 265 | 90 |
| 200285 | Self-lubricating bearings 240/245/270X85-L WF-WB800 | 240 | 245 | 270 | 85 |
| 200295 | Self-lubricating bearings 250/255/295X50 WF-WB800 | 250 | 255 | 295 | 50 |
| 200298 | Self-lubricating bearings 295/300/331X60-N WF-WB800 | 295 | 300 | 331 | 60 |
| 200302 | Self-lubricating bearings 300/305/336X60-LN WF-WB800 | 300 | 305 | 336 | 60 |
WB700 Sliding Bearings Size Chart
| Item no. | Description | d | D | L |
| 270013 | Sliding bearings 10/12x10 WB700 | 10 | 12 | 10 |
| 270027 | Sliding bearings 12/14x10 WB700 | 12 | 14 | 10 |
| 270030 | Sliding bearings 12/14x15 WB700 | 12 | 14 | 15 |
| 270050 | Sliding bearings 14/16x15 WB700 | 14 | 16 | 15 |
| 270055 | Sliding bearings 14/16x20 WB700 | 14 | 16 | 20 |
| 270057 | Sliding bearings 15/17x12 WB700 | 15 | 17 | 12 |
| 270060 | Sliding bearings 15/17x15 WB700 | 15 | 17 | 15 |
| 270065 | Sliding bearings 15/17x25 WB700 | 15 | 17 | 25 |
| 270070 | Sliding bearings 16/18x15 WB700 | 16 | 18 | 15 |
| 270075 | Sliding bearings 16/18x20 WB700 | 16 | 18 | 20 |
| 270080 | Sliding bearings 16/18x25 WB700 | 16 | 18 | 25 |
| 270085 | Sliding bearings 18/21x15 WB700 | 18 | 21 | 15 |
| 270090 | Sliding bearings 18/21x20 WB700 | 18 | 21 | 20 |
| 270095 | Sliding bearings 18/21x25 WB700 | 18 | 21 | 25 |
| 270100 | Sliding bearings 20/23x15 WB700 | 20 | 23 | 15 |
| 270105 | Sliding bearings 20/23x20 WB700 | 20 | 23 | 20 |
| 270110 | Sliding bearings 20/23x25 WB700 | 20 | 23 | 25 |
| 270115 | Sliding bearings 20/23x30 WB700 | 20 | 23 | 30 |
| 270120 | Sliding bearings 22/25x15 WB700 | 22 | 25 | 15 |
| 270125 | Sliding bearings 22/25x20 WB700 | 22 | 25 | 20 |
| 270130 | Sliding bearings 22/25x25 WB700 | 22 | 25 | 25 |
| 270135 | Sliding bearings 22/25x30 WB700 | 22 | 25 | 30 |
| 270137 | Sliding bearings 25/28x15 WB700 | 25 | 28 | 15 |
| 270140 | Sliding bearings 25/28x20 WB700 | 25 | 28 | 20 |
| 270145 | Sliding bearings 25/28x25 WB700 | 25 | 28 | 25 |
| 270150 | Sliding bearings 25/28x30 WB700 | 25 | 28 | 30 |
| 270160 | Sliding bearings 25/28x50 WB700 | 25 | 28 | 50 |
| 270165 | Sliding bearings 28/31x15 WB700 | 28 | 31 | 15 |
| 270170 | Sliding bearings 28/31x25 WB700 | 28 | 31 | 25 |
| 270175 | Sliding bearings 28/31x30 WB700 | 28 | 31 | 30 |
| 270177 | Sliding bearings 30/34x15 WB700 | 30 | 34 | 15 |
| 270180 | Sliding bearings 30/34x20 WB700 | 30 | 34 | 20 |
| 270183 | Sliding bearings 30/34x25 WB700 | 30 | 34 | 25 |
| 270190 | Sliding bearings 30/34x30 WB700 | 30 | 34 | 30 |
| 270195 | Sliding bearings 30/34x40 WB700 | 30 | 34 | 40 |
| 270200 | Sliding bearings 32/36x20 WB700 | 32 | 36 | 20 |
| 270205 | Sliding bearings 32/36x30 WB700 | 32 | 36 | 30 |
| 270210 | Sliding bearings 32/36x40 WB700 | 32 | 36 | 40 |
| 270220 | Sliding bearings 35/39x20 WB700 | 35 | 39 | 20 |
| 270235 | Sliding bearings 35/39x30 WB700 | 35 | 39 | 30 |
| 270240 | Sliding bearings 35/39x40 WB700 | 35 | 39 | 40 |
| 270245 | Sliding bearings 35/39x50 WB700 | 35 | 39 | 50 |
| 270260 | Sliding bearings 40/44x20 WB700 | 40 | 44 | 20 |
| 270262 | Sliding bearings 40/44x25 WB700 | 40 | 44 | 25 |
| 270265 | Sliding bearings 40/44x30 WB700 | 40 | 44 | 30 |
| 270275 | Sliding bearings 40/44x40 WB700 | 40 | 44 | 40 |
| 270278 | Sliding bearings 40/44x45 WB700 | 40 | 44 | 45 |
| 270285 | Sliding bearings 40/44x50 WB700 | 40 | 44 | 50 |
| 270290 | Sliding bearings 42/46x40 WB700 | 42 | 46 | 40 |
| 270295 | Sliding bearings 45/50x20 WB700 | 45 | 50 | 20 |
| 270300 | Sliding bearings 45/50x30 WB700 | 45 | 50 | 30 |
| 270302 | Sliding bearings 45/50x40 WB700 | 45 | 50 | 40 |
| 270310 | Sliding bearings 45/50x50 WB700 | 45 | 50 | 50 |
| 270315 | Sliding bearings 45/50x60 WB700 | 45 | 50 | 60 |
| 270317 | Sliding bearings 45/50x70 WB700 | 45 | 50 | 70 |
| 270325 | Sliding bearings 50/55x30 WB700 | 50 | 55 | 30 |
| 270335 | Sliding bearings 50/55x40 WB700 | 50 | 55 | 40 |
| 270337 | Sliding bearings 50/55x50 WB700 | 50 | 55 | 50 |
| 270340 | Sliding bearings 50/55x60 WB700 | 50 | 55 | 60 |
| 270345 | Sliding bearings 55/60x40 WB700 | 55 | 60 | 40 |
| 270347 | Sliding bearings 55/60x50 WB700 | 55 | 60 | 50 |
| 270350 | Sliding bearings 55/60x60 WB700 | 55 | 60 | 60 |
| 270358 | Sliding bearings 60/65x25 WB700 | 60 | 65 | 25 |
| 270360 | Sliding bearings 60/65x30 WB700 | 60 | 65 | 30 |
| 270364 | Sliding bearings 60/65x35 WB700 | 60 | 65 | 35 |
| 270365 | Sliding bearings 60/65x40 WB700 | 60 | 65 | 40 |
| 270377 | Sliding bearings 60/65x50 WB700 | 60 | 65 | 50 |
| 270380 | Sliding bearings 60/65x60 WB700 | 60 | 65 | 60 |
| 270405 | Sliding bearings 65/70x40 WB700 | 65 | 70 | 40 |
| 270410 | Sliding bearings 65/70x60 WB700 | 65 | 70 | 60 |
| 270420 | Sliding bearings 70/75x40 WB700 | 70 | 75 | 40 |
| 270427 | Sliding bearings 70/75x50 WB700 | 70 | 75 | 50 |
| 270430 | Sliding bearings 70/75x60 WB700 | 70 | 75 | 60 |
| 270435 | Sliding bearings 70/75x80 WB700 | 70 | 75 | 80 |
| 270445 | Sliding bearings 75/80x40 WB700 | 75 | 80 | 40 |
| 270450 | Sliding bearings 75/80x80 WB700 | 75 | 80 | 80 |
| 270455 | Sliding bearings 80/85x40 WB700 | 80 | 85 | 40 |
| 270458 | Sliding bearings 80/85x50 WB700 | 80 | 85 | 50 |
| 270460 | Sliding bearings 80/85x60 WB700 | 80 | 85 | 60 |
| 270465 | Sliding bearings 80/85x80 WB700 | 80 | 85 | 80 |
| 270475 | Sliding bearings 85/90x40 WB700 | 85 | 90 | 40 |
| 270480 | Sliding bearings 85/90x80 WB700 | 85 | 90 | 80 |
| 270495 | Sliding bearings 90/95x40 WB700 | 90 | 95 | 40 |
| 270500 | Sliding bearings 90/95x60 WB700 | 90 | 95 | 60 |
| 270505 | Sliding bearings 90/95x90 WB700 | 90 | 95 | 90 |
| 270514 | Sliding bearings 100/105x40 WB700 | 100 | 105 | 40 |
| 270515 | Sliding bearings 100/105x50 WB700 | 100 | 105 | 50 |
| 270520 | Sliding bearings 100/105x60 WB700 | 100 | 105 | 60 |
| 270522 | Sliding bearings 100/105x70 WB700 | 100 | 105 | 70 |
| 270525 | Sliding bearings 100/105x95 WB700 | 100 | 105 | 95 |
| 270530 | Sliding bearings 100/105x100 WB700 | 100 | 105 | 100 |
| 270535 | Sliding bearings 110/115x50 WB700 | 110 | 115 | 50 |
| 270540 | Sliding bearings 110/115x95 WB700 | 110 | 115 | 95 |
| 2705413 | Sliding bearings 110/115x100 WB700 | 110 | 115 | 100 |
| 270542 | Sliding bearings 120/125x25 WB700 | 120 | 125 | 25 |
| 270550 | Sliding bearings 120/125x50 WB700 | 120 | 125 | 50 |
| 270555 | Sliding bearings 120/125x95 WB700 | 120 | 125 | 95 |
| 270565 | Sliding bearings 125/130x100 WB700 | 125 | 130 | 100 |
| 270570 | Sliding bearings 130/135x60 WB700 | 130 | 135 | 60 |
| 270575 | Sliding bearings 130/135x100 WB700 | 130 | 135 | 100 |
| 270580 | Sliding bearings 140/145x60 WB700 | 140 | 145 | 60 |
| 270585 | Sliding bearings 140/145x100 WB700 | 140 | 145 | 100 |
| 270605 | Sliding bearings 150/155x60 WB700 | 150 | 155 | 60 |
| 270610 | Sliding bearings 150/155x100 WB700 | 150 | 155 | 100 |
| 270615 | Sliding bearings 160/165x60 WB700 | 160 | 165 | 60 |
| 270620 | Sliding bearings 160/165x100 WB700 | 160 | 165 | 100 |
| 270635 | Sliding bearings 170/175x60 WB700 | 170 | 175 | 60 |
| 270640 | Sliding bearings 170/175x100 WB700 | 170 | 175 | 100 |
| 270645 | Sliding bearings 180/185x60 WB700 | 180 | 185 | 60 |
| 270655 | Sliding bearings 180/185x100 WB700 | 180 | 185 | 100 |
| 270657 | Sliding bearings 185/190x100 WB700 | 185 | 190 | 100 |
| 270660 | Sliding bearings 190/195x60 WB700 | 190 | 195 | 60 |
| 270665 | Sliding bearings 190/195x100 WB700 | 190 | 195 | 100 |
| 270670 | Sliding bearings 200/205x60 WB700 | 200 | 205 | 60 |
| 270675 | Sliding bearings 200/205x100 WB700 | 200 | 205 | 100 |
WF-WB700 Sliding Bearings Size Chart
| Item no. | Description | d | D | D2 | L |
| 274012 | Sliding bearings17/22/30X10 WF-WB700 | 17 | 22 | 30 | 10 |
| 274010 | Sliding bearings20/23/30X16 WF-WB700 | 20 | 23 | 30 | 16 |
| 274015 | Sliding bearings20/23/30X20 WF-WB700 | 20 | 23 | 30 | 20 |
| 274025 | Sliding bearings25/28/35X25 WF-WB700 | 25 | 28 | 35 | 25 |
| 274027 | Sliding bearings30/34/45X10 WF-WB700 | 30 | 34 | 45 | 10 |
| 274028 | Sliding bearings30/34/45X16 WF-WB700 | 30 | 34 | 45 | 16 |
| 274030 | Sliding bearings30/34/45X20 WF-WB700 | 30 | 34 | 45 | 20 |
| 274035 | Sliding bearings30/34/45X30 WF-WB700 | 30 | 34 | 45 | 30 |
| 274040 | Sliding bearings35/39/50X20 WF-WB700 | 35 | 39 | 50 | 20 |
| 274045 | Sliding bearings35/39/50X35 WF-WB700 | 35 | 39 | 50 | 35 |
| 274050 | Sliding bearings40/44/55X25 WF-WB700 | 40 | 44 | 55 | 25 |
| 274055 | Sliding bearings40/44/55X40 WF-WB700 | 40 | 44 | 55 | 40 |
| 274063 | Sliding bearings45/50/60X22,5 WF-WB700 | 45 | 50 | 60 | 22.5 |
| 274065 | Sliding bearings45/50/60X30 WF-WB700 | 45 | 50 | 60 | 30 |
| 274070 | Sliding bearings45/50/60X45 WF-WB700 | 45 | 50 | 60 | 45 |
| 274075 | Sliding bearings50/55/65X30 WF-WB700 | 50 | 55 | 65 | 30 |
| 274080 | Sliding bearings50/55/65X50 WF-WB700 | 50 | 55 | 65 | 50 |
| 274081 | Sliding bearings55/60/70X30 WF-WB700 | 55 | 60 | 70 | 30 |
| 274082 | Sliding bearings55/60/70X50 WF-WB700 | 55 | 60 | 70 | 50 |
| 274085 | Sliding bearings60/65/75X35 WF-WB700 | 60 | 65 | 75 | 35 |
| 274095 | Sliding bearings60/65/75X60 WF-WB700 | 60 | 65 | 75 | 60 |
| 274098 | Sliding bearings65/70/80X60 WF-WB700 | 65 | 70 | 80 | 60 |
| 274100 | Sliding bearings70/75/85X35 WF-WB700 | 70 | 75 | 85 | 35 |
| 274105 | Sliding bearings70/75/85X70 WF-WB700 | 70 | 75 | 85 | 70 |
| 274107 | Sliding bearings75/80/90X40 WF-WB700 | 75 | 80 | 90 | 40 |
| 274108 | Sliding bearings75/80/90X70 WF-WB700 | 75 | 80 | 90 | 70 |
| 274110 | Sliding bearings80/85/95X40 WF-WB700 | 80 | 85 | 95 | 40 |
| 274115 | Sliding bearings80/85/95X80 WF-WB700 | 80 | 85 | 95 | 80 |
| 274120 | Sliding bearings90/95/110X50 WF-WB700 | 90 | 95 | 110 | 50 |
| 274125 | Sliding bearings90/95/110X90 WF-WB700 | 90 | 95 | 110 | 90 |
| 274135 | Sliding bearings100/105/120X50 WF-WB700 | 100 | 105 | 120 | 50 |
| 274140 | Sliding bearings100/105/120X90 WF-WB700 | 100 | 105 | 120 | 90 |
| 274143 | Sliding bearings100/105/120X100 WF-WB700 | 100 | 105 | 120 | 100 |
| 274150 | Sliding bearings110/115/130X50 WF-WB700 | 110 | 115 | 130 | 50 |
| 274155 | Sliding bearings110/115/130X90 WF-WB700 | 110 | 115 | 130 | 90 |
| 274160 | Sliding bearings120/125/145X50 WF-WB700 | 120 | 125 | 145 | 50 |
| 274165 | Sliding bearings120/125/145X90 WF-WB700 | 120 | 125 | 145 | 90 |
| 274170 | Sliding bearings130/135/155X60 WF-WB700 | 130 | 135 | 155 | 60 |
| 274175 | Sliding bearings130/135/155X90 WF-WB700 | 130 | 135 | 155 | 90 |
| 274180 | Sliding bearings140/145/165X60 WF-WB700 | 140 | 145 | 165 | 60 |
| 274185 | Sliding bearings140/145/165X90 WF-WB700 | 140 | 145 | 165 | 90 |
| 274190 | Sliding bearings150/155/180X60 WF-WB700 | 150 | 155 | 180 | 60 |
| 274195 | Sliding bearings150/155/180X90 WF-WB700 | 150 | 155 | 180 | 90 |
| 274200 | Sliding bearings160/165/190X60 WF-WB700 | 160 | 165 | 190 | 60 |
| 274205 | Sliding bearings160/165/190X90 WF-WB700 | 160 | 165 | 190 | 90 |
| 274210 | Sliding bearings170/175/200X60 WF-WB700 | 170 | 175 | 200 | 60 |
| 274215 | Sliding bearings170/175/200X90 WF-WB700 | 170 | 175 | 200 | 90 |
| 274220 | Sliding bearings180/185/215X60 WF-WB700 | 180 | 185 | 215 | 60 |
| 274225 | Sliding bearings180/185/215X90 WF-WB700 | 180 | 185 | 215 | 90 |
| 274240 | Sliding bearings190/195/225X60 WF-WB700 | 190 | 195 | 225 | 60 |
| 274245 | Sliding bearings190/195/225X90 WF-WB700 | 190 | 195 | 225 | 90 |
| 274255 | Sliding bearings200/205/235X60 WF-WB700 | 200 | 205 | 235 | 60 |
| 274260 | Sliding bearings200/205/235X90 WF-WB700 | 200 | 205 | 235 | 90 |
Recommended Products
