Low Friction Aerial Lift Outdoor Polymer Plain Bearings Corrosion Resistance

Basic Infomation
Place of Origin: Zhejiang, China (Mainland)
Brand Name: VIIPLUS BUSHINGS SUPPLIER
Certification: ISO 9001
Model Number: TEFLON DU DX BUSHINGS
Minimum Order Quantity: 1000 Piece/Pieces
Price: $0.05 - $1.00 / Pieces
Packaging Details: Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time: 7~15 work days
Payment Terms: TT in advance,Western Union
Supply Ability: 800000 Piece/Pieces per Month
Detail Infomation
Material: CARBON-BASED NON-OIL LUBRICATED BEARINGS Port: FOB SHANGHAI
Feature: Small Coefficient Of Friction, Wear - Resistant, Anti - Corrosive And Non - Oil Lubrication Type: Roller, Sleeve, Sliding, Composite Bushing, Thrust Washer

Product Description



TITLE:Low Friction Aerial Lift Carbon-Based Non-Oil Lubricated Bearings Good Wear Resistance & Corrosion Resistance





OVERVIEW

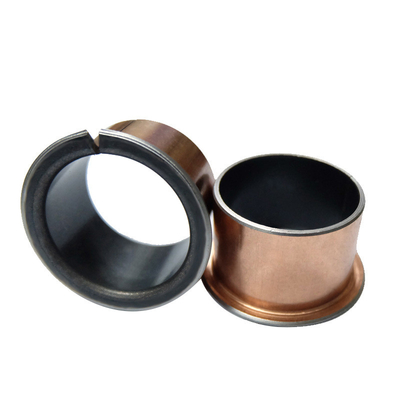

Multi-layer compound oil-free bearing
It is rolling bearing with steel plate as matrix, sintered spherical bronze powder in the middle and rolled PTFE and lead on the surface.It has the characteristics of small friction coefficient, good wear resistance, corrosion resistance and no oil lubrication.
Using this product can reduce the cost, reduce the mechanical volume, avoid the phenomenon of shaft biting and reduce the mechanical noise and other advantages.Products have been widely used in various mechanical sliding parts, such as printing presses, elevators, textile machines, tobacco machines, fitness equipment, hydraulic trucks, micromotors, solenoid valves, automobiles, motorcycles and household machinery.



Low Friction Aerial Lift Outdoor Polymer Plain Bearings Corrosion Resistance



DESCRIPTION



Oilless bearing is a new type of bearing which has the characteristics of both metal bearing and oilless bearing.



An aerial lift, also known as a cable car, is a means of cable transport in which cabins, cars, gondolas or open chairs are hauled above the ground by means of one or more cables. Aerial lift systems are frequently employed in airport,mountainous territory where roads are relatively difficult to build and use, and have seen extensive use in mining. Aerial lift systems are relatively easy to move, and are and have been used to cross rivers and ravines. In more recent times, the cost-effectiveness



Tech. Data

Max. load Static 250N/mm2 Max.speed Dry running 0.08~0.20
Very low speed 140N/mm2 Hydrodynamicoperation 0.02~0.08
Rotatingoscillating 60N/mm2 Frictioncoefficient Dry 2m/s
Hydrodynamic >2m/s
Max. PVdryrunning) Short-termoperation 3.6N/mm2*m/3 Thermal conductivity 42W(m*K)-1
Continuousoperation 1.8N/mm2*m/3
PV max. hydrodynamic -195℃~+280℃ Coefficient of thermalexpansion 11*10-6*K-1





DETAIL DISPLAY



Plain Bearings Advantages


The advantages of oil-free bearings are well known.
Oilless bearing is a new type of bearing which has the characteristics of both metal bearing and oilless bearing.
It has the characteristics of high bearing capacity, impact resistance, high temperature resistance, strong self-lubricating ability, etc., especially sliding bearing is suitable for heavy load, low speed, reciprocating or oscillating, etc., which is difficult to lubricate and form oil film, and is not afraid of water and other acid corrosion and erosion.It is generally reported by users that the embedded bearing not only saves oil and energy, but also has a longer working life than ordinary sliding bearing.
Oilless bearing the product is based on steel plate as the matrix, the middle layer sintered spherical bronze powder, surface rolling polytetrafluoroethylene and lead mixture.It has the characteristics of small friction coefficient, wear resistance and corrosion resistance, oil-free self-lubrication and long service life, it can reduce the cost, reduce the noise, prevent sticking and sliding.

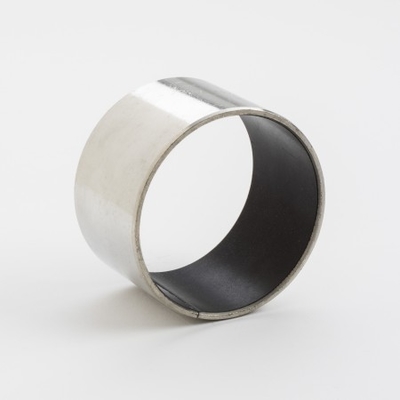

Structure


1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is thecontact surface for the rotating shaft. Minute partidesof thePTFE layer and the sintered bronze material combine tocreate a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.





APPLICATION



Printing press, elevator, textile machine, tobacco machine, fitness equipment, hydraulic truck, micromotor, solenoid valve, automobile, motorcycle and home machinery.



DISCOVER MORE



Bearings Matters needing attention


One, should determine the shaft, shaft shell mating surface whether there is bump, bump, etc.
Whether dust or mold sand is attached to the surface of the bearing housing.
Third, although is the slight bump, the protuberance and so on, if has must the oil grindstone or the fine sandpaper remove.
Four, in order to avoid the surface of the shaft and shaft shell should be rubbed with a small amount of lubricating oil.To install the bearing on the shaft, apply force on the inner ring; to install the bearing on the bearing housing, apply force on the outer ring.To apply force in the bearing, be sure to pay attention to make the force vertical and uniform down, deflection will make the bearing injury.To this end, absolutely try to avoid playing wide.
Five, the hardness of the bearing, because of overheating and reduce the worry, therefore, must not exceed 100 degrees.At this time, the bearing must be suspended with steel wire, or placed on the wire line, support plate, do not place at the bottom of the groove.When the bearing reaches the desired temperature (below 100 degrees), it should be taken out of the groove immediately and quickly put into the shaft. The bearing will contract with the temperature drop. Sometimes there will be a gap between the shaft shoulder and the bearing end face.
Six, oil-free bearing bearing retainer and seal plate also absolutely can not apply force.The installation method of hammer and sleeve is commonly used, because it will damage the bearing, so do not directly knock.Make sure the sleeve is inserted in the middle and knocked in, as shown.The hammer should be gently struck.In the mechanical structure, the inner and outer rings are tight fit, should use plate, make sure that the force can be added to the inner and outer ring pressure into.
If only in the inner ring pressure, the force will be through the ball and pressure into the outer ring, therefore, will cause a scar on the track surface.To install the bearings with large tolerance on the shaft, heating the bearings to 80-90 degrees and expanding the inner diameter in clean oil is widely adopted.
