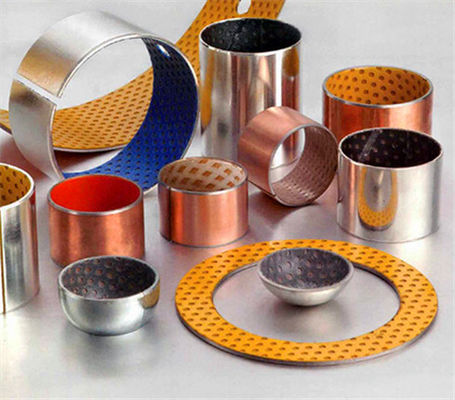

SF-1D Bronze Base Ptfe Sleeve Bearing For Metallurgical And Steel Industry

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bronze Backed, Bronze , PTFE Plating Tin Or Copper
Quality OEM Quality Size Std.&Non-std. Customized Sizes
Application Metallurgy Machine And Casting Machines, Consecutive Casting Machines, Cemetery Machines, Spiral Transporting Machines, Etc. Type Wrapped Bushes, Flanged Bearing, Thrust Washer
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

plain sleeve bearing strips

,

self lubricating bearing strip

Leave a Message
Product Description

Self-lubricating Bearings



Self-lubricating Bearings is wall wrapped bearing made of triple layer composites material which consists of a steel backing,a sintered porous bronze particles interlayer and calendared with PTFE and Pb mixture as surface layer,It is of low friction cofeeicient,anti-wear,anti-corrosion and can be used without oil,or only a trace of oil os needed.moreover,it is of low cost,low vibration and low noise,compact and light,like DX BUSHINGS widely applied in various sliding articles of different kind of machines,Such as textile machines,tobacoo machines,hydraulic vechicles,antomobiles,agriculture and forests machinese and soon.



SF-1D bronze base bearing ptfe metallurgical and steel industry cement grouting pump and spiral conveyor bush | VSB-11



Bronze + Bronze Powder + PTFE/Fibre(DU-B)

Dry Maintenance Free Bronze Base DU-B Self Lubricating Bush SF-1B



Characteristics



· VSB-11





Sf-1b bronze base bearing is based on tin bronze, intermediate sintered bronze ball powder, surface rolling PTEE and high temperature filling material.

It has a high safety factor, especially in places where continuous work cannot be stopped and high temperatures cannot be refuelled. At present, it is widely used in metallurgical and steel industry, continuous casting billet rolling road, high temperature furnace front equipment, cement grouting pump and spiral conveyor. It can be a combination of the outer wave combination, and can also be made to turn the edge, to reach the end face, the inner hole and the effect of friction.

The rolling part of the bridge supports the replacement of the pure PTFE board with the products of sf-1b wear-resistant layer. Meet the requirements of 130N/mm squared.



· Very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

· Suitable for lubricated applications

· Suitable for linear, oscillating and rotating movements

· Bronze back offers improved corrosion resistance in humid/saline environments

· Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary and oscillating movement. Very high chemical resistance, low absorption of water and swelling, also performs very good lubrication feature, the bronze backing provides the improved corrosion resistance comparing with VSB-10.



Strusture




1. PTFE/fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE/Fibre mixture.
3. Bronze backing, provides exceptionally high load carrying capacity, excellent heat dissipation and very good corrosion resistance.



Technical Data​


Structure And Composition



· Metal-Polymer Composite Material
· Bronze Back + Porous Bronze Sinter +
· PTFE + Lead



Microsection



SF-1D Bronze Base Ptfe Sleeve Bearing For Metallurgical And Steel Industry 0

Sliding layer PTFE
+ Lead


Porous Bronze Sinter

Bronze Backing





Tech. Data



Max. load

Static

250N/mm2

Friction coefficient

0.03~0.20

Very low speed

140N/mm2

Rotatingoscillating

60N/mm2

Max.speed

Dry running

2m/s



Hydrodynamicoperation

>2m/s



Max. PVdryrunning

Short-termoperation

3.6N/mm2*m/3

Thermal conductivity

70W(m*K)-1



Continuousoperation

1.8N/mm2*m/3



Temp. limit

-195℃~+280℃

Coefficient of thermalexpansion

11*10-6*K-1





Operating Performance

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Good

Process fluid lubricated

Fair





Bearing Properties



GENERAL



Unit

Value

Maximum load, p

Static
Dynamic

N/mm2
N/mm2

140
140

Operating temperature

Min
Max

°C
°C

- 195
280



DRY
Maximum sliding speed, U   m/s 2.0

Coefficient of friction     0.03 - 0.20 *



OIL LUBRICATED
Maximum sliding speed, U   m/s >2.0



* Depending on operating conditions



Technical data

Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+2800℃

Friction coefficient

0.03~0.20

Thermal conductivity

70W (m·k)-1

Coefficient of thermal expansion

17*10-6k-1







Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs


Typical Applications



The typical applications covered Steel metallurgy industry such as bushes for roller grooves of successive casting machines, cement grouting pumps and screw conveyers for cement and so on.conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.


Customer Size
