Kx Oilless Bushing Sleeve Flange Size POM Self Lubricating
Place of Origin | CHINA |
---|---|
Brand Name | viiplus Self-lubricating composite bearing |
Certification | RHOS |
Model Number | High performance pom oil-free self-lubricating bearings |
Minimum Order Quantity | negotiate |
Price | negotiate |
Packaging Details | Export Carton Wood Pallet Wooden Case |
Delivery Time | 5-25 works day |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | L/C, T/T, Western Union |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMATERIAL | Steel + Bronze Powder + POM | FEATURE | No Oil, Self-lubricating |
---|---|---|---|
Style | DX The Same Style | Country Of Origin | China |
Type | Sleeve | Lubrication | POM Self-lubricating,oil,grease |
Finishing | Copper-plating/tin-plating | Size | Customized |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Self Lubricating Bronze POM Bushing, Metal Polymer Bushings | POM DX BUSH | Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | Kx Oilless Bushing Sleeve,Bushing Sleeve Flange Size,Bushing Sleeve POM |
Kx Oilless Bushing Sleeve Flange Size POM The professional manufacture & sale of oilless lubrication bearings.
KX POM Bearing Bushing
The Kx Oilless Bushing Sleeve with flange size and made from POM (Polyoxymethylene) is a self-lubricating component designed for superior performance in a range of industrial applications. POM, also known as acetal, is a highly durable and wear-resistant material that offers excellent mechanical properties and stability.
The flange design of this bushing sleeve provides additional support and stability, ensuring a secure fit within the housing. This not only enhances the load-bearing capacity but also contributes to the overall reliability and performance of the bushing.
The self-lubricating nature of POM material significantly reduces the need for external lubrication, simplifying maintenance and extending the service life of the bushing sleeve. This feature is particularly beneficial in applications where regular lubrication is difficult or impractical.
The Kx Oilless Bushing Sleeve is suitable for use in a wide range of machinery and equipment, including pumps, motors, and gearboxes. Its high-quality construction and materials ensure smooth and reliable operation, even under high loads and speeds.
In summary, the Kx Oilless Bushing Sleeve with flange size and made from POM is a robust and reliable component that offers exceptional performance and durability in various industrial settings. Its self-lubricating properties and flange design combine to provide optimal support, stability, and lubrication, making it an ideal choice for demanding applications.
A small amount of lubricant is required for these bushings (All greases or oils designed for lubricating plain bearings). DX bushings have good sliding properties and are suitable for rotary and rocking movements. They have a low coefficient of friction, low sensitivity to edge loading and good damping properties. They can be post-machined. They are low maintenance due to the long relubrication intervals.
This material is designed for semi-dry friction working conditions with limited lubrication. Regularly arranged circular depressions are formed on the sliding surface, which are filled with sufficient lubricant once during assembly. The sliding material consists of polyacetal anchored in porous bronze on a sintered steel substrate.
The KX bimetallic strip has a 0.25 mm thick layer of polyacetal over the bronze interlayer so that it can be machined if required. It has good conformability, hence its resistance to edge pressures, but is not suitable for dry work.
The coefficient of friction is low when initially lubricated with grease and increases thereafter. When the sliding life of the KX bimetallic belt is not sufficient with the basic lubricant supply, it can be increased by repeated relubrication. KX bimetallic belt products have excellent sliding properties.
The operating temperature range is from -40 to +110°C, short term up to +130°C.
The DX bushings are equivalent to the bushings marked PM...,PCM...M, PAP...P20, GLY.AB..., MX..., SF-2...,
Parameters
Inner diameter (mm)
14
Outer diameter (mm)
16
Width (mm)
15
Temperature range °C
-40..+250
Friction coefficient µ
0,04-0,12
Dynamic load N/mm2
120
Static load N/mm2
250
Permissible sliding speed m/s
2,0
Shaft tolerance
h7-h8
Tolerance of body
H7
Shaft surface roughness Ra µm
0-0,8
Shaft hardness HB
150-600
Dx bushing size chart
METRIC BEARING POM BUSHES WITH OIL HOLES.pdf
View DX style composite bushing and self-lubricating bearings from bronzegleitlager.com
All sizes are in stock & ready for reliable shipment.

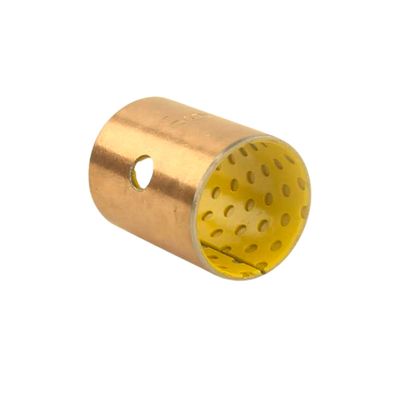

Cylindrical Dx Pom Composite Self-Lubricating Bearing
The POM-based sleeve bearing, also called DX bushing, boundary lubricated bearing, oil-free bearing, dry bearing, DX bearing and POM coated dry sleeve. It has a similar material structure with dowels. The difference lies in the POM coated layer.
Yellow POM composite bushing is a standard item of our company. This type self-lubricating bearing has same material structure with other dx bushing.
1. POM 0.3~0.5mm.
2. Porous bronze 0.2~0.3mm.
3. Steel backing 0.4~2.2mm.
4. Copper plating 0.008mm.
-
Environmental protection composite bushing multi-layer material without lead
-
Custom 14*12*15 Composite DX Oilless POM Steel Split Bearing Bush
-
Composite Steel Backed Bronze Self Lubricating DU Bushing Bearing with PTFE

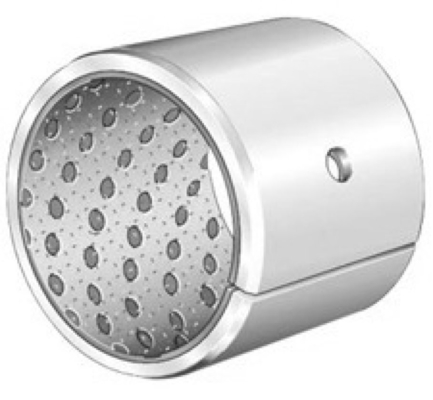

DX SPLIT BUSH BEARING - DX TYPE
Specifications for DX Split Bush Bearing - DX Type | |
Reference | DX bush |
Brand | Viiplus |
Inside Diameter | 20mm |
Outside Diameter | 23mm |
Width | 15mm |
Type | Bearing |
Weight (KG) | 0.0001 |
DX marginally lubricated bushings Characteristics
· Good load-bearing capacity and wear resistance
· Suitable for linear, oscillating and rotating movements
· Optimal performance at relatively high loads and low speeds
· Lead-free sockets can meet environmental protection requirements
Yellow pom composite self-lubricating bearing is widely used in the machine where lead-free is unacceptable, such as textile machinery, self-acting parts, car chassis, forging machine, metallurgy and so on.
RELATED DX SELF-LUBRICATING BEARING BUSHES
Yellow Pom composite self-lubricating Bearing Technical Date
Load capacity | 70N/mm2 | |
Friction value | 0.05 to 0.25 µ | |
Temperature | -40 to +130 [ °C ] | |
Max. Pv (oil condition) | 22N/mm2 .m/s | |
Max. speed | 2.5m/s |
Metal-Polymer Plain Bearings Grease Lubricated Dx Bush
Dx bush - Oil or grease lubricated bearings - Metric Size
- Marginally lubricated DX bushings for grease or oil lubricated applications
- Standard parts contain grease notches on the sliding layer; flat sliding layer available upon request
- Optimal performance under relatively high loads and low speeds
- Suitable for linear, oscillating and rotating movements
- Wide range of parts available from stock
Structure & Composition
- Metal-Polymer Composite Bushing Material
- Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents
Microsection
- Sliding layer POM with or without lubricant indents for machining
- Porous Bronze Sinter
- Steel Back
OPERATING PERFORMANCE | |
Dry | Poor |
Oil lubricated | Good |
Grease lubricated | Very Good |
Water lubricated | Poor |
Process fluid lubricated | Poor |
Self-lubricating bearing dx bush Properties
GENERAL | Unit | Value | |
Maximum load, p |
Static |
N/mm2 |
140 140 |
Operating temperature |
Min |
°C |
- 40 130 |
Coefficient of linear thermal expansion | Parallel to the surface | 10-6/K | 11 |
Normal to the surface | 10-6/K | 29 |
GREASE LUBRICATED | ||
Maximum sliding speed, U | m/s | 2.5 |
Maximum pU factor | N/mm2 x m/s | 2.8 |
Coefficient of friction | 0.06 – 0.12 |
RECOMMENDATIONS | |||
Shaft surface roughness, Ra | µm | ≤ 0.4 | |
Shaft surface hardness |
Normal |
HB |
> 200 > 350 |
Availability
Bearing forms available in standard dimensions
- Standard cylindrical dx bushing
- Dx thrust washers
- Dx strips are availabe
- Customzied dx bushing
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs
Dx bushing Typical applications
- Agricultural equipment
- Off-highway, truck, and automotive
- Handling and lifting equipment
- Machine tool building industry
- Hydraulics
- Engineering and general applications
