Tin Plating Self Lubricating Bearings With Inch Sizes
Place of Origin | Composite plain cylindrical bushings manufacturer |
---|---|
Brand Name | VIIPLUS BUSHINGS SUPPLIER |
Certification | ISO 3547 DIN 1494 Assembly Standard Tolerance |
Model Number | DU DX BUSHINGS |
Minimum Order Quantity | 1000 Piece/Pieces |
Price | $0.05 - $1.00 / Pieces |
Packaging Details | Packaging: Export carton; Wooden case ; Wood pallet. |
Delivery Time | 7~15 work days |
Payment Terms | TT in advance,Western Union |
Supply Ability | Special Customized Lubricating Bushings Manufacturing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Carton Steel , Bronze , PTFE | Plating | Tin Or Copper |
---|---|---|---|
Characteristic | Low-maintenance And Maintenance-free Plain Bearings | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
Size | Standard Size Available | Quality | OEM |
Port | Shanghai | Application | DMFW Bushing |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | Tin Plating Self Lubricating Bearings,DMFW Bushing Self Lubricating Bearings,Inch Sizes Self Lubricating Plain Bearing |
Tin-plated self-lubricating bearings, available in inch sizes, are precision-engineered components designed to provide smooth and efficient operation in a variety of industrial applications. The tin plating offers excellent wear resistance and corrosion protection, ensuring reliable performance even in harsh environments.
The self-lubricating feature of these bearings eliminates the need for regular lubrication, reducing maintenance requirements and operational costs. This also makes them suitable for use in applications where traditional lubrication may not be practical or desirable.
Available in inch sizes, these bearings can be easily integrated into existing machinery and equipment, providing a seamless upgrade to enhance performance and reliability. Whether used in pumps, motors, or other industrial components, tin-plated self-lubricating bearings offer a robust and dependable solution for ensuring smooth and efficient operation.
Self Lubricating Bearings Sizes And Ordering: Inch Sizes

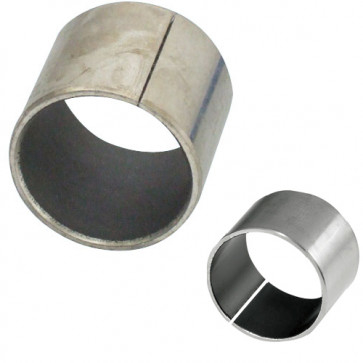

Pap Bushing Du Bushing Slitted type, carbon steel Bushes supplier.
Pap Bushing Du Bushing Slitted type Bearings supply Metal + Sintered Bronze POM sheets. With Steel Backing, Bushings thrust washers and strips - Bearings, csb 50 bushings, Same-Day Shipments
Metal-polymer bearings DU BUSH WITH BRONZE BACKING for dry and lubricated applications in corrosive environments. Cylindrical & flanged bushes, thrust washers.
21/8 | 2.1257 2.1239 | 2.3118 2.3130 | 2.1262 2.1326 | 3 | 34DU48 | ||||||||||||||||||
21/4 | 2.2507 2.2489 | 2.4365 2.4377 | 2.2509 2.2573 | 13/4 | 36DU28 | 2 | 36DU32 | 21/2 | 36DU40 | 3 | 36DU48 | 31/2 | 36DU56 | 33/4 | 36DU60 | 4 | 36DU64 | 41/2 | 36DU72 | ||||
21/2 | 2.5011 2.4993 | 2.6869 2.6881 | 2.5013 2.5077 | 1 | 40DU16 | 15/8 | 40DU26 | 2 | 40DU32 | 21/2 | 40DU40 | 3 | 40DU48 | 31/2 | 40DU56 | 33/4 | 40DU60 | 4 | 40DU64 | 41/2 | 40DU72 | 43/4 | 40DU76 |
23/4 | 2.7500 2.7482 | 2.9358 2.9370 | 2.7502 2.7566 | 2 | 44DU32 | 21/4 | 44DU36 | 21/2 | 44DU40 | 3 | 44DU48 | 31/2 | 44DU56 | 33/4 | 44DU60 | 4 | 44DU64 | 41/2 | 44DU72 | 43/4 | 44DU76 | 5 | 44DU80 |
27/8 | 2.8752 2.8734 | 3.0610 3.0623 | 2 2 do do 8 7 a 5 9 4 | 2 | 46DU32 | 21/4 | 46DU36 | 21/2 | 46DU40 | 3 | 46DU48 | 31/2 | 46DU56 | 33/4 | 46DU60 | 4 | 46DU64 | 41/2 | 46DU72 | 43/4 | 46DU76 | 5 | 46DU80 |
3 | 3.0000 2.9982 | 3.1858 3.1872 | 3.0002 3.0068 | 2 | 48DU32 | 21/4 | 48DU36 | 21/2 | 48DU40 | 3 | 48DU48 | 31/2 | 48DU56 | 33/4 | 48DU60 | 4 | 48DU64 | 4S | 48DU72 | 43/4 | 48DU76 | 5 | 48DU80 |
31/4 | 3.2500 3.2480 | 3.4358 3.4372 | 3 3 5 5 6 O 8 2 | 2 | 52DU32 | 23/8 | 52DU38 | 21/2 | 52DU40 | 3 | 52DU48 | 31/2 | 52DU56 | 33/4 | 52DU60 | 4 | 52DU64 | 41/2 | 52DU72 | 43/4 | 52DU76 | 5 | 52DU80 |
31/2 | 3.5000 3.4978 | 3.6858 3.6872 | 3.5002 3.5068 | 2 | 56DU32 | 23/8 | 56DU38 | 21/2 | 56DU40 | 3 | 56DU48 | 31/2 | 56DU56 | 33/4 | 56DU60 | 4 | 56DU64 | 41/2 | 56DU72 | 43/4 | 56DU76 | 5 | 56DU80 |
35/8 | 3.6250 3.6228 | 3.8108 3.8122 | 3.6252 3.6318 | 2 | 58DU32 | 21/4 | 58DU36 | 21/2 | 58DU40 | 3 | 58DU48 | 31/2 | 58DU56 | 33/4 | 58DU60 | 4 | 58DU64 | 41/2 | 58DU72 | 43/4 | 58DU76 | 5 | 58DU80 |
33/4 | 3.7500 3.7478 | 3.9358 3.9372 | 3.7502 3.7568 | 2 | 60DU32 | 21/4 | 60DU36 | 21/2 | 60DU40 | 3 | 60DU48 | 31/2 | 60DU56 | 33/4 | 60DU60 | 4 | 60DU64 | 41/2 | 60DU72 | 43/4 | 60DU76 | 5 | 60DU80 |
4 | 4.0000 3.9978 | 4.1858 4.1872 | 4.0002 4.0068 | 2 | 64DU32 | 21/4 | 64DU36 | 21/2 | 64DU40 | 3 | 64DU48 | 31/2 | 64DU56 | 33/4 | 64DU60 | 4 | 64DU64 | 41/2 | 64DU72 | 43/4 | 64DU76 | 5 | 64DU80 |
41/4 | 4.2500 4.2478 | 4.4358 4.4372 | 4.2502 4.2568 | 2 | 68DU32 | 21/4 | 68DU36 | 21/2 | 68DU40 | 3 | 68DU48 | 31/2 | 68DU56 | 33/4 | 68DU60 | 4 | 68DU64 | 41/2 | 68DU72 | 43/4 | 68DU76 | 5 | 68DU80 |
43/8 | 4.3750 4.3728 | 4.5608 4.5622 | 4.3752 4.3818 | 2 | 70DU32 | 21/4 | 70DU36 | 21/2 | 70DU40 | 3 | 70DU48 | 31/2 | 70DU56 | 33/4 | 70DU60 | 4 | 70DU64 | 41/2 | 70DU72 | 43/4 | 70DU76 | 5 | 70DU80 |
41/2 | 4.5000 4.4978 | 4.6858 4.6872 | 4.5002 4.5068 | 2 | 72DU32 | 21/4 | 72DU36 | 21/2 | 72DU40 | 3 | 72DU48 | 31/2 | 72DU56 | 33/4 | 72DU60 | 4 | 72DU64 | 41/2 | 72DU72 | 43/4 | 72DU76 | 5 | 72DU80 |
43/4 | 4.7500 4.7475 | 4.9358 4.9374 | 4.7502 4.7572 | 2 | 76DU32 | 21/4 | 76DU36 | 21/2 | 76DU40 | 3 | 76DU48 | 31/2 | 76DU56 | 33/4 | 76DU60 | 4 | 76DU64 | 41/2 | 76DU72 | 43/4 | 76DU76 | 5 | 76DU80 |
5 | 4.9986 4.9961 | 5.1844 5.1860 | 4.9988 5.0056 | 2 | 80DU32 | 21/4 | 80DU36 | 21/2 | 80DU40 | 3 | 80DU48 | 31/2 | 80DU56 | 33/4 | 80DU60 | 4 | 80DU64 | 41/2 | 80DU72 | 43/4 | 80DU76 | 5 | 80DU80 |
51/4 | 5.2500 5.2475 | 5.4358 5.4374 | 5.2502 5.2570 | 2 | 84DU32 | 21/4 | 84DU36 | 21/2 | 84DU40 | 3 | 84DU48 | 31/2 | 84DU56 | 33/4 | 84DU60 | 4 | 84DU64 | 41/2 | 84DU72 | 43/4 | 84DU76 | 5 | 84DU80 |
51/2 | 5.5000 4.4975 | 5.6858 5.6874 | 5.5002 5.5070 | 2 | 88DU32 | 21/4 | 88DU36 | 21/2 | 88DU40 | 3 | 88DU48 | 31/2 | 88DU56 | 33/4 | 88DU60 | 4 | 88DU64 | 41/2 | 88DU72 | 43/4 | 88DU76 | 5 | 88DU80 |
53/4 | 5.7500 5.7475 | 5.9358 5.9374 | 5.7502 5.7570 | 2 | 92DU32 | 21/4 | 92DU36 | 21/2 | 92DU40 | 3 | 92DU48 | 31/2 | 92DU56 | 33/4 | 92DU60 | 4 | 92DU64 | 41/2 | 92DU72 | 43/4 | 92DU76 | 5 | 92DU80 |
6 | 6.0000 5.9975 | 6.1858 6.1874 | 6.0002 6.0070 | 2 | 96DU32 | 21/4 | 96DU36 | 21/2 | 96DU40 | 3 | 96DU48 | 31/2 | 96DU56 | 33/4 | 96DU60 | 4 | 96DU64 | 41/2 | 96DU72 | 43/4 | 96DU76 | 5 | 96DU80 |
61/4 | 6.2500 6.2475 | 6.4358 6.4374 | 6.2502 6.2570 | 2 | 100DU32 | 21/4 | 100DU36 | 21/2 | 100DU40 | 3 | 100DU48 | 31/2 | 100DU56 | 33/4 | 100DU60 | 4 | 100DU64 | 41/2 | 100DU72 | 43/4 | 100DU76 | 5 | 100DU80 |
61/2 | 6.5000 6.4975 | 6.6858 6.6874 | 6.5002 6.5070 | 2 | 104DU32 | 21/4 | 104DU36 | 21/2 | 104DU40 | 3 | 104DU48 | 31/2 | 104DU56 | 33/4 | 104DU60 | 4 | 104DU64 | 41/2 | 104DU72 | 43/4 | 104DU76 | 5 | 104DU80 |
63/4 | 6.7500 6.7475 | 6.9358 6.9374 | 6.7502 6.7570 | 2 | 108DU32 | 21/4 | 108DU36 | 21/2 | 108DU40 | 3 | 108DU48 | 31/2 | 108DU56 | 33/4 | 108DU60 | 4 | 108DU64 | 41/2 | 108DU72 | 43/4 | 108DU76 | 5 | 108DU80 |
7 | 6.9954 6.9929 | 7.1812 7.1830 | 6.9956 7.0026 | 2 | 112DU32 | 21/4 | 112DU36 | 21/2 | 112DU40 | 3 | 112DU48 | 31/2 | 112DU56 | 33/4 | 112DU60 | 4 | 112DU64 | 41/2 | 112DU72 | 43/4 | 112DU76 | 5 | 112DU80 |
COMPOSITION
- Metal-Polymer Composite Material
- Bronze Back + Porous Bronze Sinter +
- PTFE + Lead
competitive prices for below bearing bushing products to start our cooperation with you
Bearing forms available in standard dimensions
- Cylindrical bushes

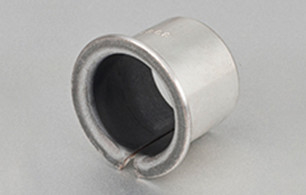

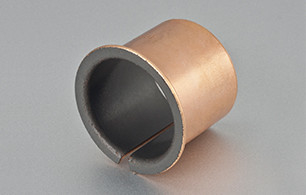

- Flanged bushes
- Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Sizes and Ordering: Inch Sizes | |||||||
SelbLubricating Bearings | |||||||
Garlock Bearings LLC | |||||||
Sizes and Ordering: Inch Sizes | |||||||
SelbLubricating Bearings | |||||||
DUBearings Inch Sizes Over 2" | |||||||
Recommended | |||||||
Nominal Bearing | Installed Shaft Housing Bearing Bearing Length and Part Number | Bearing Length and Part Number |
CHARACTERISTICS
DU BUSH WITH BRONZE BACKING offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
-
Bushing material suitable for lubricated applications
-
Anti-friction bearing suitable for linear, oscillating and rotating movements
-
Approved to standard FAR 25.853 and FAR 25.855 (Federal Aviation Regulations) and ASTM E162:2016 – surface flammability testing for aircraft interior applications
-
Tested acc. to ASTM E595/ECSS-Q-ST-70-02C - Outgassing properties of materials used in Spacecraft equipment
-
Approved to standard DIN EN 1797 and ISO 21010 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars. Contact VIIPLUS for further details.
DU BUSH WITH BRONZE BACKING | |
---|---|
Dry Operation | Very Good |
Lubricated Operation | Good |
Greased Operation | Fair |
Machinable | Consult with Applications Engineer |
RoHS Compliant | Not compliant |
Standard Sizes | Available |
Application Excellence |
DP4® |
---|
Good |
Very Good |
Good |
Consult with Applications Engineer |
Compliant |
Available |
DP10 |
---|
Good |
Good |
Fair |
Consult with Applications Engineer |
Compliant |
Not Available |
ADVANTAGES
Improved energy efficiency with the low friction performance of PTFE-enriched overlay;
Extended service life with a high wear-resistant bronze layer;
Zero maintenance as self-lubricating bearings can operate dry without grease;
Greater reliability than bimetallic bearings by avoiding potential shaft/bearing seizure under boundary lubricated conditions and frequent stop/start operation;
Compact, lightweight designs with thin-wall bearing construction;
Reduced noise with no metal-to-metal contact between the bearing and the shaft;
Quick, simple assembly without expensive mounting tools.
Usage Range | ||||||||||||||||||||
|
Physical & Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||
|

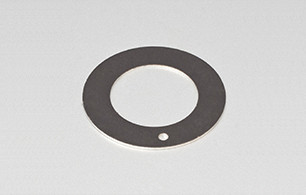

DU Thrust Washers | ||||||
Inch Sizes | ||||||
Part Number | Inside Dia. +.010 | Outside Dia. -.010 | Thickness +.0020 | Dowel Hole Pitch Dia. Circle Dia. +.010 -.010 | Housing Recess Depth +.010 | |
d | D | T | H | P.C. | R | |
G06DU | 0.500 | 0.875 | .0585 | .067 | 0.692 | .040 |
G07DU | 0.562 | 1.000 | .0585 | .067 | 0.786 | .040 |
G08DU | 0.625 | 1.125 | .0585 | .099 | 0.880 | .040 |
G09DU | 0.687 | 1.187 | .0585 | .099 | 0.942 | .040 |
G10DU | 0.750 | 1.250 | .0585 | .099 | 1.005 | .040 |
G11DU | 0.812 | 1.375 | .0585 | .099 | 1.099 | .040 |
G12DU | 0.875 | 1.500 | .0585 | .130 | 1.192 | .040 |
G13DU | 0.937 | 1.625 | .0585 | .130 | 1.286 | .040 |
G14DU | 1.000 | 1.750 | .0585 | .130 | 1.380 | .040 |
G16DU | 1.125 | 2.000 | .0585 | .161 | 1.567 | .040 |
G18DU | 1.250 | 2.125 | .0585 | .161 | 1.692 | .040 |
G20DU | 1.375 | 2.250 | .0585 | .161 | 1.817 | .040 |
G22DU | 1.500 | 2.500 | .0585 | .192 | 2.005 | .040 |
G24DU | 1.625 | 2.625 | .0585 | .192 | 2.130 | .040 |
G26DU | 1.750 | 2.750 | .0585 | .192 | 2.255 | .040 |
G28DU | 2.000 | 3.000 | .0895 | .192 | 2.505 | .070 |
G30DU | 2.125 | 3.125 | .0895 | .192 | 2.630 | .070 |
G32DU | 2.250 | 3.250 | .0895 | .192 | 2.755 | .070 |
DU Flat Strip Inch Sizes | Material | |||||
Usable | Approx. | |||||
Group | Thickness | Width | Lbs. Per Ft. | |||
0 | .0276/.0296 | 45/8 | 0.50 | |||
1 | .0430/.0450 | 51/8 | 0.83 | |||
2 | .0585/.0605 | 5 | 1.06 | |||
3 | .0738/.0758 | 5 | 1.33 | |||
4 | .0895/.0915 | 5 | 1.61 | |||
5 | .1190/.1210 | 51/2 | 2.36 |
