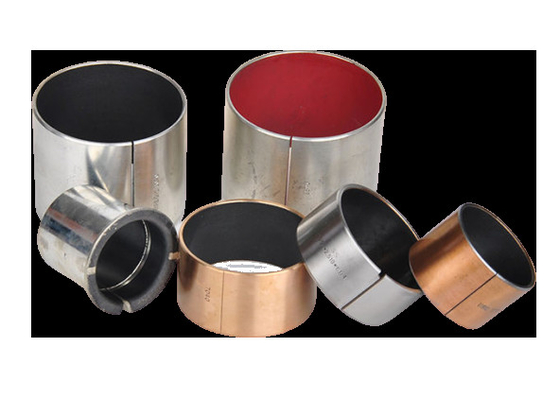

Oil Free PAP P10 Sintered Self Lubricating Bushes Bronze
Place of Origin | Steel Backed PTFE Bushings |
---|---|
Brand Name | Du Bushing Inch Size |
Certification | STEEL BACKED BUSHING, DIN 1494 / ISO 3547, LOW-MAINTENANCE |
Model Number | INCH SIZE BUSHING |
Minimum Order Quantity | negotiable |
Price | 1.00usd-100.00usd,negotiable |
Packaging Details | EXPORT BUSHING CARTONS WOODEN CASES |
Delivery Time | 10-15 work days |
Payment Terms | T/T IN ADVANCE, Western Union |
Supply Ability | Du Bushing Inch Size Dry Bushes Boccole Equivalent Manufacturers Self Lubricating Plain Bearings Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Carbon Steel + Bronze+ Ptfe | Lubricating | Self-lubricating Bearing Sleeve Bushings |
---|---|---|---|
Service | OEM Customized Services, OEM, Prompt Delivery | Feature | OEM Production, High Quality, Self Lubricating |
Code | DU BUSHINGS Steel Bushing Sleeve | Application | FOR HEAVY DUTY SHOCK ABSORBER APPLICATION |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | PAP P10 Sintered Self Lubricating Bushes,Bronze Sintered Self Lubricating Bushes,Oil Free Sintered Self Lubricating Bushes |
The Oil-Free PAP P10 Sintered Self-Lubricating Bronze Bushes are precision-manufactured components designed to provide smooth and reliable rotation without the need for external lubrication.
Constructed from sintered bronze, these bushes offer exceptional durability and wear resistance, ensuring long-lasting performance even under high loads and speeds. The PAP P10 material used in their construction provides a unique combination of strength and lubrication properties, making them suitable for a wide range of industrial applications.
The self-lubricating feature of these bushes is achieved through the sintered material's inherent lubricating properties. This eliminates the need for regular lubrication or maintenance, reducing downtime and operational costs.
Whether used in machinery, pumps, motors, or other industrial equipment, the Oil-Free PAP P10 Sintered Self-Lubricating Bronze Bushes offer a robust and reliable solution for smooth rotation and load bearing. Their high-quality materials, precision engineering, and self-lubricating properties make them a trusted choice for industrial applications that demand the best in performance and durability.
PAP P10 BUSHES
Specifications: We can offer Rolled Bushings Bushing Parts
DU BUSHINGS self-lubricating bearing features
Plain glacier bushes are plain bearing materials that offer good performance on both wear and friction over a wide range of temperatures, speeds, and radial and axial loads. Glacier Bushes are ideal for construction and agricultural machines or for any other application which requires rotating and sliding motions. Usually, glacier bushes operate without lubricants and are resistant to most solvents and industrial liquids.
Du Bushings self-lubricating bearings are made of a wear-resistant layer composed of and specially formulated additives to provide better wear resistance on the bearing surface and extend the service life;
A backing material made of metal backing material that can withstand high loads, speeds, and adverse environments;
Comply with DIN 1494 / ISO 3547;
Standard construction includes cylindrical bushing, flange bushing, thrust washer, and thrust plate;
According to customer requirements to complete punching and molding;
Can also provide lead-free products;
What are the installation instructions for oil-free bearings
1, should determine whether the axis, shaft shell with the surface of the collision, protrusion, such as to remove the oil grindstone or fine sandpaper.
2. Confirm whether there is dust or mold sand attached to the surface of bearing shell.
3. In order to avoid bumping when loading, the surface of the shaft and shaft shell should be coated with a small amount of lubricating oil. When the bearing is installed on the shaft center, force shall be applied on the inner ring, and when the bearing is installed on the bearing housing, force shall be applied on the outer ring. When applying force to the bearing, be careful to make the force vertical and uniform down. Deviation will cause bearing injury, so try to avoid deflection.
4. The retainer and sealing plate of oil-free bearing must not apply force. The installation method of hammer and casing is generally used. Because it will damage the bearing, it must not be knocked directly. The sleeve should be struck in the middle, and the hammer should be struck gently. In the mechanical structure, when the inner and outer rings are tightly matched, the backing plate should be used to make sure that the force can be added to the inner and outer rings at the same time. If only in the inner ring, the force will be pressed into the outer ring by the ball, therefore, it will cause scars on the track surface.
5. When the bearing with large margin is installed on the shaft, the method of heating the bearing to 80-90 degrees and expanding the inner diameter to install it in clean oil is widely used. The hardness of bearings may be reduced by overheating, so it must not exceed 100 degrees. At this time, the bearing must be suspended by steel wire, or placed on the metal wire, support plate, do not place at the bottom of the groove. When the bearing reaches the desired temperature (below 100 degrees), it should be immediately removed from the slot and quickly sheeted into the shaft. The bearing will shrink as the temperature drops, and sometimes there will be a gap between the shaft shoulder and the bearing end face. Therefore, it is necessary to use a tool to press the bearing toward the shaft direction.
We often read the manual for a new product so that we know how to operate it and what to pay attention to. This oil-free bearing installation instructions is equivalent to a part of the oil-free bearing product manual, which also needs us to understand, so as to better use and protect oil-free bearings. And our neglect is likely to damage the bearing, affecting the service life of the bearing.
The structure of the bearings consists of a rigid steel or corrosion-resistant bronze backing , which provides mechanical strength, while a porous sintered bronze interlayer impregnated with a homogeneous mixture of PTFE and lead provides low friction and high wear resistance.
The low friction of the DU bearings reduces power losses for improved energy efficiency, while the wear-resistant bronze layer provides extended service life. Being self-lubricating, the bearings require little to no maintenance. However they can also be used with lubricant to prevent potential shaft/bearing seizure under boundary conditions.
The compact, lightweight design and thin-wall construction of the DU bearings provide space and weight savings, and because there are no moving parts or metal-to-metal contact the bearings are quieter. In addition, assembly can be done quickly and easily without costly mounting tools.
(mm) |
Chamfer dimensions |
Outer Diameter |
D (mm) |
Outer diameter tolerances |
D (mm) |
PAP0404-P10 4 5,5 4 PAP1612-P10 16 18 12 |
PAP0606-P10 6 8 6 PAP1615-P10 16 18 15 |
PAP0608-P10 6 8 8 PAP1620-P10 16 18 20 |
PAP0610-P10 6 8 10 PAP1625-P10 16 18 25 |
PAP0710-P10 7 9 10 PAP1815-P10 18 20 15 |
PAP0808-P10 8 10 8 PAP1820-P10 18 20 20 |
PAP0810-P10 8 10 10 PAP1825-P10 18 20 25 |
PAP0812-P10 8 10 12 PAP2010-P10 20 23 10 |
PAP1008-P10 10 12 8 PAP2015-P10 20 23 15 |
PAP1010-P10 10 12 10 PAP2020-P10 20 23 20 |
PAP1012-P10 10 12 12 PAP2025-P10 20 23 25 |
PAP1015-P10 10 12 15 PAP2030-P10 20 23 30 |
PAP1020-P10 10 12 20 PAP2215-P10 22 25 15 |
PAP1208-P10 12 14 8 PAP2220-P10 22 25 20 |
PAP1210-P10 12 14 10 PAP2225-P10 22 25 25 |
PAP1212-P10 12 14 12 PAP2230-P10 22 25 30 |
PAP1215-P10 12 14 15 PAP2415-P10 24 27 15 |
PAP1220-P10 12 14 20 PAP2420-P10 24 27 20 |
PAP1225-P10 12 14 25 PAP2425-P10 24 27 25 |
PAP1310-P10 13 15 10 PAP2430-P10 24 27 30 |
PAP1410-P10 14 16 10 PAP2510-P10 25 28 10 |
PAP1412-P10 14 16 12 PAP2515-P10 25 28 15 |
PAP1415-P10 14 16 15 PAP2520-P10 25 28 20 |
PAP1420-P10 14 16 20 PAP2525-P10 25 28 25 |
PAP1425-P10 14 16 25 PAP2530-P10 25 28 30 |
PAP1510-P10 15 17 10 PAP2540-P10 25 28 40 |
PAP1512-P10 15 17 12 PAP2550-P10 25 28 50 |
PAP1515-P10 15 17 15 PAP2820-P10 28 32 20 |
PAP1520-P10 15 17 20 PAP2830-P10 28 32 30 |
PAP1525-P10 15 17 25 PAP3015-P10 30 34 15 |
PAP1610-P10 16 18 10 PAP3020-P10 30 34 20 |
PAP3025-P10 30 34 25 PAP6560-P10 65 70 60 |
PAP3030-P10 30 34 30 PAP6570-P10 65 70 70 |
PAP3040-P10 30 34 40 PAP7040-P10 70 75 40 |
PAP3230-P10 32 36 30 PAP7050-P10 70 75 50 |
PAP3240-P10 32 36 40 PAP7070-P10 70 75 70 |
PAP3520-P10 35 39 20 PAP7540-P10 75 80 40 |
PAP3530-P10 35 39 30 PAP7550-P10 75 80 50 |
PAP3540-P10 35 39 40 PAP7560-P10 75 80 60 |
PAP3550-P10 35 39 50 PAP7580-P10 75 80 80 |
PAP4030-P10 40 44 30 PAP8040-P10 80 85 40 |
PAP4040-P10 40 44 40 PAP8060-P10 80 85 60 |
PAP4050-P10 40 44 50 PAP8080-P10 80 85 80 |
PAP4530-P10 45 50 30 PAP80100-P10 80 85 100 |
PAP4540-P10 45 50 40 PAP8560-P10 85 90 60 |
PAP4550-P10 45 50 50 PAP85100-P10 85 90 100 |
PAP5020-P10 50 55 20 PAP9050-P10 90 95 50 |
PAP5030-P10 50 55 30 PAP9060-P10 90 95 60 |
PAP5040-P10 50 55 40 PAP90100-P10 90 95 100 |
PAP5060-P10 50 55 60 PAP9560-P10 95 100 60 |
PAP5540-P10 55 60 40 PAP95100-P10 95 100 100 |
PAP5560-P10 55 60 60 PAP10050-P10 100 105 50 |
PAP6020-P10 60 65 20 PAP10060-P10 100 105 60 |
PAP6030-P10 60 65 30 PAP100115-P10 100 105 115 |
PAP6040-P10 60 65 40 PAP10560-P10 105 110 60 |
PAP6060-P10 60 65 60 PAP105115-P10 105 110 115 |
PAP6070-P10 60 65 70 PAP11060-P10 110 115 60 |
PAP6540-P10 65 70 40 PAP110115-P10 110 115 115 |
PAP6550-P10 65 70 50 |
Dimensions (mm) Dimensions (mm) |

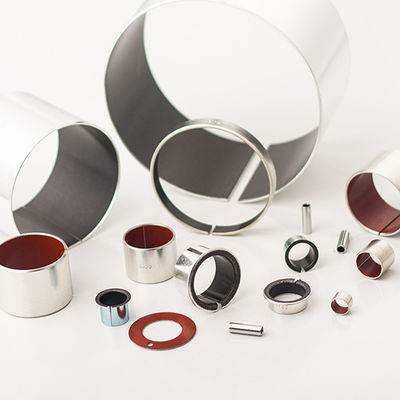

Bearing forms available in standard dimensions

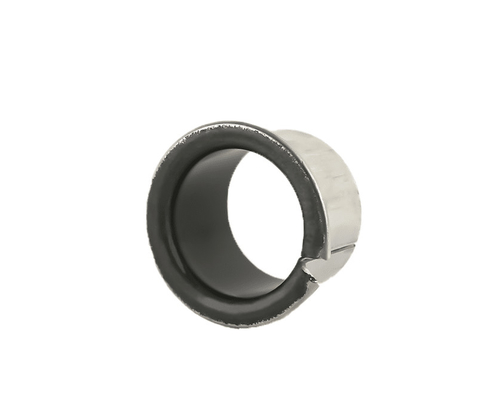

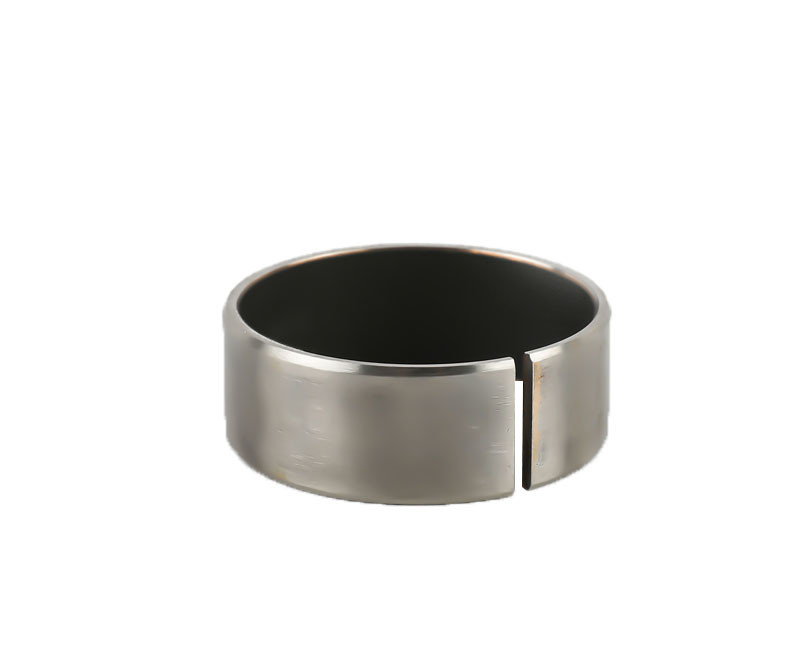

Cylindrical bushes Flanged bushes
Thrust washers Flanged washers
Sliding plates
Typical Applications
Automotive applications include steering system, shock absorbers, door hinges, seat recliners, seat frames and magnetic valves; It is widely used in the general industry like gear pumps, vane pumps, piston pumps, air cylinders and hydraulic cylinders; The other applications include material handling machinery, packing machines, textile machines, forest machines and the home appliances such as the air conditioners, body fit machines, washing machine and refrigerators, etc.
