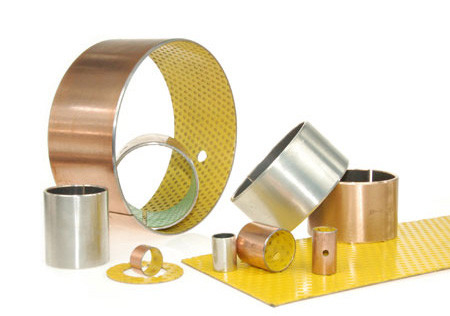

Hydraulics Bushings | Oil Gear Pumps Bushings
| Place of Origin | Composite plain cylindrical bushings manufacturer |
|---|---|
| Brand Name | VIIPLUS BUSHINGS SUPPLIER |
| Certification | ISO 3547 DIN 1494 Assembly Standard Tolerance |
| Model Number | DU DX BUSHINGS |
| Minimum Order Quantity | 1000 Piece/Pieces |
| Price | $0.05 - $1.00 / Pieces |
| Packaging Details | Packaging: Export carton; Wooden case ; Wood pallet. |
| Delivery Time | 7~15 work days |
| Payment Terms | TT in advance,Western Union |
| Supply Ability | Special Customized Lubricating Bushings Manufacturing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Steel Backed Bushing With Composite Material | Plating | Tin Or Copper |
|---|---|---|---|
| Type | Wrapped Bushes,Flange Bushing Thrust Washer | Lubricating | POM-based Self-Lubricating Metal-Polymer |
| Customized | Metric Size,inch Size,based On Drawing Or Sample | Application | Hydraulics And Valves Bushing, Pumps Bushing |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | ISO3547 Oil Gear Pump hydraulic bushings,DIN 1494 steel backed hydraulic bushings |
||
Product Description
Hydraulics Bushings and Oil Gear Pumps Bushings are integral components in various hydraulic systems, ensuring smooth and efficient operation. These bushings are specifically designed to meet the unique challenges and demands of hydraulic applications, providing reliable support and lubrication.
Our Hydraulics Bushings are precision-manufactured to offer excellent wear resistance and durability in rotary actuators. They act as support sleeve bushings for nose pieces in hydraulic rams, ensuring stability and smooth movement under high pressure.
Additionally, we provide variable swashplate trunnion plain bearings for hydraulic pumps. These bearings are designed to handle the variable loads and speeds encountered in hydraulic pump applications, maintaining a consistent and reliable performance.
Piston rod guide bushes are another crucial aspect of our hydraulic bushings range. These bushes are used in both hydraulic and pneumatic cylinders, guiding the piston rod and preventing wear and tear.
Lastly, our Oil Gear Pumps Bushings are specifically designed to enhance the efficiency and lifespan of oil gear pumps. These bushings are made from high-quality materials that can withstand the high temperatures and pressures encountered in oil gear pump applications.
Whether you need to replace worn-out bushings or upgrade your existing system, we have the perfect solution for you. Our team of experts is always available to provide technical support and advice on selecting the right bushings for your specific application.
Contact us today to learn more about our Hydraulics Bushings and Oil Gear Pumps Bushings. We look forward to helping you improve the performance and reliability of your hydraulic systems.
Heavy-duty steel-backed bushing reducers for sale. Makes a perfect fit for the most standard cylinders & Hydraulics Bushings where the pin diameter needs to be adjusted.
Pre-lubricated Hydraulics Bushings & Oil Gear Pumps Bushings are machine components that handle stress and reduce friction between moving parts.
pre-lubricated
bearings give
you the widest
application range

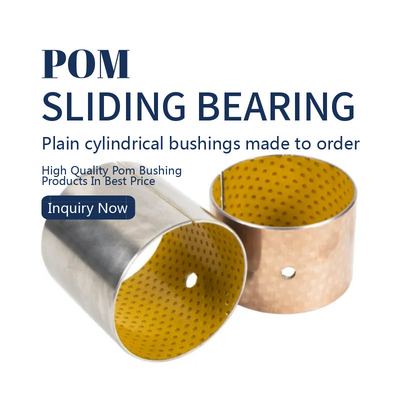

DX, POM Coated, Marginally Lubricated Bearings, Yellow/Blue/Blank POM.
Metal-Polymer Plain Bearings Grease Lubricated Dx Bush
gives you the widest application range of any self-lubricating bearing
Hydraulics and valves bushing, Pumps bushing, including gear pump bushing, rotary, water, axial piston, and other types sleeve bearings; ball valve bushings, butterfly valves bushing, poppet steam bushings, check and other valves and valve trunnions; pump pressure and thrust plates, reciprocating air compressors, hydraulic actuators, centrifugal compressors, water hydrants, air regulator lever points, bellows compressors, etc. Several of these applications dramatically demonstrate the unrivaled capabilities of DU DX bushings bearings.
boundary lubrication bearing is based on a composite material with 3 firmly bonded layers: steel as backing. sintered porous bronze powder as interlayer and modified POM as sliding layer.It works well under working condition of low speed, heavy duty and normal temperature.It is cost effective and it has longer working life when it act as substitute of normal copper sleeves.It is widely applied in auto chassis, forging machine,metallurgical and mining equipment,construction machinery, power station,strip rolling industries etc.
| Load capacity | 70N/mm² | Friction Coef | 0.05~0.25 |
| Temperature | -40℃~130℃ | PV limit | 2.2N/mm²·m/s |
| Speed limit | 2.5m/s | ||
DX Prelubricated Bearings Structure

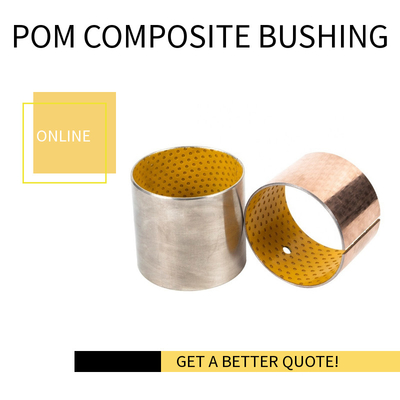

DX bushing is a composite strip material made up of three layers: steel, porous bronze, and acetal resin polymer.
- Metal-Polymer Composite Bushing Material
- Steel Back + Porous Bronze Sinter +POM with Lubrication Indents
1. POM with lead 0.3~0.5mm
2. Porous bronze 0.2~0.3mm
3. Steel backing 0.4~2.2mm
4. Copper plating 0.008mm
Dx Bushing Properties
| GENERAL | Unit | Value | |
| Maximum load, p |
Static Dynamic |
N/mm2 N/mm2 |
140 140 |
| Operating temperature |
Min Max |
°C °C |
- 40 130 |
| Coefficient of linear thermal expansion | Parallel to the surface | 10-6/K | 11 |
| Normal to the surface | 10-6/K | 29 |
| GREASE LUBRICATED | |||
| Maximum sliding speed, U | m/s | 2.5 | |
| Maximum pU factor | N/mm2 x m/s | 2.8 | |
| Coefficient of friction | 0.06 – 0.12 |
| RECOMMENDATIONS | |||
| Shaft surface roughness, Ra | µm | ≤ 0.4 | |
| Shaft surface hardness |
Normal For longer service life |
HB HB |
> 200 > 350 |
DX Bushing, self-lubricating Bearing, sleeve Bearing, General Type Boundary Lubricating Bush
Characteristics
Good load capacity & wear-resistant
Suitable for linear, oscillating and rotating movements
Optimum performance under relatively high loads and low speeds
Availability
Bearing forms available in standard dimensions- Cylindrical bushes
- Thrust washers
- Sliding plates
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs
Applications
Automotive: Steering gear, power steering, pedal bushes, seat slides, king-pin bushes, tailgate pivots, brake caliper bushes, etc.
Industrial: Mechanical handling and lifting equipment, machine slides, hydraulic cylinders, hydraulic motors, ski-lifts, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, etc.
Dx bushing size chart |
|||||||||
| Di (mm) | Do (mm) | B (mm) | bearing | shaft | The largest diameter (mm) | Minimum diameter (mm) | The maximum clearance (mm) | The minimum clearance (mm) | |
| 0203DX BUSHING | 2 | 3.5 | 3 | H6 | h6 | 2.048 | 2 | 0.054 | 0 |
| 0205DX BUSHING | 2 | 3.5 | 5 | H6 | h6 | 2.048 | 2 | 0.054 | 0 |
| 0303DX BUSHING | 3 | 4.5 | 3 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0305DX BUSHING | 3 | 4.5 | 5 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0306DX BUSHING | 3 | 4.5 | 6 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0403DX BUSHING | 4 | 5.5 | 3 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0404DX BUSHING | 4 | 5.5 | 4 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0406DX BUSHING | 4 | 5.5 | 6 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0410DX BUSHING | 4 | 5.5 | 10 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0505DX BUSHING | 5 | 7 | 5 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0508DX BUSHING | 5 | 7 | 8 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0510DX BUSHING | 5 | 7 | 10 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0604DX BUSHING | 6 | 8 | 4 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0606DX BUSHING | 6 | 8 | 6 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0608DX BUSHING | 6 | 8 | 8 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0610DX BUSHING | 6 | 8 | 10 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0705DX BUSHING | 7 | 9 | 5 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
| 0710DX BUSHING | 7 | 9 | 10 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
| 0806DX BUSHING | 8 | 10 | 6 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0808DX BUSHING | 8 | 10 | 8 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0810DX BUSHING | 8 | 10 | 10 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0812DX BUSHING | 8 | 10 | 12 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 1006DX BUSHING | 10 | 12 | 6 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1008DX BUSHING | 10 | 12 | 8 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1010DX BUSHING | 10 | 12 | 10 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1012DX BUSHING | 10 | 12 | 12 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1015DX BUSHING | 10 | 12 | 15 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1020DX BUSHING | 10 | 12 | 20 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1208DX BUSHING | 12 | 14 | 8 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1210DX BUSHING | 12 | 14 | 10 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1212DX BUSHING | 12 | 14 | 12 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1215DX BUSHING | 12 | 14 | 15 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1220DX BUSHING | 12 | 14 | 20 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1225DX BUSHING | 12 | 14 | 25 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1310DX BUSHING | 13 | 15 | 10 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
| 1320DX BUSHING | 13 | 15 | 20 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
| 1405DX BUSHING | 14 | 16 | 5 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1410DX BUSHING | 14 | 16 | 10 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1412DX BUSHING | 14 | 16 | 12 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1415DX BUSHING | 14 | 16 | 15 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1420DX BUSHING | 14 | 16 | 20 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1425DX BUSHING | 14 | 16 | 25 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1510DX BUSHING | 15 | 17 | 10 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1512DX BUSHING | 15 | 17 | 12 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1515DX BUSHING | 15 | 17 | 15 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1520DX BUSHING | 15 | 17 | 20 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1525DX BUSHING | 15 | 17 | 25 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1610DX BUSHING | 16 | 18 | 10 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1612DX BUSHING | 16 | 18 | 12 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1615DX BUSHING | 16 | 18 | 15 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1620DX BUSHING | 16 | 18 | 20 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1625DX BUSHING | 16 | 18 | 25 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1720DX BUSHING | 17 | 19 | 20 | H7 | f7 | 17.061 | 16.99 | 0.095 | 0.006 |
| 1810DX BUSHING | 18 | 20 | 10 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1815DX BUSHING | 18 | 20 | 15 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1820DX BUSHING | 18 | 20 | 20 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1825DX BUSHING | 18 | 20 | 25 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 2010DX BUSHING | 20 | 23 | 10 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2015DX BUSHING | 20 | 23 | 15 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2020DX BUSHING | 20 | 23 | 20 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2025DX BUSHING | 20 | 23 | 25 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2030DX BUSHING | 20 | 23 | 30 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2215DX BUSHING | 22 | 25 | 15 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2220DX BUSHING | 22 | 25 | 20 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2225DX BUSHING | 22 | 25 | 25 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2230DX BUSHING | 22 | 25 | 30 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2415DX BUSHING | 24 | 27 | 15 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2420DX BUSHING | 24 | 27 | 20 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2425DX BUSHING | 24 | 27 | 25 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2430DX BUSHING | 24 | 27 | 30 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2515DX BUSHING | 25 | 28 | 15 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2520DX BUSHING | 25 | 28 | 20 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2525DX BUSHING | 25 | 28 | 25 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2530DX BUSHING | 25 | 28 | 30 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2550DX BUSHING | 25 | 28 | 50 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2815DX BUSHING | 28 | 32 | 15 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2820DX BUSHING | 28 | 32 | 20 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2825DX BUSHING | 28 | 32 | 25 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2830DX BUSHING | 28 | 32 | 30 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 3010DX BUSHING | 30 | 34 | 10 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3015DX BUSHING | 30 | 34 | 15 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3020DX BUSHING | 30 | 34 | 20 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3025DX BUSHING | 30 | 34 | 25 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3030DX BUSHING | 30 | 34 | 30 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3040DX BUSHING | 30 | 34 | 40 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3220DX BUSHING | 32 | 36 | 20 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3230DX BUSHING | 32 | 36 | 30 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3240DX BUSHING | 32 | 36 | 40 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3520DX BUSHING | 35 | 39 | 20 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3530DX BUSHING | 35 | 39 | 30 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3535DX BUSHING | 35 | 39 | 35 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3540DX BUSHING | 35 | 39 | 40 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3550DX BUSHING | 35 | 39 | 50 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3720DX BUSHING | 37 | 41 | 20 | H7 | f7 | 37.085 | 36.99 | 0.135 | 0.015 |
| 4020DX BUSHING | 40 | 44 | 20 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4030DX BUSHING | 40 | 44 | 30 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4040DX BUSHING | 40 | 44 | 40 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4050DX BUSHING | 40 | 44 | 50 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4520DX BUSHING | 45 | 50 | 20 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4530DX BUSHING | 45 | 50 | 30 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4540DX BUSHING | 45 | 50 | 40 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4545DX BUSHING | 45 | 50 | 45 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4550DX BUSHING | 45 | 50 | 50 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 5020DX BUSHING | 50 | 55 | 20 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5030DX BUSHING | 50 | 55 | 30 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5040DX BUSHING | 50 | 55 | 40 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5050DX BUSHING | 50 | 55 | 50 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5060DX BUSHING | 50 | 55 | 60 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5520DX BUSHING | 55 | 60 | 20 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5525DX BUSHING | 55 | 60 | 25 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5530DX BUSHING | 55 | 60 | 30 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5540DX BUSHING | 55 | 60 | 40 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5550DX BUSHING | 55 | 60 | 50 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5555DX BUSHING | 55 | 60 | 55 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5560DX BUSHING | 55 | 60 | 60 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 6020DX BUSHING | 60 | 65 | 20 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6030DX BUSHING | 60 | 65 | 30 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6040DX BUSHING | 60 | 65 | 40 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6050DX BUSHING | 60 | 65 | 50 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6060DX BUSHING | 60 | 65 | 60 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6070DX BUSHING | 60 | 65 | 70 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6530DX BUSHING | 65 | 70 | 30 | H7 | f7 | 65.11 | 64.99 | 0.17 | 0.02 |
| 6550DX BUSHING | 65 | 70 | 50 | H7 | f7 | 65.11 | 64.99 | 0.17 | 0.02 |
| 6570DX BUSHING | 65 | 70 | 70 | H7 | f7 | 65.11 | 64.99 | 0.17 | 0.02 |
| 7040DX BUSHING | 70 | 75 | 40 | H7 | f7 | 70.11 | 69.99 | 0.17 | 0.02 |
| 7050DX BUSHING | 70 | 75 | 50 | H7 | f7 | 70.11 | 69.99 | 0.17 | 0.02 |
| 7070DX BUSHING | 70 | 75 | 70 | H7 | f7 | 70.11 | 69.99 | 0.17 | 0.02 |
| 7560DX BUSHING | 75 | 80 | 60 | H7 | f7 | 75.11 | 74.99 | 0.17 | 0.02 |
| 7580DX BUSHING | 75 | 80 | 80 | H7 | f7 | 75.11 | 74.99 | 0.17 | 0.02 |
| 8040DX BUSHING | 80 | 85 | 40 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 8060DX BUSHING | 80 | 85 | 60 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 8080DX BUSHING | 80 | 85 | 80 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 80100DX BUSHING | 80 | 85 | 100 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 8530DX BUSHING | 85 | 90 | 30 | H7 | h8 | 85.155 | 85.02 | 0.209 | 0.02 |
| 8560DX BUSHING | 85 | 90 | 60 | H7 | h8 | 85.155 | 85.02 | 0.209 | 0.02 |
| 85100DX BUSHING | 85 | 90 | 100 | H7 | h8 | 85.155 | 85.02 | 0.209 | 0.02 |
| 9060DX BUSHING | 90 | 95 | 60 | H7 | h8 | 90.155 | 90.02 | 0.209 | 0.02 |
| 90100DX BUSHING | 90 | 95 | 100 | H7 | h8 | 90.155 | 90.02 | 0.209 | 0.02 |
| 9560DX BUSHING | 95 | 100 | 60 | H7 | h8 | 95.155 | 95.02 | 0.209 | 0.02 |
| 95100DX BUSHING | 95 | 100 | 100 | H7 | h8 | 95.155 | 95.02 | 0.209 | 0.02 |
| 10050DX BUSHING | 100 | 105 | 50 | H7 | h8 | 100.155 | 100.02 | 0.209 | 0.02 |
| 10060DX BUSHING | 100 | 105 | 60 | H7 | h8 | 100.155 | 100.02 | 0.209 | 0.02 |
| 100115DX BUSHING | 100 | 105 | 115 | H7 | h8 | 100.155 | 100.02 | 0.209 | 0.02 |
| 10560DX BUSHING | 105 | 110 | 60 | H7 | h8 | 105.155 | 105.02 | 0.209 | 0.02 |
| 105115DX BUSHING | 105 | 110 | 115 | H7 | h8 | 105.155 | 105.02 | 0.209 | 0.02 |
| 11060DX BUSHING | 110 | 115 | 60 | H7 | h8 | 110.155 | 110.02 | 0.209 | 0.02 |
| 110115DX BUSHING | 110 | 115 | 115 | H7 | h8 | 110.155 | 110.02 | 0.209 | 0.02 |
| 11550DX BUSHING | 115 | 120 | 50 | H7 | h8 | 115.155 | 115.02 | 0.209 | 0.02 |
| 11570DX BUSHING | 115 | 120 | 70 | H7 | h8 | 115.155 | 115.02 | 0.209 | 0.02 |
| 12050DX BUSHING | 120 | 125 | 50 | H7 | h8 | 120.21 | 120.07 | 0.264 | 0.07 |
| 12060DX BUSHING | 120 | 125 | 60 | H7 | h8 | 120.21 | 120.07 | 0.264 | 0.07 |
| 120100DX BUSHING | 120 | 125 | 100 | H7 | h8 | 120.21 | 120.07 | 0.264 | 0.07 |
| 125100DX BUSHING | 125 | 130 | 100 | H7 | h8 | 125.21 | 125.07 | 0.273 | 0.07 |
| 13060DX BUSHING | 130 | 135 | 60 | H7 | h8 | 130.21 | 130.07 | 0.273 | 0.07 |
| 130100DX BUSHING | 130 | 135 | 100 | H7 | h8 | 130.21 | 130.07 | 0.273 | 0.07 |
| 13560DX BUSHING | 135 | 140 | 60 | H7 | h8 | 135.21 | 135.07 | 0.273 | 0.07 |
| 13580DX BUSHING | 135 | 140 | 80 | H7 | h8 | 135.21 | 135.07 | 0.273 | 0.07 |
| 14060DX BUSHING | 140 | 145 | 60 | H7 | h8 | 140.21 | 140.07 | 0.273 | 0.07 |
| 140100DX BUSHING | 140 | 145 | 100 | H7 | h8 | 140.21 | 140.07 | 0.273 | 0.07 |
| 15060DX BUSHING | 150 | 155 | 60 | H7 | h8 | 150.21 | 150.07 | 0.273 | 0.07 |
| 15080DX BUSHING | 150 | 155 | 80 | H7 | h8 | 150.21 | 150.07 | 0.273 | 0.07 |
| 150100DX BUSHING | 150 | 155 | 100 | H7 | h8 | 150.21 | 150.07 | 0.273 | 0.07 |
| 16080DX BUSHING | 160 | 165 | 80 | H7 | h8 | 160.21 | 160.07 | 0.273 | 0.07 |
| 160100DX BUSHING | 160 | 165 | 100 | H7 | h8 | 160.21 | 160.07 | 0.273 | 0.07 |
| 180100DX BUSHING | 180 | 185 | 100 | H7 | h8 | 180.216 | 180.07 | 0.279 | 0.07 |
| 200100DX BUSHING | 200 | 205 | 100 | H7 | h8 | 200.216 | 200.07 | 0.288 | 0.07 |
| 210100DX BUSHING | 210 | 215 | 100 | H7 | h8 | 210.216 | 210.07 | 0.288 | 0.07 |
| 220100DX BUSHING | 220 | 225 | 100 | H7 | h8 | 220.216 | 220.07 | 0.288 | 0.07 |
| 250100DX BUSHING | 250 | 255 | 100 | H7 | h8 | 250.222 | 250.07 | 0.294 | 0.07 |
| 300100DX BUSHING | 300 | 305 | 100 | H7 | h8 | 300.222 | 300.07 | 0.303 | 0.07 |
Recommended Products
