Bimetal Washer CuPb10Sn10 or CuSn6Zn6Pb3 Layer

  • Bimetal Washer CuPb10Sn10 or CuSn6Zn6Pb3 Layer
  • Bimetal Washer CuPb10Sn10 or CuSn6Zn6Pb3 Layer
Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number bimetal Washer
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability 200000 Piece/Pieces One week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Backed Bimetal Type Bimetal Washer
Alloy CuPb10Sn10 Or CuSn6Zn6Pb3 Size Metric Size, Or Customize Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Characteristic Втулки скольжения (биметаллические подшипники скольжения) Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

CuPb10Sn10 Surface Bimetal Washer

,

CuSn6Zn6Pb Surface Bimetal Washer
Leave a Message
Product Description

Bimetal Washer CuPb10Sn10 or CuSn6Zn6Pb3 Layer



China Bimetallic Oilless Plate - Bimetallic Oilless Plate Sale

China Professional Bimetallic Oilless Plate, Similar To DEVA Metal. Maintenance Free Slide Plates, Factory Price, Contact Us!


Bimetal Washer CuPb10Sn10 or CuSn6Zn6Pb3 Layer



Bimetal Strips / Sheets / Washers

Bimetallic Sheets, Bimetallic Washers, Bimetallic Plates, Bimetallic Strips Suppliers

Bimetal Plate, Bimetal sheets, Bimetal Washer, Bimetal Strip Manufacturers & Exporter in China



800 bimetal Washer is made of steel sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer. This type of bushing show its best performance among bushings made of Cu-lead alloy material in this product range.It suits most for middle speed and high impact conditions.Its application including balance suspensions of heavy-duty trucks, track roller of bulldozers,auto chassis etc.



Lead bronze alloy

CuPb10Sn10 or CuSn6Zn6Pb3


Load capacity 65N/mm² Harderness alloy HB70~100
Temperature Max 260℃





Bimetal Washer CuPb10Sn10 or CuSn6Zn6Pb3 Layer 0

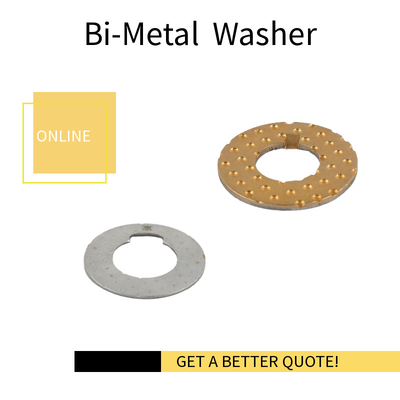

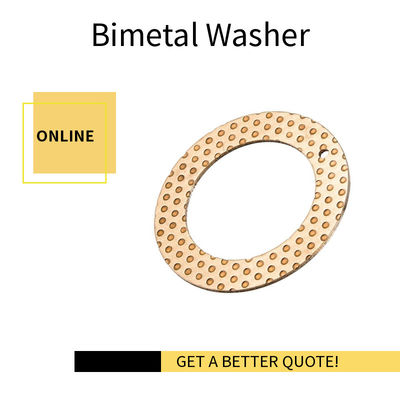

BIMETAL WASHER



Bimetal thrust washer,Bimetallic thrust washers,Engine thrust washers,Crankshaft thrust washers,Half washer,Thrust washer,Thrusting plate,Thrust bearing, Crankshaft Thrust Bearing



Bimetal Thrust Washer Material

  • Bronze alloy + steel back



Structures



1. Sinter bronze powder: good wear resistance and excellent load carrying capacity.
2. Steel backing: provides exceptionally high load carrying capacity, excellent heat dissipation.
3. Copper plating thickness 0.002mm provides good corrosion resistance.



Material Characterisitc



Material Trademark Alloy Composition Alloy Hardness
Bimetal Bearing - 800 CuPb10Sn10 70~100HB
Bimetal Bearing - 720 CuPb24Sn4 45~70HB
Bimetal Bearing - 700 CuPb30 30~45HB
Bimetal Bearing - 20 AlSn20Cu 30~40HB
Bimetal Bearing - 930 CuPb6.5P0.1 69~90HB





Bimetal Bearing Properties



Surface Material CuSn6Zn6Pb3/CuSn10Pb10
Max Load Capacity P 130N/mm²
Tensile Strength 150N/mm²



Data

Code

jf-800

Material

Steel＋CuPb10Sn10

Applications



Products applicable to the car engine Lian Xuan, engineering machinery, agricultural machinery.

Max Load Capacity P N/mm²



140

Max Line Speed V

Grease Lubrication m/s

2.5

Fluid Lubrication m/s

＞5

PV Value Limit

Grease Lubrication m/s N/mm²·m/s

2.8

Fluid Lubrication m/s N/mm²·m/s

10

Friction Coefficient u

Grease Lubrication

0.05~0.15

Fluid Lubrication

0.04~0.12

Mating Axis

Hardness HRC

≥53

Roughness Ra

0.32~0.63

Working Temperature℃

Grease Lubrication

150

Fluid Lubrication

250

Alloy Layer Hardness HB



60~90

Thermal Conductivity W/mk



47

Coefficient Of Linear Xpansion



18×10-6/K

In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.




Lock Types for Bi-Metallic Bushings

Standard Bimetal Bearing Size



  • Cylindrical Bearing, Flange  Bearing, Thrust  washer, Half bushing, Wear strips, Steel  combined units.
