Metal - Polymer Bronze Plain Bearings Grease Lubricated POM Cylindrical Bushes Made to order from Bearing forms available in standard dimensions:Cylindrical bushes,Flanged Thrust washers, SPECIAL THRUST PLATES,Sliding plates.Visit us on the internet:www.bronzegleitlager.com
Metric bearings and imperial bushings made to order from china factory: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs.
Metal-Polymer Plain Bearings Grease Lubricated
POM Sleeve Bushing marginally lubricated bushings for grease or oil lubricated applications
Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
Optimum performance under relatively high loads and low speeds
Suitable for linear, oscillating and rotating movements
Wide range of parts available from stock
STRUCTURE AND COMPOSITION
Metal-Polymer Composite Bushing Material ROHS

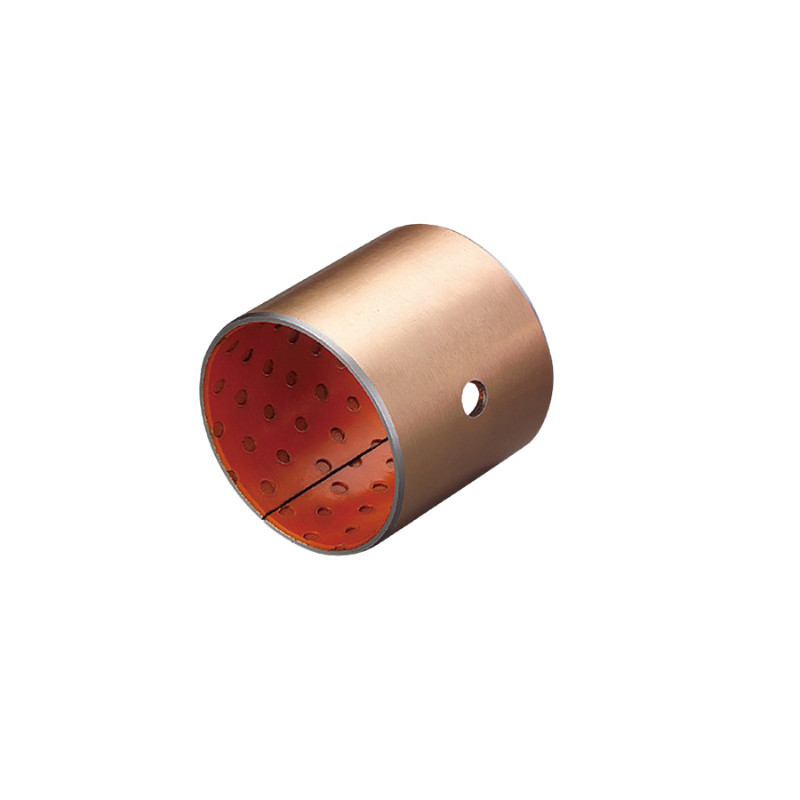

Steel Back + Porous Bronze Sinter +
POM with Lubrication Indents
Buying a POM SLEEVE from CHINA
Sliding layer POM with or without lubricant indents for machining Porous Bronze Sinter Steel Back
Our sleeve bushing range of wrapped POM lined bearings are suitable for rotary and oscillating movement applications. They benefit from long re-lubrication intervals, no absorption of water, outstanding damping behaviors and have a low suceptibility to edge loading.
The pom range are ideal for the automotive, machine building and agricultural industries and indeed any application where lubricant cannot be supplied continuously.
Metal-Polymer Maintenance-free Bearing Solutions
Important Note:Care must be taken to ensure that the POM lining material is not damaged during the installation.
Thrust Washers Inch sizes
Inch sizes Strip
Fitting of Bushes The bush is inserted into its housing with the aid of a stepped mandrel, preferably made from case hardened mild steel, as shown in Below picture. The following should be noted to avoid damage to the bearing:
• Housing diameter is as recommended
• 15-30° lead-in chamfer on housing
• edges of lead-in chamfer are deburred
• The bush must be square to the housing
• Light smear of oil on bush OD
Non Standard Components not available from stock
BUSHING STRIPS Strip Inch sizes are available as Non-Standard products on request
Cutting Strip Material sleeve bushing strip material may be cut to size. Care must be taken to protect the bearing surface from damage and to ensure that no deformation of the strip occurs.
Drilling Oil Holes:Bushes should be adequately supported,during the drilling operation to ensure that no distortion is caused by the drilling pressure.
Bushing Dimensions and Tolerances
Part No.Diameter,Wall thickness,Width,Shaft-ø,Housing-ø,Bush-ø , H7 housing,Clearance,Oil hole-ø,For stock availability please contact your china sales representative
Rear chassis hinges
Spindles of drills
Gearboxes & clutches
Grinding and milling machines
Metal-Polymer Composite Bushing Material Steel Back + Porous Bronze Sinter + POM With Lubrication Indents
Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications
Wide Range Of Sizes Sleeve Bushing Available From Stock
Standard Parts Contain Grease Indents In The Sliding Layer;:
