Metal Ptfe Self Lubricating Valve Rocker Bushing

Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: VIIPLUS
Certification: DIN1494,ISO3547,ISO2795,EN,JIS,ANSI/ASME
Model Number: Sleeve Valve & Pump Bushing
Minimum Order Quantity: 100 Piece/Pieces (Min. Order)
Price: Negotiable
Packaging Details: Export standard packing
Delivery Time: 1~2 WEEKS
Payment Terms: TT IN ADVANCE
Supply Ability: 1000000 Piece/Pieces
Detail Infomation
Meterial: Stainless Steel 316 Port: Shanghai
Quality: OEM Type: Self Lubricating Bearings
STRUCTURE: Bushes

Product Description

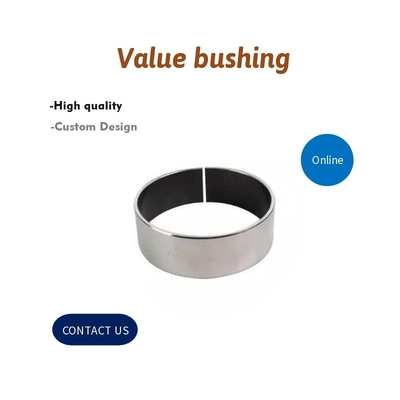

valve rocker bush Metal Ptfe Self Lubricating Valve Bushing Sleeve

Stainless Steel Bushing | VSB-33

Pump, valve and Marine industry in corrosion - resistant sliding shaft sleeve



VIIPLUS is a supplier some of the valves bushings and self lubricating bearings repair products. We provide equipment to a variety of Process and Industrial Industries in china.



Stainless steel PTFE bearing is made of stainless steel with PTFE sprayed on the surface.This material is especially suitable for strong acid, strong alkali, light load medium and low speed occasions, its wear resistance is obviously better than the single PTFE bearing and graphite bearing.At present, the product has been widely used in chemical acid and alkali flow meters, pumps, valves and Marine industry in the corrosion resistant sliding parts.


Industries served include Alternative Fuels, Beverage & Food, Cement, Chemical, Cryogenics, Desalination, Textile, Transportation, Water/Wastewater Treatment and various OEM's. VIIPLUS provides specialized engineering, design, manufacturing and support services for self lubricating bearings solutions. Our experienced team of engineers and skilled craftsmen consistently deliver superior products, meeting the customer requirements of alii kinds of industry. We strive to meet or exceed our customers schedule expectations by consistently delivering our bushings products and services on time.

Custom metal ptfe self lubricating sleeve stainless steel bushing

stainless steel-based non-oil lubricated



An Evolution in Air Valve Technology



Your STRATEGIC CHINA SOURCING PARTNER

Bushings -Logistics-Solutions (never late)



Quality Bushings and Components Metric Gears Bushings

Stock Bushing Products

BRONZE BUSHINGS

Gears Bushings

Bearing Tools

Hydraulic Pullers Bearings

Hydraulics Bushings

Stainless Steel 316 Bearings +PTFE



Stainless steel backing sintered with bronze powder overlaid with PTFE Suitable for dry running, low coefficient of friction, lower wear. T ypical application: chemical valve, chemical pump, flow meter, food industry, medicine industry in the corrosion environment.





Throttle valve PTFE composite self-lubricating butterfly valve bearing bushing | VSB-33



Wrapped PTFE Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with PTFE VSB-33 Dry bearing 316+PTFE Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of...



CHARACTERISTICS


Wrapped PTFE Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with PTFE

It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers together, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion. This series are widely applied in printing and dyeing machines, and machines used in the ocean industry, etc.

Metal Ptfe Self Lubricating Valve Rocker Bushing

Stainless Steel Bronze Powder + PTFE Self Lubricating Bearings Multilayer Composite

This new material use the PTFE fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.

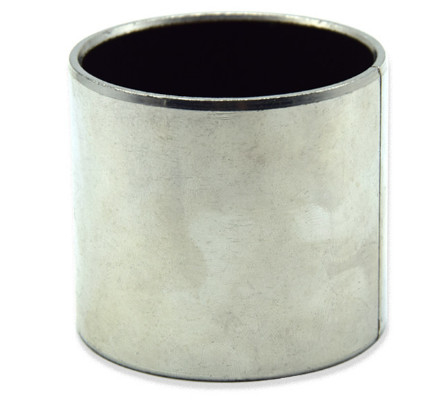

Stainless Steel 316 Sleeve Bushing Specification & Tolerance

Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.

VSB-33 Plain Bearings and Sleeve Bearings


Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...



STRUSTURE






Metal Ptfe Self Lubricating Valve Rocker Bushing

TECHNICAL DATA

Max. load

Static

250N/mm2

Temp.

-195℃~+280℃

Dynamic

140N/mm2

Friction coefficient

0.03~0.20

Max. speed

Dry

2m/s

Thermal conductivity

42W (m·k)-1

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Coefficient of thermal expansion

11*10-6k-1

Continuous

1.8N/mm2*·m/s

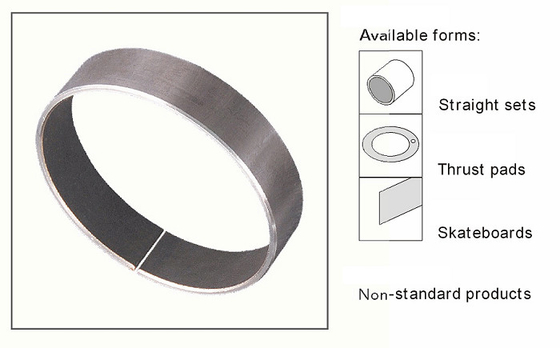

AVAILABILITY





Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.





TYPICAL APPLICATIONS



VSB is professional as one of the leading manufacturers and suppliers of VSB-33 stainless steel 316 bearings +ptfe in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy VSB-33 stainless steel 316 bearings +ptfe made in China with us.


Plain bearings are available as bushes, collar bushes, washers, strips or special designs.



Packaging & Shipping
Packaging Details: Standard export packing, or as customers' requirement.


"Why Buy CHINA?" | Bushings -Logistics-Solutions

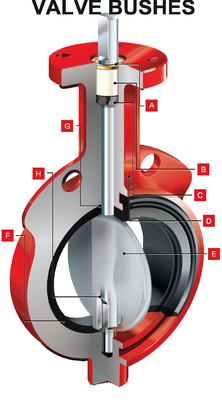

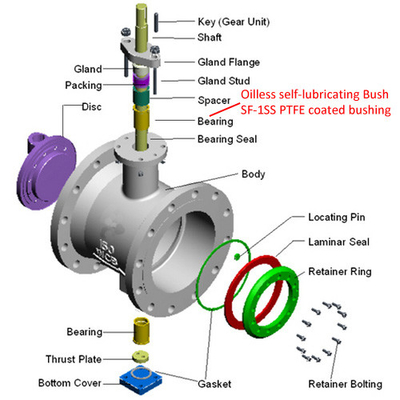

Valve designs
