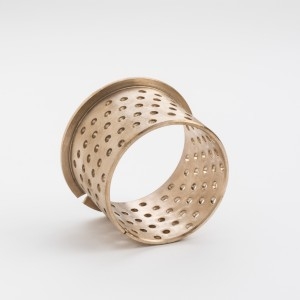

Oilless Self Lubricating Plain Bearing Bronze Sleeve Bearings 090 & 092 with holes for Mining machinery

Product Details:
Place of Origin: Self Lubricating Bearings Manufacturers
Brand Name: REPLACE BRAND GARLOCK BEARINGS (GGB)
Certification: DIN 1494, ISO 3547 STANDARD BUSHING
Model Number: BUSHING TYPE FLANGED PLAIN SLEEVE
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details: WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time: 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms: TT IN ADVANCE WESTERN UNION
Supply Ability: Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings
Contact Now

Detail Information

Meterial: Bronze CuSn8 092 Feature: High Load
Type: Sleeve, Flange, Washer Lubrication:: Oil Lubrication
Quality: OEM Quality Specification: Std.size In Stock
Customized: Welcome Customized Drawing
High Light:

sintered self lubricating bushes

,

self lubricating bronze bushings

Product Description

Self Lubricating Plain Bearings & wrapped bronze bushings



Bronze bearings made of CUSN8. With grease reservoirs. Bearing forms made to order: Cylindrical bushes with non-standard dimensions ...Bronze Sleeve 090 Series Bushings are widely applied in hoisting and other construction machines, automobiles, tractors, trucks, machines tools and some mining engines. It can be fabricated into bushings, half bushings, flanged bushings, thrust washers, spherical bushings and more.


Plain Bearings & Self-lubricating Bushings | VIIPLUS Surface Engineering|Bearing Technology

VSB-22 FLANGE BUSHES Bronze Bearings made of CuSn8 with Lubrication Indents


Bronze Wrapped Bearing with Oil Pockets(090 Cylindrical Bushes)


Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication

pockets, grooves or thru holes, plain or flanged bearings and strip


VSB-22 090 CYLINDRICAL BUSHES FLANGE BUSHES
Bronze Bearing Factory,Bronze Bushing supplier,CuSn8 flange bronze bush
Bearing material made of solid bronze strip with indents for lubrication

  1. Good wear resistance, suitable for rough conditions

  2. Optimum performance under relatively high loads and low speeds

  3. Easy for fitting and lubricating

  4. High load capacity

  5. Inner Diameter machineable parts are available against order

  6. High level thermal conductivity

  7. Minimum overall dimensions

  8. Chemical resistance.

  9. Initial pre-lubrication at assembly required

Strusture




The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.



 Technical Data

Structure And Composition

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

Microsection

Oilless Self Lubricating Plain Bearing Bronze Sleeve Bearings 090 & 092 with holes for Mining machinery 0

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest


Tech. Data



Max.Load

Static

120N/mm²

Elongation

40%

Dynamic

40N/mm²

Temp

-100℃~+200℃

Coefficient of friction

0.08~0.25

Max.speed(Lubrication)

Max.Speed

2m/s

Thermal conductivity

58W(m*k)-1

Max.PV

Max.PV

2.8N/mm²*m/s

Coef. of thermal expansion

18.5*10-6K-1

Tensile strength

Tensile strength

450N/mm²





Hardness

Hardness

HB 100-150




OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Good

Water lubricated

Poor

Process fluid lubricated

Poor

Bearing Properties

GENERAL



Unit

Value

Maximum load, p

Static

N/mm2

120

Dynamic

N/mm2

40

Operating temperature



°C

- 100~200

GREASE LUBRICATED







Maximum sliding speed,



m/s

2

Coefficient of friction





0.08 - 0.25

RECOMMENDATIONS







Surface hardness

Normal

HB



110-150




Availability



Bearing forms available in standard dimensions
Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs



Self Lubricating Plain Bearing




Typical Applications


VIIPLUS BEARINGS bushings can be widely used as components necessary in mechanical industries or for repair and maintenance of various machines.


  • Automotive industry:

  • Wiper arms, door hinges, trunk hinge, foot pedals, shock absorbers, enines, camshafts, connect rod, steering system, pedal assembly, seat angle regulator, etc.

  • Office machines:

  • Copy machines, fax machines, joint and reciprocation parts of faxed, paper shredders, scanners and printers, starting and hinge parts of fitness equipment, doors and windows.

  • Agricultural machinery:

  • Planting machines, mills, potato harvester, tractors, etc.

  • Paper/wood/pulp industry:

  • Timber- & chain-saws, cutting machines, folding machines, looms, tec.

  • Steel industry:

  • Sliding plates, steel & rooling-mills, body presses, tool posts, etc.

  • Electricity tools:

  • Switch gearsm contactors, pneumtools, hydraulic tools, transformers, etc.

  • Domestic appliances:

  • Microwave ovens, food processors(mixers, blenders), lawn mowers, sewing machines, etc.

  • Medical equipment:

  • Dental equipment, X-ray equipment, medical turntables, wheelchairs, etc.

  • Construction industry:

  • Lift components, excavators, concrete mixers, caterpillars, escalators, etc.

  • Other used:

  • Valves, blinds, drying plant, baking machinery, screws and bolts, awnings, etc.
