PTFE Marginal Lubricating Bronze Sleeve Bearings CuSn10Pb10

Place of Origin china
Brand Name viiplus.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number bimetal
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price Contact us
Packaging Details Standard package, Pallet or container, As per customized specifications
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Product Details
Meterial CuSb10Pb10/CuSn10Pb5 Certification ISO9001 /TS16949
Types PTFE Composite Gleitlager Anlaufscheiben Application Impact Load And Dusty Environment
Parts Bushings Thrust Washers Strips Categories Plain Bearings
High Light

PTFE Composite Bronze Sleeve Bearings

,

Marginal Lubricating Bronze Sleeve Bearings

,

CuSn10Pb10 Lubricated Bronze Sleeve Bearings

Leave a Message
Product Description

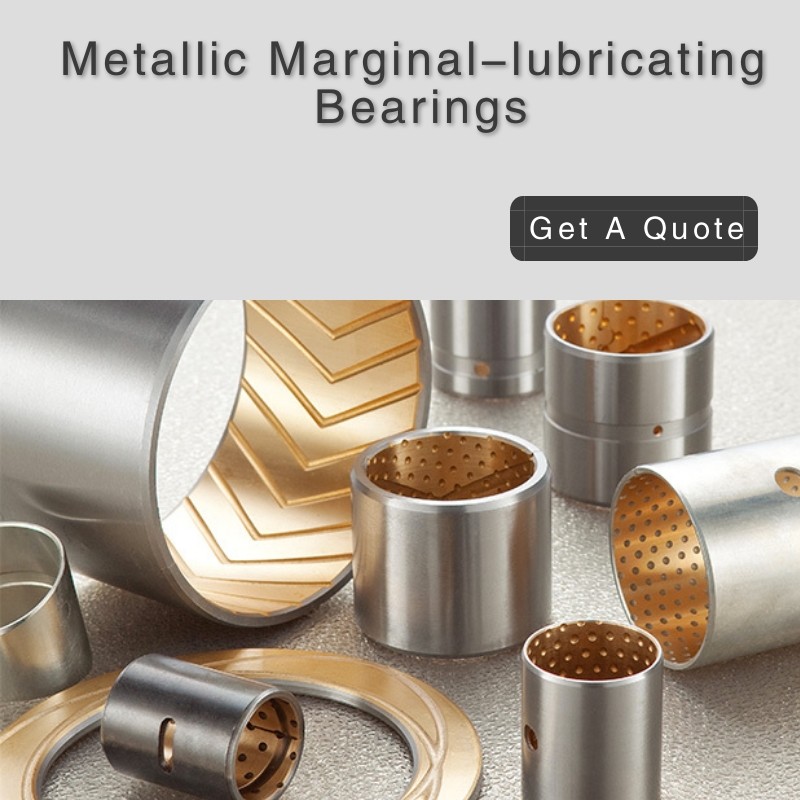

CuSb10Pb10 Metallic Marginal-Lubricating Bearings

Metallic marginal-lubricating bearings CSB-800/815



Viiplus offers a broad range of sizes, forms and materials in bimetallic bearings.



For the demanding specifications of working within severe working conditions with minimal or no maintenance, our broad range of Metal and Bimetal bearings improve reliability and durability while lowering operating costs. Offering excellent corrosion resistance in industrial outdoor applications and in water, marine and offshore environments, these bearings can be made in many sizes and forms, including thin-walled, thick-walled, flanged, cylindrical, sintered and oil-impregnated, and more.



Features



The bronze lead alloy of CSB-800 is CuSb10Pb10, the low lead material CSB-815 with the alloy CuSn10Pb5 is also available. These materials have low friction coefficients and good wear resistance and they are suitable for lubricated working conditions. To improve the lubricating performance, oil grooves or oil deposits could be optional designs.



bimetal bushing



Bimetal-bearing is a bimetal bearing, wrapped of steel sheets with a layer of lead bronze.



The standard sizes are fitted with lubrication indents on the running surface. For standard bearings is normally the steel backing copper plated to improve the corrosion resistance. The layer of lead bronze makes it possible to use these bearings with relative long lubrication intervals.



Bimetal-bearings can be manufactured with a thicker lead bronze layer for applications where the bearing has to be machined after mounting. The material of the layer can be fitted to the special needs for the application in question.



Special Techincal Features



The internal surface of the bimetal bushes can include different types of channels, so as to satisfy the various types of applications and lubrication conditions in which the bushes may be used.


Structure:





  1. Bronze/Aluminum Lead Sintered Alloy, provides good self lubricating feature and has good fatigue resistance and anti-seizure feature.

  2. Steel Backing, provides the mechanical strength of the bearing.



Tech. Data



Max. Load

Static

250N/mm²



Alloy Hardness

>70HB

Dynamic

140N/mm²

Operation Temperature range

-40°C~+ 250°C

Max. Speed (lubricated)

2.5m/s

Friction coefficient

0.05~0.20

Max. PV

2.8N/mm²*m/s

Thermal conductivity

23W(m*K)-1

Tensile Strength

350N/mm²

Coefficient of thermal expansion

14*10-6*K-1



Special:



  • In- or outside lubrication grooves.
  • Several alternative layer materials.
  • Without lubrication indents.
  • Other positions of tolerance.
  • Flat or spherical thrust washers.
  • Drawing details.


Typical Applications





These materials are suitable for using under middle load and middle to low speed conditions. The good embeddability of the alloy provides anti-dust feature of the bearings. The bearings can be used under dust environment and where containments existed. The typical applications include connection rods, undercarriage rollers, hydraulic cylinder rod eyes, material handling machinery, agriculture machinery, forest machinery and so on. These two materials are with lead which is restricted to be used for some special parts according the relative laws or regulations.
