Oilite Bushes, Oil-Impregnated Bushings

Place of Origin made in china
Brand Name Plain Sleeve Bearing
Certification ISO 9001
Model Number For Blender Food Processor Blender Bushings
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 10-15 days
Payment Terms T/T
Supply Ability metric bushings self-lubricating Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Product Details
Bushing Material Sintered Bronze Bushings Bushing Feature Oil Impregnated
Bushing Size Customized Bushing Type Sleeve, Oil Impregnated Bronze Bushings
Bushing Design Oil-impregnated Bushings Size Metric Size
Item Oil Bushing, Sintered Bronze Bushings Standard Oilite Bushings, Oil-embedded Flanged Sleeve Bearings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
High Light

wrapped bronze bushings

,

graphite sleeve bearings

Leave a Message
Product Description

Sintered Components, No minimum on Sintered Bronze SAE841 Oil Impregnated Bearings. Cut to Size. Custom Oil impregnated bushing, oilite bushings, bronze material grade: Cu663, Oil impregnated bearings Sintered Bronze Bushings China Supplier. Oil-Impregnated Bushings For Food Processor Grinder, Blender.Custom Parts Available. Types: Sleeve, Flange Size Bearings, Oil Impregnated Bearings, Plug Graphite Bearings.

Shaft Bushings: Want to Save 90% in Maintenance Costs?

Learn to select the right shaft bushing for your equipment. Protect the bushing from damage and reduce maintenance costs by 90%.

Select your sintered bronze bushings Offer shaped sintered components in a variety of bronze materials. The advantage of the powder metallurgy process against other conventional methods of forming (such as casting and forging), is the ability to produce complex shaped parts to close tolerances in volume at a much lower cost.

Correct bushing design is vital for sintered bronze bearings components. Please contact our technical department for advice on your specific application.

Shop the wide range of  Sintered Bronze Bushings, sintered bronze bearings products including plain bearings, thrust bearings, flange bearings, sleeve bearings, thrust washers, bronze bushings.

Locate the right Oil impregnated bushing partPackaging providing OEM and Distribution Partners Worldwide;

Choose from our selection of oil-impregnated bushings Plain Sleeve Bearing from china, including sleeve bearings, flanged sleeve bearings, and more. In stock and ready to ship.

Cu663 Bronze Powder Metallurgy Sintered Oil Impregnated Bushing made in china.

we are specialized in bushing, bronze bushings.

We are specialized in spare parts for home appliances and producing bronze bushings of a blender, fan, sleeve bushing for refrigerator, etc. We export motors bushings and hardware plain bearings.

Cu663 SAE 660 Oil Impregnated Bushing Material, C93200 Leaded Tin Bronze Bearings, and Parts.

VIIPLUS is the name you can count on. We're your complete source for self-lubricating bearings solutions.

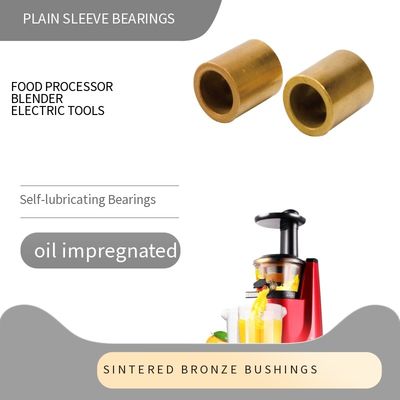

Plain Sleeve Bearing for Blender Food processor Blender bushings

ID*OD*LENGTH Sintered copper sleeve, Sintered bronze oilite bushings. sintered self-lubricating bearings



Oil-impregnated bushings Sintering bronze bushing manufacturing process

Powder metallurgy is the process of making metal powder or using metal powder (or a mixture of metal powder and non-metal powder) as raw material, forming and sintering, and making metal materials, composite materials, and various types of products. Powder metallurgy is similar to ceramic production in that both of them belong to powder sintering technology. Therefore, a series of new powder metallurgy technologies can also be used in the preparation of ceramic materials. Due to the advantages of powder metallurgy technology, it has become the key to solve the problem of new materials and plays an important role in the development of new materials.
Powder metallurgy includes the making of powder and articles. Among them, the powder is mainly metallurgical process, and literally. Powder metallurgy products, on the other hand, often go far beyond materials and metallurgy and are often technologies that span multiple disciplines (materials and metallurgy, machinery and mechanics, etc.). In particular, modern metal powder 3D printing, which integrates mechanical engineering, CAD, reverse engineering, layered manufacturing, numerical control, material science, and laser technology, makes powder metallurgy products technology become a modern comprehensive technology across more disciplines.

Define the Powder metallurgy technology for Oil-impregnated bushings


Powder metallurgy is an industrial technology for making metal powder or using metal powder (or a mixture of metal powder and nonmetal powder) as raw material, through forming and sintering, to make metal materials, composite materials, and various types of products. Powder metallurgy technology has been widely used in the fields of transportation, machinery, electronics, aerospace, weapons, biology, new energy, information, and nuclear industry, and has become one of the most dynamic branches of new material science. Powder metallurgy technology has a series of advantages such as significant energy saving, material saving, excellent performance, high precision, and good stability, etc. It is very suitable for mass production. In addition, some materials and complex parts that cannot be made by traditional casting and machining methods can also be made by powder metallurgy technology, which has attracted much attention from the industry.

The broad definition of the powder metallurgy products industry includes iron tools, cemented carbide, magnetic materials, and powder metallurgy oilite bushings products. The narrow sense of powder metallurgy products industry only refers to powder metallurgy products, including powder metallurgy parts (the majority), oil-bearing, and metal injection molding products.

Characteristics of the Powder metallurgy technology for Oil-impregnated bushings


Powder metallurgy has a unique chemical composition and mechanical and physical properties that cannot be obtained by traditional casting methods. Powder metallurgy technology can be directly made into porous, semi-dense, or fully dense materials and products, such as oil-bearing, gear, cam, guide rod, tool, etc., is a less cutting process.
(1) powder metallurgy technology can minimize the bias of alloy components and eliminate the thick and uneven casting structure. It plays an important role in the preparation of high-performance rare earth permanent magnetic materials, rare earth hydrogen storage materials, rare earth luminescent materials, rare earth catalysts, high-temperature superconducting materials, new metal materials (such as al-li alloy, heat-resistant Al alloy, superalloy, powder corrosion-resistant stainless steel, powder high-speed steel, intermetallic compound high-temperature structure materials, etc.).
(2) a series of high-performance non-equilibrium materials such as amorphous, microcrystalline, quasi-crystalline, nanocrystalline, and supersaturated solid solutions can be prepared. These materials have excellent electrical, magnetic, optical, and mechanical properties.
(3) it can easily realize multiple types of composites and give full play to the characteristics of each component material, which is a process technology for low-cost production of high-performance metal matrix and ceramic composites.
(4) it can produce materials and products with special structures and properties that cannot be produced by ordinary smelting methods, such as new porous biomaterials, porous separation membrane materials, high-performance structural ceramic abettors and functional ceramic materials.
(5) near-net formation and automated mass production can be realized, thus effectively reducing the resource and energy consumption of production.
(6) it can make full use of ore, tailings, steelmaking sludge, rolled iron and steel scales, and recycle waste metal as raw materials, which is a new technology that can effectively conduct material regeneration and comprehensive utilization.
Many of our common machining tools and hardware tools are made by powder metallurgy technology.

Oil impregnated bronze bearings.



The wear resistance and antifriction qualities of the oil-impregnated sintered bronze make for an excellent guide bushing.





SINTERED BRONZE BUSHINGS oilite bushings

















































































Designing for Powdered Metallurgy



Bearings are a natural product for Oil Impregnated Bushings because of its controlled porosity and the resulting self-contained lubrication. The shaping of a sintered bearing is essentially defined by the tool design and its manufacture. The appropriate layout of the components geometry and the selection of suitable material according to the Oil Impregnated Bushings process has a strong influence on tool life and consequently on the price of the part. It is therefore worthwhile to consider some of the guidelines of design related to the Oil Impregnated Bushings .



Explore Oil Impregnated Bushings Types



Oil Impregnated Bushings oilite bushings





MATERIAL CODE BASIC METAL ALLOY COMPOSITION
Bronze based SAE841 ASTM B438-70 GR1 Type II DIN30 910 PART3SintA50 Mil-B-5687C Type I CompA Cu87.5~90.5,Fe1.0max,Sn9.5~10.5,P1.75,0.5
Iron based SAE863 Type3 SATM B439-70 GR4 Mil-B-5687C Type II CompB Fe ; Cu18.0~22.0,Fe2.0 ALLOWANCE





Material Specifications



Composition
%
Density
(gm/cc)
Porosity
(% by Vol.)
K Strength
Constant
Tensile
Strength
Elongation
(in 1"%)
Yield
Strength
PSI
Comparable
Designations
Copper 87.5-90.5

Iron 1.0 max.
Tin 9.5-10.5
Carbon 1.75
Other Elements 0.5
6.4-6.8 19 min. 26500 14000 1 11000 ASTM B-438-70
GR1 Type 11

MPIF CT-1000-K26
SAE 841
Type I. Comp. A
Super Sintered Iron Material Specifications
Copper 18.0-22.0

Iron Balance
Other Elements
5.8-6.2 19 min. 40000 22000 1 22000 ASTM B-439-70
GR4
SAE 863, Type 3
Mil-B-5687C
Type II. Comp. B



Wall Thickness

As a general rule, walls should not be thinner than 0.060 inch (1.52 mm) and the ratio of the length to wall should be less than 8:1 for tool strength and to ensure that the powder properly fills all sections of the die for proper part density. Avoid designing long, thin walls; they require tooling that is fragile and the parts themselves have a tendency toward density variation. Where the ratio of length-to-wall thickness is as high as 8:1 or more, special precautions must be taken to achieve uniform fill, and variations in density are unavoidable. The lower length to diameter and or length to wall thickness ratios, the easier it becomes to maintain uniform density throughout the part.



Edges



The edges of a part must be designed with bevels instead of radii to avoid burrs. At 30-45 degrees. the chamfer with a surface from 0.005 inches (0.13 mm) to 0.015 inches 0.38 mm will eliminate the soft edges, which are undesirable



Advantages Of Oil Impregnated Bushings



The Oil Impregnated Bushings is an economical, environmentally clean, high production method for making parts exactly to or close to final dimensions. With little or no machining operations required. Due to their porosity, they may be impregnated with oil or plastic.



Proper development of components for production using the P / M process can minimize or facilitate the need for recycling. With the help of powder metallurgy, we can maintain tight dimensional tolerances and achieve “clean” molding. Reducing technological processes and scrap losses is the biggest benefit of saving powdered metal parts. The P / M process eliminates or minimizes scrap loss, typically using more than 97% of the feedstock in the finished part.



The powdered metal process is suitable for economical, high-volume production. However, National Bronze Mfg. It prides itself on being particularly flexible in terms of volume.

CAST bronze bushings VS. OIL-IMPREGNATED BRONZE BUSHINGS



Difference between the oil-bearing oilite bushings copper sleeve and self-lubricating copper sleeve in powder metallurgy

Among the types of plain bearings, there are self-lubricating bearings lubricated by the inherent lubricant of the matrix and steel back bearings with an anti-wear layer on the working face. Here we mainly explain the oil-bearing copper sleeve and self-lubricating copper sleeve with the matrix lubricant and then make a detailed analysis of the products with reduced wear layer in the later stage.

Here is the definition of powder metallurgy oil-bearing copper sheath: powder metallurgy is a technology for making metal powder, and taking metal powder (and sometimes adding a small amount of non-metallic powder) as raw material, through mixing, forming, and sintering, to make materials or products. Powder metallurgy oil bearing refers to the bearing products processed in this way after the bearing is vacuum impregnated with lubricating oil. Because the matrix of this product is made of powder, there will be fine holes in the matrix, and the oil content can reach a certain proportion after impregnated with lubricating oil. From the beginning in our country will be a name to this bearing oil-bearing, oil-bearing is not to say that this kind of bearings have oily so when use don't need to add lubricating oil, it is showed that the bearing itself has oil amount of lubricating oil, often don't need to add lubricating oil or when using only a small amount of added lubricant.

Working principle: when the shaft is at rest, all the bearings are stored in the pores, and the load is supported by the direct contact between the oil-bearing bearing and the shaft. However, due to capillarity, when the shaft is in operation, the lubricating oil contained in the fine pores of the bearing material seeps out on the inner diameter surface of the bearing, forming a boundary lubrication of a certain state at the contact point between the shaft and the surface of the bearing. P/m oil-bearing copper sleeve is generally installed at a high speed, inconvenient for refueling and maintenance, with a certain working condition of low temperature and load. However, before processing this kind of product, it is generally necessary to process the mold of the related product first. Therefore, when selecting the product type, if the product size is small and the quantity is particularly large, this process can be considered.


Application conditions: widely used in household electrical machinery, textile machinery, chemical machinery, automobile industry and other fields.

The general name of powder metallurgy oil-bearing: oil-bearing copper sleeve, sintered bronze bearing, oil-bearing, iron-base oil-bearing, powder bearing.

Common types of powder metallurgy oil bearing: FZ1165, FZ1265, FZ1360, FZ1465, FZ2170, FZ2265, FZ2365.

Product style of powder metallurgy oil-bearing copper sleeve: (executive standard: GB/ t2688-2012 sliding bearing technical conditions of powder metallurgy bearing)



Applications



Powdered Metal Bronze Bushings are used in a wide variety of industries. Over the years as the P/M technology has advanced, so did the amount of applications that utilized this type of product. Some of the major industries where you can find powdered metal bronze bushings are as follows:



Automotive



Common problems in the production of powder metallurgy oil-bearing in ChinaIs metal powder and other powder metallurgy bearing anti-friction material constraints, sintering, shaping and oiled, porous oil bearing structure, in the hot oil moisten, pore Spaces is full of lubricating oil, while working for shaft neck roll suction role conflict and fever, swelling metals, and the oil is heated, the oil out of the pore, and mold guide bush conflict surface lubrication, bearing after cooling, oil is sucked back into the pore.

  • Connecting Rods

  • Main Bearing Caps

  • Oil Pump Components

  • Timing System Components

  • Door Hatch & Lock Mechanism

  • Upper & Lower Tilt Components

  • Starter Motor Components

  • Hydraulic Pump Parts

  •
  • According to different working conditions, powder metallurgy bearings with different oil content are used in rolling bearings. When the oil content is high, it can be used without compensating lubricating oil and under low load. When the oil content is small, it can be used under heavy load and high speed. Powder metallurgy bearing containing graphite, due to the lubricity of graphite itself, can improve the safety of bearing, its disadvantage is low strength; In the case of no corrosion, it may be considered to choose a low price, high strength iron-based powder metallurgy bearing, but the matching journal hardness should be appropriately improved.



    Powder metallurgy products are mainly applicable to the automotive profession, equipment manufacturing work, metal occupation, aerospace, military industry, instruments and meters, hardware tools, electronic appliances and other fields of spare parts production and research, related to the production of materials, auxiliary materials, all kinds of powder preparation equipment, sintering equipment production. Products include bearings, gears, cemented carbide cutting tools, molds, conflict products and so on.
