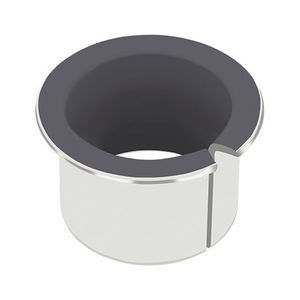

Maintenance-Free Bushes With Steel & POM Backing Bearing Flanged Bushes Size

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel + Bronze Powder + /Fibre Application Forklift, Trucks & Other Platforms.
Standard DIN 1494,, Bronze Bushing & DAIDO Type Cylindrical Bushes, Flanged Bushes, Thrust Washers, Flat Strip Material, Half Bearing, Wear Plate
Industrial Standard Oilless Bearing Bushings Characteristic Self-lubricating
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

flanged plain bearing

,

plain bearing

Leave a Message
Product Description

When it comes to maintenance-free bushings with steel (Polytetrafluoroethylene) and POM (Polyoxymethylene) backing, flanged bushings are a popular choice for their durability, reliability, and ease of installation. These bushings are designed to provide a low-friction interface between rotating or sliding components, reducing wear and extending the service life of machinery.

The flanged design of these bushings allows for secure installation and positioning within a housing or frame. The steel backing provides rigidity and structural support, while the and POM materials offer excellent wear resistance and low-friction properties.

Sizes for flanged bushings with steel and POM backing can vary depending on the specific application and requirements. Commonly, these bushings are available in a range of diameters and lengths to suit different mounting holes and shaft diameters. Additionally, the flange dimensions (width, height, and thickness) can be customized to fit the specific housing or frame design.

It is important to consult with the manufacturer or supplier to determine the appropriate size and specifications for your specific application. They can provide detailed technical information, including material properties, load ratings, and installation instructions, to ensure that you select the right flanged bushing for your needs.

Remember, when selecting a maintenance-free bushing, it is crucial to consider the operating conditions, such as temperature, speed, and load, to ensure that the bushing can perform reliably and effectively in your application.



VIIPLUS INTERNATIONAL PRECISION BUSHINGS MADE IN CHINA Bronze Bushings Plastic or Polymer Bushings are available in different and inch sizes. Please visit our bronze bushing website:www.bronzegleitlager.com



Bearing bore inch metric size type straight bushing flanged bushing and thrust washers



VIIPLUS Plain Bearing company supply sliding bearings Maintenance-free Bushes with steel backingmade in china, bushing related information: Model: Bearing; Brand Bushes; Type: Plain bearings. If you want to know more about Bushings Size for information, you can do online consultation or call the hotline and email us tiffany@viiplus.com, we will serve you in detail.



Bushes supplier in special inch sizes available by agreement.



INCH SERIES BORE SIZE BUSHINGS

METRIC SERIES BORE SIZE BUSHINGS



The "" self-lubricating bearings are used where excessive friction is a concern. These self-lubricating bearings have high load capacity and are able to operate at -328 to 536 degrees F. They can be used with rotational, oscillatory and axial sliding motion. They resist shock loading and can handle both radial and axial loads.

The "pom" prelubricated bearings also exhibit high load carrying capacity and extremely low friction during use. Recommended for applications involving intermittent operation or boundary lubrication, these bushings will operate for long periods of time with only a small amount of lubrication introduced on initial assembly. With a temperature range of -40 to 210 degrees F, "pom" bearings are particularly effective in situations where lubrication cannot be frequently supplied.



Cylindrical bushes, flanged bushes, thrust washers, flat strip material, half bearing, wear plate.



VIIPLUS SLIDING BEARING MADE INCCHINA FACTORY SUPPLY

Excellent mechanical bushing capacity forklift, trucks & other platforms Metal-polymer Composite Bearings.The U.S. 's , oilless and DAIDO are the world's top three makers of self-lubricated bearings, with strong positions in aerospace, automotive and transportation.VIIPLUS also established itself as an industry leader in self-lubricating bearings exported from Chin

Metal base self-lubricating bearing
Taking high-strength copper alloy as the base material, holes are distributed on the working face in proportion according to the working conditions and filled with solid lubrication column. High-strength copper alloy provides high bearing capacity while solid lubrication column can form lower friction pair.



Features
Self-lubricatingbushings will support rotary, linear and oscillating motion.VSB–10 material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material.



Structure

1. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. /Fibre mixture thickness 0.01~0.03mm. It is thecontact surface for the rotating shaft. Minute partidesof the layer and the sintered bronze material combine tocreate a solid lubricant film, which coats the shaft.



Polymer Plain Bearings




Typical Applications



Bushing for Handling equipment: various forklift, stacking cars, trolleys, cars, trucks and other platforms.

In addition, its maintenance costs are very low, and corrosion resistance, so often in the outdoor work of the truck, platform car, will also be a large number of installation of this bearing.

In the structure of machinery and automobile, a lot of bearings are used for various parts, and many of them need to be replaced based on the consideration of lightweight and precision.

This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.



1.Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...

2.Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminalprinters and peripheral equipment,automaticprinting devices, mail processing machinery...

3.Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...

4.Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.



Technical parameters













Maximum load

Static load

250N/mm2

frictional coefficient

0.03~0.20

Low speed

140N/mm2

Rotation, swing motion

60N/mm2

maximum line velocity

dry friction

2m/s



fluid lubrication

>2m/s



Maximum PV value (dry friction)

Intermittent operation

3.6N/mm2*m/3

Thermal conductivity

>2m/s42W(m*K)-1



Long-term operation

1.8N/mm2*m/3



Operating temperature

-195℃~+280℃

linear expansion coefficient

11*10-6*K-1





Product features


Metal plastic composite bearing Suitable for low speed and heavy load, intermittent operation and swaying conditions can not oil or not allowed to oil occasions;Simplify oil supply design, reduce maintenance and repair costs and time;Good wear resistance, low friction coefficient, extend the service life of the product;

Metal plastic polymer self-lubricating rolling bearing is the flagship product of VIIPLUS. It has excellent mechanical bearing capacity, especially suitable for working conditions without refueling or refueling. The usage amount of a car can reach more than 30.Standards are similar to those of , Bronze Bushing & DAIDO metal polymer self-lubricated rolling bearings for corrosion resistance



Engineered Self Lubricating bearings Solutions



Design Assistance | Material Selection | Component Geometry
