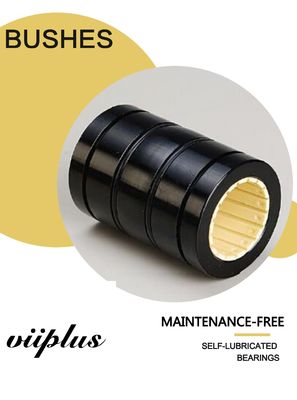

Online Solutions EP IGUS Plastic Bushings & Self Lubricating Bearings
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | VIIPLUS PLAIN BEARINGS |
| Certification | CUSN8,CUSN6.5 Bronze |
| Model Number | PTFE PLAIN BEARINGS |
| Minimum Order Quantity | 1000 Piece/Pieces (Min. Order) |
| Price | $0.20 - $10.00 / Pieces |
| Packaging Details | Wooden pallets for standard export packing cartons |
| Delivery Time | 10~15 work days |
| Payment Terms | T/T PREPARD, T/T, L/C, D/A, D/P |
| Supply Ability | 2000000 Piece/Pieces |
Product Details
| Material | EPB A Thermal Mould Character Plastic | Application | Packaging Machinery |
|---|---|---|---|
| Type | Self-lubricating Bearings | Service | OEM Customized Services |
| Product Name | Plastic Plain Bearing Bushing | Size | Normal Size |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | plastic flanged sleeve bearings,igus plastic bushings |
||
Product Description
Maintenance-free Plain Bearings, Sleeve Bearing With Flange, mm
Online Solutions Plastic Compound Bearings Plain Bearings Metric Cylindrical Bushes EPB Sliding Bearings Black Lubricating Bushes Non-std. products
Choose from our selection of plastic sleeve bearings, including sleeve bearings, dry-running flanged sleeve bearings, and more. In stock and ready to ship.
EP series plastic bushings use high-performance engineering plastics as the base material. High-strength fibers and special solid lubricating greases are implanted inside them through polymer material modification technology to improve the comprehensive wear resistance; the high-strength fiber network structure strengthens The strength of the material and the combination of special solid lubricating grease make EP series plastic bushings have excellent self-lubricating performance and wear resistance. Whether it is the automotive industry with high durability requirements, high-speed applications, underwater applications, high temperature and anti-corrosion applications, or the food industry that requires compliance with FDA standards, Viiplus provides different solutions for global industries.
Universal self-lubricating bearing
General purpose the strongest plastic bearings, can meet the working temperature below 80 most of the working occasions, excellent wear resistance and the price of the economy is the designer's preferred material.
Continuous temperature: 1: - 40 ℃ ~ + 80 ℃;
2: general purpose strong suitable for most of the use of low and medium load occasions;
3: suitable for dry operation, maintenance-free, corrosion resistance;
4: damage to the shaft is minimized;
5: very low sliding friction coefficient.
Material property sheet
| Common Capability | Unit | EPT | EPG | EPH | EPX | EPJ | EPS |
| Density | g/cm³ | 1.46 | 1.46 | 1.65 | 1.49 | 1.24 | |
| Color | Black gray | Dark grey | Grey | Black | Yellow | Beige | |
| Max.water absorption,23℃/ 50% | [% weight] | 0.2 | 0.7 | 0.1 | 0.3 | 2.02 | |
| Max.water absorption | [% weight] | ＜1.2 | ＜4 | ＜0.3 | ＜0.5 | ＜1.3 | ＜0.1 |
| Dynamic friction /steel | μ | 0.05-0.15 | 0.08-0.18 | 0.07-0.20 | 0.09-0.27 | 0.06-0.18 | 0.05-0.15 |
| Max.PV(dry) | MPa•m/s | 0.4 | 0.5 | 1.37 | 1.32 | 0.34 | 0.4 |
| Mechanical behavior | |||||||
| E-module | MPa | 2,300 | 7,800 | 12,500 | 8,100 | 2,400 | 830 |
| Tensile strength,20℃ | MPa | 80 | 200 | 175 | 170 | 73 | 18 |
| Compressive strength | MPa | 65 | 80 | 90 | 150 | 35 | 10 |
| Max.static pressure of the surface,20℃ | MPa | 35 | 80 | 150 | 90 | 20 | 10 |
| Shore D hardness | 70 | 112 | 87 | 85 | 74 | 73 | |
| Physical and thermal properties | |||||||
| Continuous work tempreature | ℃ | +80 | +130 | +200 | +250 | +90 | +260 |
| short-time work tempreature | ℃ | +120 | +220 | +240 | +315 | +120 | +310 |
| Minimum operating temperature | ℃ | -40 | -40 | -40 | -100 | -50 | -200 |
| Thermal conductivity | W/m•K | 0.2 | 0.25 | 0.60 | 0.60 | 0.25 | 0.24 |
| Max.water absorption,23℃ | K-1•10-5 | 7 | 9 | 4 | 5 | 10 | 12 |
| Conductivity | |||||||
| Volume resisticity | Ωcm | ＞1012 | ＞1013 | ＜104 | ＜105 | ＞1013 | ＞1015 |
| Surface resisticity | Ω | ＞1015 | ＞1011 | ＜105 | ＜103 | ＞1012 | ＞1015 |
plastic bearings and traditional oil bearing
As EP series bearing greases are included in the bulk material, none On how long the working time of the bearing grease will continue to play from the friction surface seepage Long-term lubrication, while the traditional powder metallurgy oil-bearing in the use of the process benefits The lubricating oil in the micropores acts as a self-lubricating effect when these lubricants are depleted or After the end of volatile bearing wear will rapidly intensify, at this time to declare the effective bearing With the end of life.
Characteristics
series of materials has excellent self-lubricating and wear resistance is mainly engineers take full advantage of the self-lubricating material modification technology, high-performance engineering plastics used in high-strength fiber to improve the material load and special grease reduced The friction coefficient of the material (Figure 1), thereby enhancing the comprehensive wear resistance of the material to extend the service life of the bearing. High-performance engineering plastics as the base material mainly as wear-resistant carrier; Reinforced fiber to improve the bearing in the bearing and impact resistance; Special grease reduces the coefficient of friction of the bearing from the role of lubrication.
Typical Applications
·Office Machinery
·Electronic Products
·Textile Machinery
·Fitness Machinery
·Agricultural Machinery
·Packaging Machinery
·Automotive Industry
Solid-lubricating and Maintenancefree Sliding Bearings
Plastic bearing has longe service vs Metal bearing lubricating oil is life easy to be failed
Engineers are dedicated on the performance improvement on the self- lubricating materials derives the result that EP Series Materials are with excellent self- lubricating features and wear resistance Features. High- strength fibers used in the engineering plastics fantastically improve the material load (Graphl). Special grease immersion in the plastic can decrease the friction coefficient of the material therefore to proiong the bearing sevice life. High-performance engineering plastics body material mainly service as wear- resistant vector. The reinfoced fiber improves the load and impact resistant capacity of the beaing. Special grease decreases the fiction coefficient for a better selflubricating performance.
EP PALSTIC BUSHING Series Specification Table
Metric Cylindrical Bushes
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| model | d | tolerance | D | L |
| EP PLASTIC BUSHING-0304-03 | 3 | +0.014/+0.054 | 4.5 | 3 |
| EP PLASTIC BUSHING-0304-06 | 3 | +0.014/+0.054 | 4.5 | 6 |
| EP PLASTIC BUSHING-0305-05 | 3 | +0.014/+0.054 | 5.5 | 5 |
| EP PLASTIC BUSHING-0405-06 | 4 | +0.020/+0.068 | 5.5 | 6 |
| EP PLASTIC BUSHING-0406-06 | 4 | +0.020/+0.068 | 6 | 6 |
| EP PLASTIC BUSHING-0507-05 | 5 | +0.020/+0.068 | 7 | 5 |
| EP PLASTIC BUSHING-0507-08 | 5 | +0.020/+0.068 | 7 | 8 |
| EP PLASTIC BUSHING-0507-10 | 5 | +0.020/+0.068 | 7 | 10 |
| EP PLASTIC BUSHING-0507-18 | 5 | +0.020/+0.068 | 7 | 18 |
| EP PLASTIC BUSHING-0608-04 | 6 | +0.020/+0.068 | 8 | 4 |
| EP PLASTIC BUSHING-0608-06 | 6 | +0.020/+0.068 | 8 | 6 |
| EP PLASTIC BUSHING-0608-08 | 6 | +0.020/+0.068 | 8 | 8 |
| EP PLASTIC BUSHING-0608-10 | 6 | +0.020/+0.068 | 8 | 10 |
| EP PLASTIC BUSHING-0608-11 | 6 | +0.020/4-0.068 | 8 | 11 |
| EP PLASTIC BUSHING-0810-05 | 8 | +0.025/+0.083 | 10 | 5 |
| EP PLASTIC BUSHING-0810-06 | 8 | +0.025/4-0.083 | 10 | 6 |
| EP PLASTIC BUSHING-0810-08 | 8 | +0.025/+0.083 | 10 | 8 |
| EP PLASTIC BUSHING-0810-10 | 8 | +0.025/4-0.083 | 10 | 10 |
| EP PLASTIC BUSHING-0810-11 | 8 | +0.025/+0.083 | 10 | 11 |
| EP PLASTIC BUSHING-0810-12 | 8 | +0.025/+0.083 | 10 | 12 |
| EP PLASTIC BUSHING-0810-15 | 8 | +0.025/+0.083 | 10 | 15 |
| EP PLASTIC BUSHING-0811-10 | 8 | +0.025/+0.083 | 11 | 10 |
| EP PLASTIC BUSHING-0812-10 | 8 | +0.025/+0.083 | 12 | 10 |
| EP PLASTIC BUSHING-0911-06 | 9 | +0.025/4-0.083 | 11 | 6 |
| EP PLASTIC BUSHING-1012-04 | 10 | +0.025/+0.083 | 12 | 4 |
| EP PLASTIC BUSHING-1012-05 | 10 | +0.025/+0.083 | 12 | 5 |
| EP PLASTIC BUSHING-1012-06 | 10 | +0.025/+0.083 | 12 | 6 |
| EP PLASTIC BUSHING-1012-08 | 10 | +0.025/+0.083 | 12 | 8 |
| EP PLASTIC BUSHING-1012-10 | 10 | +0.025/+0.083 | 12 | 10 |
| EP PLASTIC BUSHING-1012-12 | 10 | +0.025/+0.083 | 12 | 12 |
| EP PLASTIC BUSHING-1012-15 | 10 | +0.025/+0.083 | 12 | 15 |
| EP PLASTIC BUSHING-1014-10 | 10 | +0.013/+0.071 | 14 | 10 |
| EP PLASTIC BUSHING-1014-16 | 10 | +0.025/+0.083 | 14 | 16 |
| EP PLASTIC BUSHING-1012-18 | 10 | +0.025/+0.083 | 12 | 18 |
| EP PLASTIC BUSHING-1012-20 | 10 | +0.025/+0.083 | 12 | 20 |
| EP PLASTIC BUSHING-1214-06 | 12 | +0.032/+0.102 | 14 | 6 |
| EP PLASTIC BUSHING-1214-08 | 12 | +0.032/+0.102 | 14 | 8 |
| EP PLASTIC BUSHING-1214-10 | 12 | +0.032/+0.102 | 14 | 10 |
| EP PLASTIC BUSHING-1214-12 | 12 | +0.032/+0.102 | 14 | 12 |
| EP PLASTIC BUSHING-1214-15 | 12 | +0.032/+0.102 | 14 | 15 |
| EP PLASTIC BUSHING-1214-20 | 12 | +0.032/+0.102 | 14 | 20 |
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| model | id | tolerance | D | L |
| EP PLASTIC BUSHING-1820-20 | 18 | +0.032/+0.102 | 20 | 20 |
| EP PLASTIC BUSHING-1820-25 | 18 | +0.032/+0.102 | 20 | 25 |
| EP PLASTIC BUSHING-2022-12 | 20 | +0.040/+0.124 | 22 | 12 |
| EP PLASTIC BUSHING-2022-15 | 20 | +0.040/+0.124 | 22 | 15 |
| EP PLASTIC BUSHING-2022-28 | 20 | +0.040/+0.124 | 22 | 28 |
| EP PLASTIC BUSHING-2023-10 | 20 | +0.040/+0.124 | 23 | 10 |
| EP PLASTIC BUSHING-2023-15 | 20 | +0.040/+0J24 | 23 | 15 |
| EP PLASTIC BUSHING-2023-20 | 20 | +0.040/+0.124 | 23 | 20 |
| EP PLASTIC BUSHING-2023-23 | 20 | +0.040/+0.124 | 23 | 23 |
| EP PLASTIC BUSHING-2023-25 | 20 | +0.040/+0.124 | 23 | 25 |
| EP PLASTIC BUSHING-2023-30 | 20 | +0.040/+0.124 | 23 | 30 |
| EP PLASTIC BUSHING-2025-15S | 20 | +0.020/+0.104 | 25 | 15 |
| EP PLASTIC BUSHING-2125-32 | 21 | +0.040/+0.124 | 25 | 32 |
| EP PLASTIC BUSHING-2225-15 | 22 | +0.040/+0.124 | 25 | 15 |
| EP PLASTIC BUSHING-2225-20 | 22 | +0.040/+0.124 | 25 | 20 |
| EP PLASTIC BUSHING-2225-25 | 22 | +0.040/+0.124 | 25 | 25 |
| EP PLASTIC BUSHING-2225-30 | 22 | +0.040/+0J24 | 25 | 30 |
| EP PLASTIC BUSHING-2528-10 | 25 | +0.040/+0.124 | 28 | 10 |
| EP PLASTIC BUSHING-2528-12 | 25 | +0.040/+0.124 | 28 | 12 |
| EP PLASTIC BUSHING-2528-15 | 25 | +0.040/+0.124 | 28 | 15 |
| EP PLASTIC BUSHING-2528-20 | 25 | +0.040/+0.124 | 28 | 20 |
| EP PLASTIC BUSHING-2528-25 | 25 | +0.040/+0.124 | 28 | 25 |
| EP PLASTIC BUSHING-2528-30 | 25 | +0.040/+0.124 | 28 | 30 |
| EP PLASTIC BUSHING-2529-25 | 25 | +0.040/+0.124 | 29 | 25 |
| EP PLASTIC BUSHING-2530-25S | 25 | +0.020/+0.104 | 30 | 25 |
| EP PLASTIC BUSHING-2832-20 | 28 | +0.040/+0.124 | 32 | 20 |
| EP PLASTIC BUSHING-2832-25 | 28 | +0.040/+0J24 | 32 | 25 |
| EP PLASTIC BUSHING-2832-30 | 28 | +0.040/+0.124 | 32 | 30 |
| EP PLASTIC BUSHING-3034-20 | 30 | +0.040/+0.124 | 34 | 20 |
| EP PLASTIC BUSHING-3034-25 | 30 | +0.040/+0.124 | 34 | 25 |
| EP PLASTIC BUSHING-3034-30 | 30 | +0.040/+0.124 | 34 | 30 |
| EP PLASTIC BUSHING-3034-40 | 32 | +0.040/+0.124 | 34 | 40 |
| EP PLASTIC BUSHING 3236-20 | 32 | +0.050/+0.150 | 36 | 20 |
| EP PLASTIC BUSHING-3236-23 | 32 | +0.050/+0.150 | 36 | 23 |
| EP PLASTIC BUSHING-3236-25 | 32 | +0.050/+0.150 | 36 | 25 |
| EP PLASTIC BUSHING-3236-30 | 32 | +0.050/+0.150 | 36 | 30 |
| EP PLASTIC BUSHING-3236-40 | 32 | +0.050/+0J50 | 36 | 40 |
| EP PLASTIC BUSHING-3539-15 | 35 | +0.050/+0.150 | 39 | 15 |
| EP PLASTIC BUSHING-3539-20 | 35 | +0.050/+0.150 | 39 | 20 |
| EP PLASTIC BUSHING-3539-25 | 35 | +0.050/+0.150 | 39 | 25 |
| EP PLASTIC BUSHING-3539-30 | 35 | +0.050/+0.150 | 39 | 30 |
SELF-LUBRICATING BEARING
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| EP PLASTIC BUSHING-1214-25 | 12 | +0.032/+0.102 | 14 | 25 |
| EP PLASTIC BUSHING-1215-20 | 12 | +0.032/+0.102 | 15 | 20 |
| EP PLASTIC BUSHING-1315-07 | 13 | +0.032/+0.102 | 15 | 7 |
| EP PLASTIC BUSHING-1315-10 | 13 | +0.032/+0.102 | 15 | 10 |
| EP PLASTIC BUSHING-1416-08 | 14 | +0.032/+0.102 | 16 | 8 |
| EP PLASTIC BUSHING-1416-10 | 14 | +0.032/+0.102 | 16 | 10 |
| EP PLASTIC BUSHING-1416-15 | 14 | +0.032/+0.102 | 16 | 15 |
| EP PLASTIC BUSHING-1416-20 | 14 | +0.032/+0.102 | 16 | 20 |
| EP PLASTIC BUSHING-1416-25 | 14 | +0.032/+0.102 | 16 | 25 |
| EP PLASTIC BUSHING-1517-10 | 15 | +0.032/+0.102 | 17 | 10 |
| EP PLASTIC BUSHING-1517-15 | 15 | +0.032/+0.102 | 17 | 15 |
| EP PLASTIC BUSHING-1517-17 | 15 | +0.032/+0.102 | 17 | 17 |
| EP PLASTIC BUSHING-1517-20 | 15 | +0.032/+0.102 | 17 | 20 |
| EP PLASTIC BUSHING-1517-25 | 15 | +0.032/+0.102 | 17 | 25 |
| EP PLASTIC BUSHING-1618-10 | 16 | +0.032/+0.102 | 18 | 10 |
| EP PLASTIC BUSHING-1618-12 | 16 | +0.032/+0.102 | 18 | 12 |
| EP PLASTIC BUSHING-1618-15 | 16 | +0.032/+0.102 | 18 | 15 |
| EP PLASTIC BUSHING-1618-20 | 16 | +0.032/+0.102 | 18 | 20 |
| EP PLASTIC BUSHING-1616-25 | 16 | +0.032/+0.102 | 18 | 25 |
| EP PLASTIC BUSHING-1620-16S | 16 | +0.016/+0.086 | 20 | 16 |
| EP PLASTIC BUSHING-1820-15 | 18 | +0.032/+0.102 | 20 | 15 |
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| EP PLASTIC BUSHING-3539-40 | 35 | +0.050/+0.150 | 39 | 40 |
| EP PLASTIC BUSHING-359-50 | 35 | +0.050/+0.150 | 39 | 50 |
| EP PLASTIC BUSHING-4044-20 | 40 | +0.050/+0.150 | 44 | 20 |
| EP PLASTIC BUSHING-4044-30 | 40 | +0.050/+0.150 | 44 | 30 |
| EP PLASTIC BUSHING-4044-40 | 40 | +0.050/+0.150 | 44 | 40 |
| EP PLASTIC BUSHING-4044-50 | 40 | +0.050/+0.150 | 44 | 50 |
| EP PLASTIC BUSHING-4550-30 | 45 | +0.050/+0.150 | 50 | 30 |
| EP PLASTIC BUSHING-4550-40 | 45 | +0.025/+0.125 | 50 | 40 |
| EP PLASTIC BUSHING-4550-50 | 45 | +0.050/+0.150 | 50 | 50 |
| EP PLASTIC BUSHING-5055-20 | 50 | +0.050/+0.150 | 55 | 20 |
| EP PLASTIC BUSHING-5055-30 | 50 | +0.050/+0.150 | 55 | 30 |
| EP PLASTIC BUSHING-5055-40 | 50 | +0.050/+0.150 | 55 | 40 |
| EP PLASTIC BUSHING-5055-50 | 50 | +0.050/+0.150 | 55 | 50 |
| EP PLASTIC BUSHING-8590-40 | 85 | +0.036/+0.176 | 90 | 40 |
•Tolerance drafter being pressed into housing H7(ISO3547-1)
Recommend fitting tolerance
Housing: H7
Shaft: H9
WE ARE A PROFESSIONAL
PLASTIC BUSHING MANUFACTURER & SUPPLIER
Welcome to contact us!
If you have any questions, please feel free to contact us,you are always welcome, thank you!
Recommended Products
