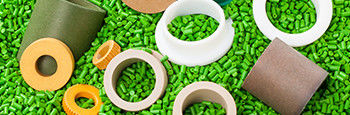

Plastic Compound Metric Sleeve Bushings , peek , high strength
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | VIIPLUS PLAIN BEARINGS |
| Certification | CUSN8,CUSN6.5 Bronze |
| Model Number | PTFE PLAIN BEARINGS |
| Minimum Order Quantity | 1000 Piece/Pieces (Min. Order) |
| Price | $0.20 - $10.00 / Pieces |
| Packaging Details | Wooden pallets for standard export packing cartons |
| Delivery Time | 10~15 work days |
| Payment Terms | T/T PREPARD, T/T, L/C, D/A, D/P |
| Supply Ability | 2000000 Piece/Pieces |
Product Details
| Material | EPB A Thermal Mould Character Plastic | Application | Packaging Machinery |
|---|---|---|---|
| Type | Self Lubricating Bronze Bushing | Quality | High Quality |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | igus plastic bushings,igus flange bushing |
||
Product Description
Long-lasting, Self-lubricating Plastics Online Solution From Viiplus
Maintenance-free plain bearings Easy to install, highly durable.Plastic Compound Bearings Plain Bearings Metric Cylindrical Bushes EPB Sliding Bearings Black Lubricating Bushes
Plastic bushings are made by combining various types of resins with reinforcing fibers as the base material. They are typically manufactured using injection molding machines and are particularly well suited to mass production, low cost and short delivery times - even for custom orders.
EP plastic bearing integral lubrication material long service life
Plastic Bushings Characteristics
As EP series bearing greases are included in the bulk material, none On how long the working time of the bearing grease will continue to play from the friction surface seepage Long-term lubrication, while the traditional powder metallurgy oil-bearing in the use of the process benefits The lubricating oil in the micropores acts as a self-lubricating effect when these lubricants are depleted or After the end of volatile bearing wear will rapidly intensify, at this time to declare the effective bearing With the end of life.
Self-lubricating Bearing
General purpose the strongest plastic bearings, can meet the working temperature below 80 most of the working occasions, excellent wear resistance and the price of the economy is the designer's preferred material.
Continuous temperature:
1: - 40 ℃ ~ + 80 ℃;
2: general purpose strong suitable for most of the use of low and medium load occasions;
3: suitable for dry operation, maintenance-free, corrosion resistance;
4: damage to the shaft is minimized;
5: very low sliding friction coefficient.
Plastic Bushing Typical Applications
·Office Machinery
·Electronic Products
·Textile Machinery
·Fitness Machinery
·Agricultural Machinery
·Packaging Machinery
·Automotive Industry
Plastic Bushing Material Property Sheet
|
Common Capability |
Unit |
EPT |
EPG |
EPH |
EPX |
EPJ |
EPS |
|
Density |
g/cm³ |
1.46 |
1.46 |
1.65 |
|
1.49 |
1.24 |
|
Color |
|
Black gray |
Dark grey |
Grey |
Black |
Yellow |
Beige |
|
Max.water absorption,23℃/ 50% |
[% weight] |
0.2 |
0.7 |
0.1 |
|
0.3 |
2.02 |
|
Max.water absorption |
[% weight] |
＜1.2 |
＜4 |
＜0.3 |
＜0.5 |
＜1.3 |
＜0.1 |
|
Dynamic friction /steel |
μ |
0.05-0.15 |
0.08-0.18 |
0.07-0.20 |
0.09-0.27 |
0.06-0.18 |
0.05-0.15 |
|
Max.PV(dry) |
MPa•m/s |
0.4 |
0.5 |
1.37 |
1.32 |
0.34 |
0.4 |
|
Mechanical behavior |
|||||||
|
E-module |
MPa |
2,300 |
7,800 |
12,500 |
8,100 |
2,400 |
830 |
|
Tensile strength,20℃ |
MPa |
80 |
200 |
175 |
170 |
73 |
18 |
|
Compressive strength |
MPa |
65 |
80 |
90 |
150 |
35 |
10 |
|
Max.static pressure of the surface,20℃ |
MPa |
35 |
80 |
150 |
90 |
20 |
10 |
|
Shore D hardness |
|
70 |
112 |
87 |
85 |
74 |
73 |
|
Physical and thermal properties |
|||||||
|
Continuous work tempreature |
℃ |
+80 |
+130 |
+200 |
+250 |
+90 |
+260 |
|
short-time work tempreature |
℃ |
+120 |
+220 |
+240 |
+315 |
+120 |
+310 |
|
Minimum operating temperature |
℃ |
-40 |
-40 |
-40 |
-100 |
-50 |
-200 |
|
Thermal conductivity |
W/m•K |
0.2 |
0.25 |
0.60 |
0.60 |
0.25 |
0.24 |
|
Max.water absorption,23℃ |
K-1•10-5 |
7 |
9 |
4 |
5 |
10 |
12 |
|
Conductivity |
|||||||
|
Volume resisticity |
Ωcm |
＞1012 |
＞1013 |
＜104 |
＜105 |
＞1013 |
＞1015 |
|
Surface resisticity |
Ω |
＞1015 |
＞1011 |
＜105 |
＜103 |
＞1012 |
＞1015 |
Solid-lubricating and Maintenancefree Sliding Bearings
Plastic bearing has longe service vs Metal bearing lubricating oil is life easy to be failed
Engineers are dedicated on the performance improvement on the self- lubricating materials derives the result that EP Series Materials are with excellent self- lubricating features and wear resistance Features. High- strength fibers used in the engineering plastics fantastically improve the material load (Graphl). Special grease immersion in the plastic can decrease the friction coefficient of the material therefore to proiong the bearing sevice life. High-performance engineering plastics body material mainly service as wear- resistant vector. The reinfoced fiber improves the load and impact resistant capacity of the beaing. Special grease decreases the fiction coefficient for a better selflubricating performance.
EP PALSTIC BUSHING Series Specification Table
Metric Cylindrical Bushes
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| model | d | tolerance | D | L |
| EP PLASTIC BUSHING-0304-03 | 3 | +0.014/+0.054 | 4.5 | 3 |
| EP PLASTIC BUSHING-0304-06 | 3 | +0.014/+0.054 | 4.5 | 6 |
| EP PLASTIC BUSHING-0305-05 | 3 | +0.014/+0.054 | 5.5 | 5 |
| EP PLASTIC BUSHING-0405-06 | 4 | +0.020/+0.068 | 5.5 | 6 |
| EP PLASTIC BUSHING-0406-06 | 4 | +0.020/+0.068 | 6 | 6 |
| EP PLASTIC BUSHING-0507-05 | 5 | +0.020/+0.068 | 7 | 5 |
| EP PLASTIC BUSHING-0507-08 | 5 | +0.020/+0.068 | 7 | 8 |
| EP PLASTIC BUSHING-0507-10 | 5 | +0.020/+0.068 | 7 | 10 |
| EP PLASTIC BUSHING-0507-18 | 5 | +0.020/+0.068 | 7 | 18 |
| EP PLASTIC BUSHING-0608-04 | 6 | +0.020/+0.068 | 8 | 4 |
| EP PLASTIC BUSHING-0608-06 | 6 | +0.020/+0.068 | 8 | 6 |
| EP PLASTIC BUSHING-0608-08 | 6 | +0.020/+0.068 | 8 | 8 |
| EP PLASTIC BUSHING-0608-10 | 6 | +0.020/+0.068 | 8 | 10 |
| EP PLASTIC BUSHING-0608-11 | 6 | +0.020/4-0.068 | 8 | 11 |
| EP PLASTIC BUSHING-0810-05 | 8 | +0.025/+0.083 | 10 | 5 |
| EP PLASTIC BUSHING-0810-06 | 8 | +0.025/4-0.083 | 10 | 6 |
| EP PLASTIC BUSHING-0810-08 | 8 | +0.025/+0.083 | 10 | 8 |
| EP PLASTIC BUSHING-0810-10 | 8 | +0.025/4-0.083 | 10 | 10 |
| EP PLASTIC BUSHING-0810-11 | 8 | +0.025/+0.083 | 10 | 11 |
| EP PLASTIC BUSHING-0810-12 | 8 | +0.025/+0.083 | 10 | 12 |
| EP PLASTIC BUSHING-0810-15 | 8 | +0.025/+0.083 | 10 | 15 |
| EP PLASTIC BUSHING-0811-10 | 8 | +0.025/+0.083 | 11 | 10 |
| EP PLASTIC BUSHING-0812-10 | 8 | +0.025/+0.083 | 12 | 10 |
| EP PLASTIC BUSHING-0911-06 | 9 | +0.025/4-0.083 | 11 | 6 |
| EP PLASTIC BUSHING-1012-04 | 10 | +0.025/+0.083 | 12 | 4 |
| EP PLASTIC BUSHING-1012-05 | 10 | +0.025/+0.083 | 12 | 5 |
| EP PLASTIC BUSHING-1012-06 | 10 | +0.025/+0.083 | 12 | 6 |
| EP PLASTIC BUSHING-1012-08 | 10 | +0.025/+0.083 | 12 | 8 |
| EP PLASTIC BUSHING-1012-10 | 10 | +0.025/+0.083 | 12 | 10 |
| EP PLASTIC BUSHING-1012-12 | 10 | +0.025/+0.083 | 12 | 12 |
| EP PLASTIC BUSHING-1012-15 | 10 | +0.025/+0.083 | 12 | 15 |
| EP PLASTIC BUSHING-1014-10 | 10 | +0.013/+0.071 | 14 | 10 |
| EP PLASTIC BUSHING-1014-16 | 10 | +0.025/+0.083 | 14 | 16 |
| EP PLASTIC BUSHING-1012-18 | 10 | +0.025/+0.083 | 12 | 18 |
| EP PLASTIC BUSHING-1012-20 | 10 | +0.025/+0.083 | 12 | 20 |
| EP PLASTIC BUSHING-1214-06 | 12 | +0.032/+0.102 | 14 | 6 |
| EP PLASTIC BUSHING-1214-08 | 12 | +0.032/+0.102 | 14 | 8 |
| EP PLASTIC BUSHING-1214-10 | 12 | +0.032/+0.102 | 14 | 10 |
| EP PLASTIC BUSHING-1214-12 | 12 | +0.032/+0.102 | 14 | 12 |
| EP PLASTIC BUSHING-1214-15 | 12 | +0.032/+0.102 | 14 | 15 |
| EP PLASTIC BUSHING-1214-20 | 12 | +0.032/+0.102 | 14 | 20 |
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| model | id | tolerance | D | L |
| EP PLASTIC BUSHING-1820-20 | 18 | +0.032/+0.102 | 20 | 20 |
| EP PLASTIC BUSHING-1820-25 | 18 | +0.032/+0.102 | 20 | 25 |
| EP PLASTIC BUSHING-2022-12 | 20 | +0.040/+0.124 | 22 | 12 |
| EP PLASTIC BUSHING-2022-15 | 20 | +0.040/+0.124 | 22 | 15 |
| EP PLASTIC BUSHING-2022-28 | 20 | +0.040/+0.124 | 22 | 28 |
| EP PLASTIC BUSHING-2023-10 | 20 | +0.040/+0.124 | 23 | 10 |
| EP PLASTIC BUSHING-2023-15 | 20 | +0.040/+0J24 | 23 | 15 |
| EP PLASTIC BUSHING-2023-20 | 20 | +0.040/+0.124 | 23 | 20 |
| EP PLASTIC BUSHING-2023-23 | 20 | +0.040/+0.124 | 23 | 23 |
| EP PLASTIC BUSHING-2023-25 | 20 | +0.040/+0.124 | 23 | 25 |
| EP PLASTIC BUSHING-2023-30 | 20 | +0.040/+0.124 | 23 | 30 |
| EP PLASTIC BUSHING-2025-15S | 20 | +0.020/+0.104 | 25 | 15 |
| EP PLASTIC BUSHING-2125-32 | 21 | +0.040/+0.124 | 25 | 32 |
| EP PLASTIC BUSHING-2225-15 | 22 | +0.040/+0.124 | 25 | 15 |
| EP PLASTIC BUSHING-2225-20 | 22 | +0.040/+0.124 | 25 | 20 |
| EP PLASTIC BUSHING-2225-25 | 22 | +0.040/+0.124 | 25 | 25 |
| EP PLASTIC BUSHING-2225-30 | 22 | +0.040/+0J24 | 25 | 30 |
| EP PLASTIC BUSHING-2528-10 | 25 | +0.040/+0.124 | 28 | 10 |
| EP PLASTIC BUSHING-2528-12 | 25 | +0.040/+0.124 | 28 | 12 |
| EP PLASTIC BUSHING-2528-15 | 25 | +0.040/+0.124 | 28 | 15 |
| EP PLASTIC BUSHING-2528-20 | 25 | +0.040/+0.124 | 28 | 20 |
| EP PLASTIC BUSHING-2528-25 | 25 | +0.040/+0.124 | 28 | 25 |
| EP PLASTIC BUSHING-2528-30 | 25 | +0.040/+0.124 | 28 | 30 |
| EP PLASTIC BUSHING-2529-25 | 25 | +0.040/+0.124 | 29 | 25 |
| EP PLASTIC BUSHING-2530-25S | 25 | +0.020/+0.104 | 30 | 25 |
| EP PLASTIC BUSHING-2832-20 | 28 | +0.040/+0.124 | 32 | 20 |
| EP PLASTIC BUSHING-2832-25 | 28 | +0.040/+0J24 | 32 | 25 |
| EP PLASTIC BUSHING-2832-30 | 28 | +0.040/+0.124 | 32 | 30 |
| EP PLASTIC BUSHING-3034-20 | 30 | +0.040/+0.124 | 34 | 20 |
| EP PLASTIC BUSHING-3034-25 | 30 | +0.040/+0.124 | 34 | 25 |
| EP PLASTIC BUSHING-3034-30 | 30 | +0.040/+0.124 | 34 | 30 |
| EP PLASTIC BUSHING-3034-40 | 32 | +0.040/+0.124 | 34 | 40 |
| EP PLASTIC BUSHING 3236-20 | 32 | +0.050/+0.150 | 36 | 20 |
| EP PLASTIC BUSHING-3236-23 | 32 | +0.050/+0.150 | 36 | 23 |
| EP PLASTIC BUSHING-3236-25 | 32 | +0.050/+0.150 | 36 | 25 |
| EP PLASTIC BUSHING-3236-30 | 32 | +0.050/+0.150 | 36 | 30 |
| EP PLASTIC BUSHING-3236-40 | 32 | +0.050/+0J50 | 36 | 40 |
| EP PLASTIC BUSHING-3539-15 | 35 | +0.050/+0.150 | 39 | 15 |
| EP PLASTIC BUSHING-3539-20 | 35 | +0.050/+0.150 | 39 | 20 |
| EP PLASTIC BUSHING-3539-25 | 35 | +0.050/+0.150 | 39 | 25 |
| EP PLASTIC BUSHING-3539-30 | 35 | +0.050/+0.150 | 39 | 30 |
SELF-LUBRICATING BEARING
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| EP PLASTIC BUSHING-1214-25 | 12 | +0.032/+0.102 | 14 | 25 |
| EP PLASTIC BUSHING-1215-20 | 12 | +0.032/+0.102 | 15 | 20 |
| EP PLASTIC BUSHING-1315-07 | 13 | +0.032/+0.102 | 15 | 7 |
| EP PLASTIC BUSHING-1315-10 | 13 | +0.032/+0.102 | 15 | 10 |
| EP PLASTIC BUSHING-1416-08 | 14 | +0.032/+0.102 | 16 | 8 |
| EP PLASTIC BUSHING-1416-10 | 14 | +0.032/+0.102 | 16 | 10 |
| EP PLASTIC BUSHING-1416-15 | 14 | +0.032/+0.102 | 16 | 15 |
| EP PLASTIC BUSHING-1416-20 | 14 | +0.032/+0.102 | 16 | 20 |
| EP PLASTIC BUSHING-1416-25 | 14 | +0.032/+0.102 | 16 | 25 |
| EP PLASTIC BUSHING-1517-10 | 15 | +0.032/+0.102 | 17 | 10 |
| EP PLASTIC BUSHING-1517-15 | 15 | +0.032/+0.102 | 17 | 15 |
| EP PLASTIC BUSHING-1517-17 | 15 | +0.032/+0.102 | 17 | 17 |
| EP PLASTIC BUSHING-1517-20 | 15 | +0.032/+0.102 | 17 | 20 |
| EP PLASTIC BUSHING-1517-25 | 15 | +0.032/+0.102 | 17 | 25 |
| EP PLASTIC BUSHING-1618-10 | 16 | +0.032/+0.102 | 18 | 10 |
| EP PLASTIC BUSHING-1618-12 | 16 | +0.032/+0.102 | 18 | 12 |
| EP PLASTIC BUSHING-1618-15 | 16 | +0.032/+0.102 | 18 | 15 |
| EP PLASTIC BUSHING-1618-20 | 16 | +0.032/+0.102 | 18 | 20 |
| EP PLASTIC BUSHING-1616-25 | 16 | +0.032/+0.102 | 18 | 25 |
| EP PLASTIC BUSHING-1620-16S | 16 | +0.016/+0.086 | 20 | 16 |
| EP PLASTIC BUSHING-1820-15 | 18 | +0.032/+0.102 | 20 | 15 |
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| EP PLASTIC BUSHING-3539-40 | 35 | +0.050/+0.150 | 39 | 40 |
| EP PLASTIC BUSHING-359-50 | 35 | +0.050/+0.150 | 39 | 50 |
| EP PLASTIC BUSHING-4044-20 | 40 | +0.050/+0.150 | 44 | 20 |
| EP PLASTIC BUSHING-4044-30 | 40 | +0.050/+0.150 | 44 | 30 |
| EP PLASTIC BUSHING-4044-40 | 40 | +0.050/+0.150 | 44 | 40 |
| EP PLASTIC BUSHING-4044-50 | 40 | +0.050/+0.150 | 44 | 50 |
| EP PLASTIC BUSHING-4550-30 | 45 | +0.050/+0.150 | 50 | 30 |
| EP PLASTIC BUSHING-4550-40 | 45 | +0.025/+0.125 | 50 | 40 |
| EP PLASTIC BUSHING-4550-50 | 45 | +0.050/+0.150 | 50 | 50 |
| EP PLASTIC BUSHING-5055-20 | 50 | +0.050/+0.150 | 55 | 20 |
| EP PLASTIC BUSHING-5055-30 | 50 | +0.050/+0.150 | 55 | 30 |
| EP PLASTIC BUSHING-5055-40 | 50 | +0.050/+0.150 | 55 | 40 |
| EP PLASTIC BUSHING-5055-50 | 50 | +0.050/+0.150 | 55 | 50 |
| EP PLASTIC BUSHING-8590-40 | 85 | +0.036/+0.176 | 90 | 40 |
•Tolerance drafter being pressed into housing H7(ISO3547-1)
Recommend fitting tolerance
Housing: H7
Shaft: H9
WE ARE A PROFESSIONAL
PLASTIC BUSHING MANUFACTURER & SUPPLIER
Welcome to contact us!
If you have any questions, please feel free to contact us,you are always welcome, thank you!
Recommended Products
