Red PTFE Inch Dimension Thrust Washer Bushings Metric Slding Bearings

Product Details:
Place of Origin: Composite plain cylindrical bushings manufacturer
Brand Name: VIIPLUS BUSHINGS SUPPLIER
Certification: ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number: TEFLON DU DX BUSHINGS
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: $0.05 - $1.00 / Pieces
Packaging Details: Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time: 7~15 work days
Payment Terms: TT in advance,Western Union
Supply Ability: Special Customized Lubricating Bushings Manufacturing
Contact Now

Detail Information

Material: Metal-Polymer Low Friction Plain Bearings Type: Washers,Flanged Washers
Size: Sliding Bearings Application: Hydraulic Bearing,Various Hydraulic Cylinder Bearings
High Light:

flanged plain bearing

,

ptfe plain bearing

Product Description

Hydraulic cylinder bushing & Cylinder Bushes | THRUST SLIDE WASHER PTFE LEAD FREE

VIIPLUS Provide non-standardized products:Cylindrical bushes, flanged bushes, thrust washers, flat strip material, half bearing, wear plate.

Plain bearings. Appearance and characterization of damage to metallic hydrodynamic bearings.



Hydraulic bushing Suppliers and Manufacturers


The hydraulic bushing products are: gear pump aluminum seat assembly bearing, shaft sleeve, side plate;Oil distribution pan, return pan and shaft sleeve for vane pump and plunger pump;Cylinder bushing and so on.For hydraulic system users to provide a full set of sliding bearing solutions.


Hydraulic special oilless bearing and self-lubricating bearing series, combined with the cylinder and shock absorber working principle and design of a new material, in the oilless condition appears wear-resisting, the product in addition to the advantages of vsb-10 shaft sleeve, especially suitable for reciprocating frequent large lateral force occasions.Its performance is similar to that of DP4 in foreign countries. At present, this product gradually replaces sf-1 product and is applicable to automobile, motorcycle shock absorber and various hydraulic cylinders and other fields.

Hydraulic bushings that can provide large damping in broad frequency ranges are now widely used as lower frequency vibration control components in suspensions.



Thrust Slide Washer Ptfe Lead Free




VIIPLUS analyze lubricating condition of hydraulic cylinder piston and guide bush, and compare friction characteristic of materials in most use for producing guide bushes.


Hydraulic Washers & Flanged washers

Metal-Polymer Low Friction Plain Bearings Dp4 Washer

metal-polymer-self-lubricating-lead-free-bearings-brochure

Structure & Composition

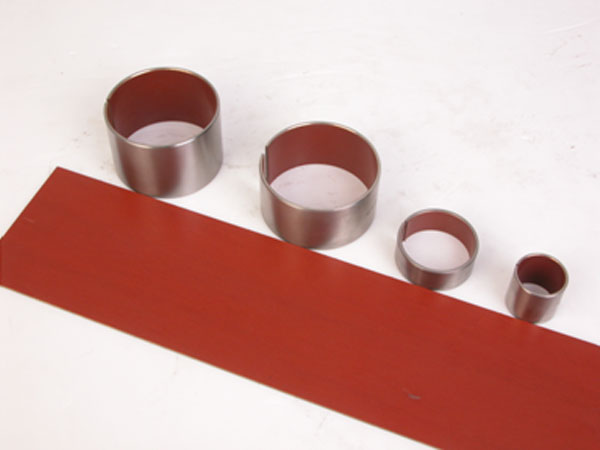

  • Metal-Polymer Composite Bushing MaterialRed PTFE Inch Dimension Thrust Washer Bushings Metric Slding Bearings 0

  • Steel back + Porous Bronze Sinter +

  • PTFE + Fillers

Microsection


  • Sliding layer
  • PTFE + Fillers
  • Porous Bronze Sinter
  • Steel Backing







Dry

Good

Oil lubricated

Very Good

Grease lubricated

Good

Water lubricated

Fair

Process fluid lubricated

Good

Characteristics

Good frictional properties with negligible stick-slip

• High static and dynamic load capacity

• Suitable for rotating, oscillating, reciprocating and sliding movements

• Compact size and low weight

• Prefinished that requires no machining after assembly

• Possibility to burnish for reduced operating clearance



DP4 oil gear pump hydraulic bushingsoilless sliding plain composite bearing



Operating Performance


VSB-40 similar DP4 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Very good performance in lubricated applications
Good performance in greased applications
Suitable for linear, oscillating and rotating movements
Lead-free material



Red PTFE Inch Dimension Thrust Washer Bushings Metric Slding Bearings

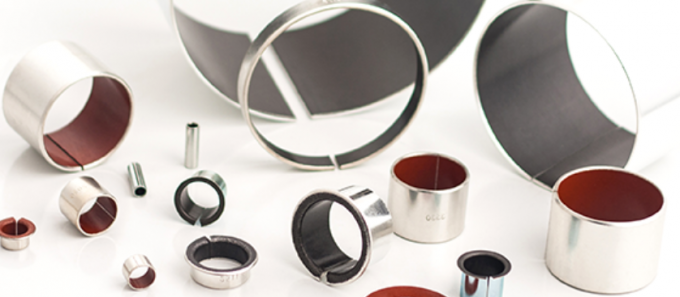

AVAILABILITY

Bearing forms available in standard dimensions

  • Cylindrical bushes


  • Flanged bushes


  • Sliding plates


  • Thrust washers


  • Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs


WHAT IS PTFE BUSHINGS?

PTFE-bronze powder-steel is a widely used three-layer self-lubricating bearing material with good anti-friction and anti-wear.


  • Hydraulics Cylinders Bushings

  • For Hydraulic Cylinder Bushings Repairs & Components Bushings

  • Custom Cylinder Bushings Parts

  • Hydraulic Cylinders Bushings

  • Stainless Steel Hydraulic Cylinders Bushings

  • Hydraulic Pumps Bushings

  • Hydraulic Valves Bushings

Why Choose Us For Your Hydraulic Cylinder Bushings ?What is self-lubricating bearing?


General profile steel-base oil-free self-lubricated bearing 1 oil-free or less lubricated, can be used without maintenance or less maintenance.Good wear resistance, small friction coefficient and long service life.3 with appropriate elastoplastic, the stress can be distributed on a wide contact surface to improve the bearing capacity.The coefficient of static and dynamic friction is similar, so as to ensure the working accuracy of the machine.Can make machinery reduce vibration, reduce noise, prevent pollution, improve working conditions.6. Transfer film can be formed during operation to protect the grinding shaft.7. The hardness requirement of grinding shaft is low, which reduces the processing difficulty of related parts.Thin wall structure, light weight, can reduce the mechanical volume.9 steel back can be plated with a variety of metals, can be used in corrosive media;At present, it has been widely used in sliding parts of various machines.




Boundary lubricated bearing series



1. Good load bearing and wear resistance.
2. Suitable for high load and low speed rotating motion, swing motion and often open and close frequently under load and not easy to form hydrodynamic lubrication occasions.
3. Under the condition of boundary lubrication, the bearing can be maintained without oil for a long time, while the bearing's service life can be prolonged by oil adding in the passing layer.
4. The plastic layer on the surface can leave a certain amount of margin during processing and forming, and the assembly can be processed by itself after being pressed into the seat hole to achieve better assembly size.
5. The products are mainly used in automobile chassis, metallurgical machinery, mining machinery, water conservancy machinery, construction machinery, agricultural machinery, steel rolling equipment, etc.

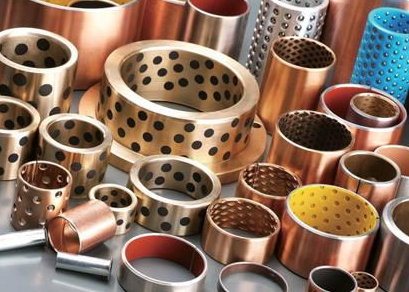

self lubricating bronze bushing

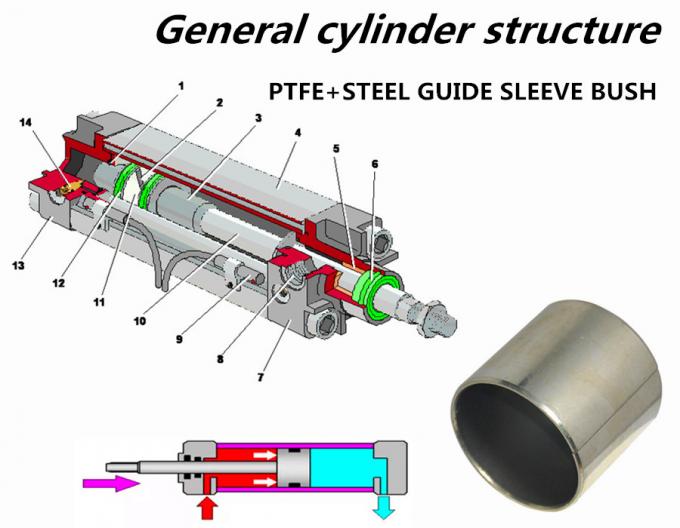

Standard Bushing Parts For Hydraulic Cylinder Repair:
• Inspect / Repair / Replace Bushings As Necessary
• Carbon Steel Is Normally Used As A Backing Material
Other Bushings Application
Typical Applications Include Automotive Vehicles, Farm Equipment, Construction And Material Handling Equipment.


self lubricating bronze bushing



Product Description



Steel + copper powder +PTFE/ fiber
It is suitable for working parts that cannot be lubricated or are difficult to operate. It has good wear resistance, small friction coefficient and long service life.Good walking performance, low noise, no pollution, good corrosion resistance;The transfer film formed in the operation plays a role in protecting the grinding shaft, and there is no shaft biting phenomenon;Low processing requirements for grinding shaft, reduce the processing cost of users;At the same time, VSB-40 RED PTFE special wear layer design has better wear resistance and extremely low friction coefficient than other dry bearings in lubrication conditions.



Technical Data



Max.Load

Static

250N/mm·m

Temp:

-195℃-280℃

Dynamic

140N/mm·m

Friction coefficient

0.03-0.20

Max.Speed

Dry

2m/s

Lubrication

>2m/s

Thermal conductivity

42W(m·k)

Max.PV(Dry)

Short-term

3.6N/mm·m·m/s

Continuos

1.8N/mm·m·m/s

coefficient of thermal expansion

11*10k








 self lubricating bronze bushing

Application:

Automotive:
shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.

Industrial:


1.Mechanical handling and lifting equipment bushings,
2.machine slides, hydraulic cylinders bushings,
3.hydraulic motors, ski-lifts, pneumatic equipment bushings
4.medical equipment, textile machinery bushings
5.agricultural equipment, scientific equipment bushings etc.

Delivery:

We can deliver the cargo to you by following ways:

1. By Courier:
DHL, FEDEX, UPS, TNT, SF EXPRESS
China Post, China Small Package,etc.

2. By Air:
We can deliver to Shanghai,Ningbo etc.

3. By Sea:
Near by ports are Shanghai and Ningbo


Red PTFE Inch Dimension Thrust Washer Bushings Metric Slding Bearings 5

Package:

Bearing/Busing is covered with polybags in carton and covered by protective film
Outer is wooden carton or pallet
