China Bronze Gleitlager manufacturer

Cylindrical Bushes Grease Reservoirs Bronze Sleeve Plain Bearings Cusn8 Oil Holes Rohs Standard

Product Details:
Place of Origin: Bronze Bushing Manufacturer
Brand Name: CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Certification: Bushing Standard Met:MBZ, B09 or MBZ B09
Model Number: Bronze Bearings and Bronze Sleeve Bushings made of CuSn8
Payment & Shipping Terms:
Minimum Order Quantity: phosphor bronze bush,tin bronze bearings,brass bushes
Price: Precision Tolerance, Factory Price‎
Packaging Details: EXPORT CARTONS
Delivery Time: 2-3 Weeks
Payment Terms: TT IN ADVANCE
Supply Ability: 1200000 Piece/Pieces per Month
Contact Now

Detail Information

Bushing Material: Bronze CuSn8,Wear Resistant, Perforated Bronze Bearing Material Bushings Type: CuSn8 Wrapped Bronze Bush With Through Holes, ISO3547 Standard, Metric Size
Bushings Optimum Performance Under Relatively: High Loads And Low Speeds Lubrication: Oil Hole Type Self Lubrication
Quality: OEM Quality,FB090 FB092 FB092H WF WB700 WB702 WB800 WB802 Application: Industrial – Mechanical Handling And Lifting Equipment, Hydraulic Cylinders, Pneumatic Equipment, Medical Equipment, Textile Machinery, Agricultural Equipment, Etc
Bushing Area Of Use: Suitable For Use With All Standard Greases Bearing Forms Made To Order: Cylindrical Bushes With Non-standard Dimensions, Customized Bearing Designs

Product Description

alternative SKF Wrapped bronze flanged bushing requiring low-maintenance series PRM bronze bushing size,cheap price

FB092-200100pdf.pdf

Dimensions

Attribute Value
d (mm) 200
D (mm) 205
h (mm) 100

CuSn8 wrapped bronze bush with through holes, ISO3547 standard, metric size,bronze bushing supplier,FB090 FB092 FB092H WF WB700 WB702 WB800 WB802

Bearing Material. Characteristics. Applications. •. Bearing material made of solid bronze strip with.solid bronze bearings with lubrication indents offer high load capacity, good wear resistance under rough conditions & low speeds.
Wrapped Bronze Straight Bushing FB090 & FB092 Tin Bronze Bronze Slding Bearings Cylindrical Bushes
PLAIN BEARINGS BRONZE SLEEVE BUSHES GLEITLAGER STANDARD SIZE CYLINDRICAL BUSHINGS MADE OF CUSN8 WITH LUBRICATION 090 SLEEVE BUSH FOR Cranes, grabs, pumps, manifolds, hydraulic rotators met the ROHS Standard.
BRONZE WRAPPED BEARING WITH OIL POCKETS (090 CYLINDRICAL BUSHES STANDARD SIZE TABLE)
Tolerances:Shaft dia: e7/f7,Housing:H7
Drawing model is available
Chamfer: Inner and outer ends
Wrapped flanged bushing Type
Material: Cu Sn8  Cu - 91,3% Sn - 8,5% P - 0,2%
Bronze Bushes and Oil Pockets 090 & 092 BRONZE BUSHES
CuSn8 Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets Series Features
Easy fitting and lubrication
High load capacity
Excellent wear resistance with lower friction
High level of thermal conductivity
Minimum overall dimensions
Chemical resistance
Extended service life and lubrication intervals compared to the VSB090 Series Bushings
Free choice of lubricant
Collection of dust and rub off particles in the holes

VSB-22 CuSn8 Wrapped Bearings

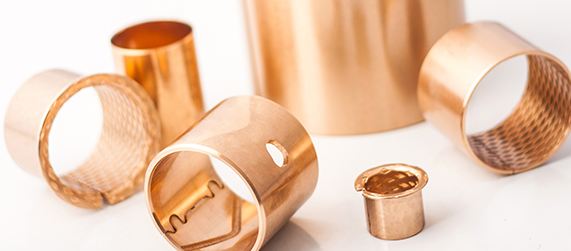

Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip

  • Bearing material made of solid bronze strip with indents for lubricationCylindrical Bushes Grease Reservoirs Bronze Sleeve Plain Bearings Cusn8 Oil Holes Rohs Standard

  • Good wear resistance, suitable for rough conditions

  • Optimum performance under relatively high loads and low speeds

  • Easy for fitting and lubricating

  • High load capacity

  • Inner Diameter machineable parts are available against order

  • High level thermal conductivity

  • Minimum overall dimensions

  • Chemical resistance.

  •  Initial pre-lubrication at assembly required...

TYPICAL APPLICATIONS
• Forest machines.
• Agricultural machines.
• Forklift trucks.
• Dumpers.
• Hydraulic cranes.
• Truck platform constructions.

(090 CYLINDRICAL BUSHES standard size table)

STRUSTURE

The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

TECHNICAL DATACylindrical Bushes Grease Reservoirs Bronze Sleeve Plain Bearings Cusn8 Oil Holes Rohs Standard

STRUCTURE AND COMPOSITION

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

MICROSECTION

Cylindrical Bushes Grease Reservoirs Bronze Sleeve Plain Bearings Cusn8 Oil Holes Rohs Standard

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest



OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Good

Water lubricated

Poor

Process fluid lubricated

Poor

BEARING PROPERTIES

Product NO.

Chemical Compositions

VSB-22

Cu

Sn

P

91.3

8.3

0.2







AVAILABILITY
Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

START YOUR
PROJECT SIZE 090 Bronze wrapped bushing WITH AN APPLICATION ENGINEER
