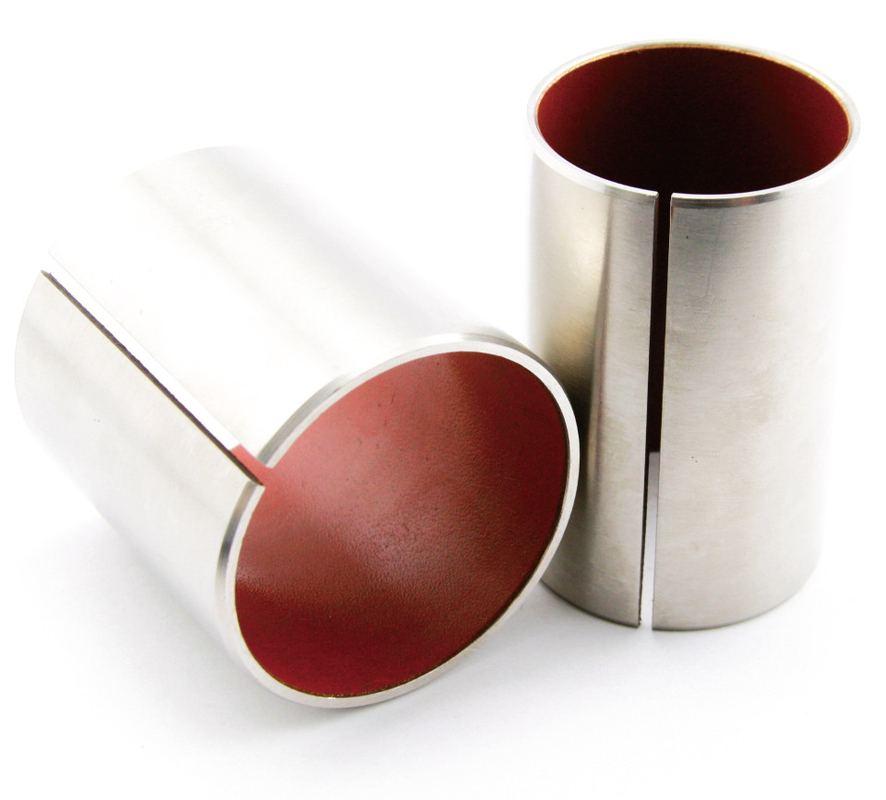

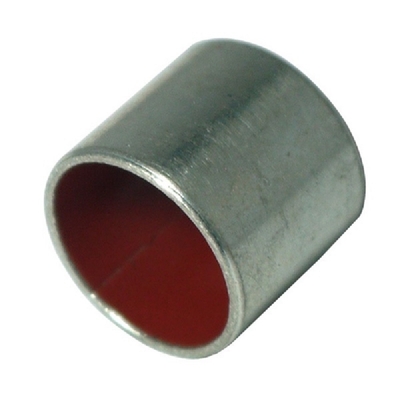

Anti-Wear Low Friction Coefficient Bronze Sleeve Bushings are precision-engineered components designed to provide exceptional wear resistance and low friction in demanding applications. Made of high-quality bronze material, these bushings are renowned for their durability, reliability, and long service life.
The low friction coefficient of bronze sleeve bushings significantly reduces energy loss and heat generation during operation, making them ideal for high-speed and high-load applications. The material's excellent wear resistance ensures that the bushings maintain their performance and dimensional stability over extended periods of use.
The sleeve design of these bushings allows for easy installation and replacement, minimizing downtime and maintenance costs. Additionally, the bronze material is corrosion-resistant, further enhancing the bushings' durability and lifespan.
These bushings are suitable for a wide range of industries and applications, including but not limited to:
Automotive and aerospace industries: Bronze sleeve bushings are commonly used in precision components such as engines, transmissions, and landing gear systems, where low friction and wear resistance are crucial.
Machine tools and industrial equipment: These bushings are ideal for use in machine tools, conveyor systems, and other industrial equipment where smooth operation and reliability are essential.
Energy and mining industries: Bronze sleeve bushings are suitable for applications in power plants, oil and gas extraction equipment, and mining machinery, where they can handle harsh environments and heavy loads.
In summary, Anti-Wear Low Friction Coefficient Bronze Sleeve Bushings offer a combination of exceptional wear resistance, low friction, and durability that makes them a reliable choice for demanding applications across various industries.


Self-balancing Scooter Bushing, Bike bushing, Bearings and bushings used in the frame of a scooter, including the steering stem and engine mounts.


Bronze Ptfe Steel Backed bushings are used in the rear-wheel suspension of this electric scooter.
Best value Bushing Scooter – Great deals on Bushing Scooter ...

Bike Bushing

Wholesale Electric Motor Bushing Bearing Steel Bushing
Buy cheap bushing for scooter — low prices, shipping online, Cheap bushing for scooter – a catalog of goods at low prices and with fast delivery. And a wide range of quality bushing products from china.


Electric Scooter Bushing Parts

Control Arm Rear Bushing


Scooter Bushing

Electric Scooters Sleeve Bushings











Material Structure









1. PTFE with Pb 0.01~0.03mm
2. Porous bronze 0.2~0.3mm
3. Stainless steel backing 0.7~2.3mm


Technical Data



Specific load capacity (static)	≤ 250 [ N/mm² ]
Specific load capacity (dynamic)	≤ 140 N/mm² at low speeds
Specific load capacity(rotating oscillating)	≤60N/m㎡
Friction value	0.08 to 0.2 µ(dry)0.02 to 0.08µ(hydrodynamic)
Temperature	-200 to +280 [ °C ]
Max. dry running Pv (Short-term operation)	3.6N/m㎡﹡m/s
Max. dry running Pv (Continuous operation)	1.8N/m㎡﹡m/s
Max. speed (dry running)	2m/s
Max. speed (Hydrodynamic operation)	＞2m/s






Characteristics



Low friction coefficient, good anti-wear, good anti-corrosion
Performs well in mid-acid and strong alkaline condition

Availability



Standard cylindrical bushings, flanged bushings, thrust washers and strips are availabe
Special designs are produced at short notice
Lead free type is also available

Material	Stainless Steel Base+Bronze Powder +PTFE
Typical Application	the corrosion resistant part in dyeing machinery and ocean industry, etc.
Max Static Load	250N/mm²
Max Dynamic Load	140N/mm²
Max Oscoillation Load	60N/mm²
Max Line Speed	Dry 2.5m/s, Oil > 5m/s
PV Value Limit	Dry 1.8N/mm².m/s,Oil 3.6N/mm².m/s
Friction Coefficient	Dry 0.08~0.20, Oil 0.02~0.12
Mating Axis	Hardness >220, Roughness 0.4~1.25
Working Temperature	-200~+280℃
Thermal Conductivity	40W/mk
Coefficient Of Linear Expansion	11×10-6/K
