PRM 505540 Bronze Bushing | Friction Plain Bushing

Place of Origin made in china
Brand Name VIIPLUS
Certification DIN 1494 / ISO 3547
Model Number d 50 mm D 55 mm B 40 mm
Minimum Order Quantity NEGOTIABLE
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T, T/T
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material CuSn8 Bronze Bushing Size 505540 Bushings
Type Diamond Type Tolerance Shaft F7
Tolerance Housing H7 Customized Size Metric Size
Item Split Type Bushings Application Conveyor Copper Sleeve Bushing
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze
Feature BRO-MET, FB090, BRM10, WB800 Specialty Бронзовые втулки
High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

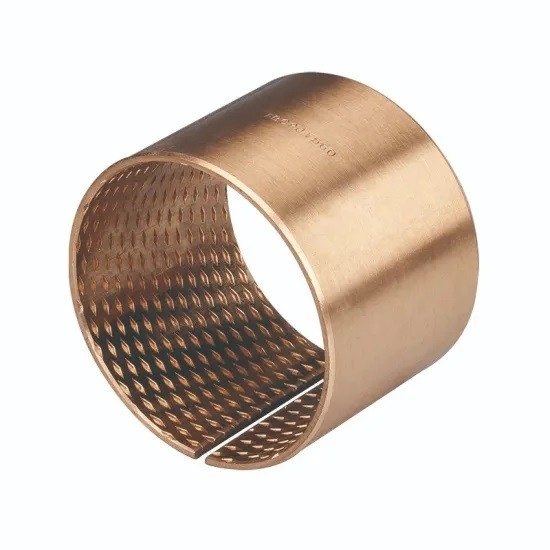

PRM 505540 Bronze Bushing

,

Diamond Type Bronze Bushing

,

Split Type Friction Plain Bushing

Leave a Message
Product Description

PRM 505540 Alternatives, Straight bushings PRM for Hydraulic bearing.

Special dimensions are only available on request.



The lagerbuchse series of wide application in: cars, the textile, instrument.Engine, bridge project, Water conservancy projects, hydroelectnc power, the steel industry. High quality factory.Short & Reliable Delivery. Safety Quality Assurance.

Bushings, Alternatives, Friction Plain Bushing For Bearings, 10010595 - Bushing - Straight Bushing, for Conveyor copper sleeve, bronze bushing.



Materials



lagerbuchse are made entirely from phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Wrapped bronze bearings are produced from strips that are subsequently wrapped and calibrated.



Advantages



The main advantages of wrapped bronze bearings include:

  • Long service intervals
  • Not affected by impurities
  • Suitable for corrosive environments
  • Suitable for impact loads and vibrations at low speeds
  • Good heat dissipation
Wrapped Split Bushing

Describtion



Fb090 is a kind of bushes wrapped by bronze strip. The bronze is of particular formulation with high specific gravity and on its surface may be incorporated with spherical or diamond shaped indentations or oil grooves as required by customers. It is of high load capacity and long life. In place of traditional bronze bush,it is more cheap and more compact.



DIMENSIONS d 50 mm D 55 mm B 40 mm,

Series PRM, rolled, bronze bushings

Series PRM, rolled bronze bushings. Description. Series PRM, rolled bronze bushings

PRM 859080
Bushings

PRM 353950 Bushings Wrapped Bronze:

PRM 606550 Bushing



Dimensions

d
85 mm
D
90 mm
B
80 mm
TECHNICAL DATA
Material: Cu – 91.3% Sn – 8.5% P – 0.2%
Standard: Cu Sn8. DIN 17662. CW453K
Sliding layer (thickness): Homogeneous
Tensile strength Rm: 450N/mm²
Yield strength Rp 0.2: 250N/mm²
Elongation in % A10: 0.4
Hardness: 90-120 HB
Friction coeff: 0.08-0.25µ
Thermal conductivity: 60W/m·K
Temperature range: -100°C/200°C
Max. load static: 120 N/mm²
Max. load, dynamic: 40 N/mm²
Max. sliding speed (w.lubr.): 2.5 m/s
Pv-value, Mpa x m/s, kont / int: 2.8


Counter material
Recommended shaft hardness: >210HB
Rec. shaft surface roughness (Ra) 1.6
Recommended tolerance: e7-f7
House: H7



Characteristics



– High load capacity
– Works well in dirty environments
– Wide temperature range
– Easy to assemble
– Grease pockets as lubrication reservoirs

Assembly


The bearings are intended to be pressed into a housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.


Axle/shaft – Bearing play


To the H9 tolerance of the slide bearing we recommend shafts with tolerance e7 or f7. If h-shafts are used, the bearing inner diameter should be machined up to tolerance F7.


Lubrication


Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.


Special manufacturing


We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.



PRM 505540 Bronze Bushing | Friction Plain Bushing 1



Calculation Data

Specific dynamic load factor K
40 N/mm²
Specific static load factor K0
120 N/mm²
Permissible sliding velocity v
min. m/s
Permissible sliding velocity v
max. 1 m/s
Coefficient of friction µ
min. 0.08
Coefficient of friction µ
max. 0.15



FB090 Bronze Bearing Size Chart



FB090 BRONZE BEARING SIZE CHART
d
D
f1
f2
L 0
-0.40
10
15
20
25
30
35
40
50
60
70
80
90
100
10
12

0.5









0.3
FB090
1010
FB090
1015
FB090
1020










12
14
FB090
1210
FB090
1215
FB090
1220










14
16
FB090
1410
FB090
1415
FB090
1420
FB090
1425









15
17
FB090
1510
FB090
1515
FB090
1520
FB090
1525









16
18
FB090
1610
FB090
1615
FB090
1620
FB090
1625









18
20
FB090
1810
FB090
1815
FB090
1820
FB090
1825









20
23
0.8




0.4




FB090
2010
FB090
2015
FB090
2020
FB090
2025









22
25
FB090
2210
FB090
2215
FB090
2220
FB090
2225
FB090
2230








24
27

FB090
2415
FB090
2420
FB090
2425
FB090
2430








25
28

FB090
2515
FB090
2520
FB090
2525
FB090
2530








28
31

FB090
2815
FB090
2820
FB090
2825
FB090
2830








30
34
1.0



0.6




FB090
3015
FB090
3020
FB090
3025
FB090
3030
FB090
3035
FB090
3040






32
36

FB090
3215
FB090
3220
FB090
3225
FB090
3230
FB090
3235
FB090
3240






35
39

FB090
3515
FB090
3520
FB090
3025
FB090
3530
FB090
3535
FB090
3540






40
44


FB090
4020
FB090
4025
FB090
4030
FB090
4035
FB090
4040
FB090
4050





45
50

1.2





0.8








FB090
4520
FB090
4525
FB090
4530
FB090
4535
FB090
4540
FB090
4550





50
55


FB090
5020
FB090
5025
FB090
5030
FB090
5035
FB090
5040
FB090
5050
FB090
5060




55
60


FB090
5520
FB090
5525
FB090
5530
FB090
5535
FB090
5540
FB090
5550
FB090
5560




60
65



FB090
6025
FB090
6030
FB090
6035
FB090
6040
FB090
6050
FB090
6060
FB090
6070



65
70




FB090
6530
FB090
6535
FB090
6540
FB090
6550
FB090
6560
FB090
6570



70
75




FB090
7030
FB090
7035
FB090
7040
FB090
7050
FB090
7060
FB090
7070
FB090
7080


75
80




FB090
7530
FB090
7535
FB090
7540
FB090
7550
FB090
7560
FB090
7570
FB090
7580


80
85

1.4





0.8










FB090
8030
FB090
8035
FB090
8040
FB090
8050
FB090
8060
FB090
8070
FB090
8080


85
90




FB090
8530
FB090
8535
FB090
8540
FB090
8550
FB090
8560
FB090
8570
FB090
8580
FB090
8590

90
95




FB090
9030
FB090
9035
FB090
9040
FB090
9050
FB090
9060
FB090
9070
FB090
9080
FB090
9090

95
100






FB090
9540
FB090
9550
FB090
9560
FB090
9570
FB090
9580
FB090
9590
FB090
95100
100
105







FB090
10050
FB090
10060
FB090
10070
FB090
10080
FB090
10090
FB090
100100
105
110







FB090
10550
FB090
10560
FB090
10570
FB090
10580
FB090
10590
FB090
105100
110
115







FB090
11050
FB090
11060
FB090
11070
FB090
11080
FB090
11090
FB090
110100




d
D
f1
f2
L 0
-0.40
25
30
35
40
50
60
70
80
90
100
115
120
1.4
0.8




FB090
11550
FB090
11560
FB090
11570
FB090
11580
FB090
11590
FB090
115110
120
125





FB090
12060
FB090
12070
FB090
12080
FB090
12090
FB090
120110
125
130





FB090
12560
FB090
12570
FB090
12580
FB090
12590
FB090
125110
130
135





FB090
13060
FB090
13070
FB090
13080
FB090
13090
FB090
130110
135
140





FB090
13560
FB090
13570
FB090
13580
FB090
13590
FB090
135110
140
145





FB090
14060
FB090
14070
FB090
14080
FB090
14090
FB090
140110
145
150





FB090
14560
FB090
14570
FB090
14580
FB090
14590
FB090
145110
150
155





FB090
15060
FB090
15070
FB090
15080
FB090
15090
FB090
150110
155
160





FB090
15560
FB090
15570
FB090
15580
FB090
15590
FB090
155110
160
165





FB090
16060
FB090
16070
FB090
16080
FB090
16090
FB090
160110
165
170





FB090
16560
FB090
16570
FB090
16580
FB090
16590
FB090
165110
170
175





FB090
17060
FB090
17070
FB090
17080
FB090
17090
FB090
170110
175
180





FB090
17560
FB090
17570
FB090
17580
FB090
17590
FB090
175110
180
185





FB090
18060
FB090
18070
FB090
18080
FB090
18090
FB090
180110
185
190





FB090
18560
FB090
18570
FB090
18580
FB090
18590
FB090
185110
190
195




FB090
19060
FB090
19070
FB090
19080
FB090
19090
FB090
190110
195
200





FB090
19560
FB090
19570
FB090
19580
FB090
19590
FB090
195110
200
205





FB090
20060

FB090
20070
FB090
20080
FB090
20090
FB090
200110

Bronze Bearing Application



High-density copper alloy strip is the base material, the surface can be rolled diamond or hemispherical oil hole, oil groove according to user's requirement. And the inner wall can be inlaid with solid lubricant, which can operate in an oil-free state. It has the advantages of high density, large bearing capacity, good wear resistance, and long service life. At present, it is widely used in hoisting machinery, construction machinery, chassis of automobile tractor, machine tool industry, mining machinery, automobile transmission shaft, automobile change-speed gearbox, generator, crane, metallurgical machinery and conveyer, elevator, rolling field machine, leveling machine and other medium load and low-speed occasions.
