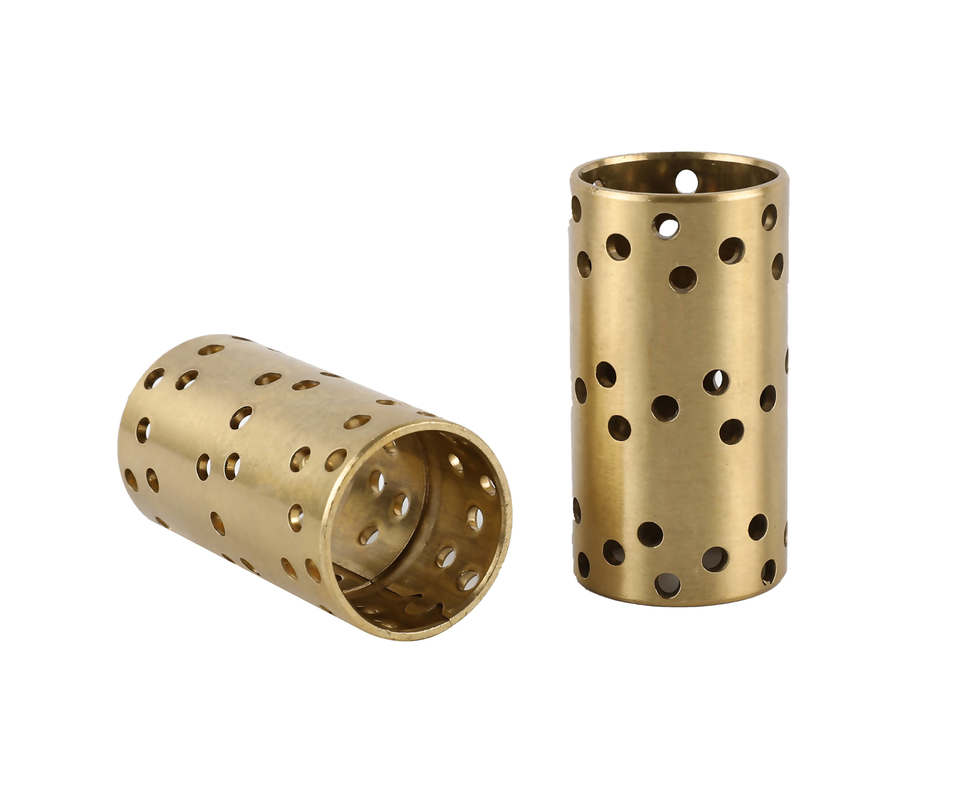

Brass Wrapped Bushing 34*30*65mm
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Bronze Bushings |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicon Brass Bushing | Type | Brass Wrapped Bushing |
|---|---|---|---|
| Brass Bushing | 34*30*65mm | Code | Metric Size |
| Feature | Lubricating Holes | Item | Split Type Bushings, Groove |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze |
| Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
| High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
| Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | Silicon Brass Wrapped Bushing,split type Wrapped Bushing,ISO9001 Split Type Wrapped Bushing |
||
Product Description
Silicon brass Bearings, Brass Wrapped Bushing 34*30*65mm, Manufacturer, Exporter, Cheap Price, bronze bushing.
Other bronze bearings Material. 090 CuSn6.5P or CuSn8P. 092 CuSn6.5P or CuSn8P. H68 CuZn31Si. FB09G CuSn6.5P or CuSn8P + Graphite.
Enterprise technology relying on Research Institute and colleges and universities and colleges and universities and colleges and universities, constantly develop brass wrapped bushings products adapted to different working conditions and various mechanical fields. The product performance has reached the level of foreign products of the same kind.
Bronze bushes, oilless bearing bushing, wear plate
Large diameter parts from Bronze Casting - Bronze Bearings
Chemical properties
the Brass Wrapped Bushing bushing is made of copper alloy CuZn31Si that is of higher density with its surface punched with oil sockets or grooves, which depends on the customer's requirements. This type of bushing has better load capacity, anti-erosion, and anti-abrasion capacity.
Material: CuZn31Si
Hardness: HB90~150
Temperature limit: -100℃~200℃
Load capacity: 90N/mm2
Speed limit: 2m/s
Brass Wrapped Bushing, with material CuZn31Si. It has good anti-fatigue, anti-erosion and anti-abrasion and load capacity. It can be produced by different bronze material and the surface can be produced with other type of oil socket and oil groove in different working condition. The material structure, application fields, and technical parameter are as follows.
Technical Data
| Performance Index | Data | |
| Material | CuZn31Si(H68) | |
| Density g/cm? | 8.4 | |
| Max Dynamic Load N/mm? | 90 | |
| Max Linear Velocity(Grease) m/s | 1.5 | |
| Max PV value Grease N/mm?·m/s | 1.65 | |
| Pressure strength N/mm? | >440 | |
| Yield Strength N/mm? | >230 | |
| Hardness | 80~120 | |
| Mating Axis | Hardness | ≥50 |
| Roughness | 0.4~1.0 | |
| Working Temperature ℃ | -40~150 | |
| Friction Coefficient | 0.06~0.15 | |
| coefficient of heat conduction W/m·K | 71 | |
| Linear expansion coefficient | 19.2×10-6/K | |
| Typical application | Application: hoisting, mining machinery, forest machinery, agricultural machinery etc. |
|
| We can also develop according to customers special request while out of this table | ||
Characteristics
High load capacity, good wear-resistance.
Good stability under load, particularly suitable for oscillating bearing.
Grease depots for long-term lubrication.
Availability
Standard cylindrical bushings are available.
Special designs are produced based on your design.
| Location: | China |
| Business Type: | Manufacturer, Exporter |
| Certificate: | ISO9001;CE;WRAS;GSG;National Torch Program Certificate |
| Terms of payment and delivery: | 30% down payment;70% before shipment/FOB CIF |
| Minimum order quantity: | 1 set |
| Price: | Consultation |
| Packing details: | Wooden pallet |
| Delivery time: | 1-4 months |
| Payment method: | T/T L/C |
Jiaxing viiplus International Trading Company limited is a famous China brass bearings suppliers, Enterprise technology relying on Research Institute and colleges and universities and colleges and universities and colleges and universities, constantly develop brass wrapped bushings products adapted to different working conditions and various mechanical fields.The product performance has reached the level of foreign products of the same kind. The sales of wholesale brass bearings all over more than 40 countries and regions at home and abroad, and have been recognized by domestic and foreign users.
