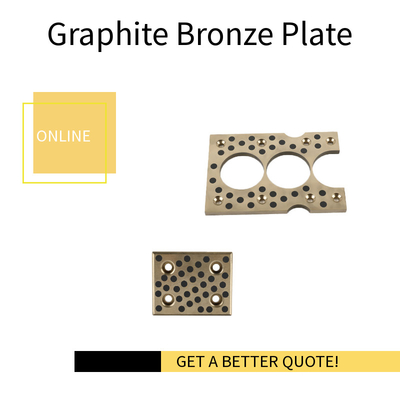

Customized High Precision Bronze Material Bronze Graphite Gasket Plate
Place of Origin | oilless bushing |
---|---|
Brand Name | VIIPLUS |
Certification | ISO 9001 |
Model Number | Graphite Gasket |
Minimum Order Quantity | negotiable |
Price | Negotiable |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 7-25 work days |
Payment Terms | T/T |
Supply Ability | plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Bronze | Feature | Graphite Plugged |
---|---|---|---|
Item | Customized Bronze Graphite Plate | Size | Metric Size, Or Customize Size |
Shaping Mode | Plastic Molding Die | Surface Finish Process | Polishing |
Application | Car, Household Appliances, Furniture, Commodity, Electronic, Home Use, Hardware | Customized | OEM Parts |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
High Light | Metric Size Bronze Gasket Plate,Graphite Plugged Gasket Plate |
Customized High Precision Bronze Material Bronze Graphite Gasket Plate, OILLESS BEARINGS BRASS BUSHING.
Customized Dimensions Bronze Graphite Wear Plate, Get Latest Price. OEM parts, ASTM, JIS, AISI, EN, BS;
Manganese brass: C86300 bronze plate, Tin bronze plate, C93200, CuSn12, CuSn7Zn4Pb7 and etc.;
Aluminum Bronze Wear Plate C95400, CuAl10Fe5Ni5 oilless plate, and other bronze plate casting material, etc..
Customized Bronze Guide Plate with Graphite Plugs Injection Mold Parts Bearing Bush Bronze Bushing Oilless Bearing
Customized High Precision Bronze Material Bronze Graphite Gasket Plate, Lubricating Casting Brass Plate
Brass Wear Plate
Graphite Gasket Oilless Wear Plate Manufacturer, Exporter

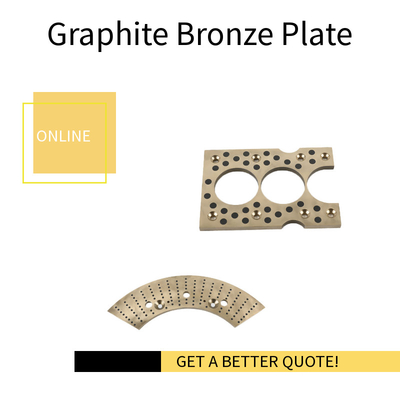

Customized bronze graphite plate
China Customized Oilless Graphite Bronze Plate Brass Material
Graphite Bonze Plate – Quality Bronze Plate Supplier from China
Different Material Bronze Graphite Plate Feature
Material grade (GB) |
Main features | Applications |
ZCuPb10Sn10 | Lubrication performance, wear resistance, and corrosion-resistant performance is good, suitable for bimetal casting materials | Surface pressure is high, and there is the lateral pressure of the sliding bearing, such as rolling, vehicle use bearing, load peaks 60 mpa hit parts, as well as the highest peak of 100 mph bimetallic bearing bush of the internal combustion engine, and the piston pin sets, lining, etc. |
ZCuPb15Sn8 | Under the condition of lack of lubricant and use water quality lubricants, sliding and lubricating, free cutting, casting performance is poor, for dilute sulfuric acid corrosion resistant performance is good | Surface pressure is high, and the lateral pressure of bearing, the copper cooling pipe can be made from cold rolling mill, impact resistance load of up to 50 mph parts, internal combustion engines of bimetallic bearing, mainly used for the biggest load of 70 mph of piston pin set, acid-proof accessories |
ZCuPb20Sn5 | At the higher sliding performance, in the absence of a lubricating medium and water, as a medium are particularly good self-lubricating performance suitable for bimetal casting material, sulfuric acid corrosion resistance, easy cutting, casting performance is poor | High sliding speed of the bearing, and crusher, water pump, cold rolling mill bearings, piston pin load of 70 mph |
ZCuPb30 | Have good self-lubrication, free cutting, casting performance is poor, easy to produce the gravity segregation | The high sliding velocity of bimetallic bearing shell, wearing parts, etc. |
ZCuZn25Al6Fe3Mn3 | With high mechanical properties, the casting performance is good, good corrosion resistance has a tendency to stress corrosion | Suitable for high strength, wear parts, such as bridge plate, nut, screw, wear-resistant plate, the slider, and worm gear, etc |
ZCuZn26Al4Fe3Mn3 | With high mechanical properties, the casting performance is good, in the air, water, and seawater corrosion resistance is good, can be welded | Require high strength, corrosion-resistant parts |
ZCuZn38Mn2Pb2 | Have higher mechanical properties and good corrosion resistance, abrasion resistance, good cutting performance | General-purpose structure, ship, instrument appearance, simple casting using such as sleeve, sleeve, bearings, slider, etc |
ZCuZn40Mn3Fe1 | With high mechanical properties, good casting properties and machinability, and in the air, water, and water has good corrosion resistance, has a tendency to stress corrosion cracking | Seawater corrosion parts, pipe fittings and under 300 °C, manufacturing and other large Marine propeller castings |
ZCuZn33Pb2 | Structural material, feed temperature is 90 °C when good oxidation resistance, the electrical conductivity of about 10 ~ 14 ms/m | The shell of gas and water supply equipment, machinery manufacturing, electronics, precision instruments, and optical instruments of component parts |
Other standard and material | ASTM, JIS, AISI, EN, BS; Manganese brass: C86300 and etc.; Tin bronze: C83600, C93200, CuSn12, CuSn7Zn4Pb7 and etc.; Aluminum Bronze: C62900, C95400, C95500, CuAl10Fe5Ni5 and etc.. |
* customized bronze graphite plate material can be customized

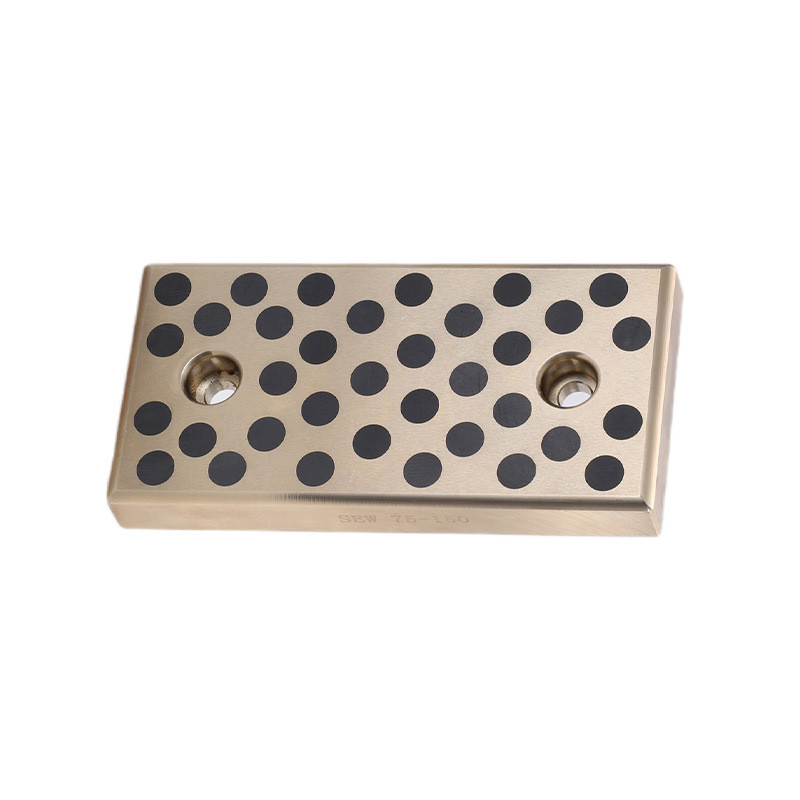

Brass Wear Plate
-
Bronze alloy metallic bearings with graphite plugs provide both the good wear resistance and great self-lubricating feature of the bearings.
-
This designation enables the bearings to be operated without oiling or greasing maintenance.
-
It is widely used in the field of high load and intermittent movement as well as oscillating movement conditions such as automobile assembling line, Water Turbine, Gate dams, and Plastic Injection Machinery.
-
Depending on different working conditions, a variety of types of different alloys are available. High hardness impregnated brass solid lubrication bearing customized wear plate is improved upon by further enhance the hardness of high hardness brass, giving rise to higher load-bearing capacity and better wear-resistant property. The products are widely used in continuous casting rolling machines, mining equipment, engineering equipment, injection-molding machines, etc. Because of its high hardness, it's difficult to machining and finish, it's recommended only for really high load applications.
Brass Wear Plate Basic Properties
Basic material | CuZn25A16Fe3Mn3 | Dynamic load | 120N/mm² |
Base hardness | HB210~275 | Friction Coef | <0.16 |
Temperature Max | 300℃ | Speed limit | dry 0.4m/s oil 5m/s |
Brass Wear Plate Made To Order
Location: | China |
Business Type: | Manufacturer, Exporter |
Certificate: | ISO9001; |
Terms of payment and delivery: | 30% down payment;70% before shipment/FOB CIF |
Minimum order quantity: | Small MOQ |
Price: | Consultation |
Packing details: | Wooden pallet |
Delivery time: | 7-15 days |
Payment method: | T/T |
