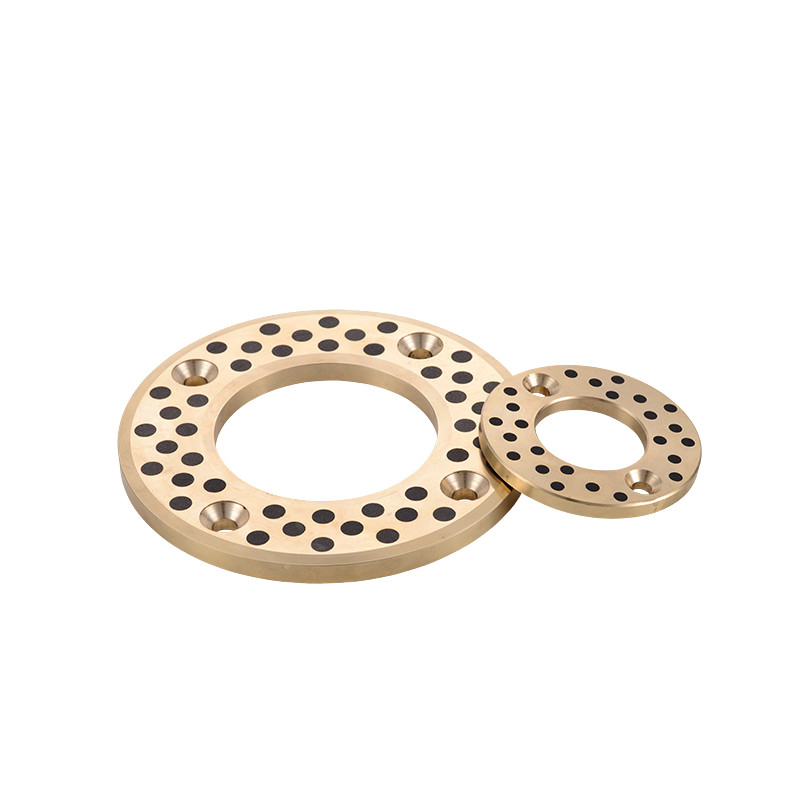

Gleitlagerbuchsen, C863 Manganese With Graphite Plugs Bronze Thrust Bearing

Oilless Bearings & Thrust Washer  are the simplest and most convenient method of lubrication. Oilless Bushing & Bronze Bearings are usually based on Molybdenum Disulphide (MoS2) or Graphite, C863 Manganese With Graphite Plugs Bronze Thrust Bearing

Bronze W/ Graphite Plugs

Wear plates and guide bush

bronze thrust bearing size

graphite 500#SP JTW / JTWN size

JTW solid graphite self-lubricating standard thrust gasket/composite bearing/copper sleeve

Bronze alloy metallic bearings with graphite plugs provides both the good wear resistance and great self-lubricating feature of the bearings.
This designation enables the bearings to be operated without oiling or greasing maintenance.
It is widely used in the field of high load and intermittent movement as well as oscillating movement conditions such as automobile assembling line, Water Turbine, Gate dams and Plastic Injection Machinery.
Depending on different working conditions, variety of types of different alloys are available.

Bronze Thrust Washers

Our Bronze Thrust Washers are available in (3) types: Plain Thrust Washer, Graphite Plugged Thrust Washer and Oil / Grease Grooved Thrust Washer.

Thrust washers can be found in almost every appliance, machine, transportation conveyance, power tool, and recreational device that has moving parts, axles, bolts, pins, bearings, and rotating components. In their simplest form, thrust washers are long-wearing flat bearings in the shape of a washer that transmit and resolve axial forces in rotating mechanisms to keep components aligned along a shaft. Thrust washers are an economical alternative to rolling thrust bearings whenever forces velocities are moderate.

They are manufactured from a variety of Bronze Alloys, including: C95400 Aluminum Bronze, C93200 Bearing Bronze and C86300 Manganese Bronze. We provide your desired Thrust Washers according to the specifications you require.

Features of C86300 aluminum bronze:

The aluminum content of aluminum bronze is generally not more than 11.5%, and sometimes such as appropriate iron, nickel, manganese and other elements are added to further improve the performance.Aluminum bronze can be strengthened by heat treatment. Its strength is higher than that of tin bronze and its oxidation resistance is better.Aluminum bronze is characterized by high mechanical properties, good wear resistance, can be made in the atmosphere, fresh water and seawater work corrosion-resistant parts.

Main Uses:

1. Self-moistening wear sleeve, plate;Various bearings and bushing used under heavy load and high speed, such as pump bushing, mine turbine bearing, rolling mill roller bushing.

2. Various turbines for drilling machines and food molds.

High hardness aluminum bronze produced by our company is officially listed, it has high hardness and wear resistance, good corrosion resistance, in the hot state of pressure processing is good, electric welding and gas welding, can be used as a substitute for high tin wear bronze.It is suitable for metal wear-resisting block, guide rail, metal drawing die, bearing, shaft sleeve, gear, turbine, etc., and can also make metal parts such as nozzle, flange, bracket, etc.

Reasons for Selecting Plug Graphite Self-Lubricating Products

1. Total Self-Lubricating: No oil or grease required
The self-lubricating features allow bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

2. Excellent Wear Resistance:
Excellent wear resistance is achieved under severe working conditions, such as heavy load, low velocity, reciprocating, oscillating and intermittent motions where the formation of oil film is difficult.

3. Low Coefficient of Friction: 0.04 to 0.2 typical:
Self-lubrication with specially embedded solid lubricants reduces friction.

4. Wide Operating Temperature Ranges: -415° ° to 1,100° °F
Superior performance is exhibited under high and low temperature conditions.

5. Corrosion and Chemical Resistance:
Performance is not affected by water and caustic chemicals.6. Designed to Exceed Your Requirements:
High precision products with close tolerances.7. Cost Competitive:
Maintenance, replacement, and end-item downtime cost reduced due to the exceptional service life compared to similar self-lubricating products.
