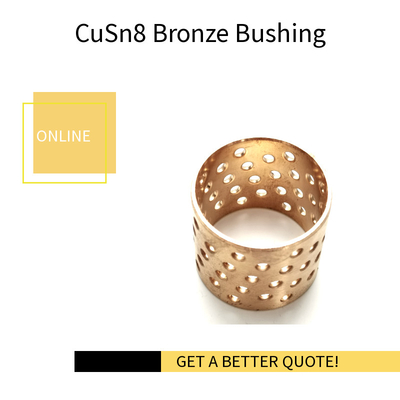

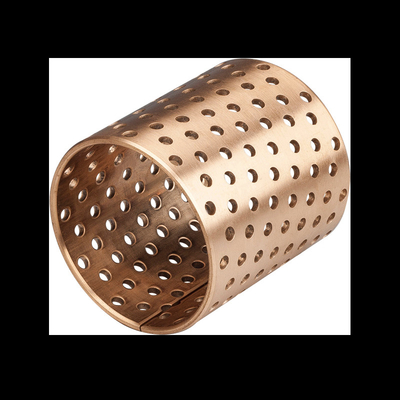

FB092 60*65*50 Bronze Bushings Brass Bushes are precision-manufactured components designed for use in various industrial applications. Constructed from high-quality bronze or brass materials, these bushings offer excellent wear resistance, durability, and load-bearing capacity.

With dimensions of 60mm in length, 65mm in outer diameter, and 50mm in inner diameter, the FB092 bushings are suitable for a wide range of rotating machinery and equipment. Their brass composition ensures smooth operation and reduced friction, making them ideal for high-speed and high-load applications.

The bushings' precision manufacturing ensures tight tolerances and a secure fit, minimizing vibration and noise during operation. This, combined with their excellent wear resistance, ensures long-lasting performance and reliability.

Whether used in motors, pumps, gearboxes, or other mechanical systems, the FB092 606550 Bronze Bushings Brass Bushes provide a robust and dependable solution for maintaining smooth and efficient operations. Their high-quality materials and precision manufacturing make them a trusted choice for industrial applications where performance and durability are critical.

FB092 60*65*50 Bronze Bushings, brass bushings

FB092 E90 E92 flange or straight type sleeve bronze bearing is based on a high-density copper alloy strip with a special formula. The surface can be made of diamond or hemispherical oil hole and oil groove according to customer's requirements. It has the advantages of high density, high bearing pressure, good wear resistance, and long service life, etc., which can replace the traditional casting copper sleeve and reduce the mechanical volume and cost. This product has been widely used in Conveyer, elevator, winch, leveller, lifting machinery, construction machinery, automobile tractor chassis, machine tool industry, and mining machinery, can also be made into tile shaft, flanged copper sleeve, thrust gasket, and ball bowl, and other forms.

Packing and transportation: in cartons or wooden cases

Chemical Composition

Advangtage

1. Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2. Compared with lathed bushings and roller bearings, it is light in weight and more costeffective.
3. Various holes and dents can be made on the frication surface for grease s torage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4. Extremely high load sustainability, especially suitable for coarse abrasion surfaces.

Application characteristics

FB092 Bronze Bushing, This type of bronze bearing is made of a particular formulation with high specific gravity and its surface can be incorporated with spherical or diamond-shaped indentations or oil grooves based on customers' requirements.

It is a high load capacity and long life. Compared with traditional cast bronze bushing, it is cheaper and more compact. It is widely used in hoisting machines, construction machines, automobiles, trucks, machine tools, mineral equipment and etc.

Technical Details

• 1. Specific load capacity static < 120 [N/mm2]

• 2. Specific load capacity dynamic < 40 [N/mm2]

• 3. Sliding speed ≤ 2.5 [m/s]

• 4. Friction value 0.05 [μ] to 0.12 [μ] depending on lubrication

• 5. Temperature strain - 40 [℃] to + 250 [℃]

• 6. Max. PV-value 2.8 [N/mm2 x m/s]

• 7. The percentage of contact area on the ID is > 75%

Properties

Economic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance.

Discovery our FB092 flange bronze bushing
