CuSn8 CuSn6 Wrapped Bronze Bearings With Lubrication Holes

Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number wrapped bronze bushing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Metric Dimensions Or Inch Size Bushing Material Tin Bronze Cusn8 Cusn6 Bushings
Bushing Type Flange Bushes & Split Bushing Item Inner Diameter Outer Diameter And Length Or Flange Type Bronze Bushing
Catalog Sleeve Bearing And Sleeve Bushing Catalog Bronze Bushing Price Direct Price And Save Cost.
Wrapped Bearings Phosphor Bronze Bearings Bronze Bushings Metric Feature Metric Bushings Self-lubricating
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze
Feature BRO-MET, FB090, BRM10, WB800 Specialty Бронзовые втулки
High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

CuSn6 Wrapped Bronze Bearings

,

CuSn8 Wrapped Bronze Bearings

,

OEM wrapped bronze bushings

Leave a Message
Product Description

Wrapped Bushings plain bearings with lubrication holes



Bronze Wrapped Bushing, wrapped bearings - OEM and Wholesale China Supplier, Wrapped bronze bearings are made entirely from phosphor bronze CuSn8/CuSn6 material bronze strips/sheet. Discovery your wrapped bushing gap bushes split metric bushings self-lubricating with the lubrication holes size chart, find your bronze bushing or flange size bearings parts.

Professionally Engineered & Designed High-Precision Bronze Bushing Manufacturer & Exporter.

Sleeve Bearing and Sleeve Bushing Catalog, online sale. Get a free quote for your bronze bushing.

Buy Direct bronze bushing price and Save cost.





Self-lubricating bronze bushings. A bushing is a type of bearing in the form of a straight or flanged tube for sliding applications.



Self-lubricating bronze bushings Material, Factory Price, Contact Us!



Check out our online wrapped bearings product catalog with more than 10,00 products with full specifications & size available for download - all free of charge!



Wrapped bearings are available in inch and metric sizes.



Various types include metric, PTFE lined, sleeve, dry, flange, cast bronze, self-lubricating, thrust, sintered bronze and steel-backed bearings.

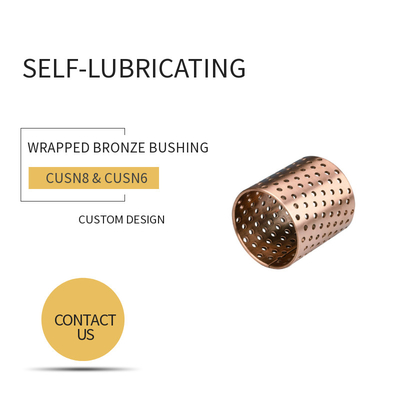

wrapped bronze bushing with through holes



Availability



  • Standard cylindrical bushing, flanged bushings is available.
  • Special designs are produced based on your requirement.
  • CuSn6.5P0. 1 is also available.



Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

Bronze bushing cusn8p chemical composition



material Cu Sn P
CuSn8P0.3 91.3 8.5 0.3

These bearings are wrapped from a cold-formed homogenous bronze (CuSn8), which can achieve exceptional material properties.



Maintenance



It is a low maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory. The diamond pockets are an excellent lubrication depot and keeping maintenance to a minimum.



Range of application



Agriculture machinery, truck cranes & construction machinery, suitable for impact loads



Standard and custom wrapped bearings made for you.



Wrapped Bronze bushing (CuSn6.5P, CuSn8P), self-lubricating bronze bushings



Wrapped Bronze With Through Holes - Metric



Wrapped Bearings With Though Holes Feature



  1. Easy fitting and lubrication

  2. High load capacity

  3. Excellent wear resistance with lower friction

  4. High level of thermal conductivity

  5. Minimum overall dimensions

  6. Chemical resistance

  7. Extended service life and lubrication intervals compared to the AST090 Series Bushings

  8. Free choice of lubricant

  9. Collection of dust and rub off particles in the holes



Wrapped Bearings Material



  • Support material CuSn8P

  • alternative CuSn6P available



Bronze Bushings with  lubrication holes Dimensions


sketch of wrapped plain bearing bush

d:

- inner diameter

D:

- outer diameter

L:

- length





Recommended fitting


shaft: f7
housing: H7





Application Data


max. load: 12 kN stat.
pay attention to the
max. PV value
4 kN Dyn.

max. sliding velocity: grease lubricated 2,5 m/s
pay attention to the
max. PV value


max. PV value:

grease lubricated 2,8 MPa m/s


temperature range:

-40 bis +150 °C





Wrapped Bronze With Lubrication Pockets
low-maintenance also online sales.



A very widely wrapped bearings with high quality and factory price.



  • Wrapped Bushings

  • Wrapped Flanged Bushings





Our range of wound bronze bearings made from CuSn8 laminated phosphor bronze alloy material are extremely versatile and suitable for a wide range of applications. These bronze bearings have been developed for low speed, high load applications, particularly suitable for oscillating movements and are perfect for the construction, mining / quarrying, agricultural and automotive industries.



The working surface is rolled with diamond-shaped recesses. During assembly or during operation, the cavities can be filled with grease or oil which acts as a reservoir for excellent long-term lubrication.



Bronze bearings are manufactured from phosphor bronze alloy rolled strip, which is tough and has an excellent finish. The composition of the material is as follows:

  • Cu - Balance
  • Sn - 8.5%
  • P - 0.2%



Order Wrapped bronze plain bearings online

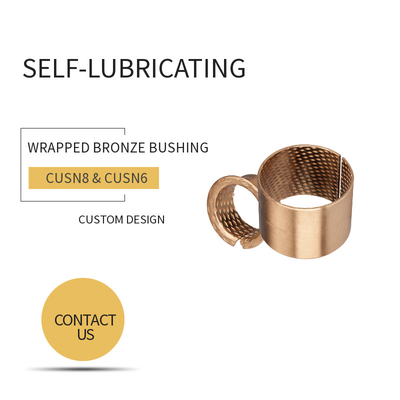

wrapped bronze bushing with lubricated pockets



Wrapped Bearings With Lubricated Pockets Feature



  • Easy fitting and lubrication
  • High load capacity
  • Inner side can be machined
  • High level of thermal conductivity
  • Minimum overall dimensions
  • Chemical resistance



Standard dimensions



  • Standard dimensions for maintenance free thrust washer



  • Standard dimensions for cylindrical plain bearings with flange



  • Standard dimensions for cylindrical plain bearings



Sliding elements in solid tin bronze (CuSn8) with diamond-shaped oil pockets, which acts as a lubricant reservoir.
These plain bearings are suitable for grease and oil lubrication.



Application Data



temperature range

-40 up to +150 °C - grease lubricated

-40 up to +250 °C - oil lubricated

max. PV value 2,8 MPa m/s
max. sliding velocity 2,5 m/s
max. surface pressure stat. 120 MPa - dyn. 40 MPa
thermal expansion 18 x 10-6 °C-1
frictional coefficient:
grease lubricated μ = 0,06 up to 0,2



For Bearing Design



Recommended fitting

shaft f7
housing H7
bearing according to DIN ISO 3547-1 (formerly DIN 1494)



Thermal expansion has to be taken into account at temperatures above 80 °C.



Mating Material

surface roughness Ra = 0,4 μm
minimum hardness > 200 HB



Application



General and special machine construction, agricultural machinery and equipment, textile machinery, lifting equipment, etc.





Wrapped bearings CuSn8/CuSn6 bronze lubrication holes

low-maintenance plain bearings with lubrication holes online sales



Article No.
⌀d x ⌀D x L
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1010
⌀10 x ⌀12 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1015
⌀10 x ⌀12 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1020
⌀10 x ⌀12 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1210
⌀12 x ⌀14 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1215
⌀12 x ⌀14 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1220
⌀12 x ⌀14 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1410
⌀14 x ⌀16 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1415
⌀14 x ⌀16 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1420
⌀14 x ⌀16 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1425
⌀14 x ⌀16 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1510
⌀15 x ⌀17 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1515
⌀15 x ⌀17 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1520
⌀15 x ⌀17 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1525
⌀15 x ⌀17 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1610
⌀16 x ⌀18 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1615
⌀16 x ⌀18 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1620
⌀16 x ⌀18 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1625
⌀16 x ⌀18 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1810
⌀18 x ⌀20 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1815
⌀18 x ⌀20 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1820
⌀18 x ⌀20 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes1825
⌀18 x ⌀20 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2010
⌀20 x ⌀23 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2015
⌀20 x ⌀23 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2020
⌀20 x ⌀23 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2025
⌀20 x ⌀23 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2210
⌀22 x ⌀25 x 10
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2215
⌀22 x ⌀25 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2220
⌀22 x ⌀25 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2225
⌀22 x ⌀25 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2230
⌀22 x ⌀25 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2415
⌀24 x ⌀27 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2420
⌀24 x ⌀27 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2425
⌀24 x ⌀27 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2430
⌀24 x ⌀27 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2515
⌀25 x ⌀28 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2520
⌀25 x ⌀28 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2525
⌀25 x ⌀28 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2530
⌀25 x ⌀28 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2815
⌀28 x ⌀31 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2820
⌀28 x ⌀31 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2825
⌀28 x ⌀31 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes2830
⌀28 x ⌀31 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3015
⌀30 x ⌀34 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3020
⌀30 x ⌀34 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3025
⌀30 x ⌀34 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3030
⌀30 x ⌀34 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3035
⌀30 x ⌀34 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3040
⌀30 x ⌀34 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3215
⌀32 x ⌀36 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3220
⌀32 x ⌀36 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3225
⌀32 x ⌀36 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3230
⌀32 x ⌀36 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3235
⌀32 x ⌀36 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3240
⌀32 x ⌀36 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3515
⌀35 x ⌀39 x 15
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3520
⌀35 x ⌀39 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3525
⌀35 x ⌀39 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3530
⌀35 x ⌀39 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3535
⌀35 x ⌀39 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3540
⌀35 x ⌀39 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3820
⌀38 x ⌀42 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3825
⌀38 x ⌀42 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3830
⌀38 x ⌀42 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3835
⌀38 x ⌀42 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes3840
⌀38 x ⌀42 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4020
⌀40 x ⌀44 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4025
⌀40 x ⌀44 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4030
⌀40 x ⌀44 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4035
⌀40 x ⌀44 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4040
⌀40 x ⌀44 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4050
⌀40 x ⌀44 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4520
⌀45 x ⌀50 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4525
⌀45 x ⌀50 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4530
⌀45 x ⌀50 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4535
⌀45 x ⌀50 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4540
⌀45 x ⌀50 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes4550
⌀45 x ⌀50 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5020
⌀50 x ⌀55 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5025
⌀50 x ⌀55 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5030
⌀50 x ⌀55 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5035
⌀50 x ⌀55 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5040
⌀50 x ⌀55 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5050
⌀50 x ⌀55 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5060
⌀50 x ⌀55 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5520
⌀55 x ⌀60 x 20
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5525
⌀55 x ⌀60 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5530
⌀55 x ⌀60 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5535
⌀55 x ⌀60 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5540
⌀55 x ⌀60 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5550
⌀55 x ⌀60 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes5560
⌀55 x ⌀60 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6025
⌀60 x ⌀65 x 25
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6030
⌀60 x ⌀65 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6035
⌀60 x ⌀65 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6040
⌀60 x ⌀65 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6050
⌀60 x ⌀65 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6060
⌀60 x ⌀65 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6070
⌀60 x ⌀65 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6530
⌀65 x ⌀70 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6535
⌀65 x ⌀70 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6540
⌀65 x ⌀70 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6550
⌀65 x ⌀70 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6560
⌀65 x ⌀70 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes6570
⌀65 x ⌀70 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7030
⌀70 x ⌀75 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7035
⌀70 x ⌀75 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7040
⌀70 x ⌀75 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7050
⌀70 x ⌀75 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7060
⌀70 x ⌀75 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7070
⌀70 x ⌀75 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7080
⌀70 x ⌀75 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7530
⌀75 x ⌀80 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7535
⌀75 x ⌀80 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7540
⌀75 x ⌀80 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7550
⌀75 x ⌀80 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7560
⌀75 x ⌀80 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7570
⌀75 x ⌀80 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes7580
⌀75 x ⌀80 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8030
⌀80 x ⌀85 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8035
⌀80 x ⌀85 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8040
⌀80 x ⌀85 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8050
⌀80 x ⌀85 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8060
⌀80 x ⌀85 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8070
⌀80 x ⌀85 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8080
⌀80 x ⌀85 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8530
⌀85 x ⌀90 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8535
⌀85 x ⌀90 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8540
⌀85 x ⌀90 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8550
⌀85 x ⌀90 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8560
⌀85 x ⌀90 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8570
⌀85 x ⌀90 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8580
⌀85 x ⌀90 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes8590
⌀85 x ⌀90 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9030
⌀90 x ⌀95 x 30
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9035
⌀90 x ⌀95 x 35
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9040
⌀90 x ⌀95 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9050
⌀90 x ⌀95 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9060
⌀90 x ⌀95 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9070
⌀90 x ⌀95 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9080
⌀90 x ⌀95 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9090
⌀90 x ⌀95 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9540
⌀95 x ⌀100 x 40
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9550
⌀95 x ⌀100 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9560
⌀95 x ⌀100 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9570
⌀95 x ⌀100 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9580
⌀95 x ⌀100 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes9590
⌀95 x ⌀100 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes95100
⌀95 x ⌀100 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10050
⌀100 x ⌀105 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10060
⌀100 x ⌀105 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10070
⌀100 x ⌀105 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10080
⌀100 x ⌀105 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10090
⌀100 x ⌀105 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes100100
⌀100 x ⌀105 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10550
⌀105 x ⌀110 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10560
⌀105 x ⌀110 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10570
⌀105 x ⌀110 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10580
⌀105 x ⌀110 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes10590
⌀105 x ⌀110 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes105100
⌀105 x ⌀110 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes11050
⌀110 x ⌀115 x 50
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes11060
⌀110 x ⌀115 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes11070
⌀110 x ⌀115 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes11080
⌀110 x ⌀115 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes11090
⌀110 x ⌀115 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes110100
⌀110 x ⌀115 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12060
⌀120 x ⌀125 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12070
⌀120 x ⌀125 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12080
⌀120 x ⌀125 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12090
⌀120 x ⌀125 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes120100
⌀120 x ⌀125 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12560
⌀125 x ⌀130 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12570
⌀125 x ⌀130 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12580
⌀125 x ⌀130 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes12590
⌀125 x ⌀130 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes125100
⌀125 x ⌀130 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13060
⌀130 x ⌀135 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13070
⌀130 x ⌀135 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13080
⌀130 x ⌀135 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13090
⌀130 x ⌀135 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes130100
⌀130 x ⌀135 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13560
⌀135 x ⌀140 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13570
⌀135 x ⌀140 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13580
⌀135 x ⌀140 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes13590
⌀135 x ⌀140 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes135100
⌀135 x ⌀140 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14060
⌀140 x ⌀145 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14070
⌀140 x ⌀145 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14080
⌀140 x ⌀145 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14090
⌀140 x ⌀145 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes140100
⌀140 x ⌀145 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14560
⌀145 x ⌀150 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14570
⌀145 x ⌀150 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14580
⌀145 x ⌀150 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes14590
⌀145 x ⌀150 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes145100
⌀145 x ⌀150 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15060
⌀150 x ⌀155 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15070
⌀150 x ⌀155 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15080
⌀150 x ⌀155 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15090
⌀150 x ⌀155 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes150100
⌀150 x ⌀155 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15560
⌀155 x ⌀160 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15570
⌀155 x ⌀160 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15580
⌀155 x ⌀160 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes15590
⌀155 x ⌀160 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes155100
⌀155 x ⌀160 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16060
⌀160 x ⌀165 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16070
⌀160 x ⌀165 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16080
⌀160 x ⌀165 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16090
⌀160 x ⌀165 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes160100
⌀160 x ⌀165 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16560
⌀165 x ⌀170 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16570
⌀165 x ⌀170 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16580
⌀165 x ⌀170 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes16590
⌀165 x ⌀170 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes165100
⌀165 x ⌀170 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17060
⌀170 x ⌀175 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17070
⌀170 x ⌀175 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17080
⌀170 x ⌀175 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17090
⌀170 x ⌀175 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes170100
⌀170 x ⌀175 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17560
⌀175 x ⌀180 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17570
⌀175 x ⌀180 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17580
⌀175 x ⌀180 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes17590
⌀175 x ⌀180 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes175100
⌀175 x ⌀180 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18060
⌀180 x ⌀185 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18070
⌀180 x ⌀185 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18080
⌀180 x ⌀185 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18090
⌀180 x ⌀185 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes180100
⌀180 x ⌀185 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18560
⌀185 x ⌀190 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18570
⌀185 x ⌀190 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18580
⌀185 x ⌀190 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes18590
⌀185 x ⌀190 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes185100
⌀185 x ⌀190 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19060
⌀190 x ⌀195 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19070
⌀190 x ⌀195 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19080
⌀190 x ⌀195 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19090
⌀190 x ⌀195 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes190100
⌀190 x ⌀195 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19560
⌀195 x ⌀200 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19570
⌀195 x ⌀200 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19580
⌀195 x ⌀200 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes19590
⌀195 x ⌀200 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes195100
⌀195 x ⌀200 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20060
⌀200 x ⌀205 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20070
⌀200 x ⌀205 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20080
⌀200 x ⌀205 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20090
⌀200 x ⌀205 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes200100
⌀200 x ⌀205 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20560
⌀205 x ⌀210 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20570
⌀205 x ⌀210 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20580
⌀205 x ⌀210 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes20590
⌀205 x ⌀210 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes205100
⌀205 x ⌀210 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes21560
⌀215 x ⌀220 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes21570
⌀215 x ⌀220 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes21580
⌀215 x ⌀220 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes21590
⌀215 x ⌀220 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes215100
⌀215 x ⌀220 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22060
⌀220 x ⌀225 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22070
⌀220 x ⌀225 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22080
⌀220 x ⌀225 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22090
⌀220 x ⌀225 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes220100
⌀220 x ⌀225 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22560
⌀225 x ⌀230 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22570
⌀225 x ⌀230 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22580
⌀225 x ⌀230 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes22590
⌀225 x ⌀230 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes225100
⌀225 x ⌀230 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes23060
⌀230 x ⌀235 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes23070
⌀230 x ⌀235 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes23080
⌀230 x ⌀235 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes23090
⌀230 x ⌀235 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes230100
⌀230 x ⌀235 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes24060
⌀240 x ⌀245 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes24070
⌀240 x ⌀245 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes24080
⌀240 x ⌀245 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes24090
⌀240 x ⌀245 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes240100
⌀240 x ⌀245 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes25060
⌀250 x ⌀255 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes25070
⌀250 x ⌀255 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes25080
⌀250 x ⌀255 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes25090
⌀250 x ⌀255 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes250100
⌀250 x ⌀255 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes26060
⌀260 x ⌀265 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes26070
⌀260 x ⌀265 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes26080
⌀260 x ⌀265 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes26090
⌀260 x ⌀265 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes260100
⌀260 x ⌀265 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes27060
⌀270 x ⌀275 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes27070
⌀270 x ⌀275 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes27080
⌀270 x ⌀275 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes27090
⌀270 x ⌀275 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes270100
⌀270 x ⌀275 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes28060
⌀280 x ⌀285 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes28070
⌀280 x ⌀285 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes28080
⌀280 x ⌀285 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes28090
⌀280 x ⌀285 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes280100
⌀280 x ⌀285 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes29060
⌀290 x ⌀295 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes29070
⌀290 x ⌀295 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes29080
⌀290 x ⌀295 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes29090
⌀290 x ⌀295 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes290100
⌀290 x ⌀295 x 100
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes30060
⌀300 x ⌀305 x 60
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes30070
⌀300 x ⌀305 x 70
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes30080
⌀300 x ⌀305 x 80
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes30090
⌀300 x ⌀305 x 90
wrapped bushing
CuSn8/CuSn6 bronze lubrication holes300100
⌀300 x ⌀305 x 100







Wrapped bearings CuSn8/CuSn6 bronze lubrication Pockets





Article No.
⌀d x ⌀D x L
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1010
⌀10 x ⌀12 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1015
⌀10 x ⌀12 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1020
⌀10 x ⌀12 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1210
⌀12 x ⌀14 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1215
⌀12 x ⌀14 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1220
⌀12 x ⌀14 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1410
⌀14 x ⌀16 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1415
⌀14 x ⌀16 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1420
⌀14 x ⌀16 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1425
⌀14 x ⌀16 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1510
⌀15 x ⌀17 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1515
⌀15 x ⌀17 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1520
⌀15 x ⌀17 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1525
⌀15 x ⌀17 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1610
⌀16 x ⌀18 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1615
⌀16 x ⌀18 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1620
⌀16 x ⌀18 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1625
⌀16 x ⌀18 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1810
⌀18 x ⌀20 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1815
⌀18 x ⌀20 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1820
⌀18 x ⌀20 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 1825
⌀18 x ⌀20 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2010
⌀20 x ⌀23 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2015
⌀20 x ⌀23 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2020
⌀20 x ⌀23 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2025
⌀20 x ⌀23 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2210
⌀22 x ⌀25 x 10
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2215
⌀22 x ⌀25 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2220
⌀22 x ⌀25 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2225
⌀22 x ⌀25 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2230
⌀22 x ⌀25 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2415
⌀24 x ⌀27 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2420
⌀24 x ⌀27 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2425
⌀24 x ⌀27 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2430
⌀24 x ⌀27 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2515
⌀25 x ⌀28 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2520
⌀25 x ⌀28 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2525
⌀25 x ⌀28 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2530
⌀25 x ⌀28 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2815
⌀28 x ⌀31 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2820
⌀28 x ⌀31 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2825
⌀28 x ⌀31 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 2830
⌀28 x ⌀31 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3015
⌀30 x ⌀34 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3020
⌀30 x ⌀34 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3025
⌀30 x ⌀34 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3030
⌀30 x ⌀34 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3035
⌀30 x ⌀34 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3040
⌀30 x ⌀34 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3215
⌀32 x ⌀36 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3220
⌀32 x ⌀36 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3225
⌀32 x ⌀36 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3230
⌀32 x ⌀36 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3235
⌀32 x ⌀36 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3240
⌀32 x ⌀36 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3515
⌀35 x ⌀39 x 15
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3520
⌀35 x ⌀39 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3525
⌀35 x ⌀39 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3530
⌀35 x ⌀39 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3535
⌀35 x ⌀39 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3540
⌀35 x ⌀39 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3820
⌀38 x ⌀42 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3825
⌀38 x ⌀42 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3830
⌀38 x ⌀42 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3835
⌀38 x ⌀42 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 3840
⌀38 x ⌀42 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4020
⌀40 x ⌀44 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4025
⌀40 x ⌀44 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4030
⌀40 x ⌀44 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4035
⌀40 x ⌀44 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4040
⌀40 x ⌀44 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4050
⌀40 x ⌀44 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4520
⌀45 x ⌀50 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4525
⌀45 x ⌀50 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4530
⌀45 x ⌀50 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4535
⌀45 x ⌀50 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4540
⌀45 x ⌀50 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 4550
⌀45 x ⌀50 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5020
⌀50 x ⌀55 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5025
⌀50 x ⌀55 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5030
⌀50 x ⌀55 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5035
⌀50 x ⌀55 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5040
⌀50 x ⌀55 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5050
⌀50 x ⌀55 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5060
⌀50 x ⌀55 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5520
⌀55 x ⌀60 x 20
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5525
⌀55 x ⌀60 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5530
⌀55 x ⌀60 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5535
⌀55 x ⌀60 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5540
⌀55 x ⌀60 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5550
⌀55 x ⌀60 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 5560
⌀55 x ⌀60 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6025
⌀60 x ⌀65 x 25
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6030
⌀60 x ⌀65 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6035
⌀60 x ⌀65 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6040
⌀60 x ⌀65 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6050
⌀60 x ⌀65 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6060
⌀60 x ⌀65 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6070
⌀60 x ⌀65 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6530
⌀65 x ⌀70 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6535
⌀65 x ⌀70 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6540
⌀65 x ⌀70 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6550
⌀65 x ⌀70 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6560
⌀65 x ⌀70 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 6570
⌀65 x ⌀70 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7030
⌀70 x ⌀75 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7035
⌀70 x ⌀75 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7040
⌀70 x ⌀75 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7050
⌀70 x ⌀75 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7060
⌀70 x ⌀75 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7070
⌀70 x ⌀75 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7080
⌀70 x ⌀75 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7530
⌀75 x ⌀80 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7535
⌀75 x ⌀80 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7540
⌀75 x ⌀80 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7550
⌀75 x ⌀80 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7560
⌀75 x ⌀80 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7570
⌀75 x ⌀80 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 7580
⌀75 x ⌀80 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8030
⌀80 x ⌀85 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8035
⌀80 x ⌀85 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8040
⌀80 x ⌀85 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8050
⌀80 x ⌀85 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8060
⌀80 x ⌀85 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8070
⌀80 x ⌀85 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8080
⌀80 x ⌀85 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8530
⌀85 x ⌀90 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8535
⌀85 x ⌀90 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8540
⌀85 x ⌀90 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8550
⌀85 x ⌀90 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8560
⌀85 x ⌀90 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8570
⌀85 x ⌀90 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8580
⌀85 x ⌀90 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 8590
⌀85 x ⌀90 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9030
⌀90 x ⌀95 x 30
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9035
⌀90 x ⌀95 x 35
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9040
⌀90 x ⌀95 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9050
⌀90 x ⌀95 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9060
⌀90 x ⌀95 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9070
⌀90 x ⌀95 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9080
⌀90 x ⌀95 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9090
⌀90 x ⌀95 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9540
⌀95 x ⌀100 x 40
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9550
⌀95 x ⌀100 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9560
⌀95 x ⌀100 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9570
⌀95 x ⌀100 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9580
⌀95 x ⌀100 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 9590
⌀95 x ⌀100 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 95100
⌀95 x ⌀100 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10050
⌀100 x ⌀105 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10060
⌀100 x ⌀105 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10070
⌀100 x ⌀105 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10080
⌀100 x ⌀105 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10090
⌀100 x ⌀105 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 100100
⌀100 x ⌀105 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10550
⌀105 x ⌀110 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10560
⌀105 x ⌀110 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10570
⌀105 x ⌀110 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10580
⌀105 x ⌀110 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 10590
⌀105 x ⌀110 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 105100
⌀105 x ⌀110 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 11050
⌀110 x ⌀115 x 50
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 11060
⌀110 x ⌀115 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 11070
⌀110 x ⌀115 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 11080
⌀110 x ⌀115 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 11090
⌀110 x ⌀115 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 110100
⌀110 x ⌀115 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12060
⌀120 x ⌀125 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12070
⌀120 x ⌀125 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12080
⌀120 x ⌀125 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12090
⌀120 x ⌀125 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 120100
⌀120 x ⌀125 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12560
⌀125 x ⌀130 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12570
⌀125 x ⌀130 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12580
⌀125 x ⌀130 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 12590
⌀125 x ⌀130 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 125100
⌀125 x ⌀130 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13060
⌀130 x ⌀135 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13070
⌀130 x ⌀135 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13080
⌀130 x ⌀135 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13090
⌀130 x ⌀135 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 130100
⌀130 x ⌀135 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13560
⌀135 x ⌀140 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13570
⌀135 x ⌀140 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13580
⌀135 x ⌀140 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 13590
⌀135 x ⌀140 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 135100
⌀135 x ⌀140 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14060
⌀140 x ⌀145 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14070
⌀140 x ⌀145 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14080
⌀140 x ⌀145 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14090
⌀140 x ⌀145 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 140100
⌀140 x ⌀145 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14560
⌀145 x ⌀150 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14570
⌀145 x ⌀150 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14580
⌀145 x ⌀150 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 14590
⌀145 x ⌀150 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 145100
⌀145 x ⌀150 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15060
⌀150 x ⌀155 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15070
⌀150 x ⌀155 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15080
⌀150 x ⌀155 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15090
⌀150 x ⌀155 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 150100
⌀150 x ⌀155 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15560
⌀155 x ⌀160 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15570
⌀155 x ⌀160 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15580
⌀155 x ⌀160 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 15590
⌀155 x ⌀160 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 155100
⌀155 x ⌀160 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16060
⌀160 x ⌀165 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16070
⌀160 x ⌀165 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16080
⌀160 x ⌀165 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16090
⌀160 x ⌀165 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 160100
⌀160 x ⌀165 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16560
⌀165 x ⌀170 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16570
⌀165 x ⌀170 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16580
⌀165 x ⌀170 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 16590
⌀165 x ⌀170 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 165100
⌀165 x ⌀170 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17060
⌀170 x ⌀175 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17070
⌀170 x ⌀175 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17080
⌀170 x ⌀175 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17090
⌀170 x ⌀175 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 170100
⌀170 x ⌀175 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17560
⌀175 x ⌀180 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17570
⌀175 x ⌀180 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17580
⌀175 x ⌀180 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 17590
⌀175 x ⌀180 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 175100
⌀175 x ⌀180 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18060
⌀180 x ⌀185 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18070
⌀180 x ⌀185 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18080
⌀180 x ⌀185 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18090
⌀180 x ⌀185 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 180100
⌀180 x ⌀185 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18560
⌀185 x ⌀190 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18570
⌀185 x ⌀190 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18580
⌀185 x ⌀190 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 18590
⌀185 x ⌀190 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 185100
⌀185 x ⌀190 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19060
⌀190 x ⌀195 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19070
⌀190 x ⌀195 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19080
⌀190 x ⌀195 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19090
⌀190 x ⌀195 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 190100
⌀190 x ⌀195 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19560
⌀195 x ⌀200 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19570
⌀195 x ⌀200 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19580
⌀195 x ⌀200 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 19590
⌀195 x ⌀200 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 195100
⌀195 x ⌀200 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20060
⌀200 x ⌀205 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20070
⌀200 x ⌀205 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20080
⌀200 x ⌀205 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20090
⌀200 x ⌀205 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 200100
⌀200 x ⌀205 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20560
⌀205 x ⌀210 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20570
⌀205 x ⌀210 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20580
⌀205 x ⌀210 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 20590
⌀205 x ⌀210 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 205100
⌀205 x ⌀210 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 21560
⌀215 x ⌀220 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 21570
⌀215 x ⌀220 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 21580
⌀215 x ⌀220 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 21590
⌀215 x ⌀220 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 215100
⌀215 x ⌀220 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22060
⌀220 x ⌀225 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22070
⌀220 x ⌀225 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22080
⌀220 x ⌀225 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22090
⌀220 x ⌀225 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 220100
⌀220 x ⌀225 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22560
⌀225 x ⌀230 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22570
⌀225 x ⌀230 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22580
⌀225 x ⌀230 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 22590
⌀225 x ⌀230 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 225100
⌀225 x ⌀230 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 23060
⌀230 x ⌀235 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 23070
⌀230 x ⌀235 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 23080
⌀230 x ⌀235 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 23090
⌀230 x ⌀235 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 230100
⌀230 x ⌀235 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 24060
⌀240 x ⌀245 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 24070
⌀240 x ⌀245 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 24080
⌀240 x ⌀245 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 24090
⌀240 x ⌀245 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 240100
⌀240 x ⌀245 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 25060
⌀250 x ⌀255 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 25070
⌀250 x ⌀255 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 25080
⌀250 x ⌀255 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 25090
⌀250 x ⌀255 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 250100
⌀250 x ⌀255 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 26060
⌀260 x ⌀265 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 26070
⌀260 x ⌀265 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 26080
⌀260 x ⌀265 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 26090
⌀260 x ⌀265 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 260100
⌀260 x ⌀265 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 27060
⌀270 x ⌀275 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 27070
⌀270 x ⌀275 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 27080
⌀270 x ⌀275 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 27090
⌀270 x ⌀275 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 270100
⌀270 x ⌀275 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 28060
⌀280 x ⌀285 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 28070
⌀280 x ⌀285 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 28080
⌀280 x ⌀285 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 28090
⌀280 x ⌀285 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 280100
⌀280 x ⌀285 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 29060
⌀290 x ⌀295 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 29070
⌀290 x ⌀295 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 29080
⌀290 x ⌀295 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 29090
⌀290 x ⌀295 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 290100
⌀290 x ⌀295 x 100
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 30060
⌀300 x ⌀305 x 60
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 30070
⌀300 x ⌀305 x 70
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 30080
⌀300 x ⌀305 x 80
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 30090
⌀300 x ⌀305 x 90
wrapped bushing
CuSn8/CuSn6 Wrapped Bronze With Lubrication Pockets 300100
⌀300 x ⌀305 x 100
