Oil-Free Slide Plates, Plugged Graphite Plate, Cost-effective graphite parts, contact me to give you a satisfactory price.

Check the oil-free sliding plates for the latest prices and delivery times to order from China with holes of different thicknesses.

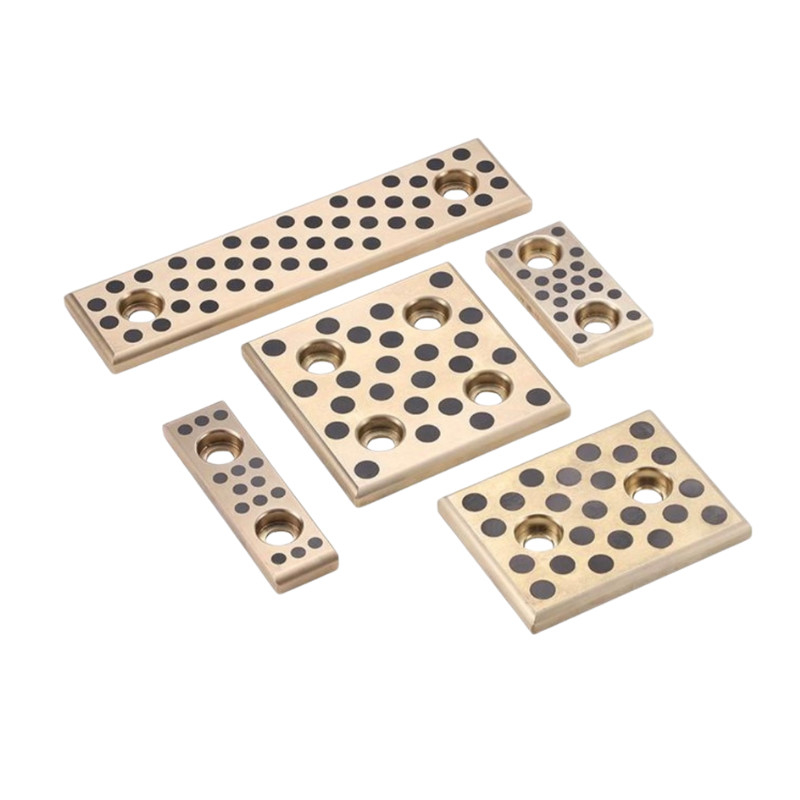

Oil-free slide plates are produced by incorporating a special solid lubricant in the appropriate places.Sintered alloy is a special alloy with an even distribution of solid lubricants and lubricating grease filled with pores.The metal base material supports the load while the built-in solid lubricant provides lubrication, resulting in superior oil-free durability, even under harsh conditions.

Oil-free slide plates  Feature

1. Oil-free slide plates are most effective in places where a constant supply of lubricant is required, frequent or frequent start and stop movements are required and the oil film is difficult to form.
2. Since oil-free slide plates are used in oil-free conditions, lubrication equipment is not required. This reduces assembly time and results in a cleaner environment by preventing pollution from hydrocarbons and other problems.
3. Oil-free slide plates have excellent seizure resistance.

Oil-free Slide Plates Size Model

Material: C86300 bronze Oil-Free Slide Plates (previously used copper alloy JIS, HBSC4). Special solid lubricant. Initial lubrication is recommended for more efficient use. Oil-free sliding plates made of copper alloy

Oil-free slide plates chemical composition

Oil-free slide plates mechanical properties

Oil-Free Slide Plates Material Properties

•  Enables maintenance-free and long life;
•  Suitable for high static and dynamic loads;
•  With low and smooth friction coefficient and no stick-slip effect;
•  Suitable for dirt, corrosion, impact load, and edge loading;
•  The base material provided good shock absorption;
•  Can be used in a wide temperature range;
•  Suitable for reciprocating, rotational and oscillating movement with initial frequency and difficulty in creating an oil film;

Oil-Free Slide Plates are special elements that are intended to significantly reduce the coefficient of friction in pipe supports. As a result, they lower the load values ​​caused by the horizontal displacement of pipes or devices, reduce the load, and improve the functionality of the associated rest supports.

They are usually installed between the pipe or equipment and the structure or floor. The main sliding plate is based on the use of PTFE for temperatures below 150ºC or brown graphite for temperatures in this range or when loads or environmental conditions are harsher, or because of their longer service life.

The PTFE or bronze-graphite component is permanently attached to a carbon steel base designed to be welded to the support structure or the recessed plate.

Oil-Free Slide Plates Types & Dimensions

Inlaid plates, suppliers, and manufacturers of inlaid plates.

This type of Oil-Free Slide Plates can be applied in dry, high temperature, high pressure, corrosive, water, or other chemical environments when it is not possible to introduce oil. It is widely used in the automotive product line, water engineering, dam gate, plastics industries, subsequent casting machines, steel rollers in the metallurgical industry, mineral machines, ships, turbogenerators, hydraulic turbines, and injection molding machines.

Oil-Free Slide Plates

STRUCTURE

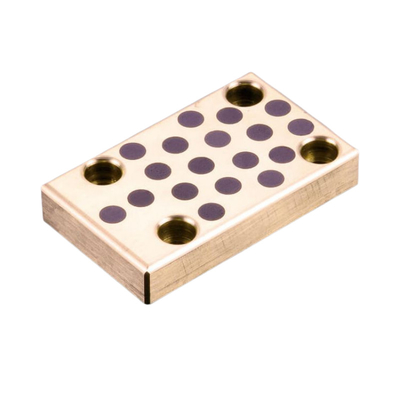

VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
