Gerolde Tinbronzen Glijlagers Oilless Sliding CuSn8 Self Lubricating Bronze Bushings

Place of Origin Made in China
Brand Name VIIPLUS
Certification ISO9001
Model Number Bronze Bushings CuSn8P
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 3 - 15 BUSINESS DAYS
Payment Terms T/T
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material CUSN8 Performance High Load Capacity And Long Life
Type Sleeve,Flange,Thrust Washer,Sliding Plates Application Agricultural Machinery, Brakes And Certain Construction Machinery.
Bushing Size Special Dimensions And Imperial Sizes Are Available On Request Product Name China Manufacturer Customized 090 Wrapped Copper Bushing
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze
Feature BRO-MET, FB090, BRM10, WB800 Specialty Бронзовые втулки
High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

self lubricating bronze bearing

,

cusn8 bushings

Leave a Message
Product Description

Maintenance-free bronze plain bearings, Wrapped bronze glijlagers

Bronze Wrapped Plain Bearing Bushings Gerolde tinbronzen glijlagers



These bearing shells are wrapped in cold pressed uniform bronze (CuSn8), which can achieve exceptional material properties. According to different lubrication conditions, we can provide diamond-shaped lubricating recesses (lubrication) and include holes (oil), these designs can quickly create a lubricating film at the beginning of movement and, therefore, reduce friction during movement.





GET A FREE QUOTE ONLINE NOW !



VIIPLUS specialized in research and development, production and sale of self-lubricating bearings. The main Bronze Wrapped Plain Bearings products are metallic polymer composite bearings, bimetallic composite bearings, bronze coated bearings, self-lubricating monometallic bearings and other bearings.



VIIPLUS is the perfect choice for your business Self-lubricated Parts needs.


Provide You Best Self-lubricating Bearings Solution.

Self-lubricating bearings feature precision tolerances, proprietary internal geometries and quality self-lubricating materials. our bronze, cylindrical bushes, flanged bushes, thrust washers, sliding bearings, precision and housed unit bearings deliver strong performance, consistently and reliably.

We collaborate with global customers in diversified application. From wind energy in the North Sea to mining machinery crossing the Sahara, we bring to life know-how and innovation, providing true marketplace advantage.

To this day, VIIPLUS’s founding vision of making the world move more efficiently and reliably remains at the core of our business.

As the china supplier of self-lubricating bearings, The VIIIPLUS Company applies its deep knowledge of metallurgy, tribology and cast systems to improve the reliability and efficiency of equipment, machinery and energy worldwide.





090 is made from high quality alloyed, hot rolled phosphorus tin bronze. The plain bearings are specially designed for high loads and are shockproof. The entire sliding surface of the bearing consists of lubrication pockets that form a lubricating film that reduces friction both at start up and during operation. FB090 is intended for radial, oscillating and axial movements and is particularly suitable for medium to high loads.



Material:CuSn8

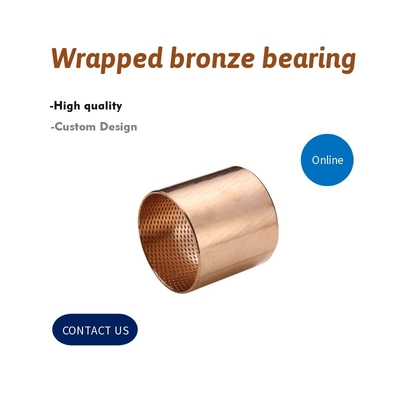

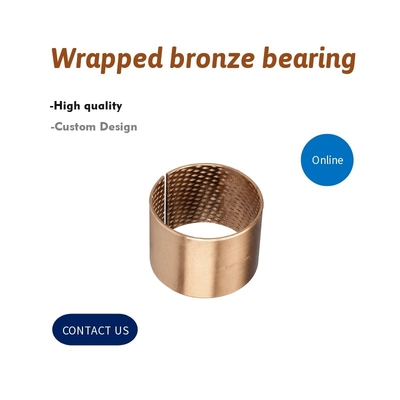

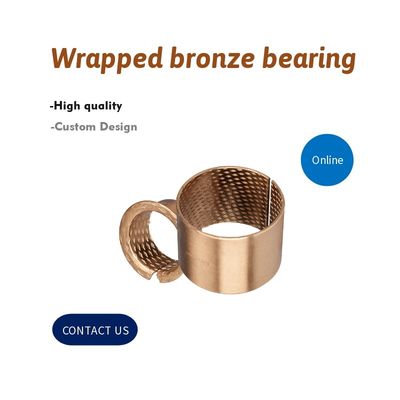

wrapped bronze bearing





Bronze Bushing Available, Down A Catalog:FB-090 series bronze bushing.pdf,Custom S​olutions.Enquire Online


Bronze Bushing 60-65-50mm ,Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery


Flange Bronze Bushing,ID25*OD28*L25*F35mm Bronze bushing flange ID25 OD28 F35 L25.pdf.



Available Bronze Wrapped Plain Bearings products: straight sleeve, thrust gasket, flanged bushing, bearing bush, sliding plate, steel sleeve assembly.





090 bronze bearing, using special formula of high density copper alloy strip as the substrate, the surface can be rolled according to user requirements rhomboid or hemispherical oil hole, oil groove. It has the advantages of high density, large bearing capacity, good wear resistance and long service life, etc., which can replace the traditional casting copper sleeve, reduce the mechanical volume and reduce the cost.



It has been widely used in lifting machinery, construction machinery, automobile and tractor chassis, machine tool industry and mining machinery, but also can be made into bearing bush, flanged bushing, thrust gasket and ball bowl and other forms.





Chemical Composition

Material Cu Sn P Pb Zn
CuSn8 91.3% 8.5% 0.2% / /







090 Oil IndentationsHoles

Bearing Play




To the H9 tolerance of the slide bearing we recommend shafts with tolerance e7 or f7. If h-shafts are used, the bearing inner diameter should be machined up to tolerance F7.









Structure

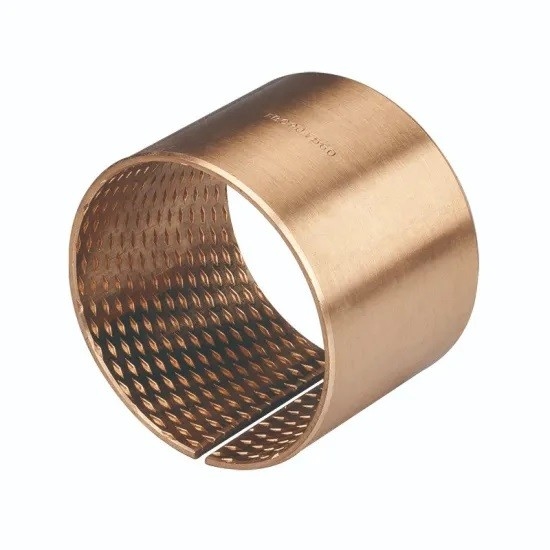

The bearings are wrapped in a homogeneous cold stamped bronze (CuSn8) with exceptional material properties. Standard sizes have diamond-shaped lubrication recesses in the bearing surface. These indentations serve as lubricant reservoirs to quickly create a lubrication film at the beginning of the movement and subsequently reduce running friction. The material is suitable for building applications and agricultural machines.







Technical Data

Property Data
Max.load Max. static load  120N/mm²
Max. dynamic load 40N/mm²
Max. speed 2.5m/s
Max.PV 2.8N/mm²・m/s
Friction coefficient (μ) 0.08~0.25
Temperature range -100℃~+200℃
Heat conductivity coefficient 60W/m・K
Coefficient of thermal expansion 15×-6/K



Data parameter



Standard Dia. O.D.Size Housing Bore I.D.Size Matching Shaft Diameter
10~18 +0.065
+0.030
+0.018
0
+0.046
0
- 0.016
- 0.043
18~30 +0.075
+0.035
+0.021
0
+0.052
0
- 0.020
- 0.020
30~50 +0.085
+0.045
+0.025
0
+0.062
0
- 0.025
- 0.064
50~80 +0.100
+0.055
+0.030
0
+0.074
0
- 0.030
- 0.076
80~120 +0.120
+0.070
+0.035
0
+0.087
0
- 0.036
- 0.090
120~180 +0.170
+0.100
+0.400
0
+0.100
0
- 0.043
- 0.106
180~250 +0.210
+0.130
+0.046
0
+0.115
0
- 0.050
- 0.122
250~315 +0.260
+0.170
+0.052
0
+0.130
0
- 0.056
- 0.137

Bronze bearing 090

Tolerances

Shaft dia: e7 / f7
Housing: H7




Availability



Bearing forms available in standard dimensions



·Cylindrical bushes
·Flanged bushes
·Thrust washers
·Sliding plates





Metric bearings and imperial bushings are made to order: standard forms of bushings of special sizes, half couplings, special forms obtained by stamping or deep drawing, individual designs of bushings



Characteristics

1.Easy to assemble and lubricate
2.High load capacity
3.Inner diameter can be machined on request
4.High thermal conductivity
5.Minimum overall dimensions
6.Chemical resistance.



Wrapped bushing, Bronze CuSn8, ISO9001, Low-maintenance

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 ),which can achieve exceptional material properties.



Depending on the lubrication conditions, we can provide diamond-shaped lubricating pins (grease) and include holes (oil), a self-lubricating cylindrical bushing with a thin-walled bronze bushing, coated with CuSn8, with a bronze support and a cylindrical bushing, which can quickly build up a lubricating film . movement, and then reduce working friction.



The thin wall design is made by rolling, which can meet the requirements of low precision and cost sensitive occasions. Rhomboid oil hole design for grease lubrication, through the initial lubrication quickly establish oil film to reduce adhesive wear, the inner hole can be processed according to the need, the copper alloy substrate has a good corrosion resistance and thermal conductivity. Regular oil feeding is recommended for medium and low load conditions.



 Application

·engineering machinery



·auto industry



·Tractors



·truck



·farm machinery



·Others



Copper-base rolling bearings are widely used in high-load and low-speed working conditions of hoisting equipment and construction machinery, automobile industry, tractors, trucks, agricultural machinery and mining equipment. The products that can be processed include axle sleeve, axle bush, flanged axle sleeve, thrust gasket and so on.



BUSHING TYPES FOR SALE



Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing





Our qualifications and operational philosophy lead to the creation of reliable Bronze Wrapped Plain Bearings products and the ability to carry out even the most complex projects that meet the strict requirements of our customers.

We can offer special sizes, shapes, shapes or lengths on request.Please contact us for a quote or more information.
