No Lead No Oil Self Lubricating Polymer Plain Bearings RoHS Certification

Place of Origin CHINA
Brand Name viiplus no oil, self-lubricating POM composite bearing
Certification ROSH certification
Model Number self-lubricating POM composite bearing
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 works day
Payment Terms L/C, T/T, Western Union
Supply Ability 1000000 Piece/Pieces One week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL POM+STEEL+ CuSn6.5P0.1 Features Environmental Protection
Use The Feature No Oil, Self-lubricating Type Composite Bushing,thrust Washer
Service High Quality Sample Available / Free
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

flanged plain bearing

Leave a Message
Product Description

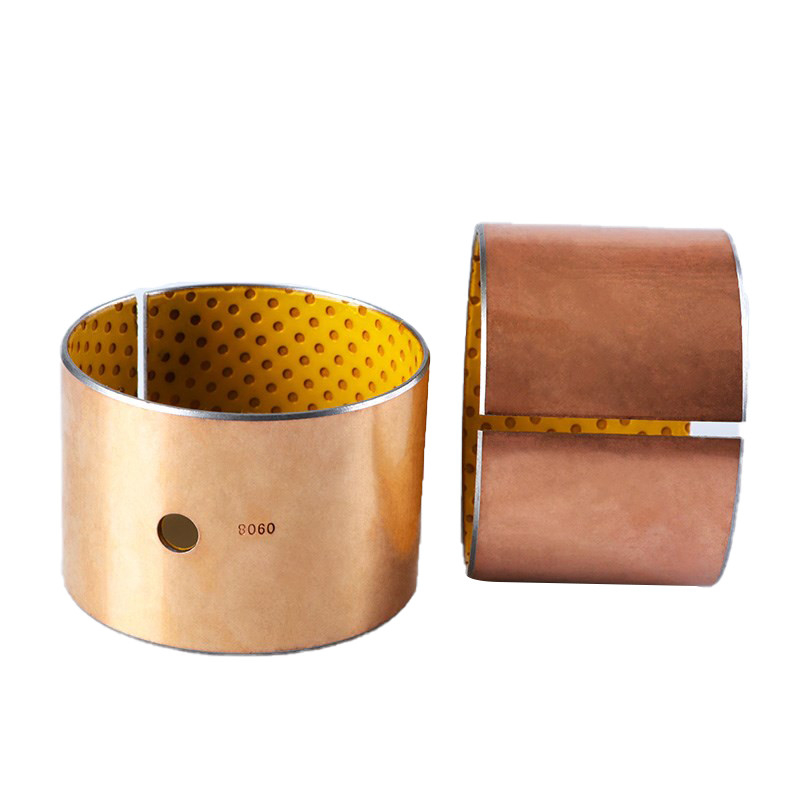

POM Composite Bearings | Self-lubricating Bronze Bushings

The POM composite bearing trademark denotes a range of sliding bearings produced from a material with a composite structure. The backing consists of carbon steel onto which a porous layer of bronze is sintered and then impregnated with a co-acetal plastic. The polymeric surface has indentations in which the lubricating grease lies and protects the mating surface. The main pom composite bearings in the pom composite bearing range are the cylindrical bushings (DIN 1494), but thrust washers and strips are also available as well as special parts made to customer specifications.


The POM composite bearing is suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.

pom composite bearing

POM Composite Bearing Material


1. POM (Acetal) 0.30-0.50mm:has high wear resistance and low friction. The pom composite bearing surface has a pattern of circular indents, which should be filled with grease on assembly.
2. Sintered bronze powder 0.20-0.35mm: provides maximum thermal conductivity away from the pom composite bearing surface, also serves as a reservoir for the resin mixture.
3. Low-Carbon Steel: provides exceptionally high load carrying capacity.
4. Copper/Tin plating 0.002mm: provides good corrosion resistance.


POM Composite Bearing Typical Application


Recommended for applications involving intermittent operation or boundary lubrication.
  • Automotive: suspension joints, kingpin assemblies, automobile driving joint hinges, steering and other linkages, articulation joints, and rear chassis hinges.
  • Machine Tools: spindles in drill, grinding, and milling machines, and ram guide plates in multi ram presses.
  • Agricultural Equipment: gearboxes, clutch assemblies, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters.



In the food, medicine and other mechanical industries, the use of environmentally-friendly oil-free lubrication bearings not only reduces the impact of lubricating oil on the working environment during maintenance, but also prevents the pollution of heavy metals to pom composite bearings products.

ploymer plain bearings

Boundary lubricated lead-free bearing, this pom composite bearings and VSB-2 have the same structure and performance, at the same time has the environmental protection function, under the boundary lubrication condition can be used for a long time without oiling, wear resistant layer surface has oil storage pit. POM composite bearings Products are widely used in gold processing machinery, mining machinery, water conservancy machinery, automobile, construction machinery, agricultural machinery, steel rolling industry, food machinery, pharmaceutical machinery, tobacco machinery, etc.





We choose low carbon steel as the base of the bearing



Q235
C(%) Si(%) Mn(%) S(%) P(%) Ni+Cu
≤0.22 ≤0.35% Mn≤1.4 ≤0.050 ≤0.001 ≤0.045





A brief introduction to polyformaldehyde (POM) materials



1. With high mechanical strength and rigidity;
2. The Maximum fatigue strength;
3. Good environmental resistance and organic solvent resistance;
4. Strong resistance to sustained impact;
5. Widely used temperature ranges from -40℃ to 120℃.
6. Good electrical properties.
7. Good recovery.

8. With their own lubrication, good wear to hold;

9. Excellent dime



Melting point of 175 ° C
Density 1.42 g/mL at 25 °C
Flash point 158 °F storage condition 2-8°C



Self-lubricating oil-free pom composite bearing structure composition



pom composite bearing structure                                                                 pom composite bearing structure







No oil, POM Composite Bearing Bronze Bearing Characteristics





Performance indicators Date
Maximum load P Static load 250N/mm²
Dynamic load 150N/mm²
highest line speed V Grease lubrication 2.5m/s
High PV value Grease lubrication 3.6N/mm²・m/s
Coefficient of friction Grease lubrication 0.05~0.25
The use of temperature
-40℃~+130℃
Coefficient of thermal conductivity 4W/m・K
Coefficient of thermal expansion 12×10-6/K





You can choose the structure of your POM composite oil-free self-lubricating bearings



bearing types



You can customize various POM composite oil-free self-lubricating bearings from us, and design related drawings



pom composite bearing drawings



Here you can choose the pom composite bearing size of the type part, more sizes you can refer to PDF.





h8 H7 d D T h- 30 40 50 60 65 70
65 0
-0.046
70 +0.030
0
65 70 2.460
2.415
8 6530 6540 6550 6060   6570
70 " 75 " 70 75 " "   7040 7050   7065 7070
75 " 80 " 75 80 " "   7540   7560
80 " 85 +0.035
0
80 85 2.450
2.385
9.5       8060
85 0
-0.054
90 " 85 90 " " 8530 8540   8560
90 " 95 " 90 95 " "   9040   9060
95 " 100 " 95 100 " "       9560
100 " 105 " 100 105 " "     10050 10060
105 " 110 " 105 110 " "       10560
110 " 115 " 110 115 " "       11060
115 " 120 " 115 120 " "           11570
120 " 125 +0.040
0
120 125 " "       12060
125 0
-0.063
130 " 125 130 " "       12560
130 " 135 " 130 135 " "     13050 13060
135 " 140 " 135 140 " "     13550 13560
140 " 145 " 140 145 " "       14060
150 " 155 " 150 155 " "     15050 15060
160 " 165 " 160 165 " "     16050 16060
170 " 175 " 170 175 " "     17050 17060
180 " 185 +0.046
0
180 185 " "     18050 18060
190 0
-0.072
195 " 190 195 " "     19050 19060
200 " 205 " 200 205 " "     20050 20060
220 " 225 " 220 225 " "     22050 22060
240 " 245 " 240 245 " "     24050 24060
250 " 255 +0.052
0
250 255 " "     25050 25060
260 0
-0.081
265 " 260 265 " "     26050 26060
280 " 285 " 280 285 " "     28050 28060
300 " 305 " 300 305         30050 30060




Click here for PDF for more pom composite bearings information

Wrapped Composite Sliding Bearing .pdf



POM Composite Bearing Application field



pom composite bearing application pom composite bearing application
