WC10 Thrust Washers Self Lubricating Plain Bearing PTFE Lined 20-10-1.5mm

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Washer POM Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Standard package, Pallet or container, As per customized specifications
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Steel +copper + PTFE, Plating Tin Or Copper
Types Properties: "LWM", Gleitlager, Anlaufscheiben Und Bandstreifen Application Automotive Engineering Material Handling Household Appliances And Consumer Goods Textile Machinery
Parts Bushings-thrust-washers-strips CATEGORIES Plain Bearings Thrust Washer
Thrust Washers Size 20-10-1.5mm Thrust Washer Thrust Washer, Self Lubricating
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

self lubricating bearing

,

sintered self lubricating bushes

Leave a Message
Product Description

Product information "LWM", Thrust washer, self-lubricating, please advise the Shaft diameter, get your Price and delivery time on request.

Thrust washer Steel backed Properties: "LWM" replacement

Base Material: Steel
Self-lubricating: Yes
Lubricant: PTFE lubrication layer
Surface Pressure P (<100.000 load cases): 29 N/mm²
Surface Pressure P (>10 mln. load cases): 15 N/mm²
Surface Pressure P (rotating, oscillating, gliding): 59 N/mm²
Surface Pressure P (very slow movement): 147 N/mm²
Sliding speed v: 15 m/min
Operating temperature: -200°C / +280°C

thrust washer

Thrust washer, self lubricating









WASHER SIZE CHART





  Di (mm) Do (mm) ST (mm) dD (mm) dP (mm) Ha max. (mm) Ha min. (mm)
WC08DU 10 20 1.5     1.2 0.95
WC10DU 12 24 1.5 1.75 18 1.2 0.95
WC12DU 14 26 1.5 2.25 20 1.2 0.95
WC14DU 16 30 1.5 2.25 22 1.2 0.95
WC16DU 18 32 1.5 2.25 25 1.2 0.95
WC18DU 20 36 1.5 3.25 28 1.2 0.95
WC20DU 22 38 1.5 3.25 30 1.2 0.95
WC22DU 24 42 1.5 3.25 33 1.2 0.95
WC24DU 26 44 1.5 3.25 35 1.2 0.95
WC25DU 28 48 1.5 4.25 38 1.2 0.95
WC30DU 32 54 1.5 4.25 43 1.2 0.95
WC35DU 38 62 1.5 4.25 50 1.2 0.95
WC40DU 42 66 1.5 4.25 54 1.2 0.95
WC45DU 48 74 2 4.25 61 1.7 1.45
WC50DU 52 78 2 4.25 65 1.7 1.45
WC60DU 62 90 2 4.25 76 1.7 1.45

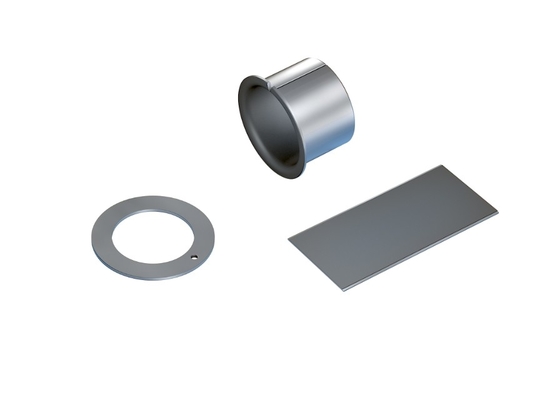

Thrust Washers PTFE Lined 20-10-1.5mm, with a Bronze support strip, stainless steel 316 or 304 is also available, contact us for details. Equivalent alternative brands include Glacier DU, P10, P14,

Metric / Imperial: Metric (mm)
Internal Diameter: 10mm
Outside Diameter: 20mm
Thickness (Sheets and Washers): 1.5mm



The washer is a composite bearing material comprising 3 layers: Steel support strip (S.A.E 1010), Sintered bronze layer, PTFE layer.

Performance:



1. Modified polytetrafluoroethylene (PTFE) lead (Pb) mixture 0.01~0.03mm, a wear-resistant material that can form a transfer film to protect the grinding shaft during operation.
2. Copper powder layer 0.2mm ~0.3mm improves the bonding strength of PTFE/Pb with steel plate, with good bearing capacity and wear resistance. At the same time copper is a good thermal material, can quickly transfer the heat generated in the process of bearing operation.
3. Low carbon steel 0.7-2.3mm, improve the bearing capacity and heat transfer.
4. Copper/tin plating, copper plating 0.008mm, tin plating 0.005mm, so that the bearing has good corrosion resistance.




Application features:


1. No oil lubrication or less oil lubrication, suitable for the occasion where oil cannot be filled or difficult to be filled, can be used without maintenance or less maintenance;
2. Good wear resistance, small friction coefficient, and long service life;3. Can be used in the range of -195℃ ~ +280℃;
4. Good running performance, low noise, no pollution;5. Thin-walled structure, lightweight, can reduce the mechanical volume;
6. The transfer film can be formed during operation to protect the grinding shaft, without biting the shaft;
7. The hardness requirement of the grinding shaft is low, and the shaft without the tempering treatment can be used, thus reducing the processing difficulty of relevant parts;
8. No water absorption and oil absorption, low coefficient of thermal expansion, good heat dissipation and stable size;
9. The back of the steel can be plated with a variety of metals, so it can be used in corrosive media without rust;
At present has been widely applied to various mechanical sliding parts, such as automatic mechanical equipment (telescopic, swing, slide, bending, cyclotron, turning parts) hydraulic cylinder guide sleeve, gear pump up, textile machinery, vending machines, plastic molding machine, die-casting machine, rubber machine, tobacco machine, fitness equipment, office machinery, hydraulic truck, automobile, motorcycle, forestry machinery, etc.



PTFE composite thrust washer is suitable for space-saving axial guide bushing bearings for high load/medium speed applications.VIIPLUS offers a variety of PTFE composite thrust washers. The advantages of these slots are:

  1. Maintenance-free operation
  2. Good friction properties
  3. High load capacity
  4. High operating temperature
  5. High allowable sliding speed
Unit: mm



D size size dimension mounting dimension
φD 0
-0.25
φd 0
-0.25
T 0
-0.050
M±0.125
h +0.40
+0.10
t±0.20 D1+0.12
8 SF-1WC 10 20 10 1.5 15 1.5 1.0 20
10 SF-1WC 12 24 12 18 24
12 SF-1WC 14 26 14 20 2.0 26
14 SF-1WC 16 30 16 23 30
16 SF-1WC 18 32 18 25 32
18 SF-1WC 20 36 20 28 3.0 36
20 SF-1WC 22 38 22 30 38
22 SF-1WC 24 42 24 33 42
24 SF-1WC 26 44 26 35 44
26 SF-1WC 28 48 28 38 4.0 48
30 SF-1WC 32 54 32 43 54
36 SF-1WC 38 62 38 50 62
40 SF-1WC 42 66 42 54 66
46 SF-1WC 48 74 48 2.0 61 1.5 74
50 SF-1WC 52 78 52 65 78
60 SF-1WC 62 90 62 76 90







Unit: mm

Ds

H7
DH

DO

Di,a

S3
f1 f2
L 0(d≤Φ28 L-0.30)
-0.40(d≤Φ28 L-0.40)
6 8 10 12 15 20 25 30 40 50
2 0
-0.006
3.5 +0.008 3.5 +0.055 2.055
1.990
0.750
0.730
0.4 0.3
+0.025
4 0
-0.008
5.5 +0.008 5.5 +0.055 4.055
3.990
0406 0408
+0.025 1.005
0.980
0.6 0.3
5 -0.010
-0.022
7 +0.015 7 +0.055 5.055
4.990
0506 0508 0510
+0.025
6 -0.010
-0.022
8 +0.015 8 +0.055 6.055
5.990
0606 0608 0610
+0.025
8 -0.013
-0.028
10 +0.015 10 +0.055 8.055
7.990
0806 0808 0810 0812 0815
+0.025
10 -0.013
-0.028
12 +0.018 12 +0.065 10.058
9.990
1006 1008 1010 1012 1015 1020
+0.030
12 -0.016
-0.034
14 +0.018 14 +0.065 12.058
11.990
1206 1208 1210 1212 1215 1220 1225
+0.065
13 -0.016
-0.034
15 +0.018 15 +0.065 13.058
12.990
    1310     1320
+0.065
14 -0.016
-0.034
16 +0.018 16 +0.065 14.058
13.990
    1410 1412 1415 1420 1425
+0.065
15 -0.016
-0.034
17 +0.018 17 +0.065 15.058
14.990
    1510 1512 1515 1520 1525
+0.065
16 -0.016
-0.034
18 +0.018 18 +0.065 16.058
15.990
    1610 1612 1615 1620 1625
+0.065
17 -0.016
-0.034
19+0.021 19 +0.075 17.061
16.990
    1710 1712   1720
+0.035
18 -0.016
-0.034
20+0.021 20 +0.075 18.061
17.990
    1810 1812 1815 1820 1825
+0.035
20 -0.020
-0.041
23+0.021 23 +0.075 20.071
19.990
1.505
1.475
0.6 0.4     2010 2012 2015 2020 2025 2030
+0.035
22 -0.020
-0.041
25+0.021 25 +0.075 22.071
21.990
    2210 2212 2215 2220 2225 2230
+0.035
24 -0.020
-0.041
27+0.021 27 +0.075 24.071
23.990
        2415 2420 2425 2430
+0.035
25 -0.020
-0.041
28+0.021 28 +0.075 25.071
24.990
    2510 2512 2515 2520 2525 2530 2540 2550
+0.035
28 -0.020
-0.041
32+0.025 32 +0.085 28.085
27.990
2.005
1.975
1.2 0.4         2815 2820 2825 2830 2840
+0.045
30 -0.020
-0.041
34+0.025 34 +0.085 30.085
29.990
      3012 3015 3020 3025 3030 3040
+0.045
32 -0.025
-0.050
36+0.025 36 +0.085 32.085
31.990
          3220   3230 3240
+0.045
35 -0.025
-0.050
39+0.025 39 +0.085 35.085
34.990
      3512 3515 3520 3525 3530 3540 3550
+0.045
38 -0.025
-0.050
42+0.025 42 +0.085 38.085
37.990
        3815     3830 3840
+0.045
40 -0.025
-0.050
44+0.025 44 +0.085 40.085
39.990
      4012   4020 4025 4030 4040 4050
+0.045

Ds

H7
DH

DO

Di,a

S3
f1 f2
L 0(d≤Φ28 L-0.30)
-0.40(d≤Φ28 L-0.40)
20 25 30 40 50 60 70 80 100 115
45 -0.050
-0.025
50+0.025 50 +0.085 45.105
44.990
2.505
2.460
1.8 0.6 4520 4525 4530 4540 4550
+0.045
50 -0.050
-0.025
55+0.030 55 +0.100 50.110
49.990
5020   5030 5040 5050 5060
+0.055
55 -0.060
-0.030
60+0.030 60 +0.100 55.110
54.990
    5530 5540 5550 5560
+0.055
60 -0.060
-0.030
65+0.030 65 +0.100 60.110
59.990
    6030 6040 6050 6060 6070
+0.055
65 -0.060
-0.030
70+0.030 70 +0.100 65.110
64.990
    6530 6540 6550 6560 6570
+0.055
70 -0.060
-0.030
75+0.030 75 +0.100 70.110
69.990
      7040 7050 7060 7070 7080
+0.055
75 -0.060
-0.030
80+0.030 80 +0.100 75.110
74.990
    7530 7540 7550 7560 7570 7580
+0.055
80 -0.045 85+0.035 85 +0.120 80.155
80.020
2.490
2.440
1.8 0.6       8040 8050 8060 8070 8080 80100
+0.070
85 -0.054 90+0.035 90 +0.120 85.155
85.020
      8540   8560   8580 85100
+0.070
90 -0.054 95+0.035 95 +0.120 90.155
90.020
      9040 9050 9060   9080 90100
+0.070
95 -0.054 100+0.035 100 +0.120 95.155
95.020
        9550 9560   9580 95100
+0.070
100 -0.054 105+0.035 105 +0.120 100.155
100.020
        10050 10060   10080   100115
+0.070
105 -0.054 110+0.035 110 +0.120 105.155
105.020
          10560   10580   105115
+0.070
110 -0.054 115+0.035 115 +0.120 110.115
110.020
          11060   11080   110115
+0.070
120 -0.054 125+0.040 125 +0.170 120.210
120.070
2.465
2.415
1.8 0.6           12060   12080 120100
+0.100
125 -0.054 130+0.040 130 +0.170 125.210
125.070
          12560     125100 125115
+0.100
130 -0.063 135+0.040 135 +0.170 130.210
130.070
          13060   13080 130100
+0.100
140 -0.063 145+0.040 145 +0.170 140.210
140.070
          14060   14080 140100
+0.100
150 -0.063 155+0.040 155 +0.170 150.210
150.070
          15060   15080 150100
+0.100
160 -0.063 165+0.040 165 +0.170 160.210
160.070
          16060   16080 160100 160115
+0.100
180 -0.063 185+0.046 185 +0.210 180.216
180.070
2.465
2.415
1.8 0.6               18080 180100
+0.130
190 -0.072 195+0.046 195 +0.210 190.216
190.070
              19080 190100
+0.130
200 -0.072 205+0.046 205 +0.210 200.016
200.070
              20080 200100
+0.130
220 -0.072 225+0.046 225 +0.210 220.216
220.070
          22060   22080 220100
+0.130
250 -0.072 255+0.052 255 +0.260 250.222
250.070
2.465
2.415
1.8 0.6               25080 250100
+0.170
260 -0.081 265+0.052 265 +0.260 260.222
260.070
              26080 260100
+0.170
280 -0.081 285+0.052 285 +0.260 280.222
280.070
              28080 280100
+0.170
300 -0.081 305+0.052 305 +0.260 300.222
300.070


Availability

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
