Plain CuSn8 Bronze Gleitlager 60-65-60mm Perforated Wear Resistance

Place of Origin gleitlagerbuchsen china
Brand Name REPLACEMENT PLAIN BEARINGS
Certification DIN 1494 / ISO 3547
Model Number Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 3 - 15 BUSINESS DAYS
Payment Terms T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material TIN BRONZE CUSN8 CUSN6 Feature High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance High Load Capacity And Long Life Type Sleeve,Flange,Thrust Washer
Bushings Thinkness Bushing Max. Thickness Of 2.5mm. Self-lubricating Bushings Bronze Bushing 60-65-60mm, Perforated
Application Agricultural Machinery, Brakes And Certain Construction Machinery. Bushing Size Special Dimensions And Imperial Sizes Are Available On Request
Model Number E90F E92F E90 E92 BUSHINGS Logo Customized Logo
Get A Better Quote Tiffany@viiplus.com Get A Better Quote Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite bronze bushing

,

bronze plain bearing

Leave a Message
Product Description

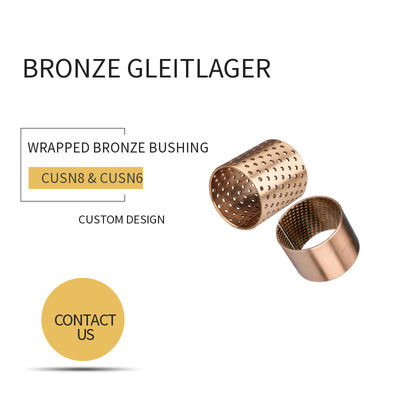

CuSn8 Bronze Gleitlager Composite Bushing | Metal Bushing Material | Metric Size



Standard and custom CuSn8 Bronze Gleitlager Bearings made for you. Maintenance free thus lower your cost.



Plain CuSn8 Bronze Gleitlager

Plain CuSn8 Bronze bushing,Bronze Bushing 60-65-60mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery,60 ID 65 OD x 60 Long wrapped CuSn8 bronze bush with diamond lubrication pockets





Plain CuSn8 Bronze Gleitlager

Bronze Bearing Dimension



Metric / Imperial: Metric (mm)
Internal Diameter: 60mm
Outside Diameter: 65mm
Length: 60mm



Bronze Bearing Tolerance


Length tolerance: Min: 59.75mm Max: 60.25mm
Recommended shaft tolerance: Min: 59.94mm Max: 59.97mm (f7)
Recommended housing tolerance: Min: 65mm Max: 65.03mm (H7)
ID when fitted: Min: 60mm Max: 60.087mm

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547



092 Bornze Gleitlager CuSn8 Chemical Composition



Part No

Material

Cu

Sn

P

Pb

Zn

E92 & E92F

CuSn8

91.3%

8.5%

0.2%

/

/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

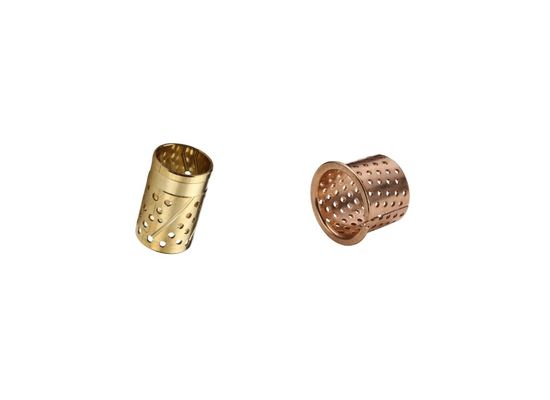

FB092 bronze bushing with holes


Product description:
FB092 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.



Sliding Bearing China | High Quality, Factory Price‎



MATERIALS

  • Support materialCuSn8P (DIN 17662)

  • alternative CuSn6P available



Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving



Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size



The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.



MateialGleitlagerbuchsen

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547



Specially Manufacturing Bushings



The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.



Range Of Application



Agriculture machinery, truck cranes & construction machinery, suitable for impact loads



Tolerances



Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.



Bushing Types For Sale



Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.



flange wrapped bronze bushing



Technical Details



  • Specific load capacity static< 120 [N/mm2]

  • Specific load capacity dynamic< 40 [N/mm2]

  • Sliding speed≤ 2.5 [m/s]

  • Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

  • Temperature strain- 40 [°C] to + 250 [°C]

  • Max. PV-value2.8 [N/mm² x m/s]

  • The percentage of contact area on the ID is > 75%
