Hydraulic Pump Cast Bronze Bushes CuSn5ZnPb5 Metric Flange Size Groove Type Low Maintenance
| Place of Origin | Graphite Bearings Manufacturers |
|---|---|
| Brand Name | OILLESS BUSHES |
| Certification | C83600 Bronze |
| Model Number | Solid Bronze Bearings |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Price Graphite Bushing Parts Factory Price |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | TT IN ADVANCE, Western Union |
| Supply Ability | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Marerial | Bronze Graphite Bushing,cusn5pb5zn5 | Size | ID*OD*H |
|---|---|---|---|
| Standard Material | C83600 Bronze,CuSn5ZnPb5 Brass Bushing | Type | Plugged Graphite,or Groove |
| Application | Stamping Tooling Standard Parts | Feature | High Precision Brass Bearings |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | oil embedded sleeve bearing,graphite sleeve bearings |
||
Product Description
ZCuSn5Pb5Zn5 is a cast copper alloy with good wear and corrosion resistance for brass bronze bushing.

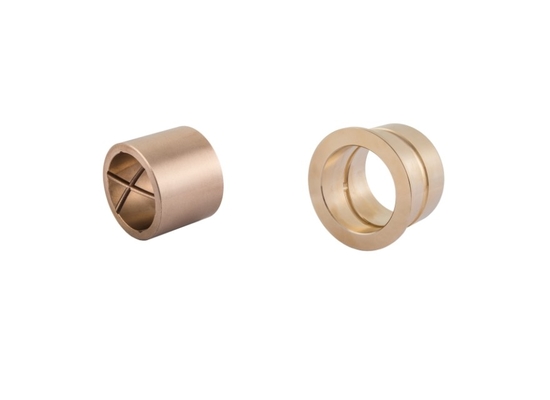

Oil & Grease Groove Bronze Bushings
Our Cast Bronze Bushings are machined from continuous cast C93200 (SAE 660) bronze for superior quality and performance. The continuous casting process assures a uniform bronze structure throughout the bearing, free from porosity and hard particle inclusions commonly found in other cast processes.
Brass Bush,Heavy Duty Brass Bushes Supplier and Manufacturer,We can supply in a wide range of Hydraulic Pumps Bronze Bushing. The hydraulic pump bushing is widely used in many applications, such as industrial machines, power tools, automotive, etc. The bushing is highly resistant to abrasion, not completely exposed to water.
Hydraulic Pump Bush Wholesale, Hydraulic Pump Bushes, Hydraulic Pump Bush,Hydraulic Lift Arm Bushes,exporters, suppliers in China
Huge Bushings Type & Size Selections & Savings.
CuSn5Pb5Zn5 Bronze Bearing Bushing
Name of material: cast copper alloy (5-5-5 tin bronze, sand metal)
Brand: ZCuSn5Pb5Zn5
● features and scope of application:
ZCuSn5Pb5Zn5 cast copper alloy has good wear and corrosion resistance, easy to process, good casting performance and air tightness.ZCuSn5Pb5Zn5 cast copper alloy is used for wear-resistant and corrosion-resistant parts, such as bushing, liner, cylinder liner, piston clutch, pump gland and worm gear, working under high load and moderate sliding speed.
ZCuSn5Pb5Zn5 cast tin bronze
ZCuSn5Pb5Zn5 cast tin bronze
● chemical composition:
Copper Cu: the rest
Sn: 4.0 ~ 6.0
Zinc Zn: 4.0 ~ 6.0
Pb: 4.0 ~ 6.0
P: ≤0.05(impurity)
Nickel Ni: ≤2.5(excluding total impurities)
Aluminum Al: ≤0.01(impurities)
Iron Fe: ≤0.3(impurities)
Silicon Si: ≤0.01(impurities)
Sb: ≤0.25(impurity)
Sulfur S: ≤0.10(impurities)
Note: total impurities ≤1.0
● mechanical properties:
Tensile strength b (MPa) : ≥200 ° c
Yield strength (MPa) : ≥90 ° c
Elongation 5 (%) : ≥13
Hardness: ≥590HB(reference value)
● heat treatment specification: heating temperature 1188 ~ 1220℃;Pouring temperature 1150 ~ 1200℃.
● casting method:
Sand mold casting, metal mold casting
Other ASTM Standard.Material:CuSn5ZnPb5,CuZn25Al5Mn4Fe3,CuSn10Pb10,CuSn7Zn4Pb7,CuSn8.
Can be provided as form:
Straight bushings
Flange bushings
Thrust washer
Wear plate
Non-standard products are also avalidable.
Hydraulic Pump Bushes
-
May work without any oil for long period
-
Extremely high load capacity, good anti-wear and low friction
-
Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
-
Good chemical resistant and anti-corrosion characteristics
-
Excellent resistance against chemical attacks and low friction. Temp limit 400℃
| Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| HB hardness | >210 | >70 | >150 | >95 | >280 |
| Tensile strength N/mm2 | >750 | >200 | >600 | >260 | >540 |
| Yeild strength N/mm2 | >450 | >90 | >260 | >150 | >450 |
| Elongation % | >12 | >15 | >10 | >8 | >0.3 |
| Coefficient of linear expansion |
1.9x10-5/°C | 1.8x10-5/°C | 1.6x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C |
| Max. temp. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
| Max. load N/mm2 | 100 | 60 | 50 | 70 | 150 |
| Max. speed (Dry) m/min | 15 | 10 | 20 | 10 | 15 |
| Max. PV N/mm2*m/min (Lubrication) |
200 | 60 | 60 | 80 | 200 |
| Compression deformation 300N/mm2 |
<0.01mm | <0.05mm | <0.04mm | <0.05mm | <0.005mm |
Typical Application
Suite for general machines and under atmosphere
Ship,Hydraulic turbine,Gas turbine etc.
