FB090 Bronze Material CuSn8P0.3 Or CuSn6.5P0. 1 Metric Bushings Sheet Strip

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bronze CuSn8 Type Sheet Strips
Feature High Load Lubrication Oil Lubrication
Quality OEM Quality Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

du strip

,

plain sleeve bearing strips

,

CuSn8P0.3 Bronze Bushing Material

Leave a Message
Product Description

Self-Lubricating Bushing, This bronze bushing is produced in accordance with ISO 3547 and DIN 1494.



Diamond oil hole FB090 Bronze Material CuSn8 Or CuSn6.5 Metric TIN BRONZE Bushings Sheet Strip. Explore the plain bearings strips, sleeve bushings that meet your application's needs, as well as delivering high reliability, long service life. Sliding Bearings materials for plain bearings. Plain bearing manufacture. Sliding elements of the most varied shapes are produced from this composite by cutting.FB090 FB092 FB092H WF WB700 WB702 WB800 WB802



The plain bearing material - function, types, and applications

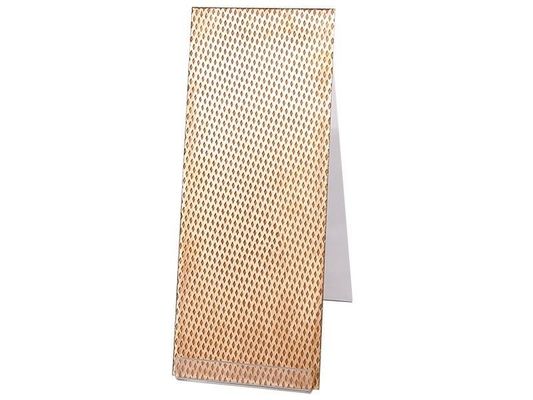

FB090  Split plain bearings bronze material is made of special high-density copper alloy strip as the base. The surface can be rolled with diamond or hemispherical oil holes and oil grooves. It has the advantages of high density, large bearing capacity, good wear resistance, and long service life. Materials have been widely used in lifting machinery, construction machinery, automobile tractor chassis, machine tool industry, and mining machinery, and can also be used in the form of bearing bushes, flanged bushings, thrust washers, and ball bowls.



Material: CuSn8P0.3 or CuSn6.5P0. 1

Hardness: HB90~120

Applicable temperature range: -80 ° C ~ 200 ° C

Maximum load pressure: 75N/mm2

Maximum sliding speed: 2.5m/s



The bearings are wrapped in a cold formable homogenous bronze (CuSn8),
which will obtain exceptional material properties. The standard size is fitted
with diamond-shaped lubrication indents on the surface of the bearing. These
indents serve as lubricant reservoirs to rapidly build up a lubrication film in the
start movement and therewith reduce the start friction.


 wrapped bronze bushing
VSB-22 Bronze CuSn8 with Lubrication 090 Strips, Slide paths





Bronze (090 Strips Material )


Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru-holes, plain or flanged bearings and strip




VSB-22


· Bearing material made of the solid bronze strip with indents for lubrication
· Good wear resistance, suitable for rough conditions
· Optimum performance under relatively high loads and low speeds

· 1.Easy for fitting and lubricating
· 2.High load capacity
· 3.Inner Diameter machineable parts are available against order
· 4.High level thermal conductivity
· 5.Minimum overall dimensions
· 6.Chemical resistance.
· Initial pre-lubrication at assembly required...




Structure






The bearings are wrapped from a cold-formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond-shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of the movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.



Technical Data

Structure And Composition



Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents



Microsection



FB090 Bronze Material CuSn8P0.3 Or CuSn6.5P0. 1 Metric Bushings Sheet Strip 1

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest



OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Good

Water lubricated

Poor

Process fluid lubricated

Poor





Bearing Properties


SIZE 090 Bronze wrapped bushing





Tech. Data



Max.Load

Static

120N/mm²

Elongation

40%



Dynamic

40N/mm²



Temp

-100℃~+200℃





Coefficient of friction

0.08~0.25





Max.speed(Lubrication)

Max.Speed

2m/s

Thermal conductivity

58W(m*k)-1





Max.PV

Max.PV

2.8N/mm²*m/s

Coef. of thermal expansion

18.5*10-6K-1





Tensile strength

Tensile strength

450N/mm²









Hardness

Hardness

HB 100-150







Availability


Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs



Typical Applications​





1. The products inside the surface is full of diamond oil indention, which can stock grease.
2. Minim oil lubrication, which is applied in a water-lubrication environment
3. Good anti-abrasion, low coefficient of friction, long operating life.
4. Can work consecutively at 100 ~+200 .
5. Good mending, low-noise, non-pollution
6. Thin wall, light, can reduce the volume of the machine
7. High density, high load no alveoli

The products now are applied in sliding parts of different machine, such as auto machines, pumps, plastic injection
machine, auto industry, heavy equipments, etc.




bronze bushings



Bronze Bearings made of CuSn8 with Lubrication Indent Size Chart

Bronze Bearings and Bronze Sleeve Bushings Metric Size



Bronze Bearings made of CuSn8 with Lubrication Indent Size Chart
1010MBZ 10 12 10 H7 f7 10.049 10.013 0.077 0.026
1215MBZ 12 14 15 H7 f7 12.059 12.016 0.093 0.032
1415MBZ 14 16 15 H7 f7 14.059 14.016 0.093 0.032
1420MBZ 14 16 20 H7 f7 14.059 14.016 0.093 0.032
1515MBZ 15 17 15 H7 f7 15.059 15.016 0.093 0.032
1525MBZ 15 17 25 H7 f7 15.059 15.016 0.093 0.032
1615MBZ 16 18 15 H7 f7 16.059 16.016 0.093 0.032
1620MBZ 16 18 20 H7 f7 16.059 16.016 0.093 0.032
1625MBZ 16 18 25 H7 f7 16.059 16.016 0.093 0.032
1815MBZ 18 21 15 H7 f7 18.059 18.016 0.093 0.032
1820MBZ 18 21 20 H7 f7 18.059 18.016 0.093 0.032
1825MBZ 18 21 25 H7 f7 18.059 18.016 0.093 0.032
2015MBZ 20 23 15 H7 f7 20.072 20.02 0.113 0.04
2020MBZ 20 23 20 H7 f7 20.072 20.02 0.113 0.04
2025MBZ 20 23 25 H7 f7 20.072 20.02 0.113 0.04
2030MBZ 20 23 30 H7 f7 20.072 20.02 0.113 0.04
2215MBZ 22 25 15 H7 f7 22.072 22.02 0.113 0.04
2230MBZ 22 25 30 H7 f7 22.072 22.02 0.113 0.04
2515MBZ 25 28 15 H7 f7 25.072 25.02 0.113 0.04
2525MBZ 25 28 25 H7 f7 25.072 25.02 0.113 0.04
2530MBZ 25 28 30 H7 f7 25.072 25.02 0.113 0.04
2830MBZ 28 31 30 H7 f7 28.072 28.02 0.113 0.04
3020MBZ 30 34 20 H7 f7 30.072 30.02 0.113 0.04
3030MBZ 30 34 30 H7 f7 30.072 30.02 0.113 0.04
3040MBZ 30 34 40 H7 f7 30.072 30.02 0.113 0.04
3220MBZ 32 36 20 H7 f7 32.087 32.025 0.137 0.05
3230MBZ 32 36 30 H7 f7 32.087 32.025 0.137 0.05
3240MBZ 32 36 40 H7 f7 32.087 32.025 0.137 0.05
3520MBZ 35 39 20 H7 f7 35.087 35.025 0.137 0.05
3530MBZ 35 39 30 H7 f7 35.087 35.025 0.137 0.05
3540MBZ 35 39 40 H7 f7 35.087 35.025 0.137 0.05
4020MBZ 40 44 20 H7 f7 40.087 40.025 0.137 0.05
4030MBZ 40 44 30 H7 f7 40.087 40.025 0.137 0.05
4040MBZ 40 44 40 H7 f7 40.087 40.025 0.137 0.05
4050MBZ 40 44 50 H7 f7 40.087 40.025 0.137 0.05
4530MBZ 45 50 30 H7 f7 45.087 45.025 0.137 0.05
4550MBZ 45 50 50 H7 f7 45.087 45.025 0.137 0.05
5030MBZ 50 55 30 H7 f7 50.087 50.025 0.137 0.05
5040MBZ 50 55 40 H7 f7 50.087 50.025 0.137 0.05
5060MBZ 50 55 60 H7 f7 50.087 50.025 0.137 0.05
5540MBZ 55 60 40 H7 f7 55.104 55.03 0.164 0.06
5560MBZ 55 60 60 H7 f7 55.104 55.03 0.164 0.06
6030MBZ 60 65 30 H7 f7 60.104 60.03 0.164 0.06
6040MBZ 60 65 40 H7 f7 60.104 60.03 0.164 0.06
6060MBZ 60 65 60 H7 f7 60.104 60.03 0.164 0.06
6540MBZ 65 70 40 H7 f7 65.104 65.03 0.164 0.06
7040MBZ 70 75 40 H7 f7 70.104 70.03 0.164 0.06
7080MBZ 70 75 80 H7 f7 70.104 70.03 0.164 0.06
7580MBZ 75 80 80 H7 f7 75.104 75.03 0.164 0.06
8040MBZ 80 85 40 H7 f7 80.104 80.03 0.164 0.06
8080MBZ 80 85 80 H7 f7 80.104 80.03 0.164 0.06
9040MBZ 90 95 40 H7 f7 90.122 90.035 0.192 0.07
9090MBZ 90 95 90 H7 f7 90.122 90.035 0.192 0.07
10050MBZ 100 105 50 H7 f7 100.122 100.035 0.192 0.07
10095MBZ 100 105 95 H7 f7 100.122 100.035 0.192 0.07
