Vane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And Swelling

Vane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And Swelling

Vane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And Swelling

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: VIIPLUS
Certification: ISO 9001
Model Number: Slide paths PAS Strips

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces (Min. Order)
Price: Negotiable
Packaging Details: STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time: 2~4 Weeks
Payment Terms: T/T PREPARD, T/T, L/C, D/A, D/P
Supply Ability: 500000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Meterial: Carton Steel , Bronze , PTFE STRIPS Plating: Tin Or Copper
Type: Sheet Customized: Available As Per Drawing
Special Use: High-strength Steel Plate Features:: Wear,Dry,Low Resistance
Port: ShangHai Application: Hydraulic Special Sliding

Self-Lubricating Bearings Hydraulic system vane pump bushing | VSB-40

auto transmission parts automobile steering system flange bushing and bearings for sale





VSB-40 Metal-Polymer Low Friction Plain Bearings





Detailed information



Sf-1d hydraulic special bearing. Is on the basis of SF, 1 p combined with the oil cylinder and the working principle of the shock absorber and design a new type of material, under the condition of no oil is wear-resisting, in addition to the product has the advantages of SF, 1 d, especially suitable for reciprocating frequent occasions large lateral force. Its performance is similar to that of DP4, which is gradually replacing sf-1p products, which can be used in automotive, motorcycle shock absorbers and various hydraulic cylinders.







VSB-40 DP4 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements

Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.



STRUSTURE




1. PTFE/Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

5. Steel + Bronze Powder + PTFE/Fibre(DP4)



TECHNICAL DATA


STRUCTURE & COMPOSITION

· Metal-Polymer Composite Bushing Material
· Steel back + Porous Bronze Sinter +
· PTFE + Fillers


MICROSECTION

Vane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And Swelling

Sliding layer
PTFE + Fillers
Porous Bronze Sinter
Steel Backing



Tech. Data

Max. load Static 250N/mm2 Max.speed Dry running 0.08~0.20
Very low speed 140N/mm2 Hydrodynamicoperation 0.02~0.08
Rotatingoscillating 60N/mm2 Frictioncoefficient Dry 2m/s
Hydrodynamic >2m/s
Max. PVdryrunning) Short-termoperation 3.6N/mm2*m/3 Thermal conductivity 42W(m*K)-1
Continuousoperation 1.8N/mm2*m/3
PV max. hydrodynamic -195℃~+280℃ Coefficient of thermalexpansion 11*10-6*K-1
OPERATING PERFORMANCE
Dry Good
Oil lubricated Very Good
Grease lubricated Good
Water lubricated Fair
Process fluid lubricated Good









Vane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And Swelling

BEARING PROPERTIES

GENERAL



Unit

Value

Maximum load, p

Static
Dynamic

N/mm2
N/mm2

250
140

Operating temperature

Min
Max

°C
°C

- 195
280



DRY
Maximum sliding speed, U   m/s 2.0

Coefficient of friction     0.03 - 0.20 *



OIL LUBRICATED
Maximum sliding speed, U   m/s 2.0



* Depending on operating conditions


Technical data
Max. load Static 250N/mm2
Dynamic 140N/mm2
Max. speed Dry 2m/s
Lubrication >2m/s
Max. PV (Dry) Short-time 3.6N/mm2*·m/s
Continuous 1.8N/mm2*·m/s
PV  Hydrodynamic 30N/mm2*·m/s
Temp. -195℃~+280℃
Friction coefficient 0.03~0.20
Thermal conductivity 42W (m·k)-1
Coefficient of thermal expansion 11*10-6k-1


AVAILABILITY




Bearing forms available in standard dimensions

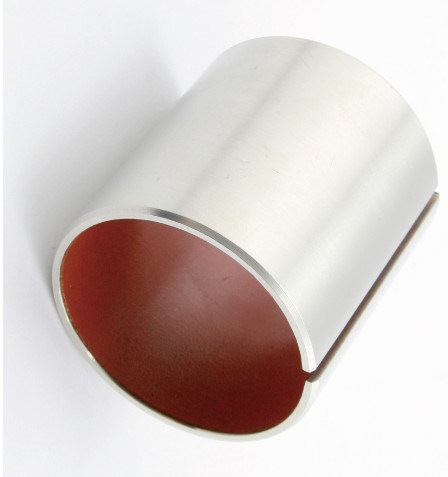

· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers



Vane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And SwellingVane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And SwellingVane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And SwellingVane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And SwellingVane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And Swelling

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs


TYPICAL APPLICATIONS

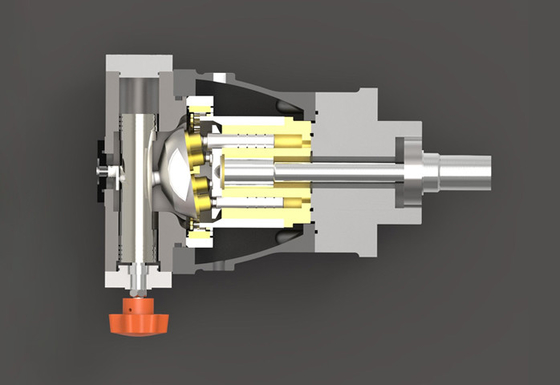

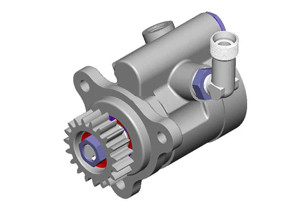

VSB-40 is developed for high duty, oil lubricated, hydraulic applications...Automotivesuspensionstruts,absorbers guide bushing, hydraulic cylinders, gear pumps, motors, axial and radial piston pumps & motors.VSB-40 is designed mainly for using under lubricated conditions and it performs excellent wear resistance and low static/dynamic shockfriction coefficient.



Vane Pump Sintered Self Lubricating Bushes Low Absorption Of Water And Swelling

SIZE





START YOUR
PROJECTWITH AN APPLICATION ENGINEER
