Graphite Plugged Solid Lubricant Bearings Extremely High Load Capacity

Place of Origin Manufactured in China
Brand Name BRAND CHINA REPLACMENT OILES 500 GUIDE BUSHINGS
Certification SEA430B,C86300,DIN1709,FIBRO
Model Number Bronze Graphite plug Bushings met the tolerances
Minimum Order Quantity 300 Piece/Pieces (Min. Order)
Price $0.10 - $3.00 / Pieces
Packaging Details EXPORT CARTONS
Delivery Time 2-4 weeks
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum-Copper With Solid Lubricant Plugs Quaity OEM
Port Shanghai Type Flange Bushings,Cylinder Bearings With Flange
Delivery Fast Delivery Item Solid Lubricating Bearings
Market Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Application Selbstschmierende Gleitlager Bushings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-lubricating Bronze Bearings Are Characterized By Being Self-lubricating And Maintenance-free. The Bronze Bearings Are Made Of Tin Bronze Or ... High Light CuSn8P Bronze Perforated Bushings, Self Lubricating Bronze Perforated Bushings, Lifting Machinery Bronze Perforated Bushings
Item Sliding Bearing Bronze Bushing Specialty Бронзовые втулки
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

solid lube bearings

,

self lubricating bearing

Leave a Message
Product Description

ODM(Original Design Manufacture) Bronze Bushing & Bearings.Request Bronze Sleeve Bushing-Sliding bearings Catalog. Find a china company.

To find your oilless product, Run a Search for Number.

VIIPLUS PLUG BRONZE BUSHINGS offers non-standard bearings as well as metric units.Graphite Plugged Solid Lubricant Bearings Extremely High Load Capacity.Graphite Plugged Bushings Bronzebuchsen Gleitlager Custom Parts & Cast Bronze Bushings Selbstschmierende Gleitlager | VSB-50F

Visit our WebShop standard brass self-lubricating parts and order our oilless bushing products easily and quickly over the Internet.



Graphite plugged oiles bearing is made of cast bronze alloy base material with special solid lubricants plugged. The base metal withstands high load and the graphite provide self-lubrication. This type of oiles bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. JDB graphite plugged oiles bearing provide a maintenance free bearing solution, particularly for high load, intermittent of oscillating motion.



Description



VSB-50 FlangeSolid Bronze Metallic Self-lubricating Bearings

graphite plugged bronze bushings

Copper Cast Bronze Bearings / Flanged Bronze Bearings

Cast Bronze Bearing with Graphite Plugs



Characteristics


VSB-50 Flange

1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃



Strusture



VSB-50 Flange material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



Material



Solid Bronze bushings and plates are made completely of tin bronze, CuSn10P, which has very good machine ability. All surfaces of the solid bronze bushings are machined.

Solid iron bushings and plates are made in same way of bronze material, but it is much lower costs if you are not in high performance requirements.

Reasons for Selecting Plug Graphite Self-Lubricating Products



1. Total Self-Lubricating: No oil or grease required
The self-lubricating features allow bearings to be used where oiling is difficult,

expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

2. Excellent Wear Resistance:
Excellent wear resistance is achieved under severe working conditions, such as heavy load, low velocity, reciprocating, oscillating and intermittent motions where the formation of oil film is difficult.

3. Low Coefficient of Friction: 0.04 to 0.2 typical:
Self-lubrication with specially embedded solid lubricants reduces friction.

4. Wide Operating Temperature Ranges: -415° ° to 1,100° °F
Superior performance is exhibited under high and low temperature conditions.

5. Corrosion and Chemical Resistance:
Performance is not affected by water and caustic chemicals.

6. Designed to Exceed Your Requirements:
High precision products with close tolerances.

7. Cost Competitive:
Maintenance, replacement, and end-item downtime cost reduced due to the exceptional service life compared to similar self-lubricating products.



graphite plugged bronze bushings











,

Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2





Features and advantages

1.Insensitive to dirty environment

2.Resistant to shock loads and vibrations at slow speeds
3.Enable operation with a poor shaft surface finish
4.Good resistance to corrosive conditions

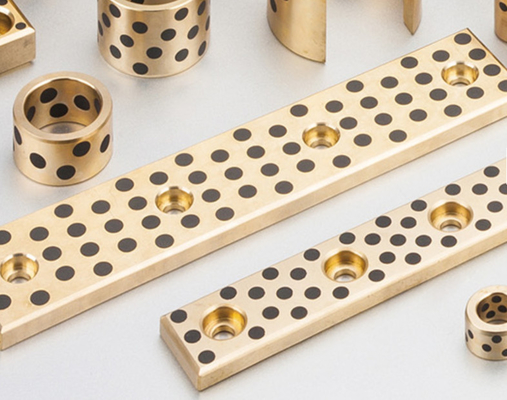

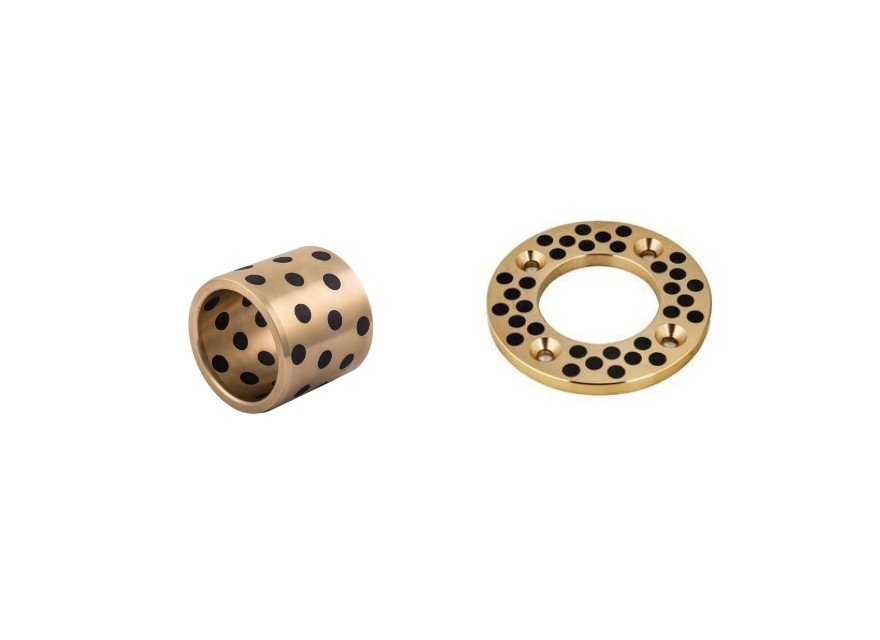

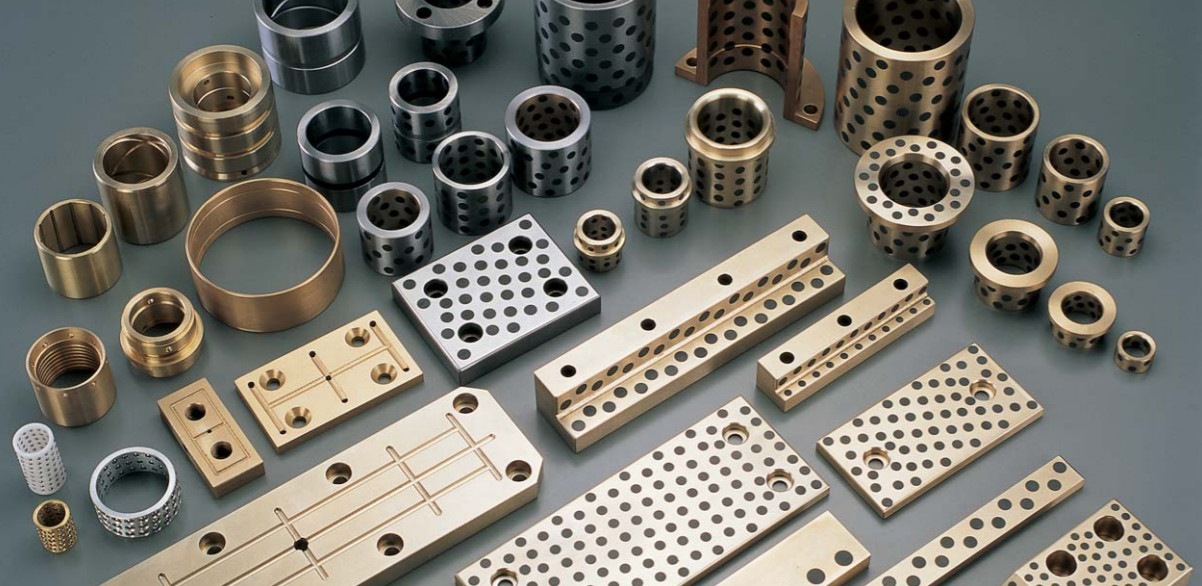

Bearing Forms Available In Standard Dimensions

图片1.png Cylindrical bushes
Flanged bushes
Sliding plates
Thrust washer
Flanged washers



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs



Dry lubricated bearings



Viiplus bearings incorporate graphite and molybdenum disulphide as the dry lubricants. In these materials, the lubricating properties are the consequence of a lamella layer structure that is created under load, when the lubricant adheres to the contact surfaces in the bearing. The layered structure enables sliding movement of the parallel plates . Weak bonding between the plates provides low shear strength in the direction of the sliding movement but high compression strength in the direction perpendicular to the sliding movement. Also, a solid lubricant having high compression strength is capable of withstanding heavy loads without creating metal-to-metal contact. Finally, the dry lubricant has good adhesion to the substrate surface. This property provides a presence of solid lubricant on the bearing surfaces even at high shear stresses.



Typical Application



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

Customer Size Oem & Odm Bronze Bushing



It is based on high strength copper alloy of special techniques. The solid lubricant is inlayed by certain angle, density and special formula, and then is processed exactly. The product is widely applied to casting machine, mining machinery, shipping, steam turbine, Injection machinery and automobile mounding, etc.



Type Spec. Type Spec.
FALNGE BEARING PLUG GRAPHITE 810 20/12~8~10 FALNGE BEARING PLUG GRAPHITE 3520 60/45~35~20
FALNGE BEARING PLUG GRAPHITE 815 20/12~8~15 FALNGE BEARING PLUG GRAPHITE 3525 60/45~35~25
FALNGE BEARING PLUG GRAPHITE 1010 22/14~10~10 FALNGE BEARING PLUG GRAPHITE 3530 60/45~35~30
FALNGE BEARING PLUG GRAPHITE 1012 22/14~10~12 FALNGE BEARING PLUG GRAPHITE 3535 60/45~35~35
FALNGE BEARING PLUG GRAPHITE 1015 22/14~10~15 FALNGE BEARING PLUG GRAPHITE 3540 60/45~35~40
FALNGE BEARING PLUG GRAPHITE 1020 22/14~10~20 FALNGE BEARING PLUG GRAPHITE 3550 60/45~35~50
FALNGE BEARING PLUG GRAPHITE 1210 25/18~12~10 FALNGE BEARING PLUG GRAPHITE 4020 65/50~40~20
FALNGE BEARING PLUG GRAPHITE 1215 25/18~12~15 FALNGE BEARING PLUG GRAPHITE 4025 65/50~40~25
FALNGE BEARING PLUG GRAPHITE 1220 25/18~12~20 FALNGE BEARING PLUG GRAPHITE 4030 65/50~40~30
FALNGE BEARING PLUG GRAPHITE 1225 25/18~12~25 FALNGE BEARING PLUG GRAPHITE 4035 65/50~40~35
FALNGE BEARING PLUG GRAPHITE 1230 25/18~12~30 FALNGE BEARING PLUG GRAPHITE 4040 65/50~40~40
FALNGE BEARING PLUG GRAPHITE 1315 26/19~13~15 FALNGE BEARING PLUG GRAPHITE 4050 65/50~40~50
FALNGE BEARING PLUG GRAPHITE 1320 26/19~13~20 FALNGE BEARING PLUG GRAPHITE 4060 65/50~40~60
FALNGE BEARING PLUG GRAPHITE 1410 27/20~14~10 FALNGE BEARING PLUG GRAPHITE 4530 70/55~45~30
FALNGE BEARING PLUG GRAPHITE 1415 27/20~14~15 FALNGE BEARING PLUG GRAPHITE 4540 70/55~45~40
FALNGE BEARING PLUG GRAPHITE 1420 27/20~14~20 FALNGE BEARING PLUG GRAPHITE 4550 70/55~45~50
FALNGE BEARING PLUG GRAPHITE 1510 28/21~15~10 FALNGE BEARING PLUG GRAPHITE 4560 70/55~45~60
FALNGE BEARING PLUG GRAPHITE 1515 28/21~15~15 FALNGE BEARING PLUG GRAPHITE 5030 75/60~50~30
FALNGE BEARING PLUG GRAPHITE 1520 28/21~15~20 FALNGE BEARING PLUG GRAPHITE 5035 75/60~50~35
FALNGE BEARING PLUG GRAPHITE 1525 28/21~15~25 FALNGE BEARING PLUG GRAPHITE 5040 75/60~50~40
FALNGE BEARING PLUG GRAPHITE 1530 28/21~15~30 FALNGE BEARING PLUG GRAPHITE 5050 75/60~50~50
FALNGE BEARING PLUG GRAPHITE 1615 29/22~16~15 FALNGE BEARING PLUG GRAPHITE 5060 75/60~50~60
FALNGE BEARING PLUG GRAPHITE 1620 29/22~16~20 FALNGE BEARING PLUG GRAPHITE 5540 80/70~55~40
FALNGE BEARING PLUG GRAPHITE 1625 29/22~16~25 FALNGE BEARING PLUG GRAPHITE 5560 80/70~55~60
FALNGE BEARING PLUG GRAPHITE 1630 29/22~16~30 FALNGE BEARING PLUG GRAPHITE 6040 90/75~60~40
FALNGE BEARING PLUG GRAPHITE 1635 29/22~16~35 FALNGE BEARING PLUG GRAPHITE 6060 90/75~60~60
FALNGE BEARING PLUG GRAPHITE 1640 29/22~16~40 FALNGE BEARING PLUG GRAPHITE 6070 90/75~60~70
FALNGE BEARING PLUG GRAPHITE 1820 32/24~18~20 FALNGE BEARING PLUG GRAPHITE 6540 95/80~65~40
FALNGE BEARING PLUG GRAPHITE 1830 32/24~18~30 FALNGE BEARING PLUG GRAPHITE 6560 95/80~65~60
FALNGE BEARING PLUG GRAPHITE 2015 40/30~20~15 FALNGE BEARING PLUG GRAPHITE 6580 95/80~65~80
FALNGE BEARING PLUG GRAPHITE 2020 40/30~20~20 FALNGE BEARING PLUG GRAPHITE 7050 105/85~70~50
FALNGE BEARING PLUG GRAPHITE 2025 40/30~20~25 FALNGE BEARING PLUG GRAPHITE 7080 105/85~70~80
FALNGE BEARING PLUG GRAPHITE 2030 40/30~20~30 FALNGE BEARING PLUG GRAPHITE 7560 110/90~75~60
FALNGE BEARING PLUG GRAPHITE 2035 40/30~20~35 FALNGE BEARING PLUG GRAPHITE 7580 110/90~75~80
FALNGE BEARING PLUG GRAPHITE 2040 40/30~20~40 FALNGE BEARING PLUG GRAPHITE 8040 120/100~80~40
FALNGE BEARING PLUG GRAPHITE 2515 45/35~25~15 FALNGE BEARING PLUG GRAPHITE 8060 120/100~80~60
FALNGE BEARING PLUG GRAPHITE 2520 45/35~25~20 FALNGE BEARING PLUG GRAPHITE 8080 120/100~80~80
FALNGE BEARING PLUG GRAPHITE 2525 45/35~25~25 FALNGE BEARING PLUG GRAPHITE 80100 120/100~80~100
FALNGE BEARING PLUG GRAPHITE 2530 45/35~25~30 FALNGE BEARING PLUG GRAPHITE 9040 130/110~90~40
FALNGE BEARING PLUG GRAPHITE 2535 45/35~25~35 FALNGE BEARING PLUG GRAPHITE 9060 130/110~90~60
FALNGE BEARING PLUG GRAPHITE 2540 45/35~25~40 FALNGE BEARING PLUG GRAPHITE 9080 130/110~90~80
FALNGE BEARING PLUG GRAPHITE 2550 45/35~25~50 FALNGE BEARING PLUG GRAPHITE 90100 130/110~90~100
FALNGE BEARING PLUG GRAPHITE 3020 50/40~30~20 FALNGE BEARING PLUG GRAPHITE 10060 150/120~100~60
FALNGE BEARING PLUG GRAPHITE 3025 50/40~30~25 FALNGE BEARING PLUG GRAPHITE 10080 150/120~100~80
FALNGE BEARING PLUG GRAPHITE 3030 50/40~30~30 FALNGE BEARING PLUG GRAPHITE 100100 150/120~100~100
FALNGE BEARING PLUG GRAPHITE 3035 50/40~30~35 FALNGE BEARING PLUG GRAPHITE 12060 170/140~120~60
FALNGE BEARING PLUG GRAPHITE 3040 50/40~30~40 FALNGE BEARING PLUG GRAPHITE 12080 170/140~120~80
FALNGE BEARING PLUG GRAPHITE 3050 50/40~30~50 FALNGE BEARING PLUG GRAPHITE
