Oilless Solid Lubricant Bearings , Metal Manganese Cast Bronze Bearing

Basic Infomation
Place of Origin: Manufactured in China
Brand Name: VIIPLUS
Certification: C86300 SAE660 (C93200),DIN BS EN UNS SAE
Model Number: Bronze Graphite plug Bushings
Minimum Order Quantity: 300 Piece/Pieces (Min. Order)
Price: $0.10 - $3.00 / Pieces
Packaging Details: EXPORT CARTONS
Delivery Time: 2-4 weeks
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: 1000000 Piece/Pieces
Detail Infomation
Material: Aluminum-Copper With Solid Lubricant Plugs Quaity: OEM
Port: Shanghai Type: Flange Bushings,Cylinder Bearings With Flange
Delivery: Fast Delivery Item: Solid Lubricating Bearings
Market: Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Application: Die/Mold Industry

Product Description

Metal manganese bronze gleitlager alloy cast bronze with graphite oilless bearing Solid Bronze Lubrication  | VSB-50F



Application



Die/Mold Industry



We provide all kinds of self-lubricating sliding block, guide sleeve, wedge and other products for automobile tire mould, injection mould and stamping die.





Description

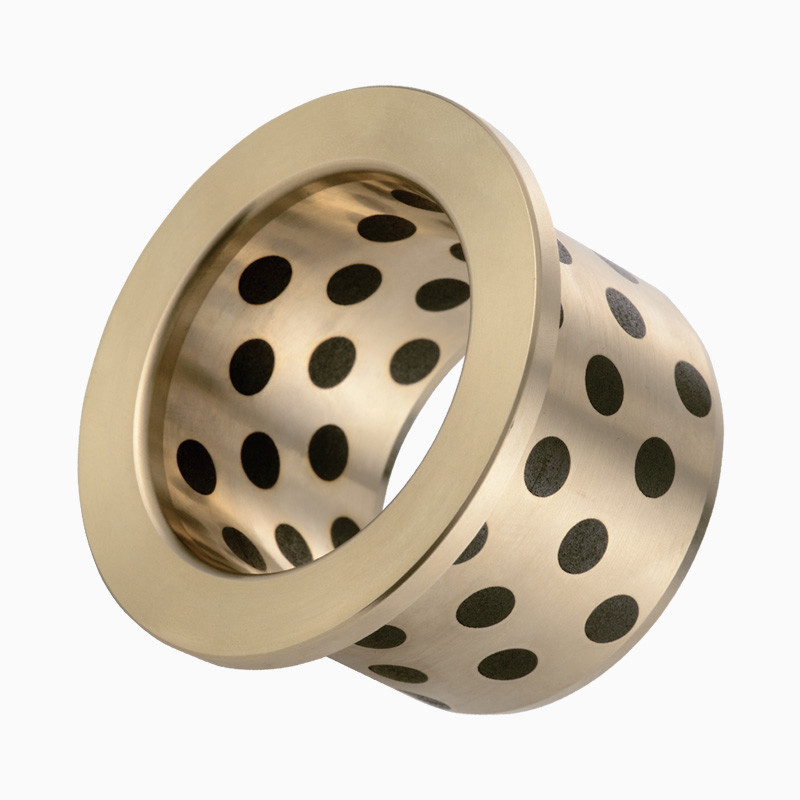

VSB-50 FlangeSolid Bronze Metallic Self-lubricating Bearings





Copper Cast Bronze Bearings / Flanged Bronze Bearings





CHARACTERISTICS



VSB-50 Flange



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃





STRUSTURE



VSB-50 Flange material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.





TECHNICAL DATA








Grade 50# 50S1 50S2 50S3 650S5
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAI10Ni5Fe5 CuSn12 CuZn25AI5Mn4Fe3
Density 8 8.9 7.8 8.9 8
Hardness ≥210 ≥70 ≥150 ≥75 ≥235
Tensile strength ≥750 ≥250 ≥500 ≥270 ≥800
Yield strength ≥450 ≥90 ≥260 ≥150 ≥450
Elongation ≥12 ≥13 ≥10 ≥5 ≥8
Coefficient o linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.9×10-5/℃
Max.Temp. -40~+300℃ -40~+400℃ -40~+400℃ -40~+400℃ -40~+300℃
Max.dynamic load 100 60 50 70 120
Max.speed(Dry) 15 10 20 10 15
N/mm²*m/s(Lubrication) 200 60 60 80 200
Compression deformation < 0.01 mm < 0.05mm < 0.04mm < 0.05mm < 0.005mm



Oilless Solid Lubricant Bearings , Metal Manganese Cast Bronze Bearing






Chemical Compositions





Product NO. Chemical Compositions
VSB-50 Cu Zn Al Fe Mn Si Ni Sn Pb
60~66 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2

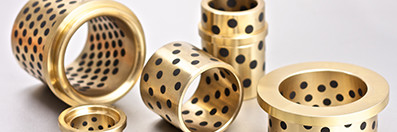

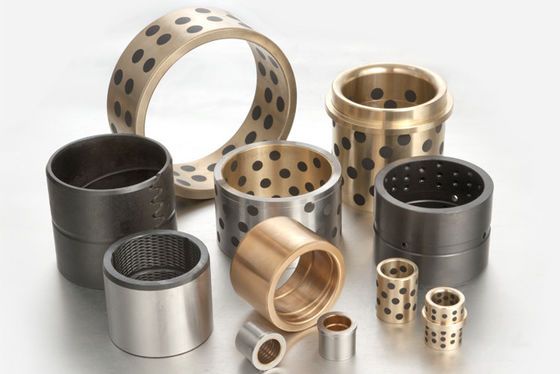

Bearing forms available in standard dimensions





· Cylindrical bushes

· Flanged bushes

· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
