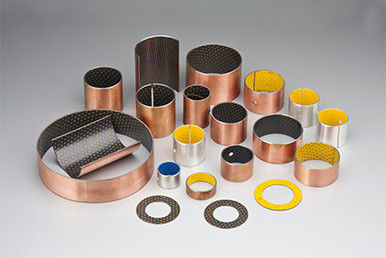

Oilless Self Lubricating Plain Bearing Bronze Sleeve Bearings 090 & 092 with holes for Mining machinery
Place of Origin | Self Lubricating Bearings Manufacturers |
---|---|
Brand Name | REPLACE BRAND GARLOCK BEARINGS (GGB) |
Certification | DIN 1494, ISO 3547 STANDARD BUSHING |
Model Number | BUSHING TYPE FLANGED PLAIN SLEEVE |
Minimum Order Quantity | NEGOTIABLE |
Price | Competitively Priced vs DU DX, Provides Lubricating Bush |
Packaging Details | WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS |
Delivery Time | 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY |
Payment Terms | TT IN ADVANCE WESTERN UNION |
Supply Ability | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Bronze CuSn8 092 | Feature | High Load |
---|---|---|---|
Type | Sleeve, Flange, Washer | Lubrication | Oil Lubrication |
Quality | OEM Quality | Specification | Std.size In Stock |
Customized | Welcome Customized Drawing | Bearing Bushing Factory Price | Tiffany@viiplus.com |
Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | High Light | PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing |
Characteristic | Втулки скольжения (биметаллические подшипники скольжения) | Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | sintered self lubricating bushes,self lubricating bronze bushings |
Self Lubricating Plain Bearings & wrapped bronze bushings
Bronze bearings made of CUSN8. With grease reservoirs. Bearing forms made to order: Cylindrical bushes with non-standard dimensions ...Bronze Sleeve 090 Series Bushings are widely applied in hoisting and other construction machines, automobiles, tractors, trucks, machines tools and some mining engines. It can be fabricated into bushings, half bushings, flanged bushings, thrust washers, spherical bushings and more.
Plain Bearings & Self-lubricating Bushings | VIIPLUS Surface Engineering|Bearing Technology
VSB-22 FLANGE BUSHES Bronze Bearings made of CuSn8 with Lubrication Indents
Bronze Wrapped Bearing with Oil Pockets(090 Cylindrical Bushes)
Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication
pockets, grooves or thru holes, plain or flanged bearings and strip
VSB-22 090 CYLINDRICAL BUSHES FLANGE BUSHES
Bronze Bearing Factory,Bronze Bushing supplier,CuSn8 flange bronze bush
Bearing material made of solid bronze strip with indents for lubrication
-
Good wear resistance, suitable for rough conditions
-
Optimum performance under relatively high loads and low speeds
-
Easy for fitting and lubricating
-
High load capacity
-
Inner Diameter machineable parts are available against order
-
High level thermal conductivity
-
Minimum overall dimensions
-
Chemical resistance.
-
Initial pre-lubrication at assembly required
Strusture
The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.
Technical Data
Structure And Composition
Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents
Microsection
CuSn8 with |
Tech. Data
Max.Load |
Static |
120N/mm² |
Elongation |
40% |
Dynamic |
40N/mm² |
|||
Temp |
-100℃~+200℃ |
|||
Coefficient of friction |
0.08~0.25 |
|||
Max.speed(Lubrication) |
Max.Speed |
2m/s |
Thermal conductivity |
58W(m*k)-1 |
Max.PV |
Max.PV |
2.8N/mm²*m/s |
Coef. of thermal expansion |
18.5*10-6K-1 |
Tensile strength |
Tensile strength |
450N/mm² |
|
|
Hardness |
Hardness |
HB 100-150 |
OPERATING PERFORMANCE |
|
Dry |
Poor |
Oil lubricated |
Good |
Grease lubricated |
Good |
Water lubricated |
Poor |
Process fluid lubricated |
Poor |
Bearing Properties
GENERAL |
|
Unit |
Value |
Maximum load, p |
Static |
N/mm2 |
120 |
Dynamic |
N/mm2 |
40 |
|
Operating temperature |
|
°C |
- 100~200 |
GREASE LUBRICATED |
|
|
|
Maximum sliding speed, |
|
m/s |
2 |
Coefficient of friction |
|
|
0.08 - 0.25 |
RECOMMENDATIONS |
|
|
|
Surface hardness |
Normal |
HB |
|
110-150 |
|
Availability
Bearing forms available in standard dimensions
Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
Typical Applications
VIIPLUS BEARINGS bushings can be widely used as components necessary in mechanical industries or for repair and maintenance of various machines.
-
Automotive industry:
-
Wiper arms, door hinges, trunk hinge, foot pedals, shock absorbers, enines, camshafts, connect rod, steering system, pedal assembly, seat angle regulator, etc.
-
Office machines:
-
Copy machines, fax machines, joint and reciprocation parts of faxed, paper shredders, scanners and printers, starting and hinge parts of fitness equipment, doors and windows.
-
Agricultural machinery:
-
Planting machines, mills, potato harvester, tractors, etc.
-
Paper/wood/pulp industry:
-
Timber- & chain-saws, cutting machines, folding machines, looms, tec.
-
Steel industry:
-
Sliding plates, steel & rooling-mills, body presses, tool posts, etc.
-
Electricity tools:
-
Switch gearsm contactors, pneumtools, hydraulic tools, transformers, etc.
-
Domestic appliances:
-
Microwave ovens, food processors(mixers, blenders), lawn mowers, sewing machines, etc.
-
Medical equipment:
-
Dental equipment, X-ray equipment, medical turntables, wheelchairs, etc.
-
Construction industry:
-
Lift components, excavators, concrete mixers, s, escalators, etc.
-
Other used:
-
Valves, blinds, drying plant, baking machinery, screws and bolts, awnings, etc.
Plain Bearing Size
