Gas Heat Pumps / Gear Pumps Bimetal Bearing Bushes , Self Lubricating Bearing

Basic Infomation
Place of Origin: China manufacture
Brand Name: VIIPLUS
Certification: ISO9001:2008
Model Number: Bimetal Sleeve Bushing
Minimum Order Quantity: 800 Piece/Pieces (Min. Order)
Price: $0.20 - $2.00 / Pieces ,Negotiable
Packaging Details: Export Carton Wood Pallet Wooden case
Delivery Time: 1~2 weeks
Payment Terms: TT IN ADVANCE Western Union
Supply Ability: 800000 Piece/Pieces per Month
Detail Infomation
Meterial: Bimetal,bronze,steel Characteristic: Low-maintenance And Maintenance-free Plain Bearings
Size: Standard Size Available Quality: OEM
Type: Bushes, Collar Bushes, Washers, Strips Or Special Designs Bearing: Oilless
Bushing Sample: Available Application: Gas Heat Pumps Bushing,Agricultural Machine

Product Description



Metallic Self-lubricating Maintenance-free Bearings

Flanged bushings gear pumps Bimetal Bushing & Self Lubricating Bearing | VSB-80

VIIPLUS Self Lubricating Bearing are used on a variety of rotating equipment, including pumps bushing, compressors bushing, mixers bushing, steam turbines bushing and other specialty equipment bushing. They have application in the oil and gas, pharmaceutical, chemical processing, mineral and ore processing, and general industries.whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation. It can be made from a variety of different materials, depending on the application, use conditions and lubrication.



Bimetal bushing Load capability can be improved by oil holes, grooves, etc., depending on lubrication conditions. In some cases, a dry bearing can also be used under lubricated conditions.

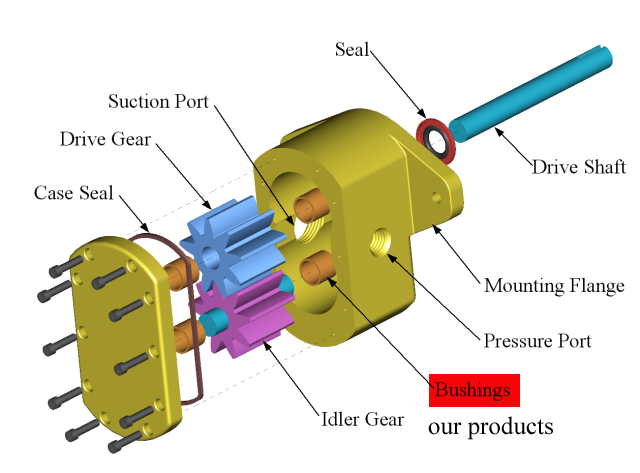

Gear pump self-lubricating bearing is a core part of the gear pump, installed on both sides of the uranium gear pump, its support and anti-friction role, its size accuracy and wear resistance is directly related to the volumetric efficiency and service life of the gear pump.

Gear pump shaft sleeve steel bushes bronze bushing parts are provided by our company, and the use of automatic pressure and assembly and key size automatic detection technology, can effectively solve the problem of pressure and assembly tolerance accumulation, product accuracy decline, to ensure that 100% qualified products provided to customers.



The Bearing Gard employs static and dynamic sealing technologies to prevent ingress of contaminants into the bearing housing and ensure oil retention, even when the equipment is shut down.



Gear pump oiles bearing & bushings

How to choose the gear pump bushings | shaft sleeve bushes oil-free lubrication bearing


VIIPLUS Company providing technical bushes, in various sectors such as steel bushes, bronze bushes, graphite bronze bushings, stainless steel bearings for Water, Waste water, Industrial and Oil & Gas fields in solutions.
Delivers quality products combined with outstanding service. We are committed to revitalizing our domestic and international partnerships—with a passion for quality and restoring customer dedication”



Your Powerful Assistant

We are Providing Good Services

  • GEARBOX BUSHINGS
  • VALVES BUSHINGS

Self lubricating bearings for Power Transmission

Flow Control

We supply and market Gate, Ball, Plug, Check, and Butterfly valves bushings and their respective controls and actuators. These valves bushes are used primarily in the water, wastewater, and industrial markets.

we provide a wide range of Valves bushes in different sectors a lot of which are in stock for immediate purchase.
Our Product Range:
• Butterfly Valves bushes
• Gate Valves bushes
• Globe Valves bushes
• Check Valves bushes
• Ball Valves bushes
• Plug Valves bushes
• Plastic Valves bushes
• Safety Valves bushes
• Diaphragm Valves bushes
• Fire Fighting Valves bushes
Gas Heat Pumps / Gear Pumps Bimetal Bearing Bushes , Self Lubricating Bearing




How to choose the gear pump shaft sleeve bushes?
VIIPLUS Main production gear pumps shaft sleeve bushing sliding bearings.
Gear pumps in operation in the event of unusual noise, it should immediately check stands.
The gear pump sleeve bushings the selection principle is not high demand, for the occasion, but by experience, not to replace gear pump sleeve bushings timely selection.
If the first gear pump operation, or long-term idle after use, preferably in small load or no-load circumstances running One hour.
At the beginning of operation, to gear pump within the shell filled with liquid to be delivered, for safety launch.


viiplus gear pump bushings Oil-free bearing maintenance-free


The quality and capability of gear pump bushing affect the characteristics of gear pump machines directly.
The pump bushing out of the shackles of traditional design, making gear pump bushings in the design, production and use into a new area.
By using viiplus gear pump bushings, production efficiency and product quality can be improved and production cost can be reduced in the processing and repairing.



Characteristic

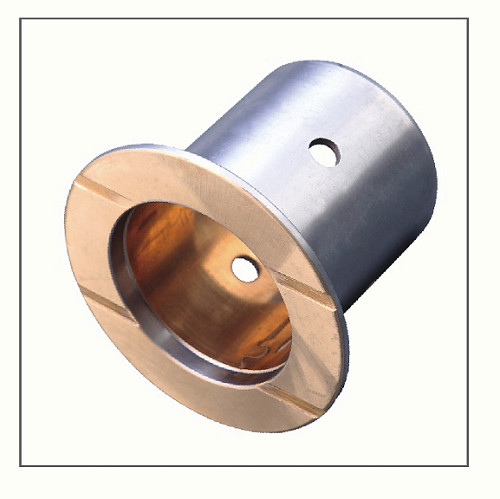

This bearing is the kind of Flange bush with the steel backing sintered with bronze powder through the friction welding. The surface may be incorporated with various kinds of oil grooves, pockets to meet different necessities of various lubricating
conditions.




Typical application




This product is widely applied in various automobile engines, vehicle hassis, motorcycle clutches, rubbing plate of gear pumps and other hoist machines.





Gear Pump Bushing Manufacturing


Gas Heat Pumps / Gear Pumps Bimetal Bearing Bushes , Self Lubricating Bearing






VIIPLUS specializes in the manufacture of Pump bushing, hydraulic bushing, self lubricating bearings.
Gear pumps one of the most common types of pumps for hydraulic fluid power applications.

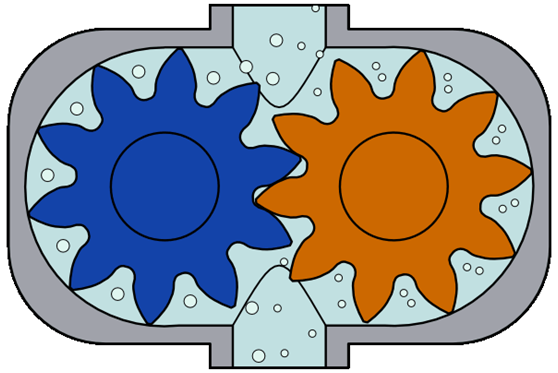

A gear pump uses the meshing of gears to pump fluid by displacement.

• Hydraulic pump
• Vane pump

Gear Pump Bushing Range




HYDRAULIC PUMP BUSHINGS APPLICATIONS

China Pump Bushing, China Pump Bushing Suppliers and Manufacturers
Vane pump Bushing




Hydraulic bushings & Valves bushings
Manufacturers of Superior Quality Hydraulic Pumps bushings




TECHNICAL DATA

Dynamic load limit

60N/mm²

Static Load

120N/mm²

frictional coefficient

0.08~0.2

PV limit

2.8N/mm²*m/s

Max Speed

>2m/s

Temp.limit

-40°C~+250°C








  • Fork lifts

  • Pallet Trucks

  • Cranes

  • Excavators

TECHNISCHE DATEN

  • Wrapped composite sliding bearing

  • Copper-plated or tin-plated steel / bronze

  • Low-maintenance

  • With lubrication pockets

PROPERTIES

  • For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.

MATERIALS

  • Support materialSteel copper-plated / tin-plated

  • Sliding layerCuPb10Sn10



TOLERANCE DETAILS

  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8



MAINTENANCE

  • is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!





CAPTION

Special dimensions are available on request
