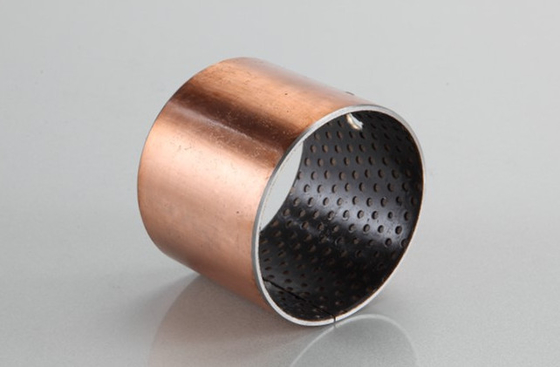

Bronze POM Bushes Thrust Washer Composite Metric Thickness

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number DU DX BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low-Carbon Steel + Porous Bronze +BLACK POM Plating Tin Or Copper
Type Wrapped Bushes, Thrust Washer Lubricating Boundary Lubricating
Customized Based On Drawing Or Sample Color Black,red,yellow,blue POM
Application Electro-hydraulic Grooving Machine Grooving Machine Press Wheel Shaft Sleeve Press Wheel Bearing Worry-free Bearing Boundary Lubrication Lead-free
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

ptfe plain bearing

Leave a Message
Product Description

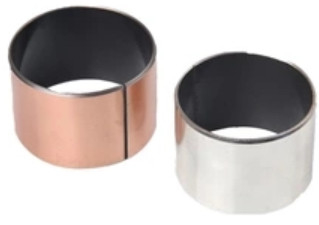

Buying Request of Sliding Bearings outside Copper Sleeve BLACK POM in the middle Standard size Bushing Dimensions Oil Holes tolerance inch size



High Load / Impact-Vibration Resistant / Composite Bushing for retailer and a repair centre

Inch Dimension, Thrust Washer Bushings inch series online catalog

Boundary Lubricating Bearings Black POM Bushes lead-free POM Lined Bushing

Boundary lubricated bearing is a sliding bearing with steel plate as the matrix, sintered spherical bronze powder in the middle and rolled round oil storage hole black modified polyformaldehyde (POM) material on the surface

Electro-hydraulic grooving machine grooving machine press wheel shaft sleeve press wheel bearing worry-free bearing

Bushings Material structurePolymer Plain Bearings
1. POM 0.30-0.50mm modified polyformaldehyde has good wear resistance, and even in the case of instantaneous oil shortage, it also has a low friction factor.Bearing surface is arranged with a spiral Angle of the oil sump pit, assembly, must be coated with grease.
2. Copper powder layer 0.20~0.35mm, with good bearing capacity and wear resistance, good thermal conductivity can timely transfer the heat generated in the process of bearing operation.The composite material can infiltrate into the gap of copper powder ball and improve the bonding strength.
3. Low carbon steel, providing bearing capacity and heat transfer function of the bearing.
Polymer Plain Bearings

d
D

 shaft size

Housing H7

thickness

h OIL HOLES
f1
f2
L0-0.40

MIN

MAX

10
15
20
25
30
35
40
45
50
60
10
12
10-0.022
12+0.018
0.955
0.980
4
0.6
0.3
1010
1015
1020







12
14
12-0.027
14+0.018
1210
1215
1220







14
16
14-0.027
16+0.018

1415
1420







15
17
15-0.027
17+0.018

1515
1520
1525




&nbnbsp;

16
18
16-0.027
18+0.018

1615
1620
1625






18
20
18-0.027

20+0.021


1815
1820
1825






20
23
20-0.033
23+0.021
1.445
1.475
0.6
0.4

2015
2020
2025
2030





22
25
22-0.033
25+0.021

2215

2225






25
28
25-0.033
28+0.021
6

2515
2520
2525
2530





28
32
28-0.033
32+0.025
1.935
1.970
1.2
0.4


2820

2830





30
34
30-0.033
34+0.025


3020
3025
3030
3035
3040



35
39
35-0.039
39+0.025


3520

3530
3535
3540



40
44
40-0.039
44+0.025
8


4020

4030
4035
4040

4050

45
50
45-0.039
50+0.025
2.415
2.460
1.8
0.6


4520

4530

4540
4545
4550

50
55
50-0.046
55+0.030




5030

5040

5050
5060
55
60
55-0.046
60+0.030




5530

5540

5550
5560
60
65
60-0.046
65+0.030




6030

6040

6050
6060
Unit:mm
d
D

SHAFT

Housing H7

thickness

h OIL HOLES



f1
f2
L0-0.40

MIN

MAX

40
50
60
80
90
95
100
110
120

65

70

65-0.046

70+0.030

2.415
2.460
8
1.8
0.6

6540



6560













70

75

70-0.046

75+0.030

7040

7050



7080











75

80

75-0.046

80+0.030

7540



7560

7580











80

85

80-0.046

85+0.035

2.385
2.450
9.5
1.8
1.8

8040



8060

8080











85

90

85-0.054

90+0.035

8540



8560

8580











90

95

90-0.054

95+0.035

9040



9060

9080

9090









100

105

100-0.054

105+0.035



10050



10080



10095







105

110

105-0.054

110+0.035





10560

10580



10595



105110



110

115

110-0.054

115+0.035





11060

11080



11095





110110



120

125

120-0.054

125+0.035

1.8
0.6





12060

12080







120110



125

130

125-0.063

130+0.040





12560









125110





130

135

130-0.063

135+0.040



13050

13060

13080





130100





140

145

140-0.063

145+0.040



14050

14060

14080





140100





150

155

150-0.063

155+0.040



15050

15060

15080





150100





160

165

160-0.063

165+0.040

9.5



16050

16060

16080





160100





170

175

170-0.063

175+0.040



17050



17080





170100





180

185

180-0.063

185+0.040



18050

18060

18080





180100





190

195

190-0.072

195+0.046



19050

19060

19080





190100



190120

200

205

200-0.072

205+0.046



20050

20060

20080





200100



200120

220

225

220-0.072

225+0.046

9.5



22050

22060

22080





220100



220120

240

245

240-0.072

245+0.046



24050

24060

24080





240100



240120

250

255

250-0.081

255+0.052



25050

25060

25080





250100



250120

260

265

260-0.081

265+0.052



26050

26060

26080





260100



260120

280

285

280-0.081

285+0.052



28050

28060

28080





280100



280120

300

305

300-0.081

305+0.052



30050

30060

30080





300100



300120

Inspection method of shaft sleeve bushings


1. Outside diameter: ring gauge pass (GO) and stop (NO GO) mode is adopted. The through end of ring gauge is the maximum size of outside diameter, while the end of ring gauge is the minimum size of outside diameter.
2. Inner diameter: press the shaft sleeve into the reference hole (H7 median tolerance) and test the shaft sleeve with cylindrical plug gauge. The through end of the plug gauge is the minimum size of the inner hole of the shaft sleeve, and the end end of the plug gauge is the maximum size of the inner hole of the shaft sleeve.The accuracy grade of the inner hole of the rolling shaft sleeve is H9.
Ring gauge and plug gauge size according to DIN1494 part.

Bushings Structure Characteristics

Metal-polymer marginal lubricating composite materials consist of metal backing sintered porous bronze with POM or PEEK polymer as working layer. Steel backing provides exceptionally high load carrying capacity, excellent heat dissipation. Sintered bronze powder provides thermal conductivity away from the bearing surface, also serves as a reservoir for the resin mixture.And the POM or PEEK polymer layer provides high wear resistance and low friction even with only minute volume of lubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.



Detailed information



Boundary lubrication lead-free bearing is improved on the basis of VSB-20. It has the same performance as the VSB-20, but the surface does not contain lead, and the field of use can be extended to areas with environmental requirements.



Steel + Bronze Powder + POM(black)



Self Lube Bearings Product Category SF-2 Boundary Lubricating Bearing



Characteristics



Boundary lubrication bearing High Quality DX Bushing POM Bush China Manufacturer

· marginally lubricated bushings for grease or oil lubricated applications

· Standard parts contain grease indents in the sliding layer; plain sliding layer available by request

· Optimum performance under relatively high loads and low speeds

· Suitable for linear, oscillating and rotating movements

· Wide range of parts available from stock

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.


WASHER SIZE CHART

WASHER SIZE CHART
  Di (mm) Do (mm) ST (mm) dD (mm) dP (mm) Ha max. (mm) Ha min. (mm)
WC08DX 10 20 1.58     1.2 0.95
WC10DX 12 24 1.58 1.75 18 1.2 0.95
WC12DX 14 26 1.58 2.25 20 1.2 0.95
WC14DX 16 30 1.58 2.25 22 1.2 0.95
WC16DX 18 32 1.58 2.25 25 1.2 0.95
WC18DX 20 36 1.58 3.25 28 1.2 0.95
WC20DX 22 38 1.58 3.25 30 1.2 0.95
WC22DX 24 42 1.58 3.25 33 1.2 0.95
WC24DX 26 44 1.58 3.25 35 1.2 0.95
WC25DX 28 48 1.58 4.25 38 1.2 0.95
WC30DX 32 54 1.58 4.25 43 1.2 0.95
WC35DX 38 62 1.58 4.25 50 1.2 0.95
WC40DX 42 66 1.58 4.25 54 1.2 0.95
WC45DX 48 74 2.6 4.25 61 1.7 1.45
WC50DX 52 78 2.6 4.25 65 1.7 1.45

Structure And Composition



1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation

· Metal-Polymer Composite Bushing Material
· Steel Back + Porous Bronze Sinter +POM with Lubrication Indents

Polymer Plain Bearings

Polymer Plain Bearings

Sliding layer POM
with or without
lubricant indents
for machining
Porous Bronze
Sinter
Steel Back





Maximum load bearing pressure

70N/mm²

Coefficient of frictionμ

0.05~0.25

Temperature range

-40℃~130℃

Allowable maximum PV value

22N/mm²·m/s

Maximum sliding speed

2.5m/s

AVAILABILITY Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs



Typical Applications



At present, the product has been applied to the occasion of imported textile equipment, the swing parts of plunger pump, the position of the car joystick, the medium speed and grease lubrication.

Also for intermittent or boundary lubrication applications such as automobile pedal assembly, balancing bushing, brake tongs, steering spindle bushing and truck tail plate bushing

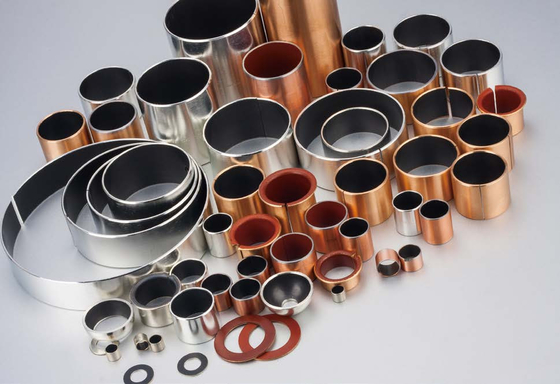

STOCK SIZE for Self Lubricating POM Bearings

plastic plain bushing
