Product Details
Meterial Weave Of PTFE/ Glass Fibers ,Stainless Steel 316 OR Carbon Steel With PTFE FABRIC Type Bushes (cylindrical),radial-bearing And Thrust-washer
Main Function Self Lubricating Bearings Construction Type Split Seam
CATALOGUE Available Groove Type Woven PTFE Fabric
Bushing Application Valves, Commercial Fire Sprinkler Systems, Mixers, Blenders, Swivels, And Extruders. Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Stainsteel Steel 316 Backed Bushings
High Light Stainless Steel Bushing Manufacturers Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

stainless steel sleeve bearing

,

stainless steel bushing sleeve

Leave a Message
Product Description

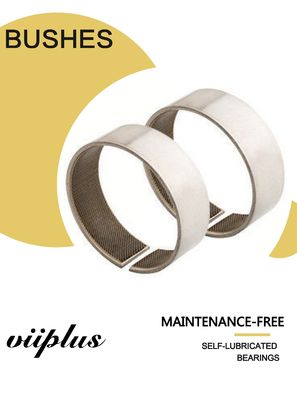

Stainless Steel Bushings, Woven glide Bushing, bushes for hydro turbine. Kevlar reinforced high performance material




Made-to-order fabric weave of PTFE/ Glass fibers tex bushing  radial-bearing & thrust-washer designs are available. Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders.Stainless steel (anti corrosive) Bushings Special manufacturinginch-sizes, special lengths Bearing - SST Metal with Kevlar Liner Shapes Self-Lubricating Bearings PTFE/Kevlar Woven Liners bushings Areas of useValve pipeline, petroleum and other chemical industry, corrosion resistant shaft sleeve and Offshore and other marine applications.The VIIPLUS SLEEVE BUSHINGS main task is to provide a complete solution with regards to oil & gas wellhead and drilling equipment on a global base.

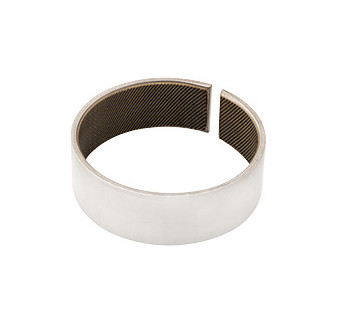

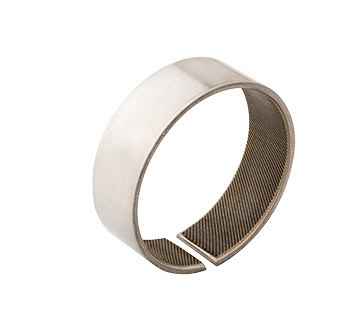

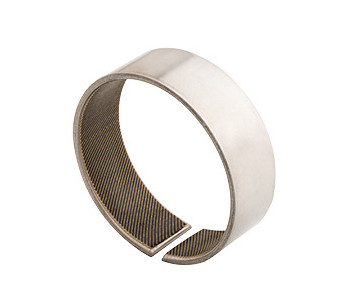

Stainless Steel Bushings
it is a self-lubricating Kevlar Liner bearing specifically suited for corrosive environments.
Bearings: Fiberglass and 316 stainless steel with TFE lining
Featuring the highest load capacity maintenance-free bearings in the Industry
Corrosive substances are present
Contamination from lubricants is not tolerated
Replacement is critical and costly
High impact loads are encountered
Bearings will be subjected to very high loads at low speed
Lubricant films cannot be maintained in the bearing area
Custom sizes are needed

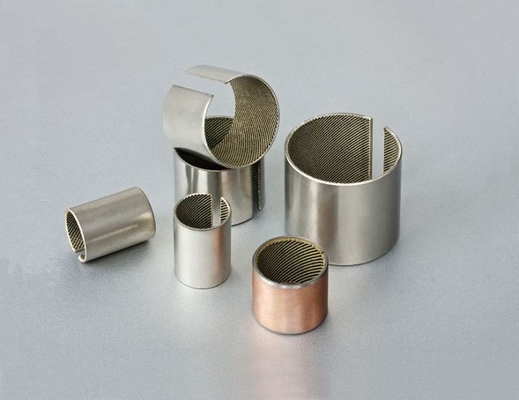

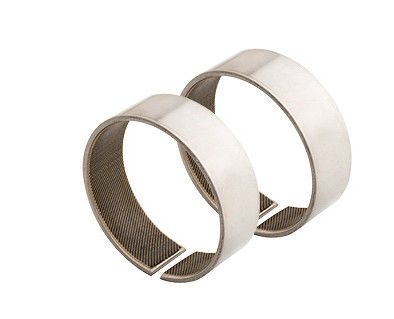

Stainless Steel Self-Lubricating Bearing

The fabric self-lubricating liner is the key factor to the performance of self-lubricating spherical bearings with heavy load, impact resistance, and long life and so on.
Woven glide bearing use the PTFE fibres fabric and aramid fiber overlay on metal backings,the fabric have very high load capacity and high accuracygood run with low speed and heavy friction superior performance,widely used in heavy equipment like construction machinery,agriculture machinery.

1. PTFE with oil fibre can protect the shaft, while machine in operation.
2. It is of low friction coefficient, good anti-wear.
3. Good running in property.
4. It fits well in motion of circumgyration, swaying and to-and-fro.
5. Good anti-corrosion.
6. It can be used in food machine, pharmaceutical etc, due to lead-free.
7. It is mainly used in the condition of strong acid and alkali, such as chemical Industry, pumps, valves etc.

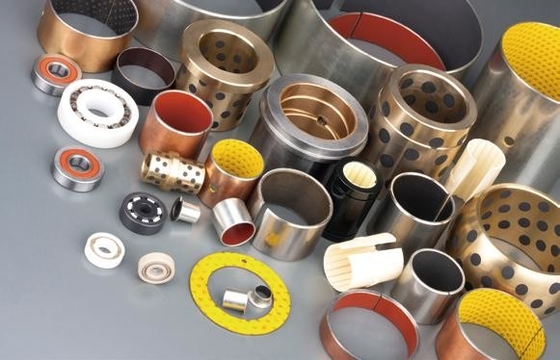

Plain Bearings and Sleeve Boccole Self-Lubricating Bearings, Valve Bush Woven Fabric Stainless Steel 316 Bushes|VSB-36

Bushes (cylindrical) Stainless Steel Bushes Plain bearing product versions  Low Friction Woven Fabric Oilless TEX Bearing
The relationship between the tribological properties of the bearing and the film-forming properties of PTFE transfer film formed by the liner was studied.There is a certain correspondence between the tribological performance of bearings and the film-forming performance of PTFE transfer film formed in the process of friction and wear, that is, the faster the formation of PTFE transfer film, the better the wear resistance and uniform continuity, and the better the tribological performance of the film formed by friction and wear.

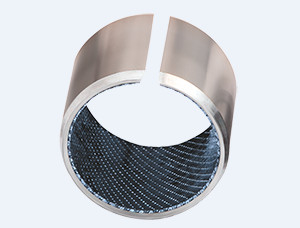

Woven Glide Bushing For Hydro Turbine

du bushing size chart


du bushing size chart
  Di (mm) Do (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance (mm) The minimum clearance (mm)
0203DU 2 3.5 3 H6 h6 2.048 2 0.054 0
0205DU 2 3.5 5 H6 h6 2.048 2 0.054 0
0303DU 3 4.5 3 H6 h6 3.048 3 0.054 0
0305DU 3 4.5 5 H6 h6 3.048 3 0.054 0
0306DU 3 4.5 6 H6 h6 3.048 3 0.054 0
0403DU 4 5.5 3 H6 h6 4.048 4 0.056 0
0404DU 4 5.5 4 H6 h6 4.048 4 0.056 0
0406DU 4 5.5 6 H6 h6 4.048 4 0.056 0
0410DU 4 5.5 10 H6 h6 4.048 4 0.056 0
0505DU 5 7 5 H7 f7 5.055 4.99 0.077 0
0508DU 5 7 8 H7 f7 5.055 4.99 0.077 0
0510DU 5 7 10 H7 f7 5.055 4.99 0.077 0
0604DU 6 8 4 H7 f7 6.055 5.99 0.077 0
0606DU 6 8 6 H7 f7 6.055 5.99 0.077 0
0608DU 6 8 8 H7 f7 6.055 5.99 0.077 0
0610DU 6 8 10 H7 f7 6.055 5.99 0.077 0
0705DU 7 9 5 H7 f7 7.055 6.99 0.083 0.003
0710DU 7 9 10 H7 f7 7.055 6.99 0.083 0.003
0806DU 8 10 6 H7 f7 8.055 7.99 0.083 0.003
0808DU 8 10 8 H7 f7 8.055 7.99 0.083 0.003
0810DU 8 10 10 H7 f7 8.055 7.99 0.083 0.003
0812DU 8 10 12 H7 f7 8.055 7.99 0.083 0.003
1006DU 10 12 6 H7 f7 10.058 9.99 0.086 0.003
1008DU 10 12 8 H7 f7 10.058 9.99 0.086 0.003
1010DU 10 12 10 H7 f7 10.058 9.99 0.086 0.003
1012DU 10 12 12 H7 f7 10.058 9.99 0.086 0.003
1015DU 10 12 15 H7 f7 10.058 9.99 0.086 0.003
1020DU 10 12 20 H7 f7 10.058 9.99 0.086 0.003
1208DU 12 14 8 H7 f7 12.058 11.99 0.092 0.006
1210DU 12 14 10 H7 f7 12.058 11.99 0.092 0.006
1212DU 12 14 12 H7 f7 12.058 11.99 0.092 0.006
1215DU 12 14 15 H7 f7 12.058 11.99 0.092 0.006
1220DU 12 14 20 H7 f7 12.058 11.99 0.092 0.006
1225DU 12 14 25 H7 f7 12.058 11.99 0.092 0.006
1310DU 13 15 10 H7 f7 13.058 12.99 0.092 0.006
1320DU 13 15 20 H7 f7 13.058 12.99 0.092 0.006
1405DU 14 16 5 H7 f7 14.058 13.99 0.092 0.006
1410DU 14 16 10 H7 f7 14.058 13.99 0.092 0.006
1412DU 14 16 12 H7 f7 14.058 13.99 0.092 0.006
1415DU 14 16 15 H7 f7 14.058 13.99 0.092 0.006
1420DU 14 16 20 H7 f7 14.058 13.99 0.092 0.006
1425DU 14 16 25 H7 f7 14.058 13.99 0.092 0.006
1510DU 15 17 10 H7 f7 15.058 14.99 0.092 0.006
1512DU 15 17 12 H7 f7 15.058 14.99 0.092 0.006
1515DU 15 17 15 H7 f7 15.058 14.99 0.092 0.006
1520DU 15 17 20 H7 f7 15.058 14.99 0.092 0.006
1525DU 15 17 25 H7 f7 15.058 14.99 0.092 0.006
1610DU 16 18 10 H7 f7 16.058 15.99 0.092 0.006
1612DU 16 18 12 H7 f7 16.058 15.99 0.092 0.006
1615DU 16 18 15 H7 f7 16.058 15.99 0.092 0.006
1620DU 16 18 20 H7 f7 16.058 15.99 0.092 0.006
1625DU 16 18 25 H7 f7 16.058 15.99 0.092 0.006
1720DU 17 19 20 H7 f7 17.061 16.99 0.095 0.006
1810DU 18 20 10 H7 f7 18.061 17.99 0.095 0.006
1815DU 18 20 15 H7 f7 18.061 17.99 0.095 0.006
1820DU 18 20 20 H7 f7 18.061 17.99 0.095 0.006
1825DU 18 20 25 H7 f7 18.061 17.99 0.095 0.006
2010DU 20 23 10 H7 f7 20.071 19.99 0.112 0.01
2015DU 20 23 15 H7 f7 20.071 19.99 0.112 0.01
2020DU 20 23 20 H7 f7 20.071 19.99 0.112 0.01
2025DU 20 23 25 H7 f7 20.071 19.99 0.112 0.01
2030DU 20 23 30 H7 f7 20.071 19.99 0.112 0.01
2215DU 22 25 15 H7 f7 22.071 21.99 0.112 0.01
2220DU 22 25 20 H7 f7 22.071 21.99 0.112 0.01
2225DU 22 25 25 H7 f7 22.071 21.99 0.112 0.01
2230DU 22 25 30 H7 f7 22.071 21.99 0.112 0.01
2415DU 24 27 15 H7 f7 24.071 23.99 0.112 0.01
2420DU 24 27 20 H7 f7 24.071 23.99 0.112 0.01
2425DU 24 27 25 H7 f7 24.071 23.99 0.112 0.01
2430DU 24 27 30 H7 f7 24.071 23.99 0.112 0.01
2515DU 25 28 15 H7 f7 25.071 24.99 0.112 0.01
2520DU 25 28 20 H7 f7 25.071 24.99 0.112 0.01
2525DU 25 28 25 H7 f7 25.071 24.99 0.112 0.01
2530DU 25 28 30 H7 f7 25.071 24.99 0.112 0.01
2550DU 25 28 50 H7 f7 25.071 24.99 0.112 0.01
2815DU 28 32 15 H7 f7 28.085 27.99 0.126 0.01
2820DU 28 32 20 H7 f7 28.085 27.99 0.126 0.01
2825DU 28 32 25 H7 f7 28.085 27.99 0.126 0.01
2830DU 28 32 30 H7 f7 28.085 27.99 0.126 0.01
3010DU 30 34 10 H7 f7 30.085 29.99 0.126 0.01
3015DU 30 34 15 H7 f7 30.085 29.99 0.126 0.01
3020DU 30 34 20 H7 f7 30.085 29.99 0.126 0.01
3025DU 30 34 25 H7 f7 30.085 29.99 0.126 0.01
3030DU 30 34 30 H7 f7 30.085 29.99 0.126 0.01
3040DU 30 34 40 H7 f7 30.085 29.99 0.126 0.01
3220DU 32 36 20 H7 f7 32.085 31.99 0.135 0.015
3230DU 32 36 30 H7 f7 32.085 31.99 0.135 0.015
3240DU 32 36 40 H7 f7 32.085 31.99 0.135 0.015
3520DU 35 39 20 H7 f7 35.085 34.99 0.135 0.015
3530DU 35 39 30 H7 f7 35.085 34.99 0.135 0.015
3535DU 35 39 35 H7 f7 35.085 34.99 0.135 0.015
3540DU 35 39 40 H7 f7 35.085 34.99 0.135 0.015
3550DU 35 39 50 H7 f7 35.085 34.99 0.135 0.015
3720DU 37 41 20 H7 f7 37.085 36.99 0.135 0.015
4020DU 40 44 20 H7 f7 40.085 39.99 0.135 0.015
4030DU 40 44 30 H7 f7 40.085 39.99 0.135 0.015
4040DU 40 44 40 H7 f7 40.085 39.99 0.135 0.015
4050DU 40 44 50 H7 f7 40.085 39.99 0.135 0.015
4520DU 45 50 20 H7 f7 45.105 44.99 0.155 0.015
4530DU 45 50 30 H7 f7 45.105 44.99 0.155 0.015
4540DU 45 50 40 H7 f7 45.105 44.99 0.155 0.015
4545DU 45 50 45 H7 f7 45.105 44.99 0.155 0.015
4550DU 45 50 50 H7 f7 45.105 44.99 0.155 0.015
5020DU 50 55 20 H7 f7 50.11 49.99 0.16 0.015
5030DU 50 55 30 H7 f7 50.11 49.99 0.16 0.015
5040DU 50 55 40 H7 f7 50.11 49.99 0.16 0.015
5050DU 50 55 50 H7 f7 50.11 49.99 0.16 0.015
5060DU 50 55 60 H7 f7 50.11 49.99 0.16 0.015
5520DU 55 60 20 H7 f7 55.11 54.99 0.17 0.02
5525DU 55 60 25 H7 f7 55.11 54.99 0.17 0.02
5530DU 55 60 30 H7 f7 55.11 54.99 0.17 0.02
5540DU 55 60 40 H7 f7 55.11 54.99 0.17 0.02
5550DU 55 60 50 H7 f7 55.11 54.99 0.17 0.02
5555DU 55 60 55 H7 f7 55.11 54.99 0.17 0.02
5560DU 55 60 60 H7 f7 55.11 54.99 0.17 0.02
6020DU 60 65 20 H7 f7 60.11 59.99 0.17 0.02
6030DU 60 65 30 H7 f7 60.11 59.99 0.17 0.02
6040DU 60 65 40 H7 f7 60.11 59.99 0.17 0.02
6050DU 60 65 50 H7 f7 60.11 59.99 0.17 0.02
6060DU 60 65 60 H7 f7 60.11 59.99 0.17 0.02
6070DU 60 65 70 H7 f7 60.11 59.99 0.17 0.02
6530DU 65 70 30 H7 f7 65.11 64.99 0.17 0.02
6550DU 65 70 50 H7 f7 65.11 64.99 0.17 0.02
6570DU 65 70 70 H7 f7 65.11 64.99 0.17 0.02
7040DU 70 75 40 H7 f7 70.11 69.99 0.17 0.02
7050DU 70 75 50 H7 f7 70.11 69.99 0.17 0.02
7070DU 70 75 70 H7 f7 70.11 69.99 0.17 0.02
7560DU 75 80 60 H7 f7 75.11 74.99 0.17 0.02
7580DU 75 80 80 H7 f7 75.11 74.99 0.17 0.02
8040DU 80 85 40 H7 h8 80.155 80.02 0.201 0.02
8060DU 80 85 60 H7 h8 80.155 80.02 0.201 0.02
8080DU 80 85 80 H7 h8 80.155 80.02 0.201 0.02
80100DU 80 85 100 H7 h8 80.155 80.02 0.201 0.02
8530DU 85 90 30 H7 h8 85.155 85.02 0.209 0.02
8560DU 85 90 60 H7 h8 85.155 85.02 0.209 0.02
85100DU 85 90 100 H7 h8 85.155 85.02 0.209 0.02
9060DU 90 95 60 H7 h8 90.155 90.02 0.209 0.02
90100DU 90 95 100 H7 h8 90.155 90.02 0.209 0.02
9560DU 95 100 60 H7 h8 95.155 95.02 0.209 0.02
95100DU 95 100 100 H7 h8 95.155 95.02 0.209 0.02
10050DU 100 105 50 H7 h8 100.155 100.02 0.209 0.02
10060DU 100 105 60 H7 h8 100.155 100.02 0.209 0.02
100115DU 100 105 115 H7 h8 100.155 100.02 0.209 0.02
10560DU 105 110 60 H7 h8 105.155 105.02 0.209 0.02
105115DU 105 110 115 H7 h8 105.155 105.02 0.209 0.02
11060DU 110 115 60 H7 h8 110.155 110.02 0.209 0.02
110115DU 110 115 115 H7 h8 110.155 110.02 0.209 0.02
11550DU 115 120 50 H7 h8 115.155 115.02 0.209 0.02
11570DU 115 120 70 H7 h8 115.155 115.02 0.209 0.02
12050DU 120 125 50 H7 h8 120.21 120.07 0.264 0.07
12060DU 120 125 60 H7 h8 120.21 120.07 0.264 0.07
120100DU 120 125 100 H7 h8 120.21 120.07 0.264 0.07
125100DU 125 130 100 H7 h8 125.21 125.07 0.273 0.07
13060DU 130 135 60 H7 h8 130.21 130.07 0.273 0.07
130100DU 130 135 100 H7 h8 130.21 130.07 0.273 0.07
13560DU 135 140 60 H7 h8 135.21 135.07 0.273 0.07
13580DU 135 140 80 H7 h8 135.21 135.07 0.273 0.07
14060DU 140 145 60 H7 h8 140.21 140.07 0.273 0.07
140100DU 140 145 100 H7 h8 140.21 140.07 0.273 0.07
15060DU 150 155 60 H7 h8 150.21 150.07 0.273 0.07
15080DU 150 155 80 H7 h8 150.21 150.07 0.273 0.07
150100DU 150 155 100 H7 h8 150.21 150.07 0.273 0.07
16080DU 160 165 80 H7 h8 160.21 160.07 0.273 0.07
160100DU 160 165 100 H7 h8 160.21 160.07 0.273 0.07
180100DU 180 185 100 H7 h8 180.216 180.07 0.279 0.07
200100DU 200 205 100 H7 h8 200.216 200.07 0.288 0.07
210100DU 210 215 100 H7 h8 210.216 210.07 0.288 0.07
220100DU 220 225 100 H7 h8 220.216 220.07 0.288 0.07
250100DU 250 255 100 H7 h8 250.222 250.07 0.294 0.07
300100DU 300 305 100 H7 h8 300.222 300.07 0.303 0.07

TEX Bushing Customized Bushing Fiber Bush

Plain Bearings and Sleeve Bearings Self-Lubricating Bearings, Liner Type Non-Metallic woven Stainless Steel 316 with PTFE fabric .Stainless steel 316 and steel-base polytetrafluoroethylene aramid fiber braid bearings are self-lubricating materials with wear-resistant fibers as the main surface material.The product has low friction coefficient, good bearing capacity, abrasion resistance and self-lubrication performance, mainly used in various high-grade valves and go-kart.Metal composite bearing base fabric is based on steel substrate, the surface adhesion of ptfe ethylene fiber and aramid fiber woven fabric, after rolling processing into a collar or stamping processing into a variety of forms such as gasket. The product has the characteristics of high precision, high load bearing pressure and excellent low speed and heavy friction performance. It can be widely used in heavy load equipment such as engineering machinery and agriculture and forestry machinery.

Characteristics
Bushing slide bearing bushings, oilless plain bearing Stainless Steel316+PTFE/FABRIC

Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.
VSB-36 Bushing Stainless Steel316+PTFE/FABRIC
is of oil resistant, acid resistant, alkali resistant and seawater resistant, more over, there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery, alkali flow meters, pumps motion elements in pharmaceutical machines, printing machines chemical engineering machines and other ocean industry. The bushing is a triple layers composites one, the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.

Strusture

1,This new material use the PTFE fibres fabric overlay on metal backings
2,The fabric has very high load capacity and much longer operating life compared with conventional 3-layer bushes.
3,The metal can be Carbon steel , Stainless steel, Bronze etc.

Features:

1,Suitable for rotary and oscillating movement, lower maintenance requirements due to the long re-lubrication intervals.

2,Lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling ,good damping behaviours, good resistance to shock loads.

3,Much long service life under lower speed with high load.


Application:



Now this product has been used like suspension and auxiliary of agriculture and construction machines,cranes and hydraulic and mechani

Technical DataStainless Steel Bushings

Max. load

Static

350N/mm2

Dynamic

180N/mm2

Max. speed

Dry

0.5m/s

Lubrication

>1m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-50℃~+250℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1













Availability

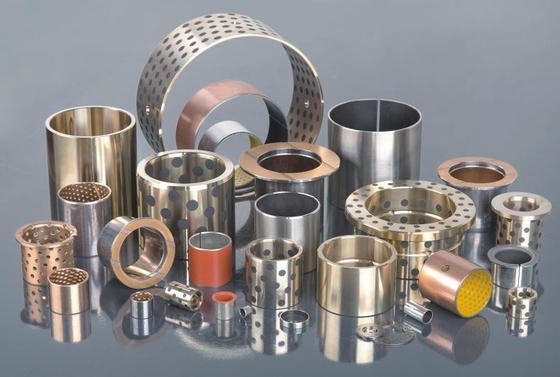

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Basic advantages of Stainless Steel 316 fabric bushings



Advantages


Have a higher carrying capacity.
High-temperature.
Longer life.

Typical Applications

VIIPLUS bearing is a leading self-lubricating bearing manufacturer and supplier in China. We are highly proficient in the production of various self-lubricating bearings, bushes, and the sliding blocks, etc. Our main product catalogue now includes the oilless self-lubricating bearing, composite bearing, copper bearing, wrapped bronze bearing, bimetallic bearing, thermoplastic bushes, and more. All our products are characterized by reliable performance and low price. They are very popular and widely applicable in different industries including the automobile, machine tools, moulds, metallurgical machinery, mining machinery, textile machinery, hoisting machinery, construction machinery, printing machines, irrigation machinery, injection molding machines, food machinery, ports, marine machinery, and the agricultural and forestry machinery, etc.
Low friction woven fabric oilless bearing VSB-36 TEX is widely used in high temperature production lines, construction machinery, automobile chassis parts, ball valves, butterfly valves, pumps and chemical industries and high-speed trains and other heavy low and cannot refuel occasion etc.
Metric Sized Journal Bearings
Packaging & Delivery
Packaging Details:CARTON or PALLET
Port:SHANGHAI,NINGBO,ETC.

Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings

VIIPLUS SLDING Bearings for offshore platforms and oil & gas industry | VIIPLUS Bearings
