Bimetal Bearings Steel shell backed with a lead bronze lining bearing material for oil lubricated applications

Place of Origin Bimetal Bearing Manufacturers
Brand Name bimetal SAE-797 SAE 48 SAE-799 bushings
Certification Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Model Number JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings
Minimum Order Quantity 800 Piece/Pieces (Min. Order)
Price $0.20 - $2.00 / Pieces ,Negotiable
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms TT IN ADVANCE Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuSn10Pb10) Plating Tin Plating, Cooper Plating
Type Bushes,Wrapped Bushes With Flange,Strips Application Gear Box
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

OEM Swing Arm Steel Bush Metal Bronze Bushing Customized Bimetal Bushing Bearing Bushes Auto Chassis Parts




Bimetal bearing bushes lead free bimetal bearing,with low carbon steel as base material,sintered with CuSn6.5P0.1 alloy layer.It is of good performance in anti-fatigue,anti-load,and sliding performance.For many working conditions,it can be substitution of bimetal bushings with lead or bronze bushings.

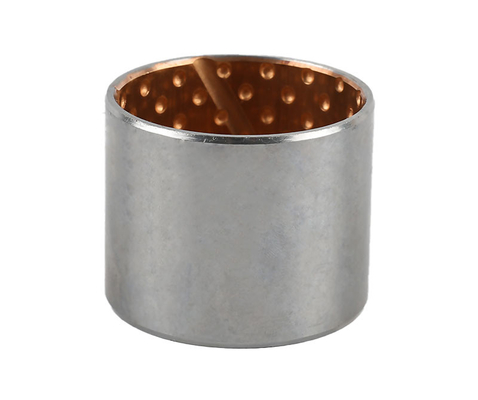

Bimetal-bearing is a bimetal bearing, wrapped of steel sheets with a layer of lead bronze.
The standard sizes are fitted with lubrication indents on the running surface. For standard bearings is normally the steel backing copper plated to improve the corrosion resistance. The layer of lead bronze makes it possible to use these bearings with relative long lubrication intervals.
Bimetal-bearings can be manufactured with a thicker lead bronze layer for applications where the bearing has to be machined after mounting. The material of the layer can be fitted to the special needs for the application in question.

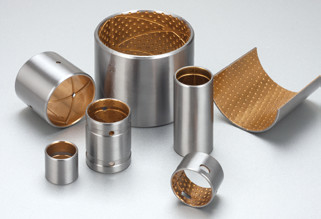

Bimetal Bearing Bushes


Bimetal Bearings Feature

  • Rather high load capacity
  • Possibility to machine the inside diameter after mounting
  • High level thermal conductivity

Plain Bimetal Bearings Strips, Slide Paths Sliding Plate Bimetallic Strip Materia Bimetal Bushing For Trunion Shaft,King Pin,Poston Pin,Connecting Rod,Rocker Arm,Leaf Spring,Cam Shaft,Crank Shaft,Track Roller,Carrier Roller,Idler Etc.


Advantages


Bimetal Bearings Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties, it is widely used in automotive applications such as compressors.Bimetal bearing is one of the bearings without oil lubrication, the product is based on high quality low carbon steel back as the matrix, the surface sintered lead tin bronze alloy, after several high temperature sintering and dense rolling into copper, steel integrated bimetal strip.The product has the advantages of high bonding strength, large bearing capacity and good wear resistance.Especially suitable for medium speed medium load and low bronze rolling bearing high speed and other occasions.Through special technological means, various oil groove, oil hole and oil hole can be processed on the friction surface to adapt to the use of different lubrication conditions from the bimetal bearing.Products have been widely used in automotive engines, chassis, motorcycle clutch, gear pump friction plate and lifting equipment and other fields.

Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties, it is widely used in automotive applications such as compressors For Transmission Gear Box


Characteristics


VSB-80 Bimetallic composite bearings
Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.
· Bimetal bearing with steel backing and bronze overlay
· Particularly suitable for high specific loads with oscillating motion and low frequency
· Applicable in rough operation conditions
· High load capacity, very good resistance to fatigue strength at higher temperatures


Strusture


1.Sintered bronze lazer: Good wear resistance and excellent load carrying capacity.
2.Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.


Technical Data


Steel Backing and Leaded Bronze Overlay
bushing application

Steel + CuPb10Sn10 with indents

Microsection

Bimetal Bearings Steel shell backed with a lead bronze lining bearing material for oil lubricated applications 2

Sliding layer with
lubrication indents
CuPb10Sn10 with
composition approx.:
Cu 80 %
Pb 10 %
Sn 10 %
Steel backing




OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Very Good

Water lubricated

Poor

Process fluid lubricated

Poor

BEARING PROPERTIES

GENERAL



Unit

Value

Maximum load, p

Static
Dynamic

N/mm2
N/mm2

120
40

Operating temperature

Min
Max greased
Max oil lubricated

°C
°C
°C

- 40
150
250



GREASE / OIL LUBRICATED







Maximum sliding speed,



m/s

2.0









Coefficient of friction





0.08 – 0.20





Microsection

Content

Cu

Pb

Sn

Zn

P

Fe

Ni

Sb

Others

Remainder

9-11

9-11

0.5

0.1

0.7

0.5

0.2

0.5

Availability

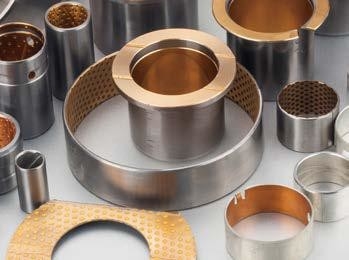

Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
Bearing forms made to order: cylindrical bushes and thrust washers with non-standard dimensions, sliding plates, customized bearing designs


Typical Applications

This material is recommended to be used under the medium speed and medium load condition with oil or grease lubricating. It is widely used for motor rod ends, Kingpin bushing, undercarriage rollers, hydraulic cylinder rod eyes of construction machines and spherical joint bearings of agricultural machines. Because this material is with lead, the specific parts are not allowed to be used according to certain laws or regulations.

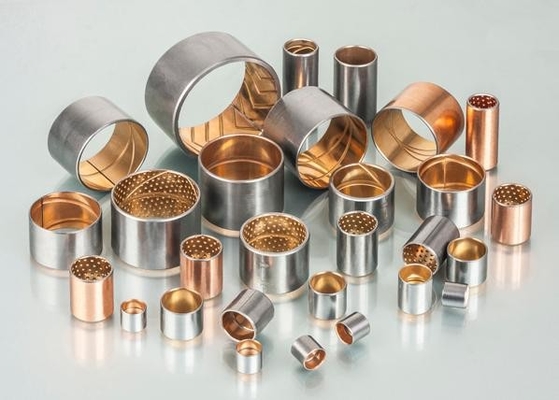

Bimetal Bushing Size
